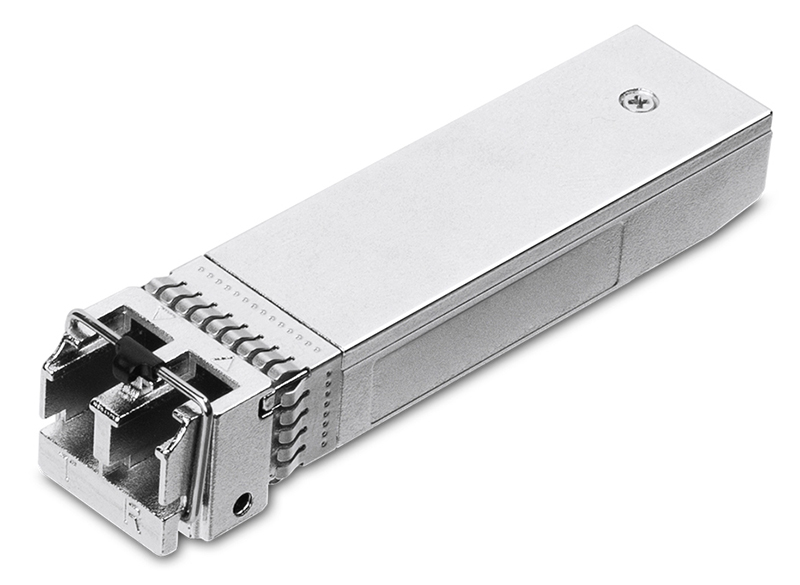

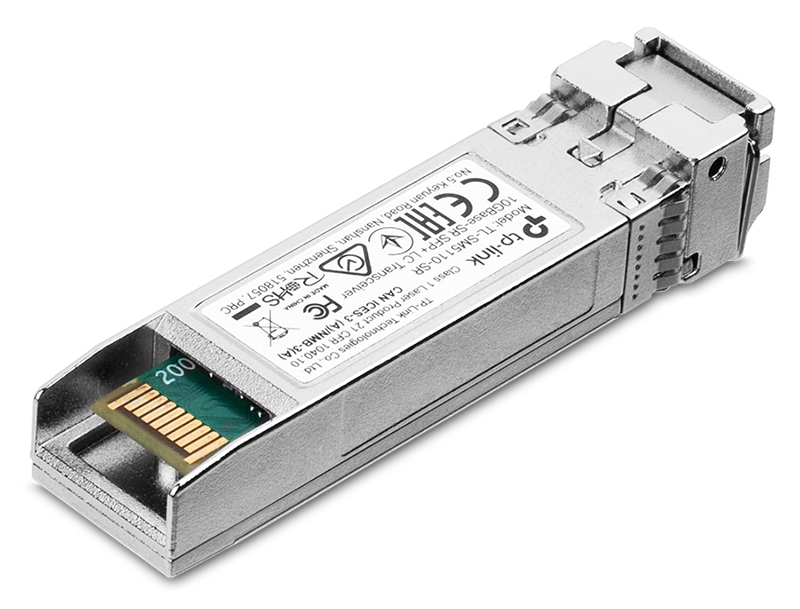

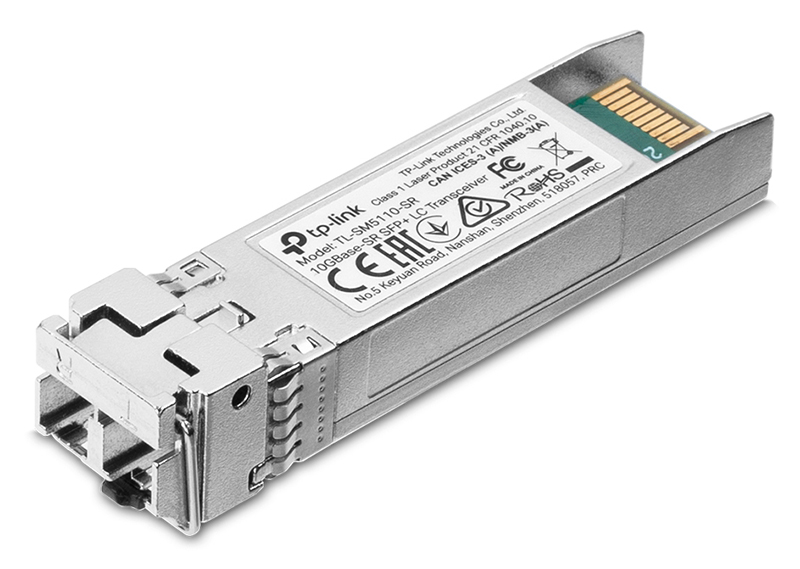

TP-Link TL-SM5110-SR 10Gbase-SR SFP+ LC Transceiver

The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Key Features of TP-Link SM5110-SR

• Multi-mode SFP+ LC Transceiver
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
• Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

Compatibility and Monitoring

The transceiver is compliant with SFP+ MSA standards, making it compatible with a variety of SFP+ ports. With built-in Digital Diagnostic Monitoring, users can monitor temperature, voltage, and optical output for proactive network management.

Durability and Operation

Operating in temperatures from 0-70 °C and humidity up to 90% non-condensing, this module is suitable for standard data centre environments. Its hot-swappable design allows for easy installation and maintenance without disrupting network operation.
