TP-Link TL-SG2016P JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+

The TL-SG2016P is a 16-port Gigabit Smart Switch, integrating 8 PoE+ ports and robust security measures, seamlessly managed through Omada SDN for enhanced performance and efficiency.

Features

• 120 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 120 W*

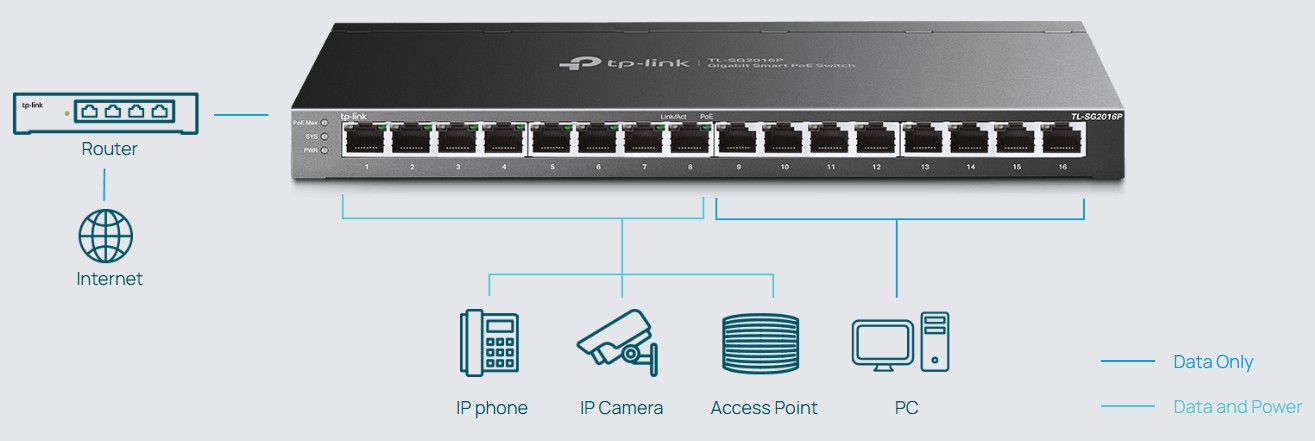

• Full Gigabit Ports: 8× gigabit PoE+ ports and 8× gigabit non-PoE ports provide high-speed connections
• Integrated into Omada SDN: Zero-Touch Provisioning**, Centralized Cloud Management, and Intelligent Monitoring
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping

What's in the box

• TL-SG2016P
• Power Adapter
• Installation Guide
• Rubber Feet

Specifications

• Interface:
  • 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)
  • Auto-Negotiation/Auto MDI/MDIX
• Fan Quantity: Fanless
• Power Supply: External Power Adapter (Output: 53.5 VDC/ 1.31 A)
• Dimensions: 11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)
• Mounting: Desktop/Wall-Mounting
• Power Consumption: 146.5 W (110 V/60 Hz) (with 120 W PD connected)
• Performance:
  • Bandwidth/Backplane: 16 Gbps
  • MAC Address Table: 8k
  • Packet Buffer Memory: 4.1 Mbit
  • Jumbo Frame: 9 KB
• Managed Features:
  • Quality of Service
  • L2 and L2+ Features
  • L2 Multicast
  • Advanced Features
  • IPv6 Support
  • VLAN
  • Access Control List
  • Security
  • MIBs
• Management:
  • Omada App
  • Centralized Management
  • Cloud Access
  • Zero-Touch Provisioning
  • Management Features
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

*For complete specification see the documentation tab above
