| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | TPSG6654XHP |
| Manufacturer No: | SG6654XHP |
| Delivery: | In Stock: 7-10 Days |
 |
Omada SG6654XHP, an advanced L3 managed PoE+ switch, is crafted for convergence layer requirements with features like L3 routing, rapid 10 Gbps wired connectivity, stacking, and redundant power supplies. It offers an impressive 1440 W PoE budget,* 48× gigabit RJ45 PoE+ ports, 6× 10 Gbps SFP+ slots, and physical stacking. Combined with centralized management, strong security, and comprehensive management features, SG6654XHP is an ideal, reliable network solution for SMBs, enterprises, and ISPs.
48× IEEE 802.3at/af-compliant PoE ports supply up to 1440 W total power to 802.3at and 802.3af devices, with each port supplying up to 30 W power. Deploy wireless access points, surveillance cameras, IP phones, and other PoE devices quickly without the need for additional power cabling. Perpetual PoE maintains power to connected devices during switch reboots, while fast PoE preserves power settings across reboots.
48 gigabit RJ45 ports and 6 × 10 Gbps SFP+ slots deliver up to 216 Gbps switching capacity per unit. Support for physical stacking of up to four units increases total switching capacity to 864 Gbps, providing built-in redundancy and consistent performance for demanding network environments.
Supports a comprehensive set of Layer 3 routing features, including Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay. PIM-DM multicast routing enables efficient data delivery for multicast traffic across the network.

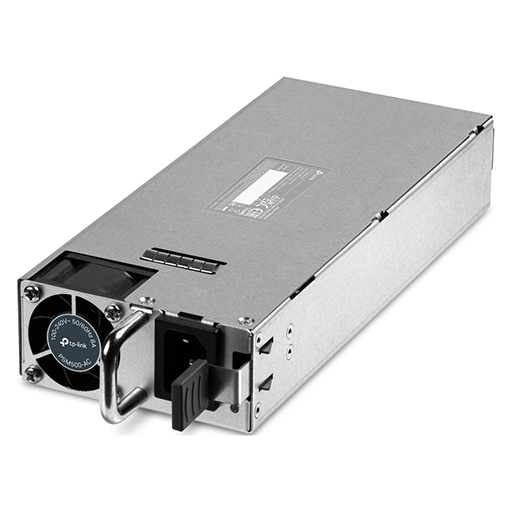

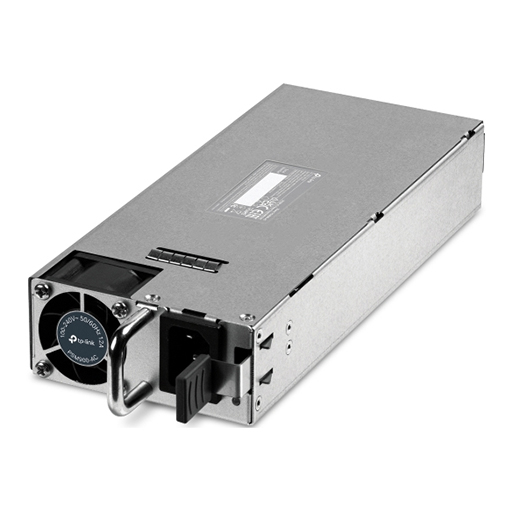

Optional field-replaceable and hot-swappable redundant power supplies combined with VRRP support create a dependable networking architecture. ERPS ensures fast protection and recovery in ring topologies, minimizing service disruption.
Protects against a wide range of network threats with support for ACLs (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell for secure device and user authentication.
Seamless integration with the Omada Software Defined Networking platform enables centralized cloud management and features such as Zero-Touch Provisioning. Network devices including access points, switches, and routers can be managed from a single interface for consistent configuration and monitoring.
In addition to cloud management via the Omada app or web interface, SG6654XHP can be managed through an intuitive web-based GUI or an industry-standard CLI. All management traffic is secured with SSL or SSH encryption, while SNMP (v1/v2c/v3) and RMON provide detailed monitoring and event notifications.
Omada SG6654XHP, an advanced L3 managed PoE+ switch, is crafted for convergence layer requirements with features like L3 routing, rapid 10 Gbps wired connectivity, stacking, and redundant power supplies. It offers an impressive 1440 W PoE budget,* 48× gigabit RJ45 PoE+ ports, 6× 10 Gbps SFP+ slots, and physical stacking. Combined with centralized management, strong security, and comprehensive management features, SG6654XHP is an ideal, reliable network solution for SMBs, enterprises, and ISPs.
48× IEEE 802.3at/af-compliant PoE ports supply up to 1440 W total power to 802.3at and 802.3af devices, with each port supplying up to 30 W power. Deploy wireless access points, surveillance cameras, IP phones, and other PoE devices quickly without the need for additional power cabling. Perpetual PoE maintains power to connected devices during switch reboots, while fast PoE preserves power settings across reboots.
48 gigabit RJ45 ports and 6 × 10 Gbps SFP+ slots deliver up to 216 Gbps switching capacity per unit. Support for physical stacking of up to four units increases total switching capacity to 864 Gbps, providing built-in redundancy and consistent performance for demanding network environments.
Supports a comprehensive set of Layer 3 routing features, including Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay. PIM-DM multicast routing enables efficient data delivery for multicast traffic across the network.
Optional field-replaceable and hot-swappable redundant power supplies combined with VRRP support create a dependable networking architecture. ERPS ensures fast protection and recovery in ring topologies, minimizing service disruption.
Protects against a wide range of network threats with support for ACLs (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell for secure device and user authentication.
Seamless integration with the Omada Software Defined Networking platform enables centralized cloud management and features such as Zero-Touch Provisioning. Network devices including access points, switches, and routers can be managed from a single interface for consistent configuration and monitoring.
In addition to cloud management via the Omada app or web interface, SG6654XHP can be managed through an intuitive web-based GUI or an industry-standard CLI. All management traffic is secured with SSL or SSH encryption, while SNMP (v1/v2c/v3) and RMON provide detailed monitoring and event notifications.
