The TP-Link SG3218XP-M2 Omada Managed Switch is built for modern multi-gigabit networks that demand higher bandwidth, flexible power delivery, and centralized control. With a combination of 2.5G PoE+ ports and 10G SFP+ uplinks, it is well suited for supporting WiFi 7/6E/6 access points, high-speed workstations, and aggregation links, all while keeping management streamlined through the Omada platform.
Featuring eight PoE+ 2.5G ports, the switch supports future network expansion and smooth deployment, delivering ample bandwidth for WiFi 7/6E/6 access points. A single Ethernet cable handles both data and power delivery, with up to a 250 W total PoE power budget*, allowing flexible installation across a wide range of environments.
Two 10 Gbps SFP+ slots deliver non-blocking switching performance and ultra-low latency, making it easy to build fast, dependable connections to servers and aggregation switches.

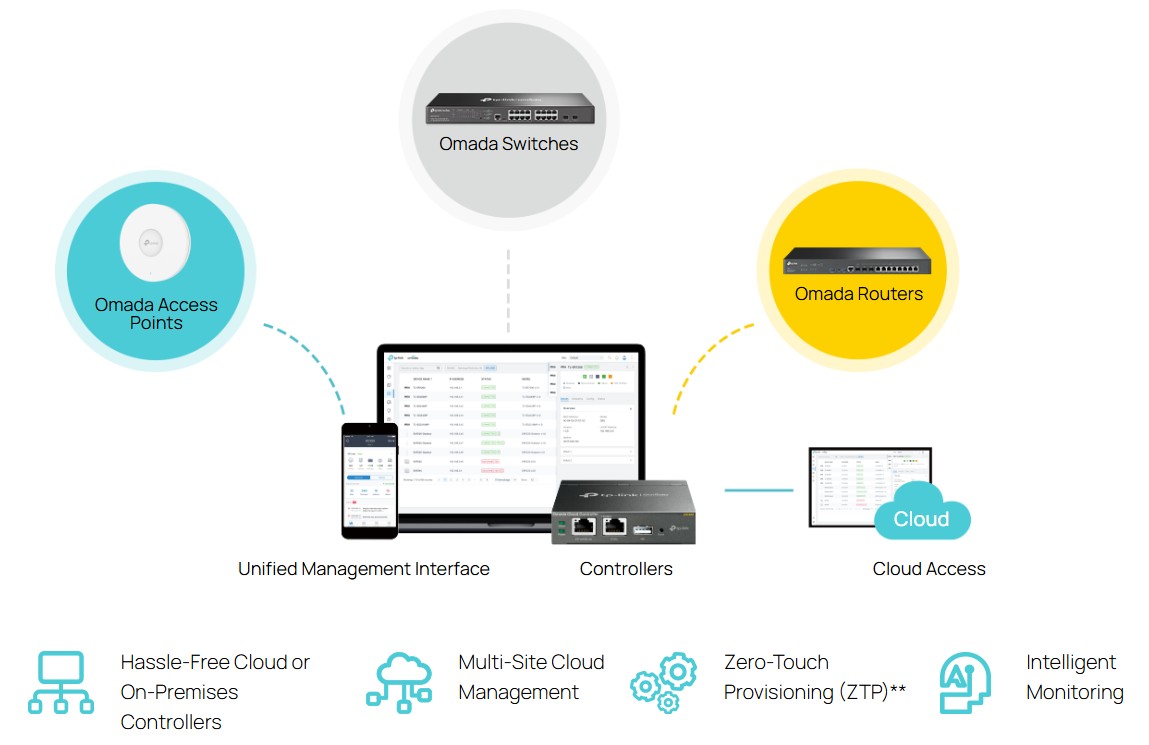

Omada's Software Defined Networking (SDN) platform brings access points, switches, and gateways together under fully centralized cloud management. The entire network is controlled through a single interface, delivering seamless wired and wireless connectivity for hospitality, education, retail, offices, and similar deployments.
A wide range of L2+ and L3 capabilities are supported to help build scalable and dependable networks, offering efficient traffic handling for demanding business, campus, and service provider environments.
Security mechanisms include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to guard against multiple threat types. Built-in protection against common DoS attacks simplifies prevention, while L2 to L4 Access Control Lists restrict access based on MAC addresses, IP addresses, ports, or VLAN IDs. Network access control is further reinforced through 802.1X authentication with RADIUS or Tacacs+ servers.
A full set of L2+ features is available, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping forwards multicast traffic only where required, while IGMP throttling and filtering help prevent unauthorized access. Static Routing allows efficient internal traffic routing and simple network segmentation.
Voice and video traffic can be prioritized using IP addresses, MAC addresses, and TCP or UDP port numbers. With Quality of Service controls in place, time-sensitive applications remain stable even during periods of limited bandwidth.
Designed with service providers in mind, the switch supports QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. Monitoring and troubleshooting are simplified through 802.3ah OAM and Device Link Detection Protocol (DLDP).
Comprehensive IPv6 support includes Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path MTU Discovery, and IPv6 Neighbor Discovery, ensuring readiness for next-generation networks without requiring hardware upgrades.
The TP-Link SG3218XP-M2 Omada Managed Switch is built for modern multi-gigabit networks that demand higher bandwidth, flexible power delivery, and centralized control. With a combination of 2.5G PoE+ ports and 10G SFP+ uplinks, it is well suited for supporting WiFi 7/6E/6 access points, high-speed workstations, and aggregation links, all while keeping management streamlined through the Omada platform.
Featuring eight PoE+ 2.5G ports, the switch supports future network expansion and smooth deployment, delivering ample bandwidth for WiFi 7/6E/6 access points. A single Ethernet cable handles both data and power delivery, with up to a 250 W total PoE power budget*, allowing flexible installation across a wide range of environments.
Two 10 Gbps SFP+ slots deliver non-blocking switching performance and ultra-low latency, making it easy to build fast, dependable connections to servers and aggregation switches.
Omada's Software Defined Networking (SDN) platform brings access points, switches, and gateways together under fully centralized cloud management. The entire network is controlled through a single interface, delivering seamless wired and wireless connectivity for hospitality, education, retail, offices, and similar deployments.
A wide range of L2+ and L3 capabilities are supported to help build scalable and dependable networks, offering efficient traffic handling for demanding business, campus, and service provider environments.
Security mechanisms include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to guard against multiple threat types. Built-in protection against common DoS attacks simplifies prevention, while L2 to L4 Access Control Lists restrict access based on MAC addresses, IP addresses, ports, or VLAN IDs. Network access control is further reinforced through 802.1X authentication with RADIUS or Tacacs+ servers.
A full set of L2+ features is available, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping forwards multicast traffic only where required, while IGMP throttling and filtering help prevent unauthorized access. Static Routing allows efficient internal traffic routing and simple network segmentation.
Voice and video traffic can be prioritized using IP addresses, MAC addresses, and TCP or UDP port numbers. With Quality of Service controls in place, time-sensitive applications remain stable even during periods of limited bandwidth.
Designed with service providers in mind, the switch supports QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. Monitoring and troubleshooting are simplified through 802.3ah OAM and Device Link Detection Protocol (DLDP).
Comprehensive IPv6 support includes Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path MTU Discovery, and IPv6 Neighbor Discovery, ensuring readiness for next-generation networks without requiring hardware upgrades.
