TP-Link LS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+

The LS105GP is a high-performance 5-Port Gigabit Desktop Switch equipped with 4 PoE+ ports, delivering seamless connectivity and power to IP cameras, access points, and IP phones. Its plug-and-play functionality, silent operation, and extended PoE transmission up to 250m make it an ideal choice for reliable surveillance deployment.

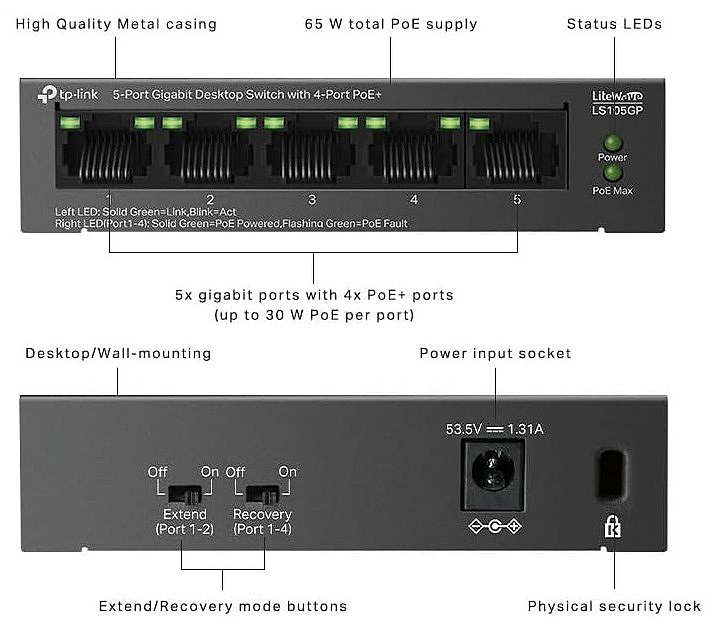

Features

• Full Gigabit Ports: Five gigabit auto-negotiation ports provide up to 10 Gbps switching capacity.
• 65 W PoE Budget: Four gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*

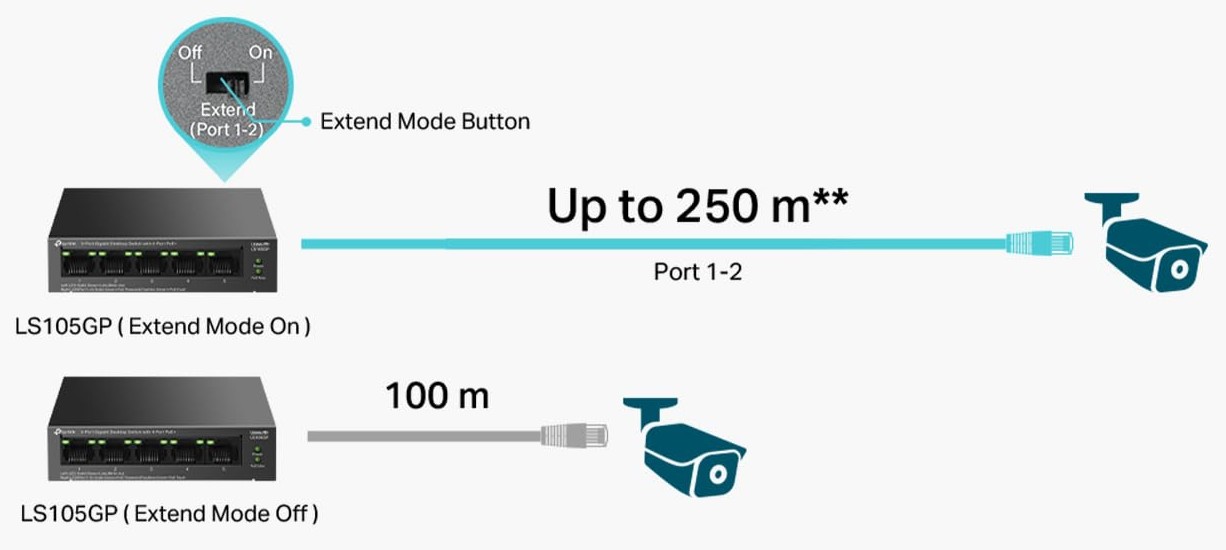

• Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
• Plug and Play: Simply plug and play for instant connectivity with no configuration required.
• Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
• Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

What's in the box

• LS105GP
• Power Adapter
• Installation Guide

Specifications

• Interface:
  • 5× 10/100/1000Mbps RJ45 Ports (Ports 1–4 supports 802.3af/at PoE+)
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Fan Quantity: Fanless
• Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
• Dimensions: 3.9×3.9×1.0 in (99.8×98×25 mm)
• Mounting:
  • Desktop
  • Wall Mounting
• Power Consumption:
  • 4 W (220/50 Hz. no PD connected)
  • 74.46 W (220/50 Hz. with 65 W PD connected)
• Performance:
  • Switching Capacity: 10 Gbps
  • Packet Forwarding Rate: 7.44 Mpps
  • MAC Address Table: 2K
  • Jumbo Frame: 16 KB
• Advanced Features:

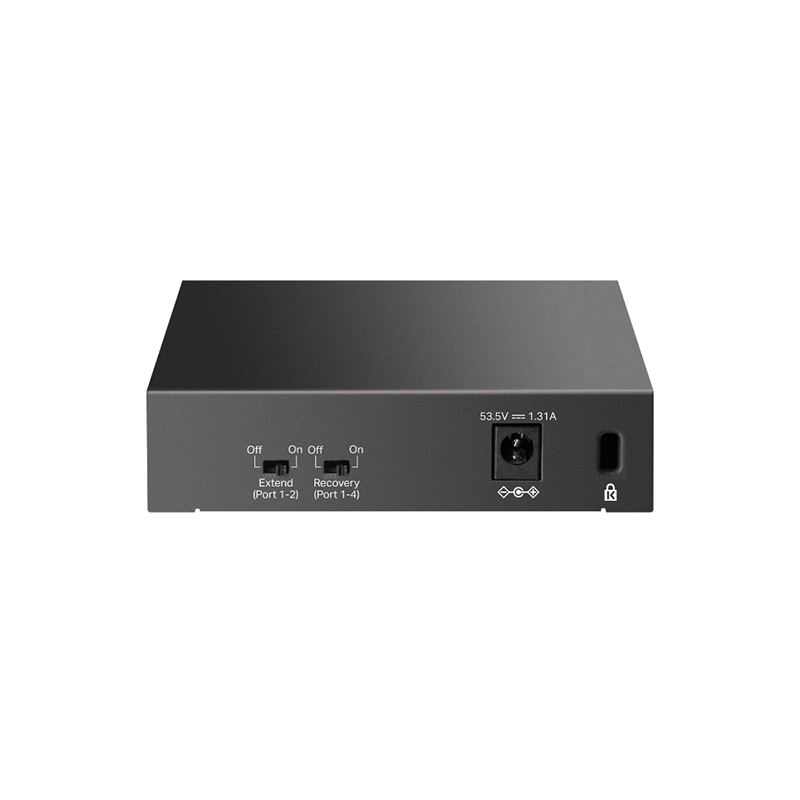

  • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
  • PoE Auto Recovery Button (Ports 1-4)
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping
  • Green Technology
• Management: Store-And-Forward
• System Requirements: N/A

*For complete specification see the documentation tab above
