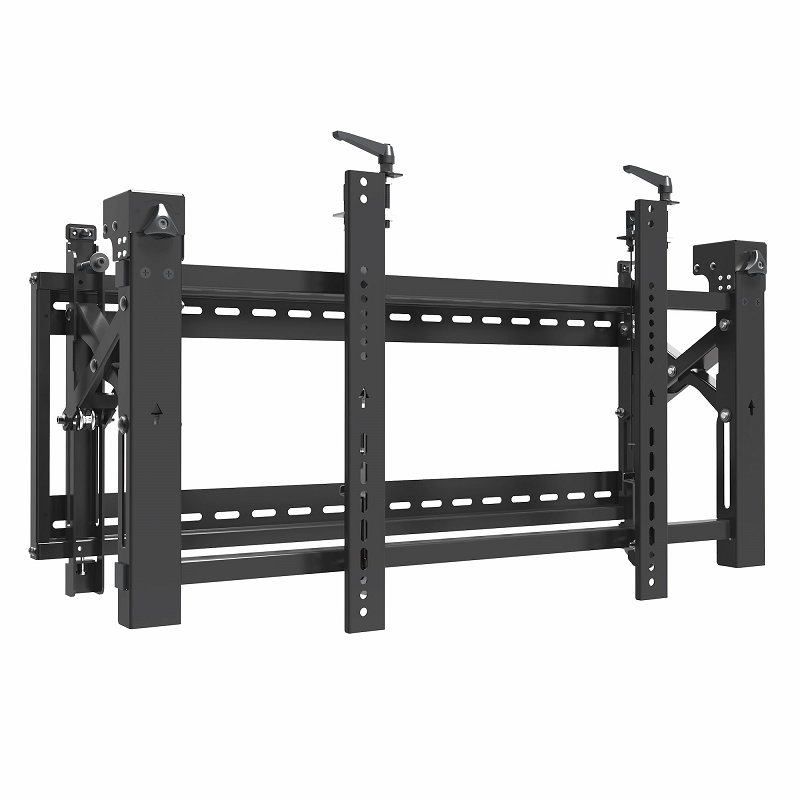

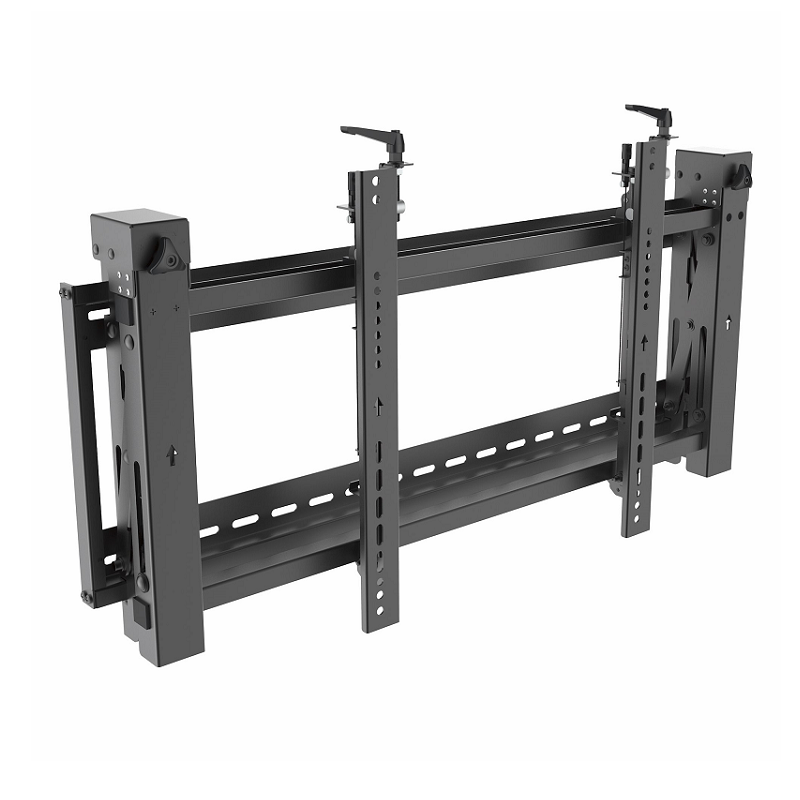

Video Wall Mount - Pop-Out Design - Micro-Adjustment
TV Video Wall System | Steel | Anti-Theft | For 45" to 70" Displays

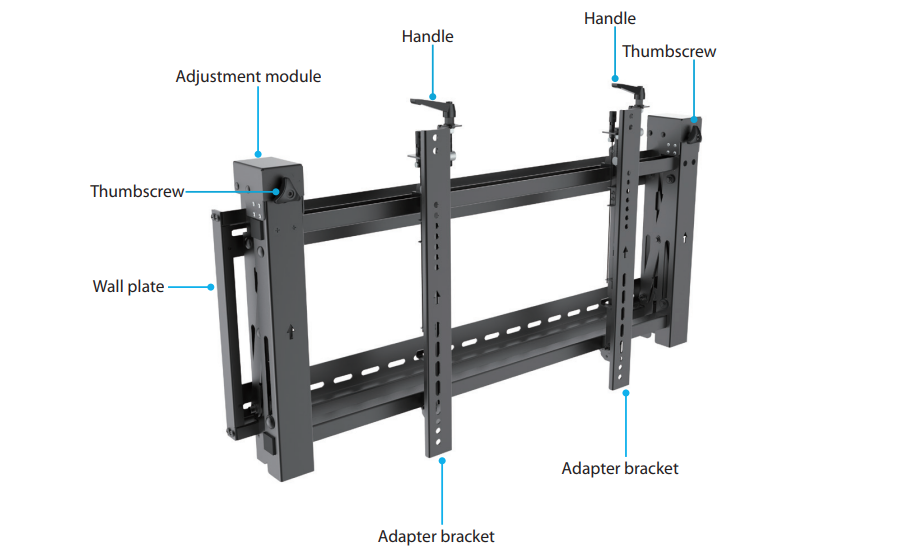

This professional video-wall mount features an innovative pop-out design that enables fast and easy display alignment and adjustment, within a multi-display video wall.
Engineered with heavy-duty steel, the video-wall mount securely supports 45" to 70" displays, weighing up to 154 lb. (70 kg).

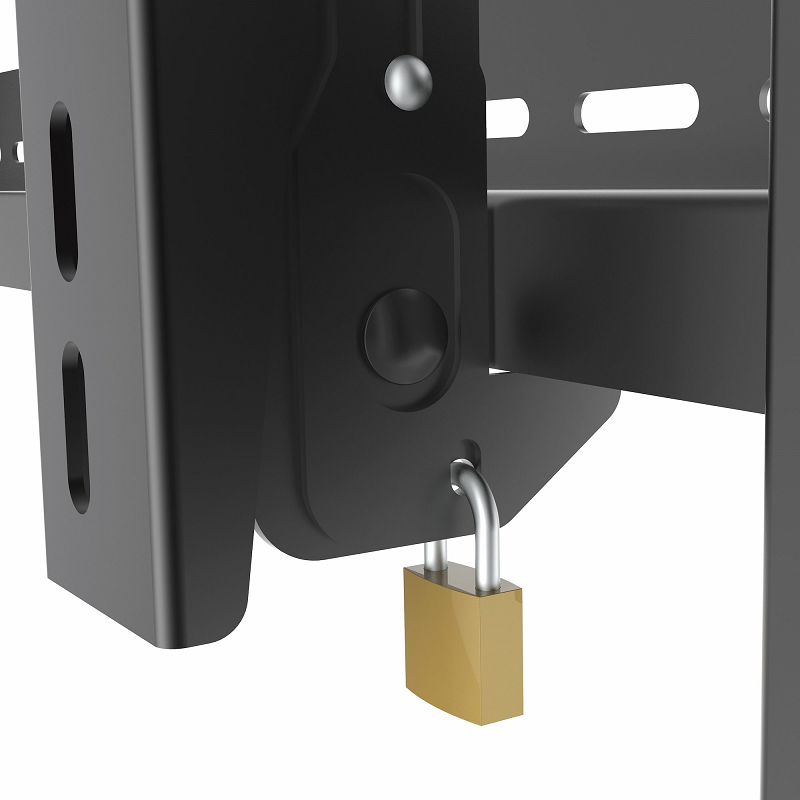

Using multiple VIDWALLMNT wall mounts, you can create an impressive video wall, enabling you to align your displays in unison. It’s the ideal solution for public, business and commercial displays and includes a theft deterrence feature (padlock required).

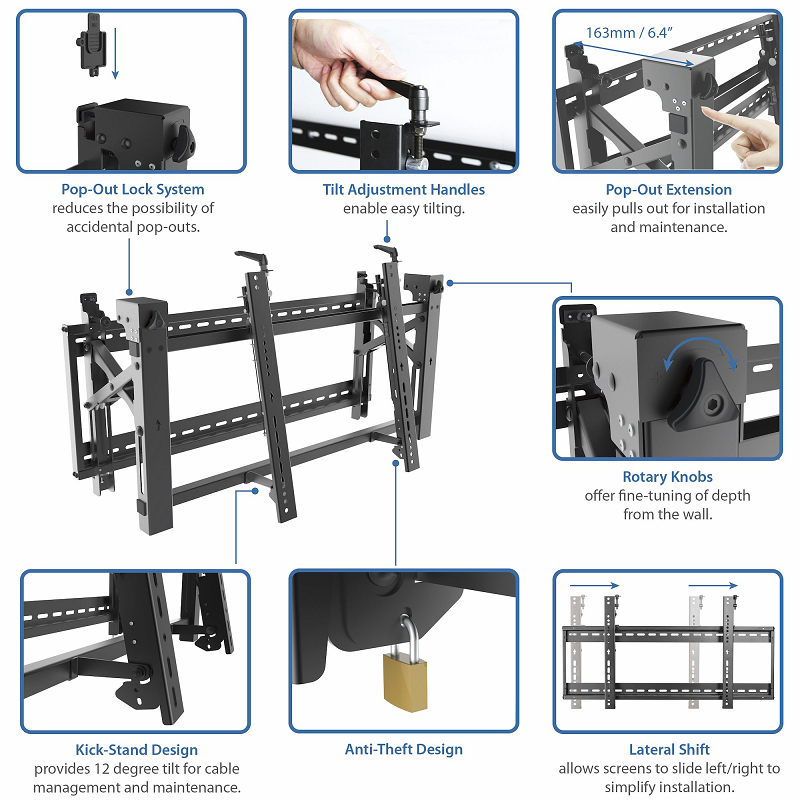

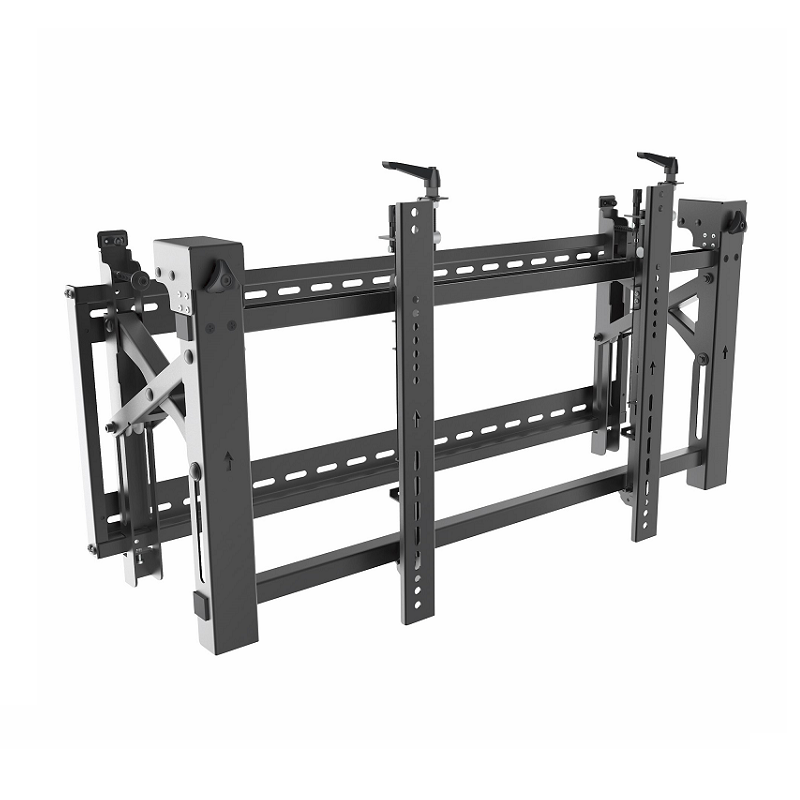

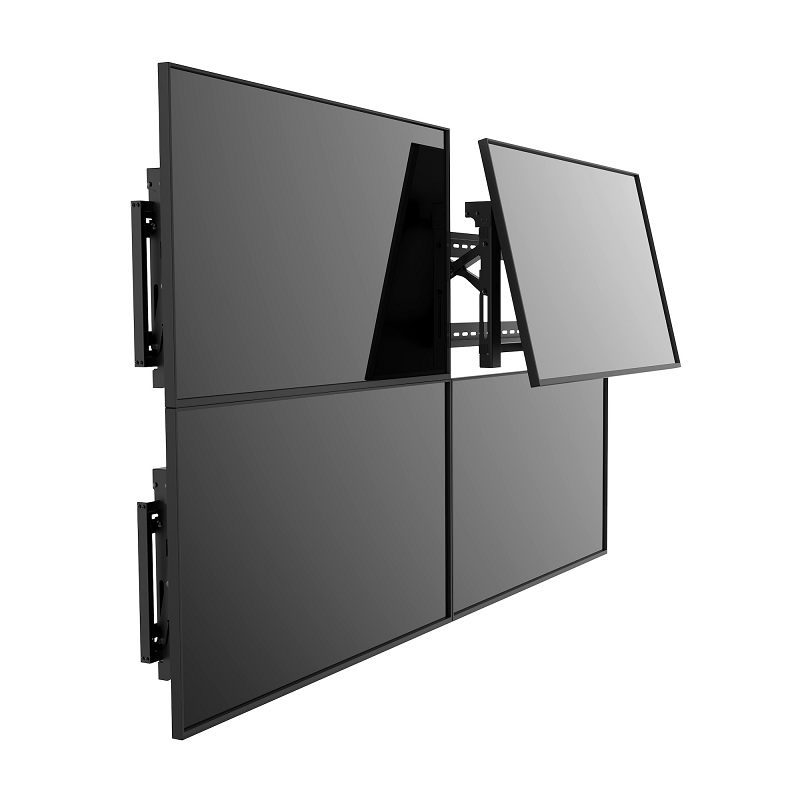

With its unique pop-out design, the video wall mount helps you align your displays with perfect precision. Once installed, you simply press gently on the front of the display and the mount extends out from the wall for rear-screen access. This pop-out feature makes it easy to adjust the position and angle of the display, or replace a display when required.
The video-wall mount features 6 points of micro-adjustment, with vertical, tilt and swivel adjustments, to provide exact display alignment and an optimum viewing angle. You can tilt your display +3 / -5 degrees, adjust the swivel angle +1.2 / - 1.2 degrees, and rotate the display +3 / - 3 degrees. The video-wall mount also features lateral shift brackets, making it easy to move the display to the left or right for ideal alignment in your video wall.

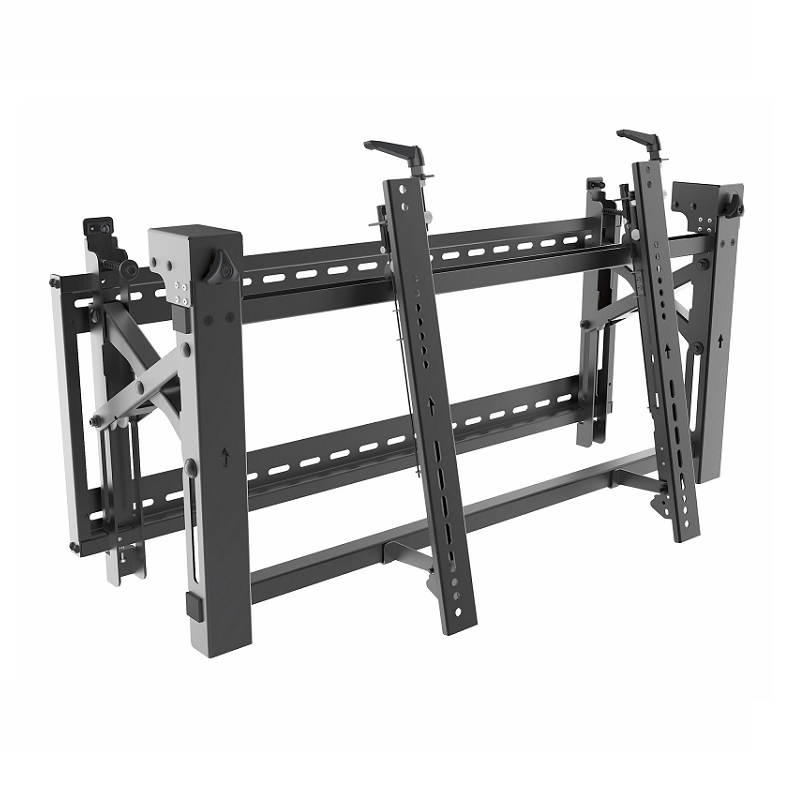

This video-wall mounting system is designed for easy set-up and maintenance. The pop-out design also assists in installation and maintenance, plus a convenient kickstand allows you to tilt the display up to 12 degrees giving you extra room when adjusting cables or accessing ports.
The VIDWALLMNT is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Mounting | |
Minimum screen size | 114.3 cm (45") |
Maximum weight capacity | 70 kg |
Panel mounting interface | 200 x 200, 300 x 300, 400 x 200, 400 x 400, 600 x 400 |
Number of displays supported | 1 |
Mounting type | Wall |
Minimum VESA mount | 200 x 200 mm |
Maximum VESA mount | 600 x 400 mm |
Maximum screen size | 177.8 cm (70") |
Ergonomics | |
Swivel angle range | -1.2 - 1.2 ° |
Tilt angle range | -5 - 3 ° |
Distance to the wall (min) | 14.2 cm |
Distance to the wall (max) | 30.6 cm |
Design | |
Housing material | Aluminium, Steel |
Certification | CE, REACH |
Product colour | Black |
Accepts padlock | Yes |
Technical details | |
Number of displays supported | 1 |
Mounting type | Wall |
Distance to the wall (min) | 14.2 cm |
Distance to the wall (max) | 30.6 cm |
Sustainability certificates | RoHS |
Weight & dimensions | |
Width | 306 mm |
Height | 483 mm |
Depth | 934 mm |
Weight | 13.5 kg |
Packaging data | |
Package width | 510 mm |
Package depth | 1000 mm |
Package height | 209 mm |
Package weight | 16.4 kg |

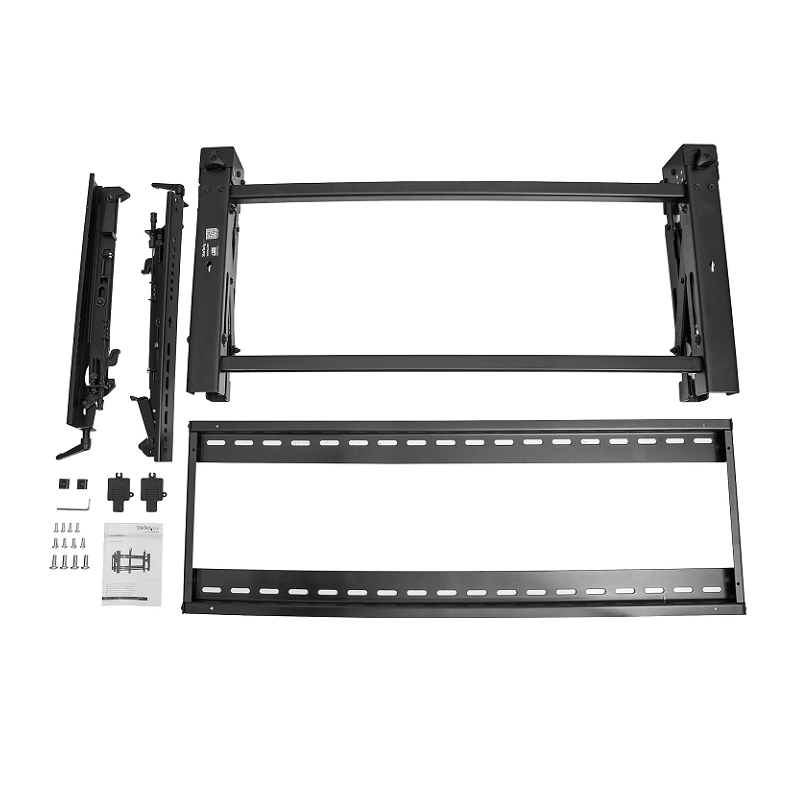

Packaging content | |
Wrench type | Hexagonal wrench |
Wrench included | Yes |
Washers included | Yes |
Spacer included | Yes |
Screws included | Yes |
Number of washers included | 6 |
Number of spacers included | 12 |
Number of screws | 26 |
Manual | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file

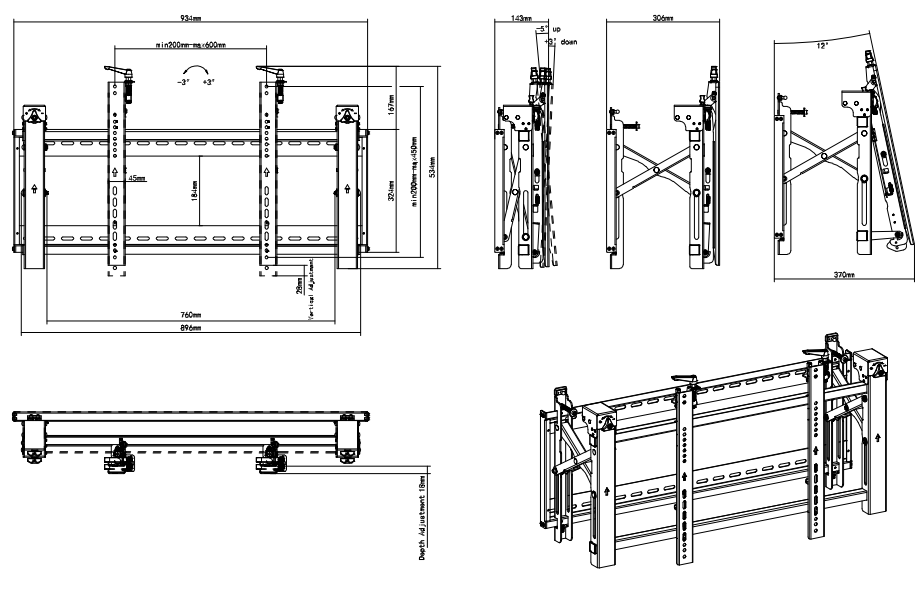

A product drawing can be found in the PDF file
