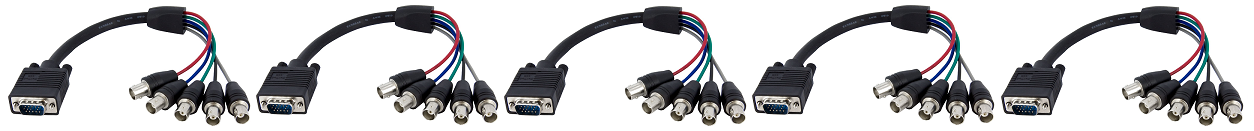

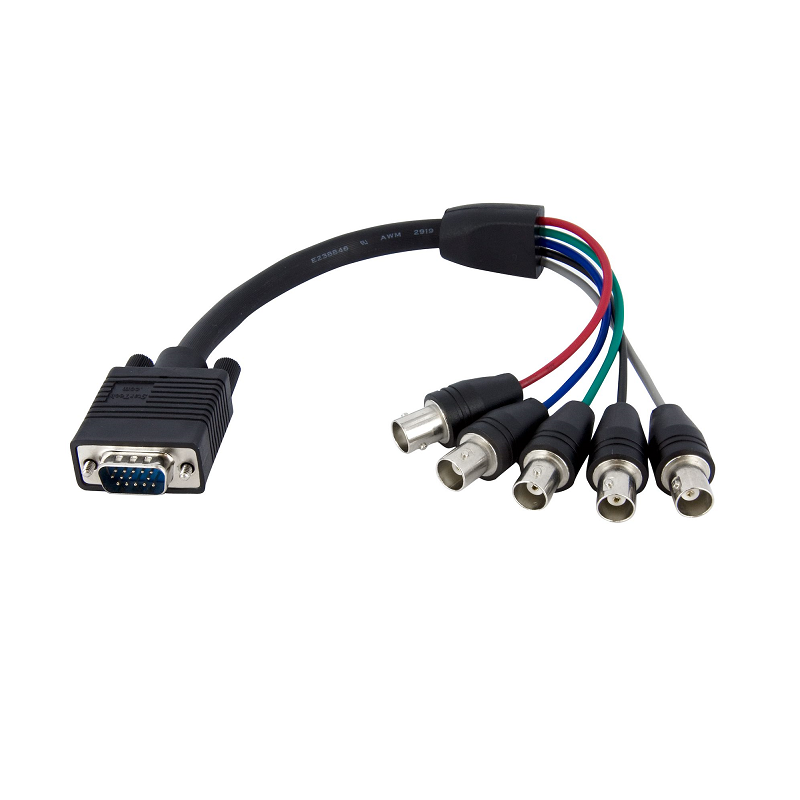

1 ft Coax HD15 VGA to 5 BNC RGBHV Monitor Cable - M/F
Connect a BNC video source to a VGA distribution amplifier or PC

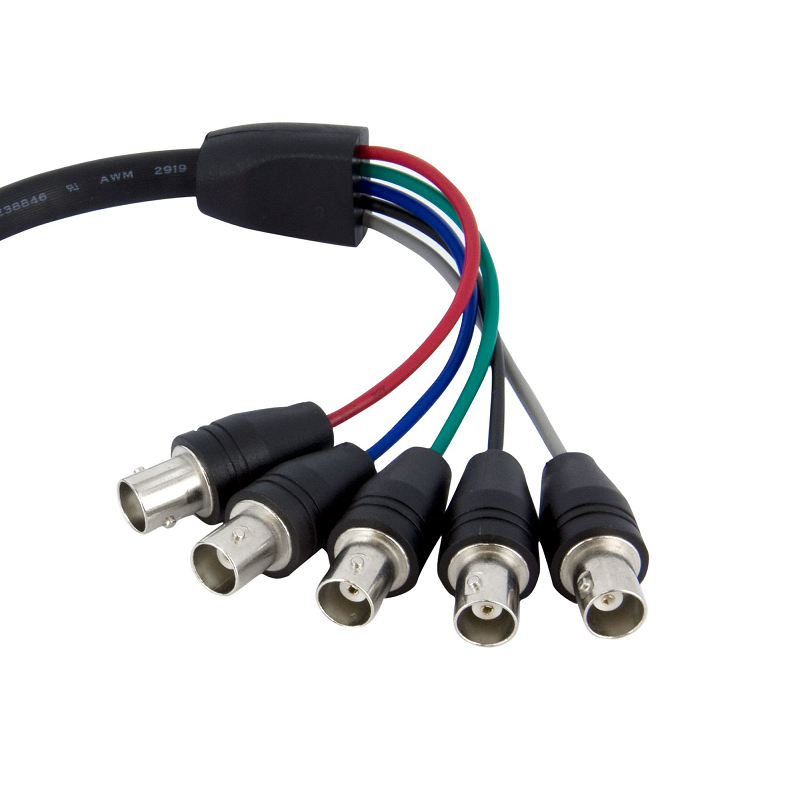

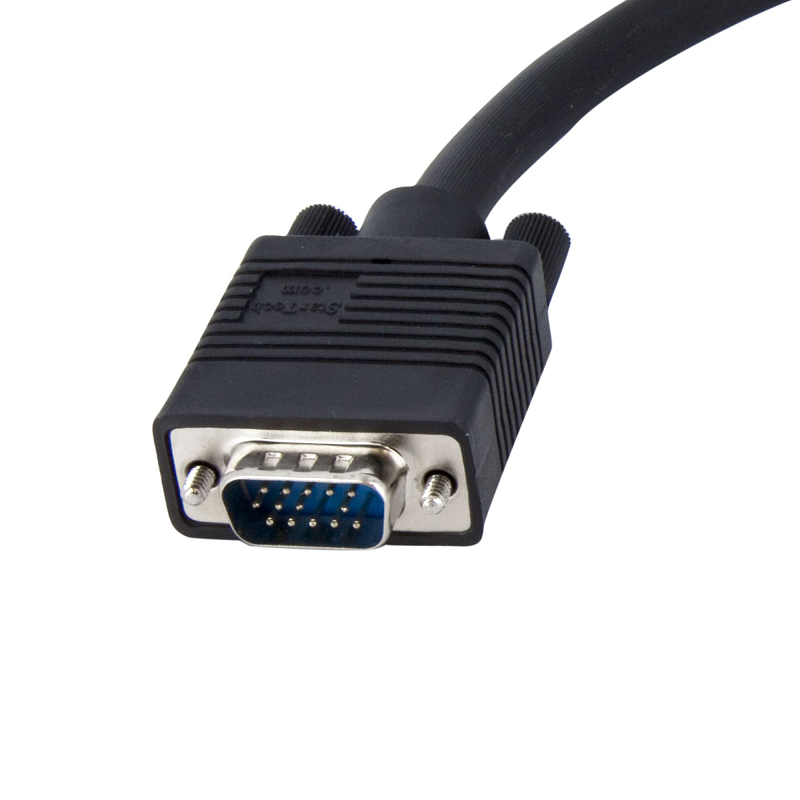

The VGABNCMF1 1-foot Coax HD15 VGA to 5 BNC RGBHV Adapter Cable features an HD15 VGA (male) connector and 5 BNC (RGBHV) (female) connectors, allowing you to connect your existing BNC video source to a VGA distribution amplifier or PC.
The cable can also be used with a VGA out signal, breaking out to 5 BNC female connectors that can be used with a 5 BNC (M-M) cable for use with a BNC monitor/display.
| Features | |
| Product colour | White |
| Cable length | 0.3 m |
| Connector 1 | VGA (D-Sub) |
| Connector 2 | 5 x BNC |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Nickel |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Certification | CE, UL, REACH |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Weight & dimensions | |
| Cable diameter | 8.5 mm |
| Weight | 103 g |
| Packaging data | |
| Package width | 125 mm |
| Package height | 17 mm |
| Package depth | 225 mm |
| Package weight | 108 g |
Full specification and details can be found in the PDF file
