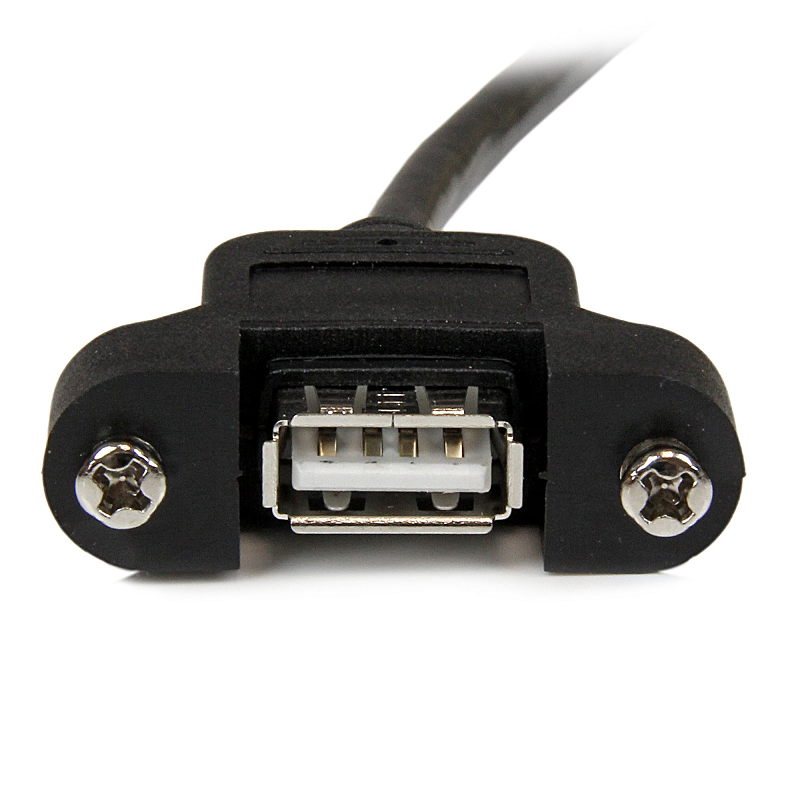

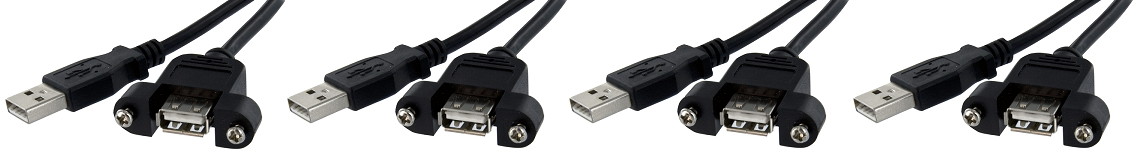

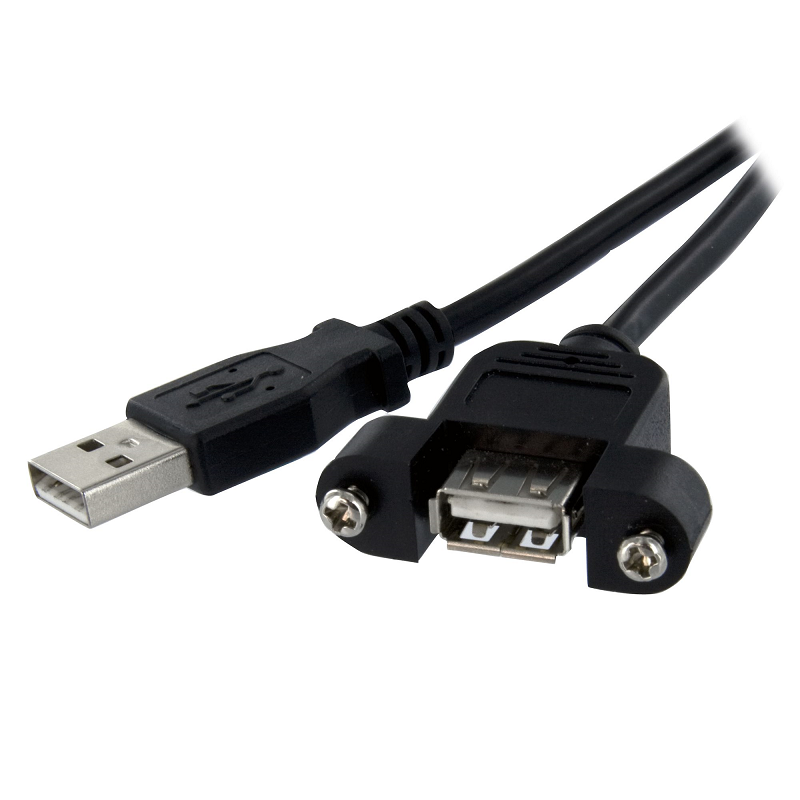

3 ft Panel Mount USB Cable A to A - F/M
Add an external panel mount USB connection to a PC or faceplate
The USBPNLAFAM3 3ft Panel Mount USB Cable provides a well-secured, easy to access USB-A port on your PC or on a faceplate, allowing you to customize your systems to suit your needs. Perfect for podiums, kiosks and other solutions where added access to USB devices is required.

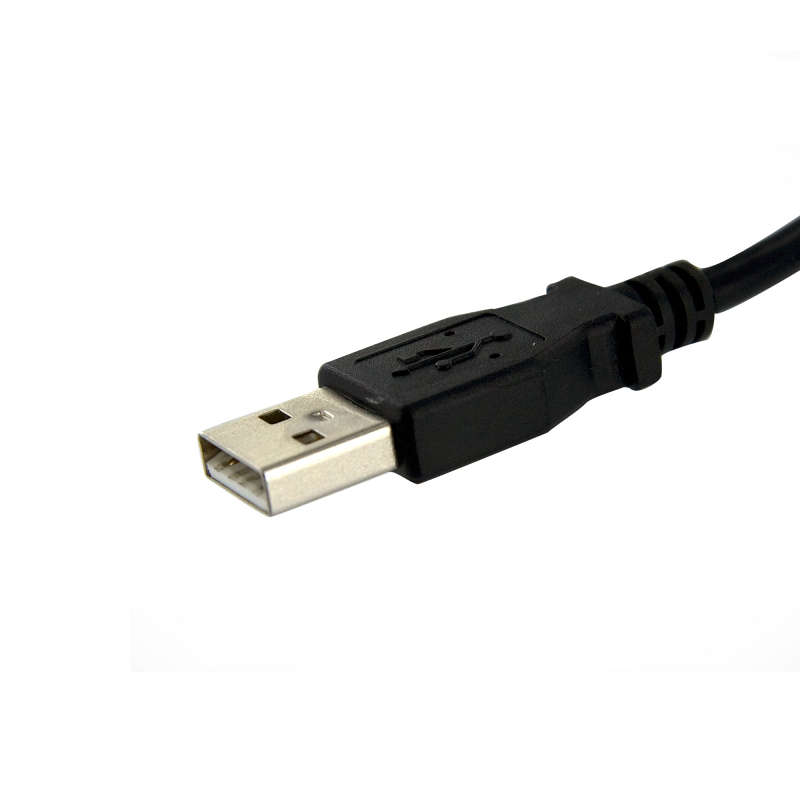

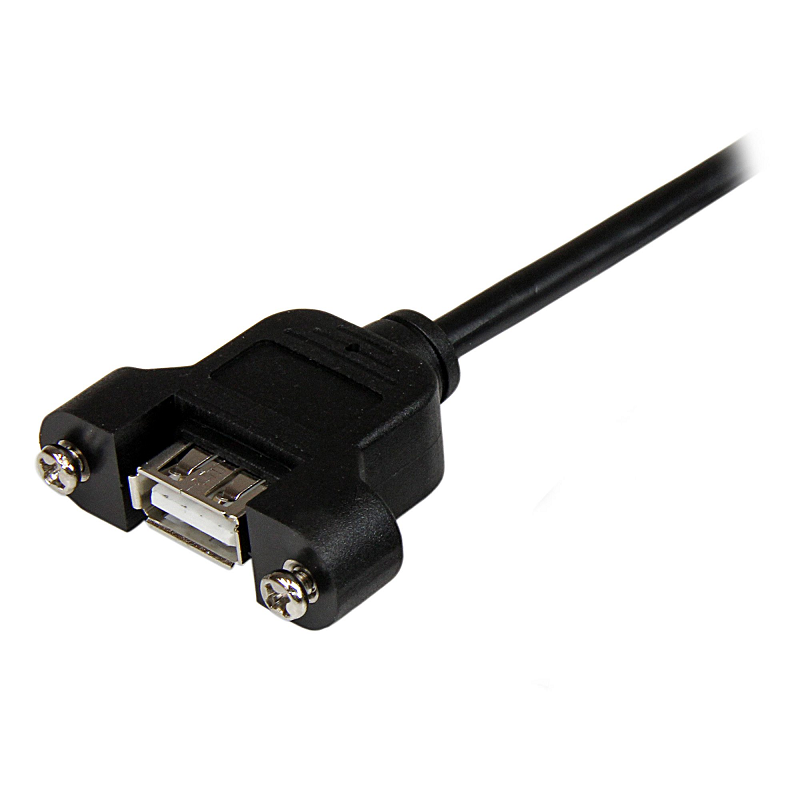

The adapter features one male USB-A connector and one female panel mount USB-A port and gives you an extension of 3ft, enabling you to place the cable as needed within the system case.
The USBPNLAFAM3 is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
Ports & interfaces | |
USB version | USB 2.0 |
Connector 1 | USB A |
Connector 2 | USB A |
Connector contacts plating | Nickel |
Features | |
Cable shielding | Aluminum mylar foil |
Connector 1 form factor | Straight |
Connector 2 form factor | Straight |
Plug and Play | Yes |
AWG wire size | 24/28 |
USB version | USB 2.0 |
Connector 1 | USB A |
Connector 2 | USB A |
Cable length | 0.9 m |
Connector contacts plating | Nickel |
Weight | 40 g |
Product colour | Black |
Certification | CE, REACH |
Connector 1 gender | Male |
Connector 2 gender | Female |
Quantity per pack | 1 pc(s) |
Cable jacket material | Polyvinyl chloride (PVC) |
Technical details | |
Product colour | Black |
Sustainability certificates | RoHS |
Weight & dimensions | |
Cable length | 0.9 m |
Weight | 40 g |
Packaging data | |
Package width | 125 mm |
Package depth | 225 mm |
Package height | 14 mm |
Package weight | 46 g |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file

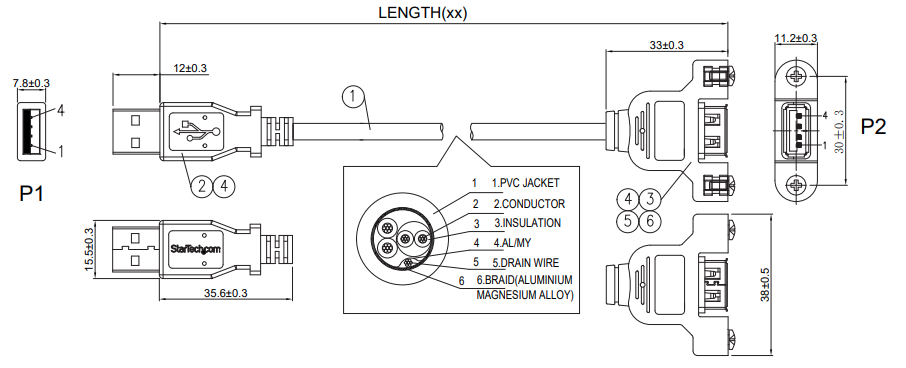

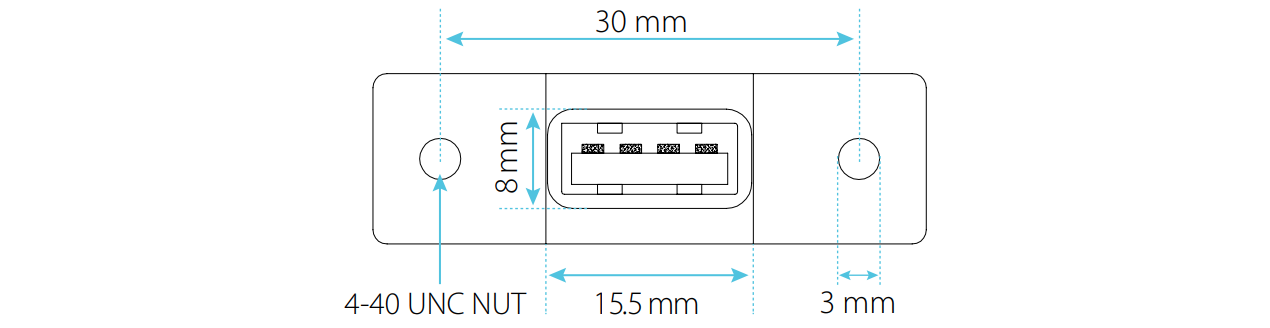

A product drawing can be found in the PDF file
