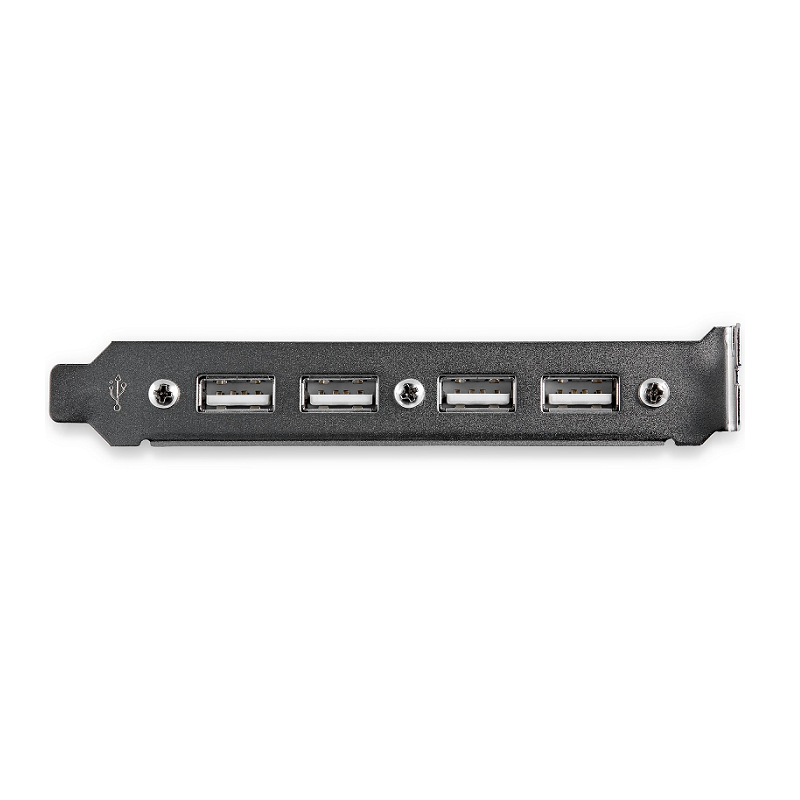

4 Port USB A Female Slot Plate Adapter
Add four USB 2.0 Ports to the back of your computer
The USBPLATE4 4 port USB 2.0 slot plate adapter converts the USB pins on your motherboard into four USB-A female ports, enabling you to add USB connections to the back of your PC.
Backed by Lifetime Warranty, the USBPLATE4 is designed and constructed for maximum durability, to ensure dependable performance.

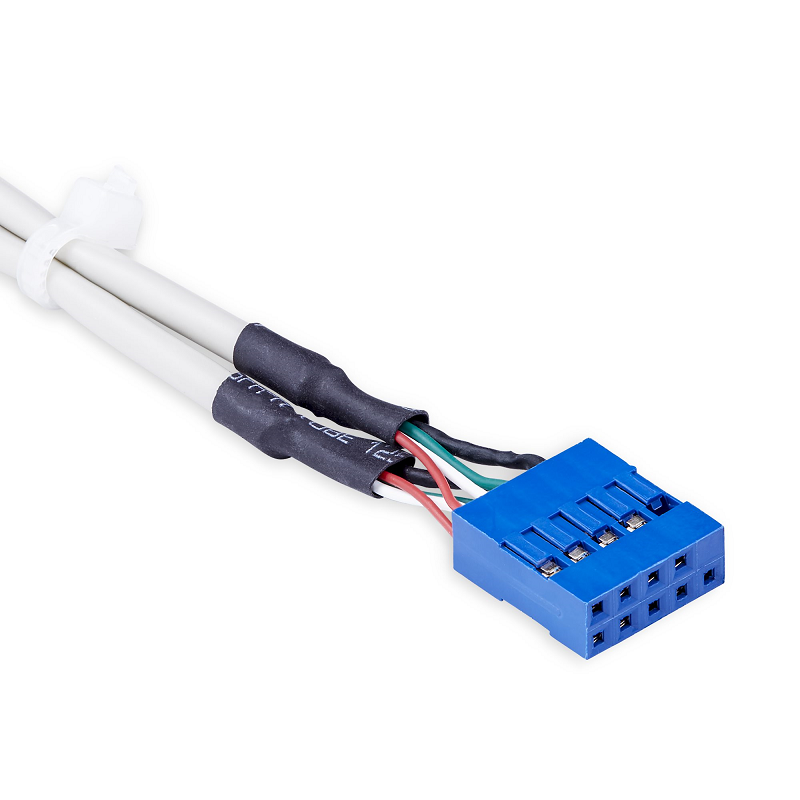

Please Note: Check your motherboard’s manual for the USB pinout diagram. The USBPLATE wiring scheme is: Red = Power, Green = Signal, White = Signal, Black = Ground
| Ports & interfaces | |
| Internal | Yes |
| Output interface | USB 2.0 |
| USB 2.0 ports quantity | 4 |
| Host interface | IDC |
| Technical details | |
| Cable length | 0.286 m |
| Data transfer rate (max) | 0.48 Gbit/s |
| Sustainability certificates | RoHS |
| Design | |
| Internal | Yes |
| Certification | CE, UL, REACH |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -5 - 80 °C |
| Operating relative humidity (H-H) | 20 - 60 % |
| Packaging data | |
| Package width | 125 mm |
| Package height | 22 mm |
| Package depth | 225 mm |
| Package weight | 73 g |
Full specification and details can be found in the PDF file

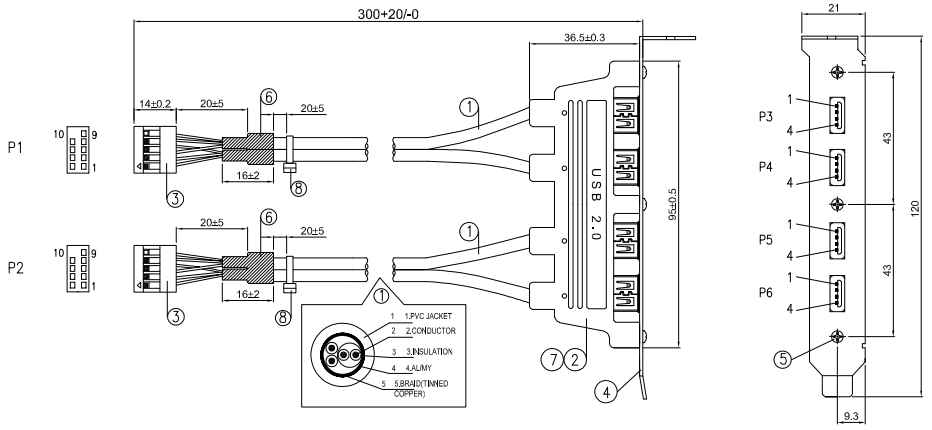

A product drawing can be found in the PDF file
