| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEUSBBT1EDR4 |
| Manufacturer No: | USBBT1EDR4 |
| Delivery: | In Stock: Next Day |
 |

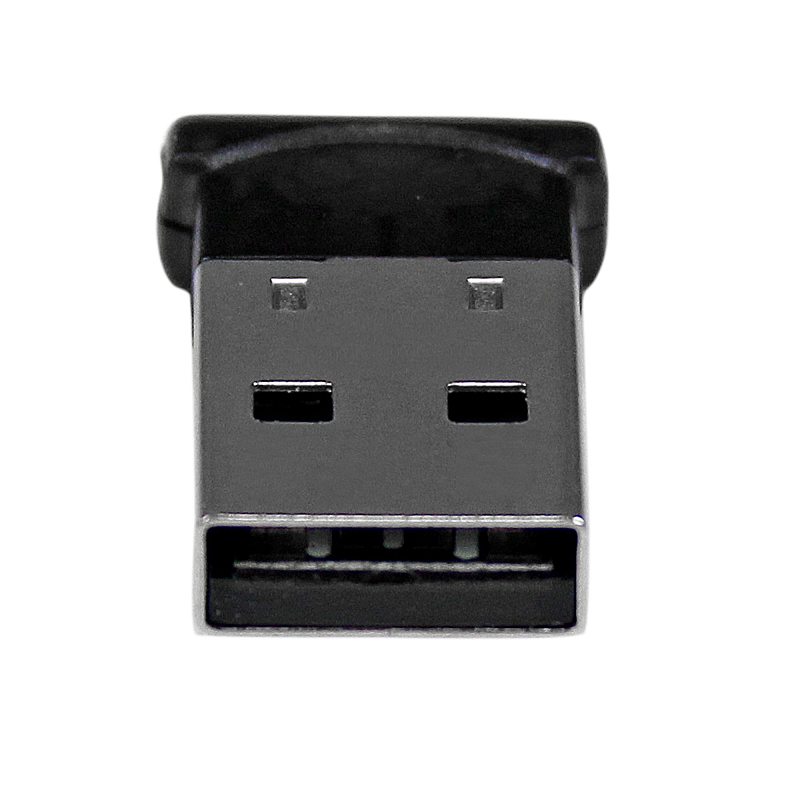

Mini USB Bluetooth 4.0 Adapter - 50m (165ft) Class 1 EDR Wireless Dongle
Add Bluetooth 4.0 capabilities to a laptop or desktop computer through USB
The USBBT1EDR4 USB to Class 1 Mini Bluetooth® Dongle lets you add Bluetooth wireless capabilities to a laptop or desktop computer through USB, with support for transfer distances of up to 50m (165ft).
Compliant with Bluetooth 4.0 LE +EDR , the USB Bluetooth adapter offers data transfer rates up to 3 Mbps and low power consumption. This Bluetooth Smart Ready transceiver is an effective way to connect to a rapidly growing list of the Bluetooth Smart peripherals on the market, including the latest Apple® and Android™ smartphones and tablets. Bluetooth v4.0 also integrates added security for all transfers using 128-bit AES encryption.
A conveniently portable device, this ultra-compact adapter is unobtrusive when connected to your laptop, so you won't have to remove it each time you store your laptop in a carrying case or bag. The adapter is also backward compatible with previous Bluetooth standards (v3.0, 2.0, 1.2 and 1.1) to ensure connectivity with all of your Bluetooth devices.
Please Note: Ranges above 10 meters (32.8 ft) require the connected Bluetooth device to support Bluetooth Class 1
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Ports & interfaces | |
| Internal | No |
| Interface | Bluetooth |
| Host interface | USB |
| Connectivity technology | Wireless |
| Network | |
| Chipset | CSR8510A10 |
| Wi-Fi band | Single-band (2.4 GHz) |
| Bluetooth version | 4.0 |
| Modulation | DQPSK, GFSK |
| Maximum operating distance | 50 m |
| Frequency range | 2.402 - 2.48 GHz |
| Maximum operating distance | 3 Mbit/s |
| Design | |
| Product colour | Black |
| Chipset | CSR8510A10 |
| Certification | CE, FCC, REACH |
| Internal | No |
| LED indicators | Link, Power, Stand-by |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 0 - 75 % |
| Weight & dimensions | |
| Width | 14.4 mm |
| Depth | 21.9 mm |
| Height | 8 mm |
| Weight | 3 g |
| Packaging data | |
| Package width | 173 mm |
| Package depth | 134 mm |
| Package height | 33 mm |
| Package weight | 74 g |
| Manual | Yes |
Full specification and details can be found in the PDF file
A user quick start guide can be found in the PDF file
Mini USB Bluetooth 4.0 Adapter - 50m (165ft) Class 1 EDR Wireless Dongle
Add Bluetooth 4.0 capabilities to a laptop or desktop computer through USB
The USBBT1EDR4 USB to Class 1 Mini Bluetooth® Dongle lets you add Bluetooth wireless capabilities to a laptop or desktop computer through USB, with support for transfer distances of up to 50m (165ft).
Compliant with Bluetooth 4.0 LE +EDR , the USB Bluetooth adapter offers data transfer rates up to 3 Mbps and low power consumption. This Bluetooth Smart Ready transceiver is an effective way to connect to a rapidly growing list of the Bluetooth Smart peripherals on the market, including the latest Apple® and Android™ smartphones and tablets. Bluetooth v4.0 also integrates added security for all transfers using 128-bit AES encryption.
A conveniently portable device, this ultra-compact adapter is unobtrusive when connected to your laptop, so you won't have to remove it each time you store your laptop in a carrying case or bag. The adapter is also backward compatible with previous Bluetooth standards (v3.0, 2.0, 1.2 and 1.1) to ensure connectivity with all of your Bluetooth devices.
Please Note: Ranges above 10 meters (32.8 ft) require the connected Bluetooth device to support Bluetooth Class 1
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Ports & interfaces | |
| Internal | No |
| Interface | Bluetooth |
| Host interface | USB |
| Connectivity technology | Wireless |
| Network | |
| Chipset | CSR8510A10 |
| Wi-Fi band | Single-band (2.4 GHz) |
| Bluetooth version | 4.0 |
| Modulation | DQPSK, GFSK |
| Maximum operating distance | 50 m |
| Frequency range | 2.402 - 2.48 GHz |
| Maximum operating distance | 3 Mbit/s |
| Design | |
| Product colour | Black |
| Chipset | CSR8510A10 |
| Certification | CE, FCC, REACH |
| Internal | No |
| LED indicators | Link, Power, Stand-by |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 0 - 75 % |
| Weight & dimensions | |
| Width | 14.4 mm |
| Depth | 21.9 mm |
| Height | 8 mm |
| Weight | 3 g |
| Packaging data | |
| Package width | 173 mm |
| Package depth | 134 mm |
| Package height | 33 mm |
| Package weight | 74 g |
| Manual | Yes |
Full specification and details can be found in the PDF file
A user quick start guide can be found in the PDF file
