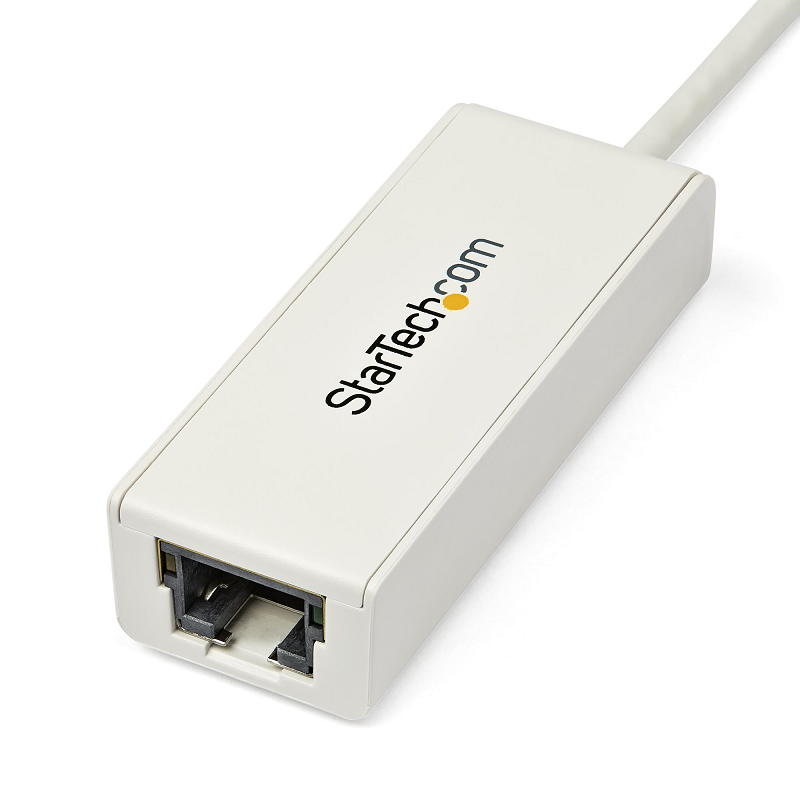

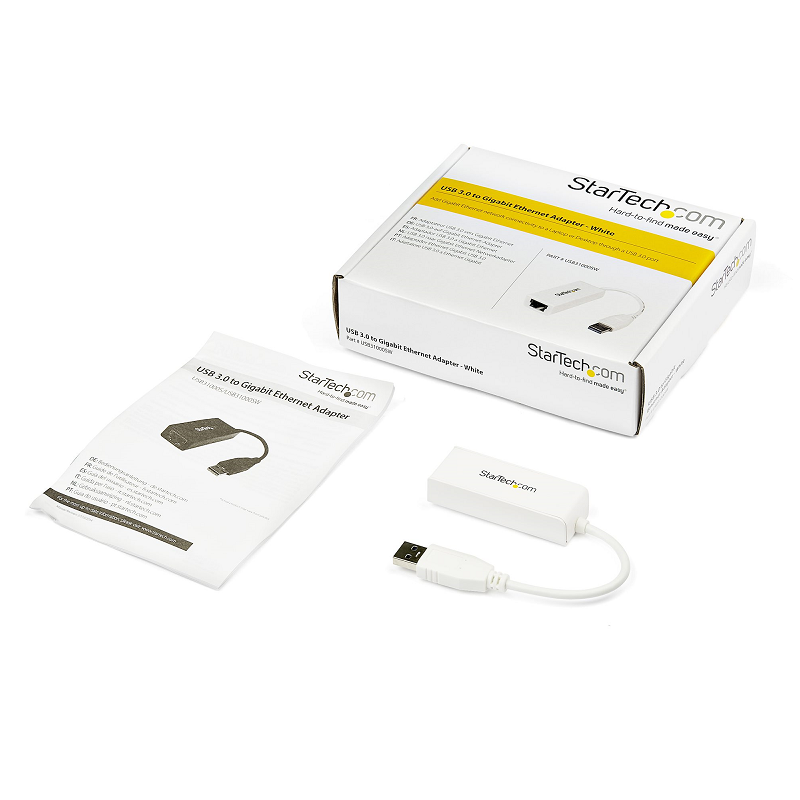

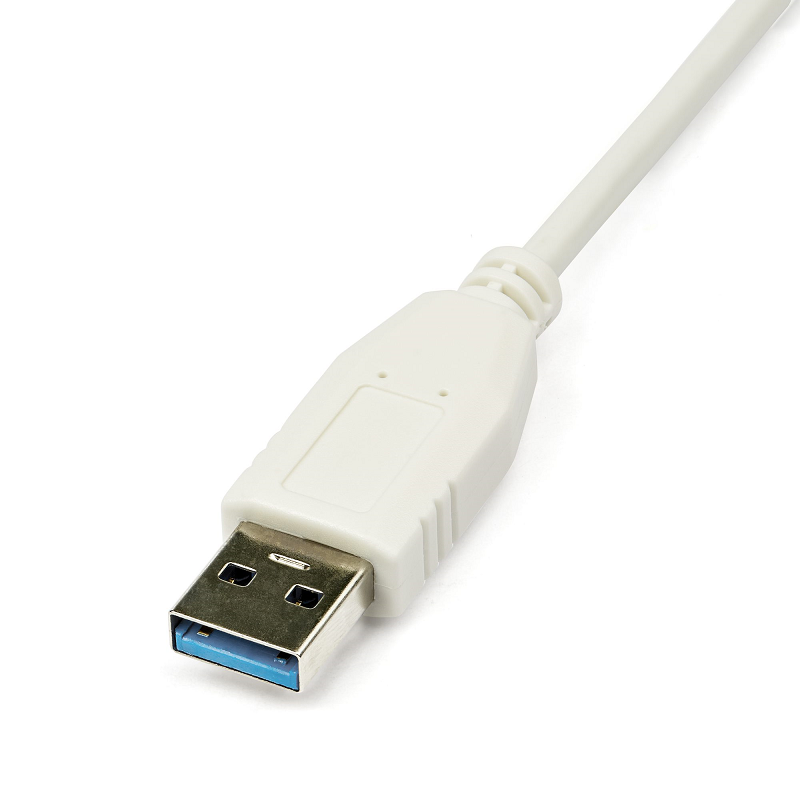

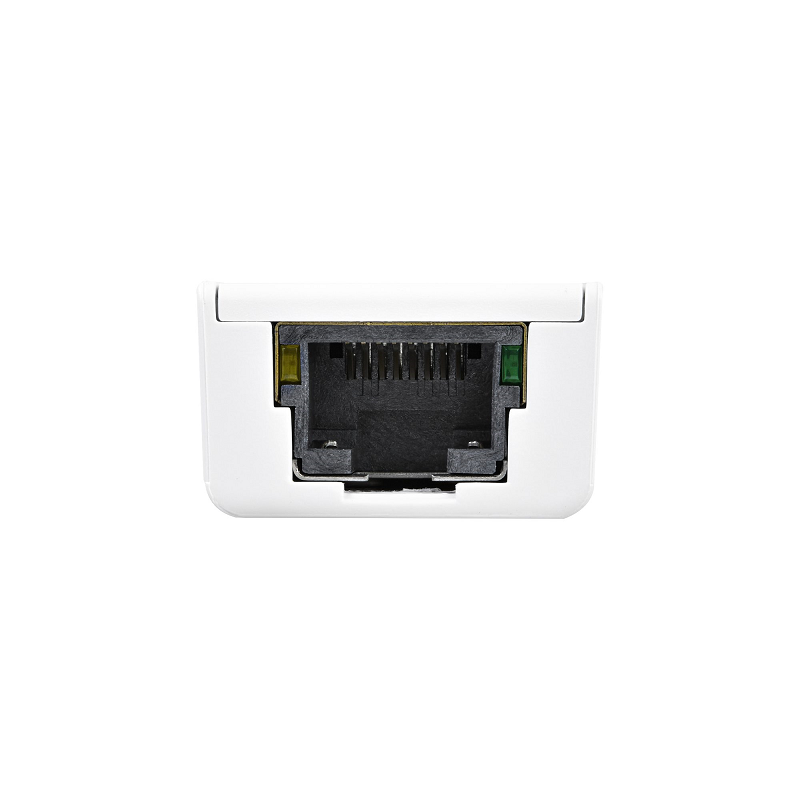

USB 3.0 to Gigabit Ethernet NIC Network Adapter - White
Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB 3.0 port
The USB31000SW USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth when used with a USB 3.0 host connection, unlike USB 2.0 adapters.
This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers versatile Gigabit network performance for home and business users alike.
The USB31000SW USB 3.0 Gigabit adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Ports & interfaces | |
Internal | No |
USB version | 3.2 Gen 1 (3.1 Gen 1) |
Ethernet LAN (RJ-45) ports | 1 |
Interface | Ethernet |
Host interface | USB |
Connectivity technology | Wired |
Bandwidth | |
Full duplex | Yes |
Maximum data transfer rate | 5000 Mbit/s |
Network | |
Chipset | ASIX - AX88179 |
VLAN tagging | Yes |
Ethernet interface type | Gigabit Ethernet |
Jumbo frames | 4000 |
Ethernet LAN | Yes |
Cabling technology | 10/100/1000BaseT(X) |
Networking standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
Maximum operating distance | 100 m |
Jumbo frames support | Yes |
Full duplex | Yes |
Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
Maximum data transfer rate | 5000 Mbit/s |
Design | |
Housing material | Plastic |
Product colour | White |
Chipset | ASIX - AX88179 |
Certification | CE, FCC, TAA, REACH |
Internal | No |
LED indicators | Yes |
Component for | PC/Notebook |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 0 - 80 °C |
Weight & dimensions | |
Width | 26 mm |
Depth | 210 mm |
Height | 16 mm |
Weight | 27 g |
Packaging data | |
Package width | 162 mm |
Package depth | 133 mm |
Package height | 45 mm |
Package weight | 119 g |
Manual | Yes |
Drivers included | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
