S-Video Video Extender over Cat 5 with Audio
Extend an S-Video signal with supporting audio up to 200 meters (650 feet) using Cat 5 cabling
The SVIDUTPEXTA S-Video Extender over Cat 5 with Audio lets you extend an S-video source signal up to 200 meters (650 feet), using standard Cat 5 UTP cabling.

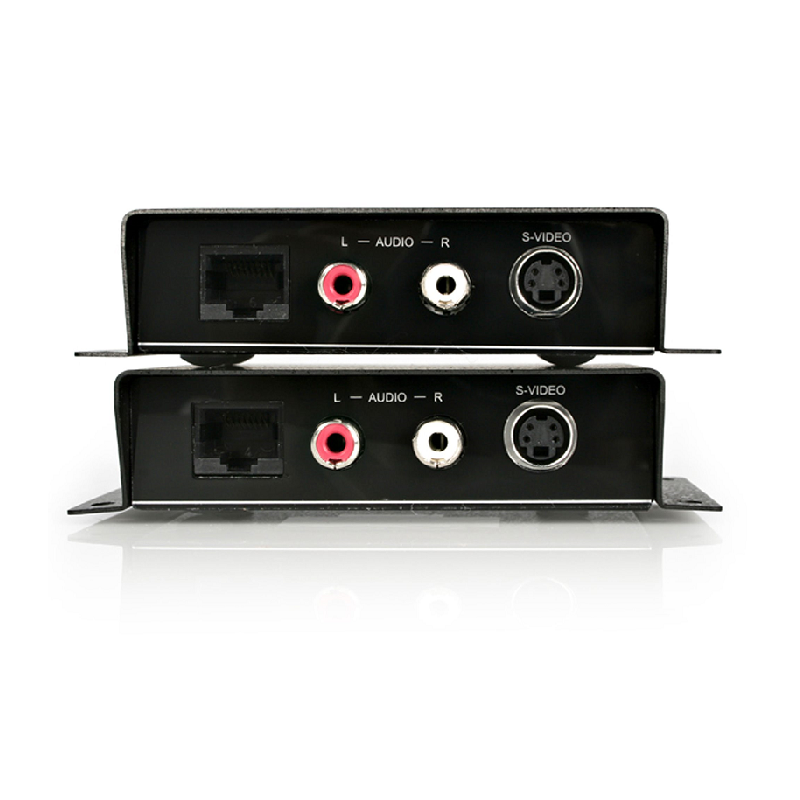

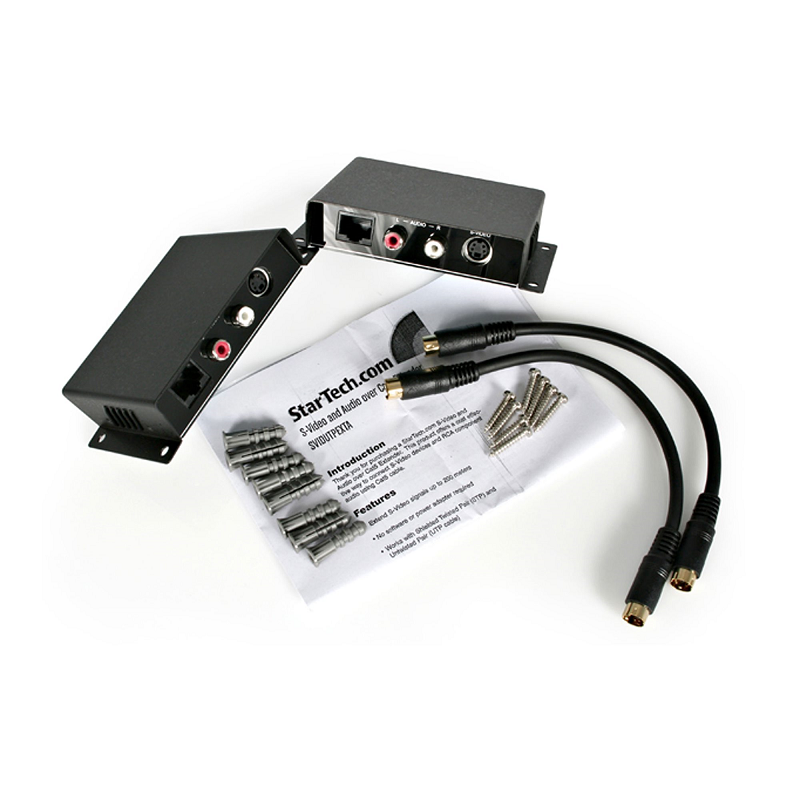

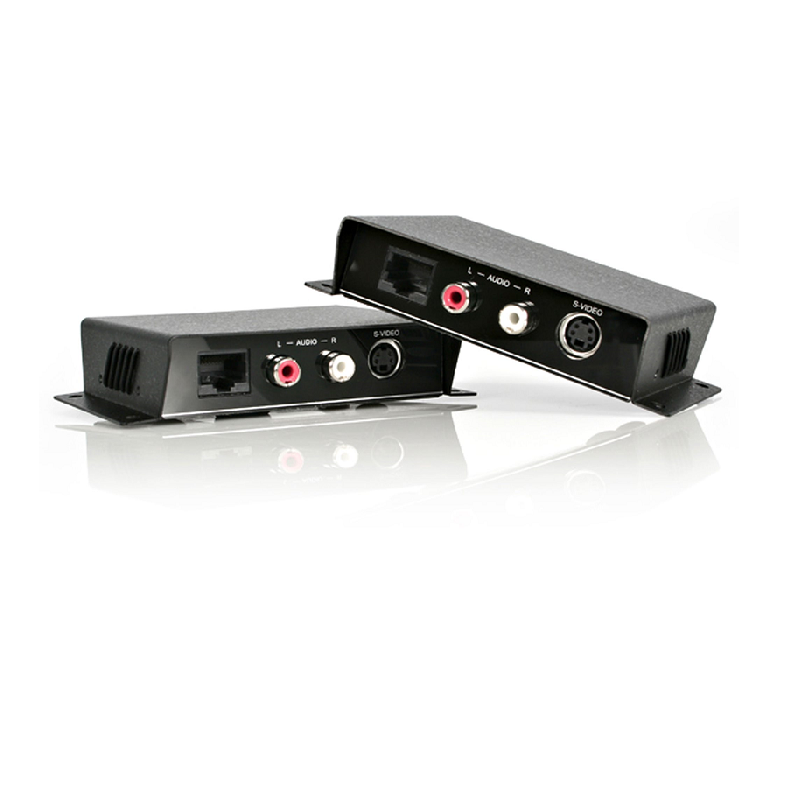

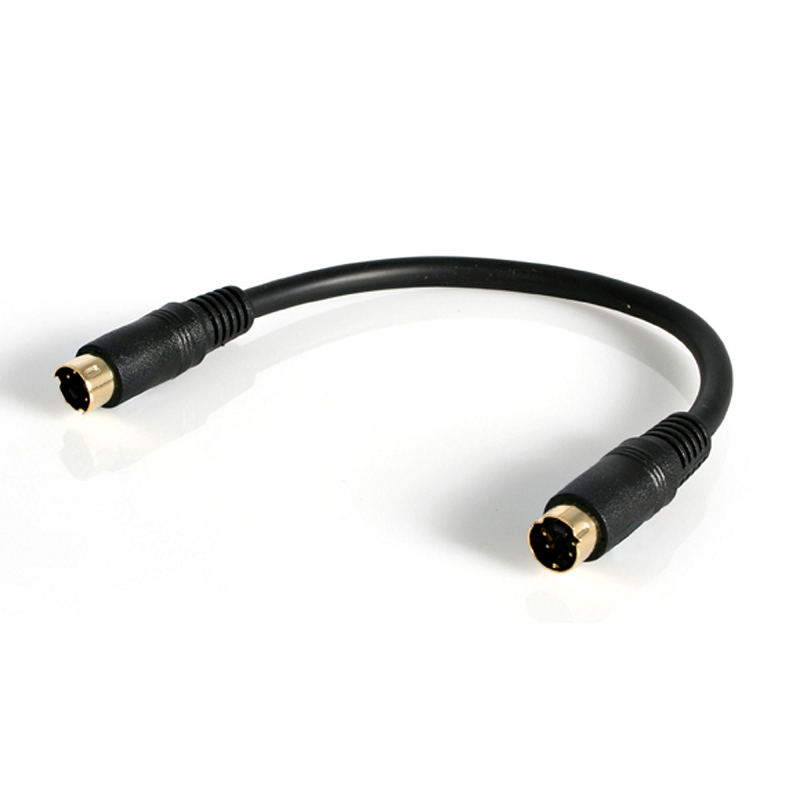

The S-Video over cat 5 extender is comprised of two extender units that can be used interchangeably - one is installed near the video signal source, the other to be placed near the desired display, up to an impressive 200m away. With no software or power adapter requirements, installation and setup is quick and hassle-free. The included installation/mounting kit, and 20cm S-Video cable offers added flexibility in the placement and usage of the device.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Technical details | |
Type | AV transmitter & receiver |
Maximum transfer distance | 200 m |
Audio system | stereo |
Supported video modes | 480i, 480p |
Product colour | Black |
Number of connectors | 6 |
Sustainability certificates | RoHS |
Ports & interfaces | |
RJ-45 input ports | 1 |
RJ-45 output ports | 1 |
S-Video outputs quantity | 1 |
S-Video inputs quantity | 1 |
Audio output | 1 |
Audio input | 1 |
Weight & dimensions | |
Width | 77 mm |
Height | 24 mm |
Depth | 110 mm |
Weight | 460 g |
Packaging data | |
Package width | 82 mm |
Package height | 110 mm |
Package depth | 115 mm |
Package weight | 470 g |
Cables included | S-Video |
Manual | Yes |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file
