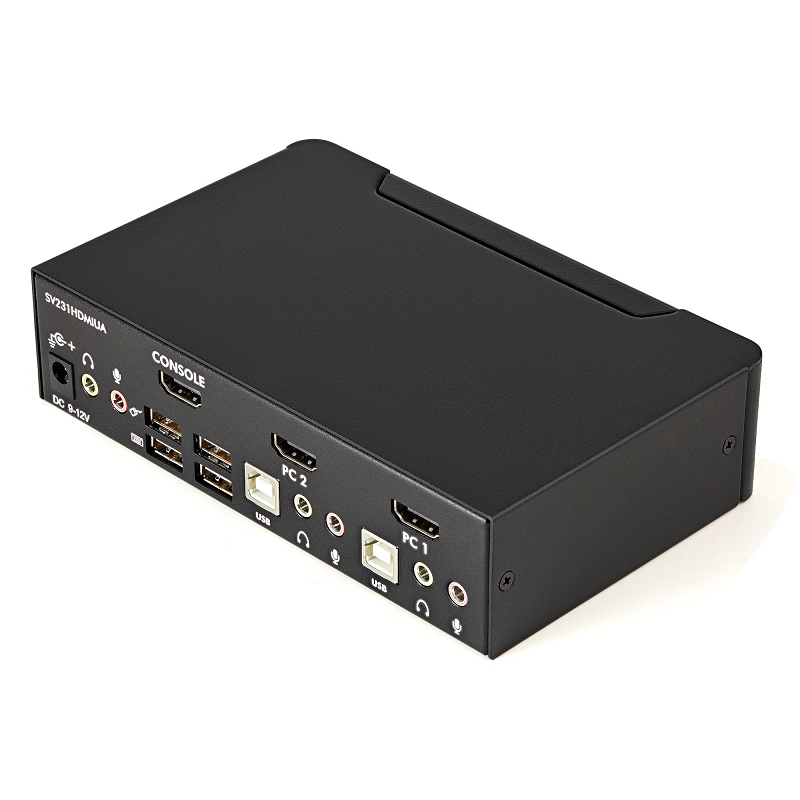

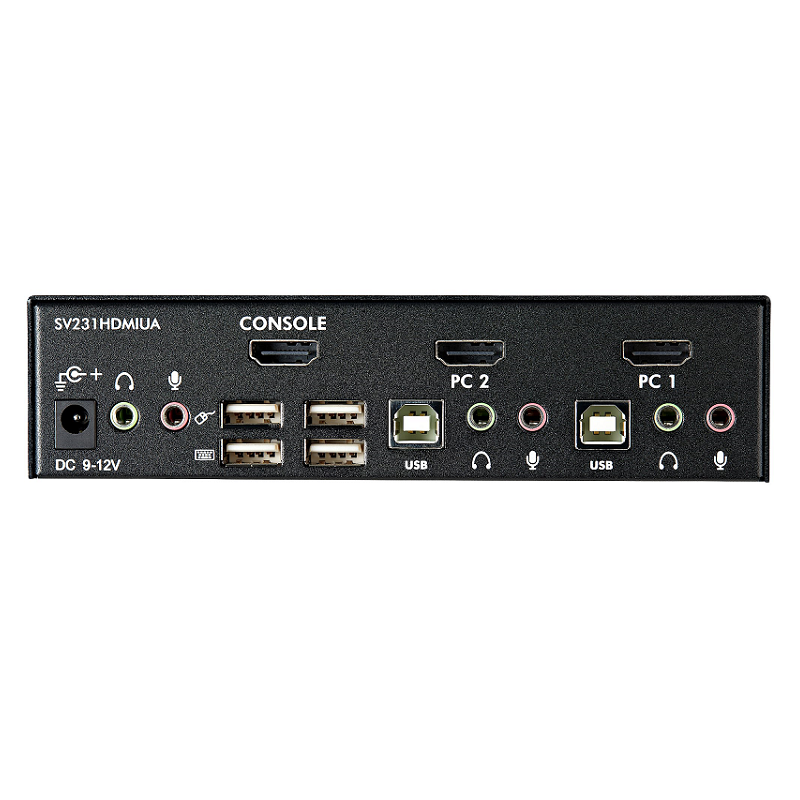

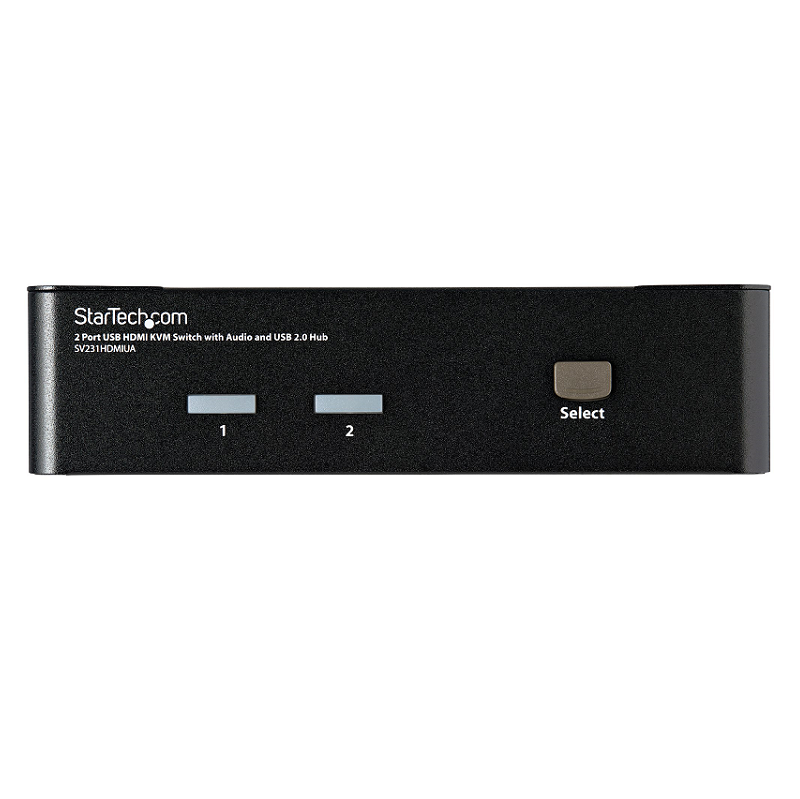

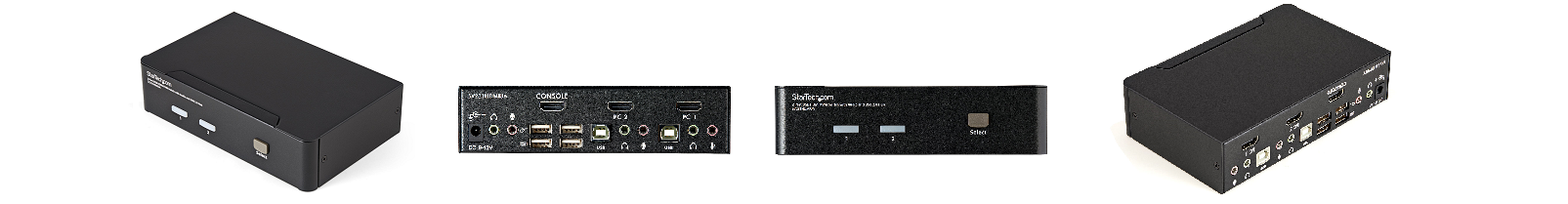

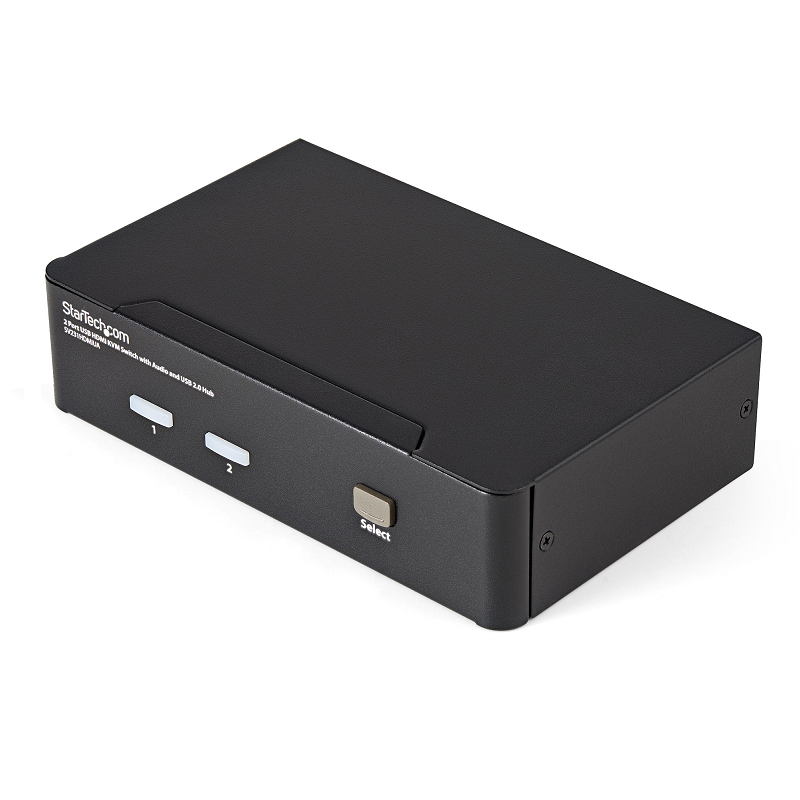

2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub
Share a keyboard, mouse and HDMI® monitor between 2 multimedia computers
The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.

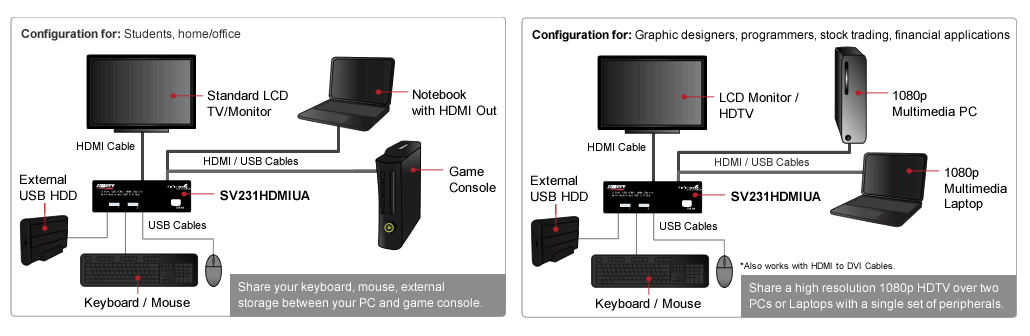

Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| On Screen Display (OSD) | No |
| Video | |
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Ports & interfaces | |
| Console USB ports quantity | 4 |
| Console ports | 3.5 mm headphone, 3.5 mm mic, HDMI, USB A |
| Number of microphone inputs | 3 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Headphone outputs | 3 |
| Performance | |
| Daisy chain | No |
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Design | |
| Mean time between failures (MTBF) | 126813 h |
| Product colour | Black |
| Rack mounting | No |
| Certification | RoHS |
| Display | |
| On Screen Display (OSD) | No |
| Power | |
| Input current | 0.8 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| DC input voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 18 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | - 20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80 % |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 70 mm |
| Height | 40 mm |
| Weight | 634 g |

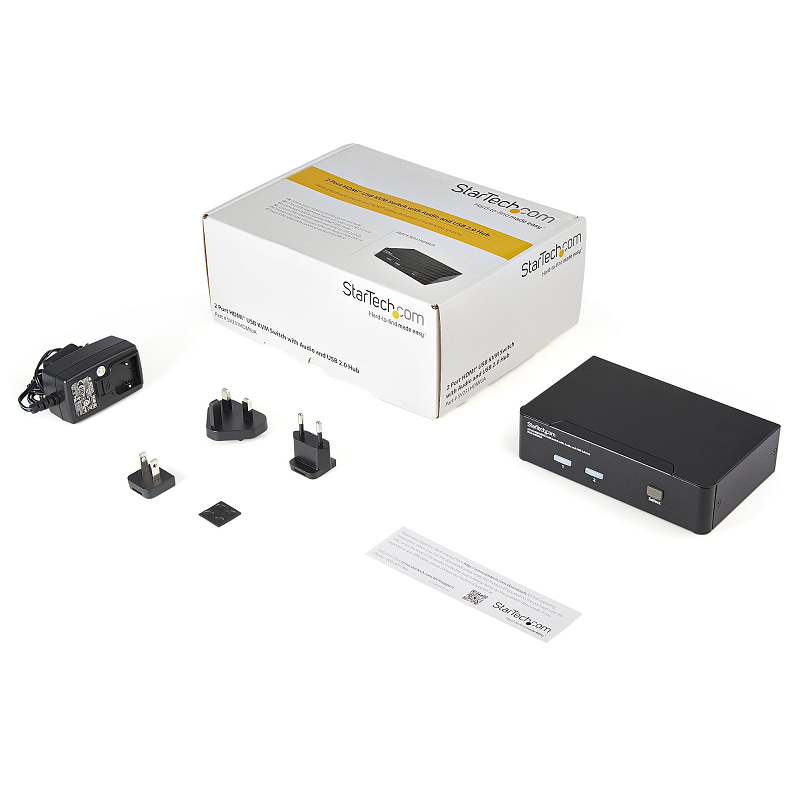

| Packaging content | |
| Rubber feet | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Other features | |
| Connectivity technology | Wired |
| Power requirements | AC 110 - 240 V |
| Ports quantity | 2 |
| Dimensions | 124.8 x 70 x 40 mm |
| I/O ports | 1x HDMI (F) 4x USB A (F) 6x 3.5mm (F) 2x USB B (F) 2x mini-HDMI (F) |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
