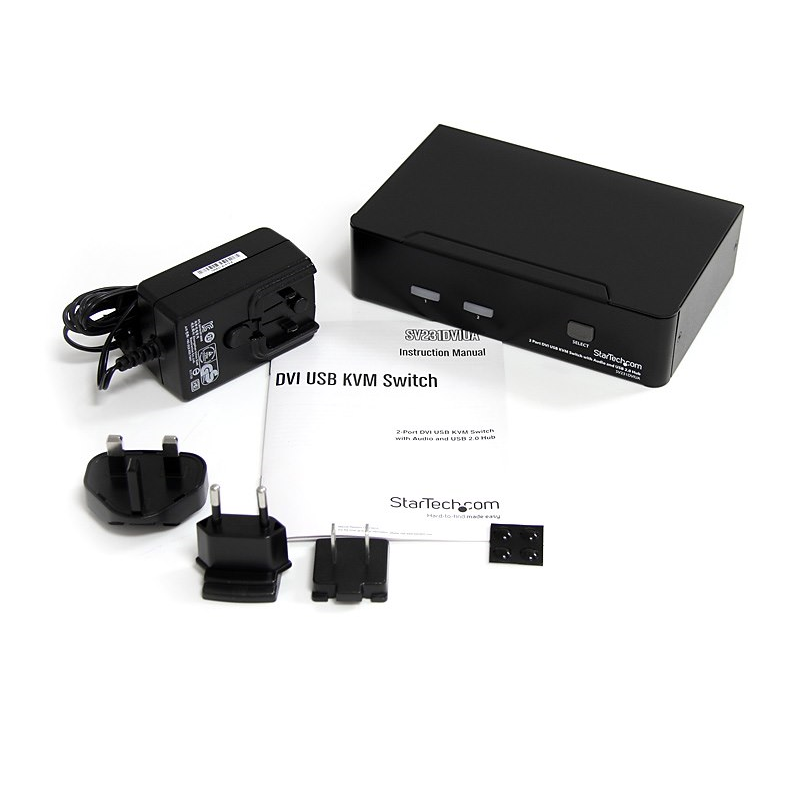

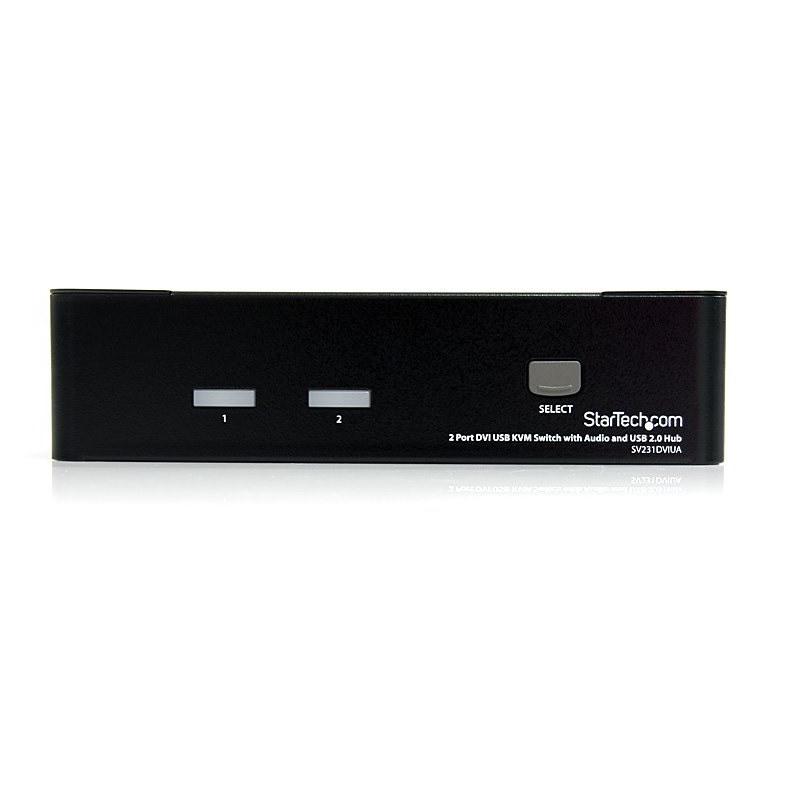

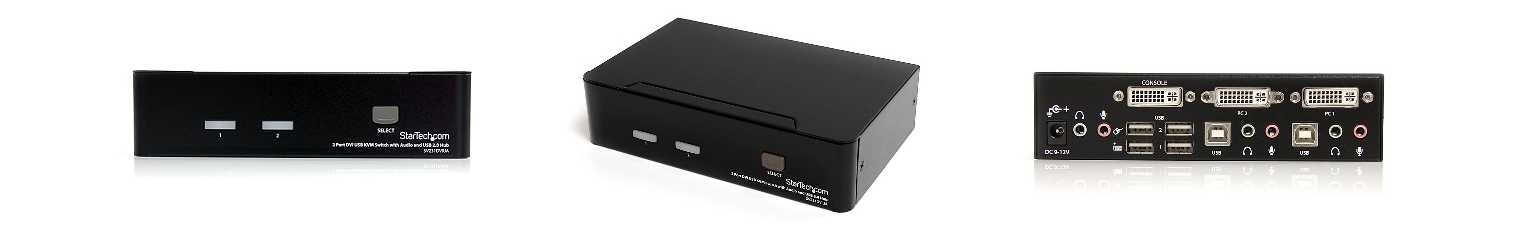

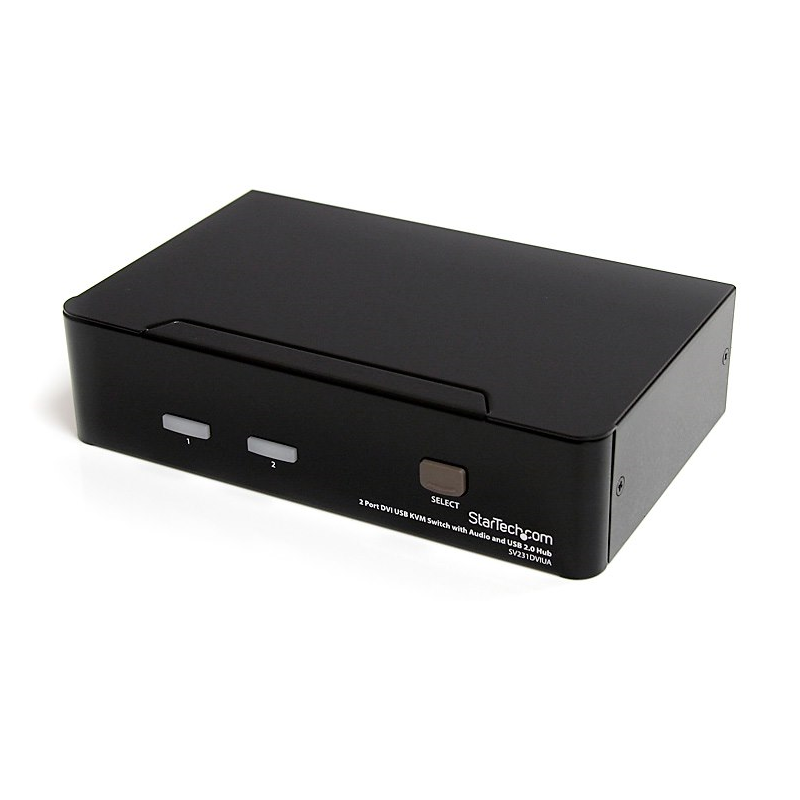

2 Port DVI USB KVM Switch with Audio and USB 2.0 Hub
Share keyboard, mouse, speakers and a DVI display between two multimedia computers
The SV231DVIUA 2-Port DVI USB KVM Switch lets you control two USB-enabled, DVI-capable computers from a single monitor and peripheral set (keyboard, mouse and speakers), and two additional USB peripherals connected through the built-in USB hub ports.
Featuring convenient hot-key and front panel push-button switching, and high-resolution support (up to 1920x1200), the DVI KVM Switch is perfect for controlling high-performance systems. Ideal for multimedia applications, this KVM switch supports audio and microphone switching either independently, or simultaneously when switching between computers for KVM control.
The DVI USB KVM also features an integrated USB 2.0 hub, which lets you share USB peripherals point as if they were connected directly to the slave computers.
This product is TAA compliant and is backed by a Startech.com 3 year warranty with lifetine technical support.
Technical details | |
Product colour | Black |
Rack mounting | No |
Number of users | 1 user(s) |
LED indicators | Yes |
Sustainability certification | CE, RoHS |
Video | |
HD type | Full HD |
Maximum resolution | 1920 x 1200 pixels |
Ports & interfaces | |
Console USB ports quantity | 4 |

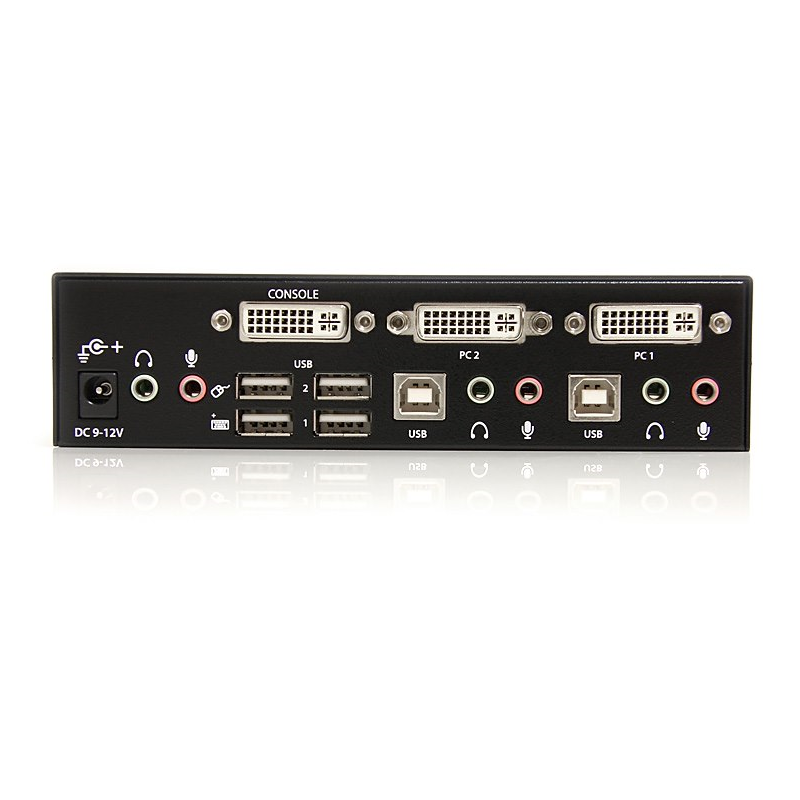

Console ports | 3.5 mm headphone, 3.5 mm mic, DVI-I, USB A |
Number of microphone inputs | 3 |
Number of computers controlled | 2 |
Keyboard port type | USB |
Mouse port type | USB |
Video port type | DVI-I |
Audio connections | Yes |
Headphone outputs | 3 |
DC-in jack | Yes |
Performance | |
Daisy chain | No |
HD type | Full HD |
Maximum resolution | 1920 x 1200 pixels |
Number of users | 1 user(s) |
Design | |
Mean time between failures (MTBF) | 126397 h |
Product colour | Black |
Rack mounting | No |
LED indicators | Yes |
Display | |
Built-in display | No |
Power | |
Input current | 0.8 A |
Output current | 1.5 A |
Power plug type | Type M |
Compatible power plug types | EU, UK, US |
Output voltage | 12 V |
AC input voltage | 100 - 240 V |
Power consumption (typical) | 18 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | - 20 - 60 °C |
Operating relative humidity (H-H) | 0 - 80 % |
Weight & dimensions | |
Width | 199 mm |
Depth | 160 mm |
Height | 40 mm |
Weight | 650 g |
Packaging content | |
Rubber feet | Yes |
Manual | Yes |
Logistics data | |
Master (outer) case width | 31.4 cm |
Master (outer) case length | 39.9 cm |
Master (outer) case height | 26 cm |
Quantity per master (outer) case | 6 pc(s) |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
