2 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 3.0 Hub & Audio - Dell HP Apple Lenovo - TAA Compliant
KVM with USB | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution or, using an MST adapter, can drive various DisplayPort multi-display setups totaling 4Kif you need to maximize viewing space. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.

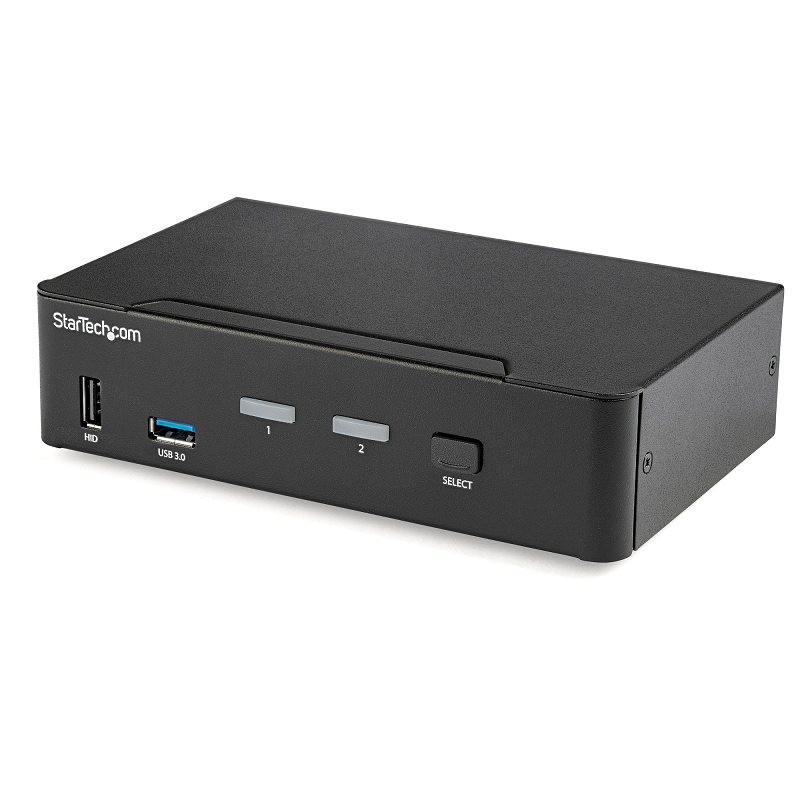

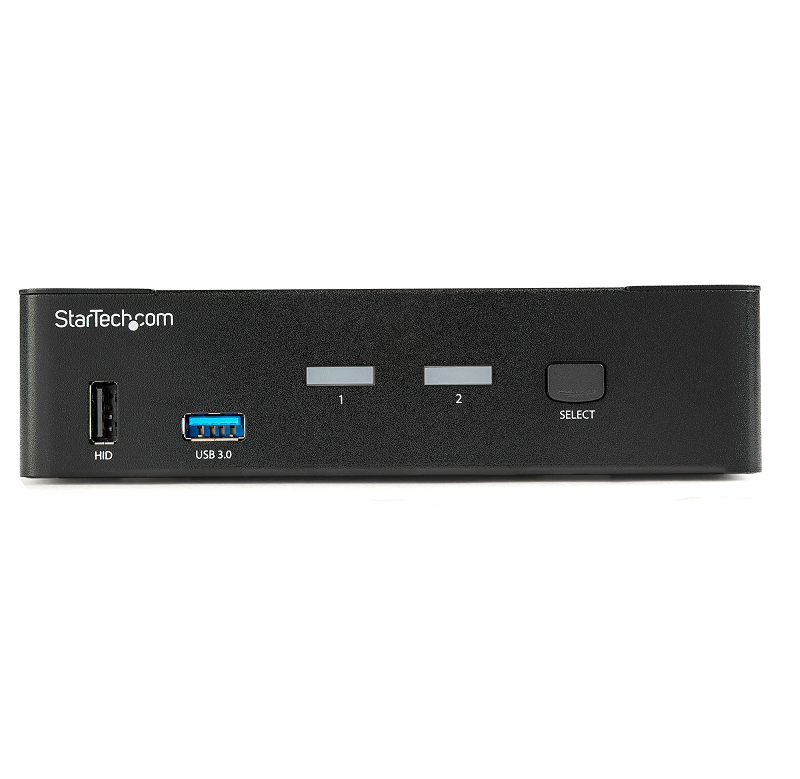

The front-panel push buttons make it easy to switch between systems and activate the auto scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
| Technical details | |
| Product colour | Black |
| On Screen Display (OSD) | No |
| Number of users | 1 user(s) |
| LED indicators | Yes |
| Hot keys | Yes |
| IP control | No |
| Sustainability certificates | RoHS |
| Performance | |
| HDCP | Yes |
| Daisy chain | No |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Number of users | 1 user(s) |
| Audio channels | 2.0 |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |

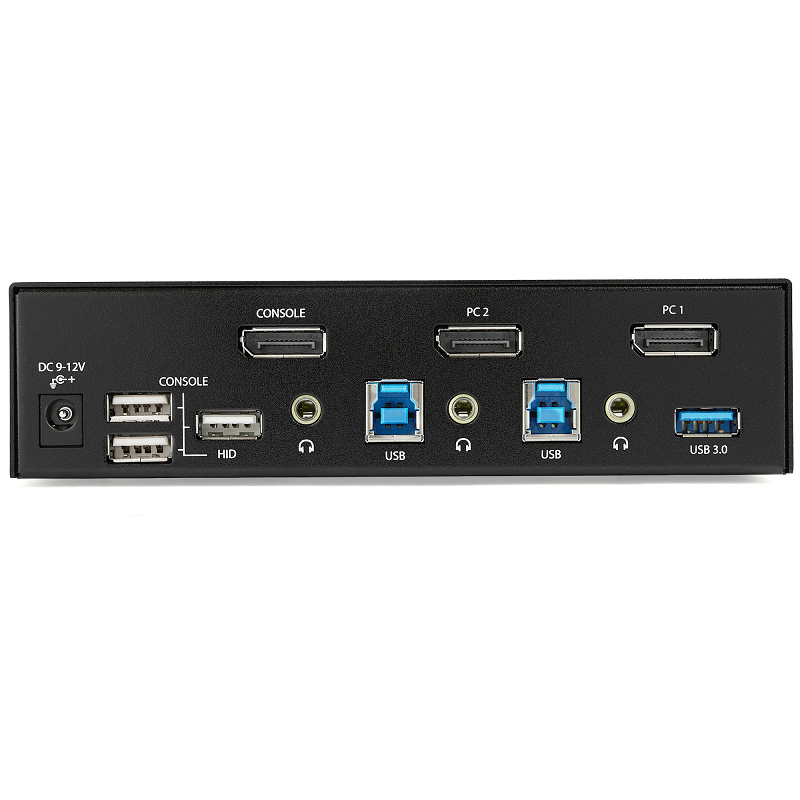

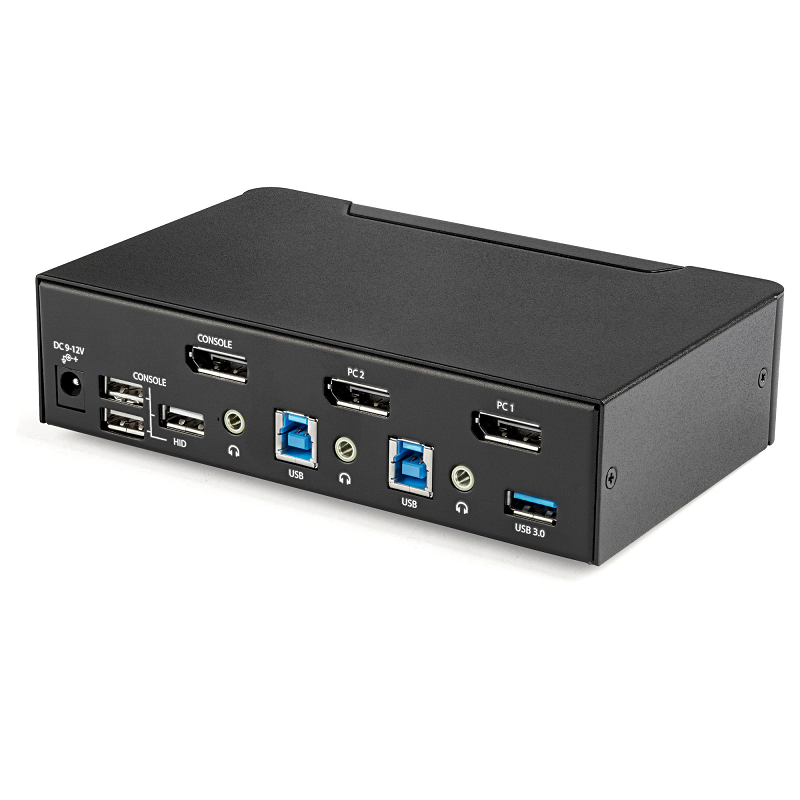

| Ports & interfaces | |
| Console USB ports quantity | 6 |
| Console ports | 3.5 mm headphone, DisplayPort, USB A |
| HDCP | Yes |
| USB connector type | USB Type-A, USB Type-B |
| DisplayPorts quantity | 3 |
| DisplayPort version | 1.2 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Design | |
| Mean time between failures (MTBF) | 60000 h |
| Product colour | Black |
| LED indicators | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, TAA, REACH |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| On Screen Display | No |
| Power | |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, JP, UK, US |
| Output voltage | 12 V |
| AC input voltage | 110 - 240 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | - 10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80 % |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 100 mm |
| Height | 40 mm |
| Weight | 1.1 kg |

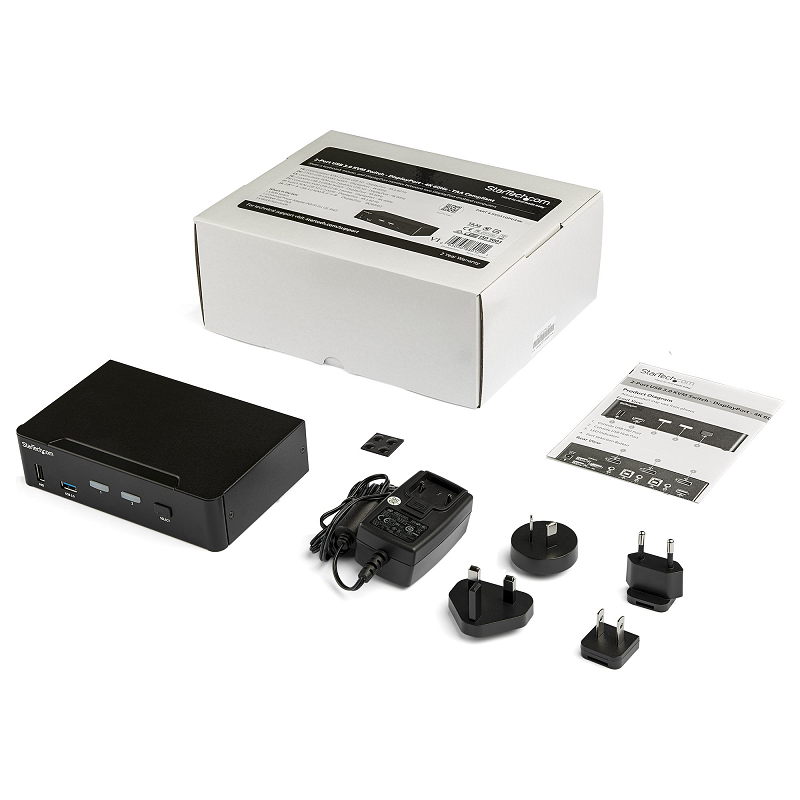

| Packaging content | |
| Rubber feet | Yes |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Master (outer) case width | 31.8 cm |
| Master (outer) case length | 38.9 cm |
| Master (outer) case height | 28.5 cm |
| Quantity per master (outer) case | 6 pc(s) |
| Other features | |
| Hot keys | Yes |
| IP control | No |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A user quick start guide can be found in the PDF file
