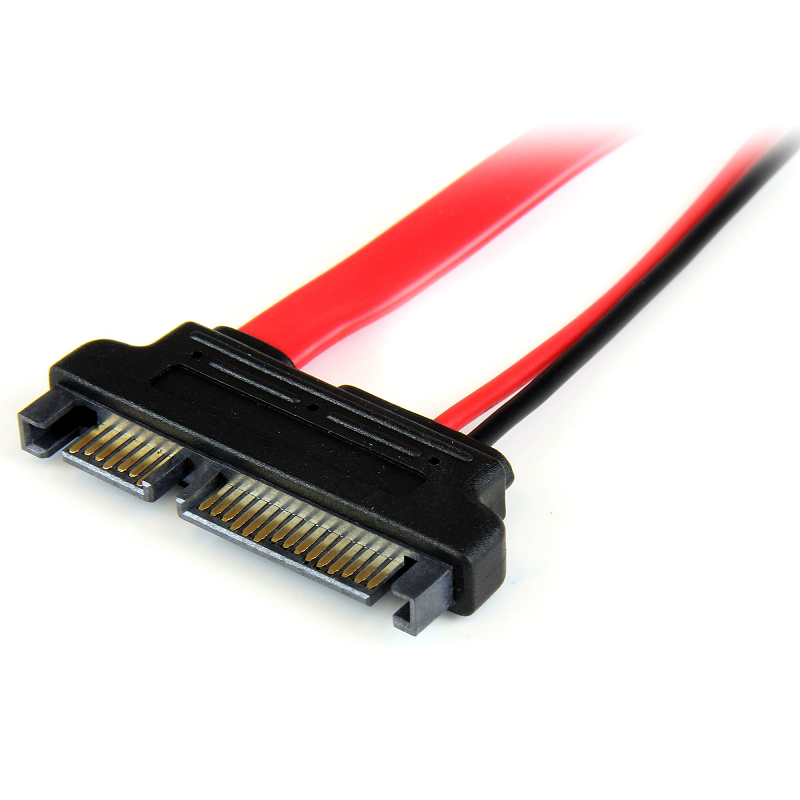

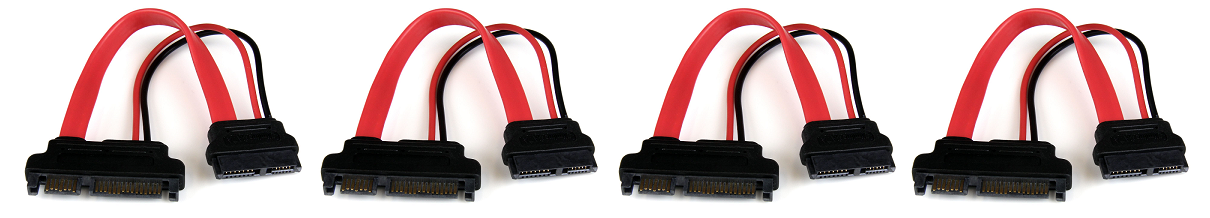

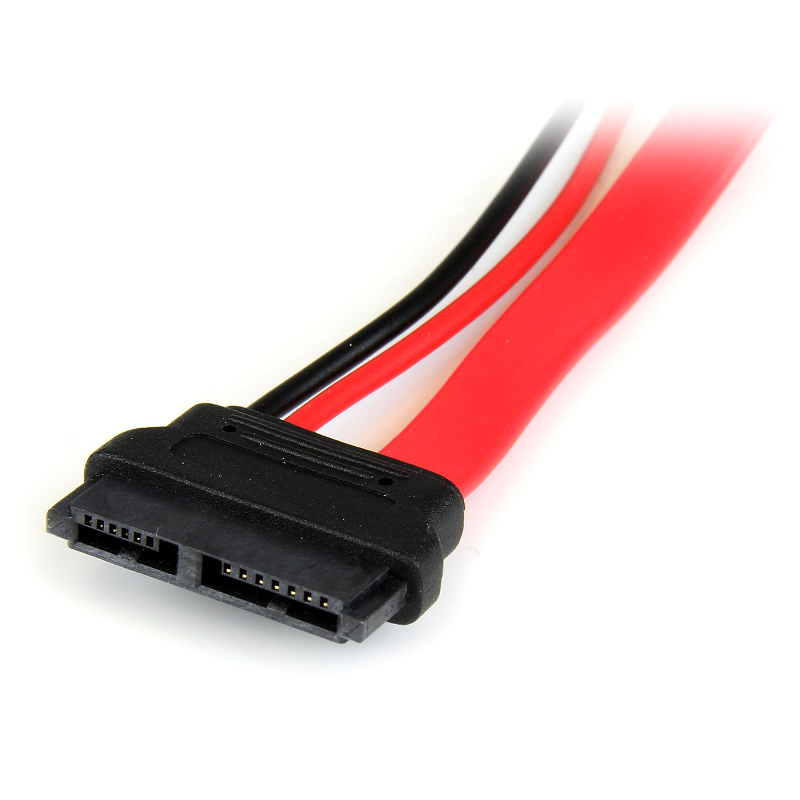

6in Slimline SATA to SATA Adapter with Power - F/M
Connect a Slimline SATA optical drive up to 6in away from a standard SATA motherboard connection
The SLSATAADAP6 Slimline SATA to SATA adapter features a Slimline Serial ATA connector on one end and a standard SATA data connector (with SATA power connector) on the other, enabling you to connect a Slimline SATA optical drive to standard motherboard and power supply connections.
The slim SATA adapter offers 6-inches in cable length, which compared to standard (non-cable) SATA/Slimline SATA adapter reduces strain off the drive connector and allows for flexible cable routing when positioning the Slimline SATA drive within the system case.
Designed and constructed to provide a dependable Slimline SATA to SATA connection, this high quality cable is backed by StarTech.com's Lifetime Warranty.
| Features | |
| Maximum data transfer rate | 6 Gbit/s |
| AWG wire size | 18 |
| Connector gender | Male / Female |
| Cable type | SATA III |
| Cable length | 0.1524 m |
| Connecotr 1 | Slimline SATA 13 pin |
| Connector 1 form factor | Straight |
| Connecotr 2 | SATA 7+15 pin |
| Connector 2 form factor | Straight |
| Weight | 14 g |
| Product colour | Red |
| Certification | RoHS |
| Technical details | |
| Maximum data transfer rate | 6 Gbit/s |
| AWG wire size | 18 |
| Connector gender | Male / Female |
| Cable type | SATA III |
| Cable length | 0.1524 m |
| Connector 1 | Slimline SATA 13 pin |
| Connector 1 form factor | Straight |
| Connector 2 | SATA 7+15 pin |
| Connector 2 form factor | Straight |
| Product colour | Red |
| Certification | RoHS |
| Sustainability certificates | RoHS |
| Packaging data | |
| Package width | 125 mm |
| Package depth | 225 mm |
| Package height | 8 mm |
| Package weight | 19 g |
| Quantity per pack | 1 pc(s) |
Full specification and details can be found in the PDF file

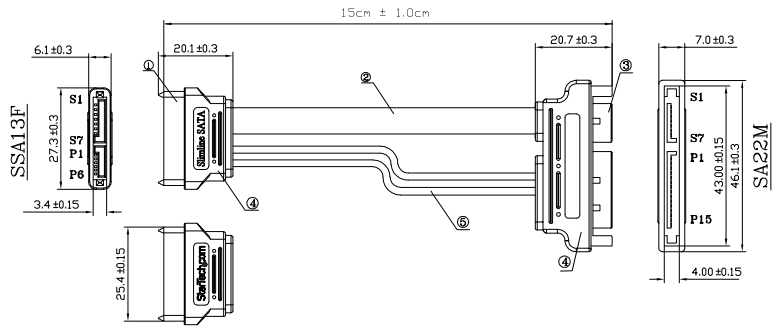

A product drawing can be found in the PDF file
6in Slimline SATA to SATA Adapter with Power - F/M
Connect a Slimline SATA optical drive up to 6in away from a standard SATA motherboard connection
The SLSATAADAP6 Slimline SATA to SATA adapter features a Slimline Serial ATA connector on one end and a standard SATA data connector (with SATA power connector) on the other, enabling you to connect a Slimline SATA optical drive to standard motherboard and power supply connections.
The slim SATA adapter offers 6-inches in cable length, which compared to standard (non-cable) SATA/Slimline SATA adapter reduces strain off the drive connector and allows for flexible cable routing when positioning the Slimline SATA drive within the system case.
Designed and constructed to provide a dependable Slimline SATA to SATA connection, this high quality cable is backed by StarTech.com's Lifetime Warranty.
| Features | |
| Maximum data transfer rate | 6 Gbit/s |
| AWG wire size | 18 |
| Connector gender | Male / Female |
| Cable type | SATA III |
| Cable length | 0.1524 m |
| Connecotr 1 | Slimline SATA 13 pin |
| Connector 1 form factor | Straight |
| Connecotr 2 | SATA 7+15 pin |
| Connector 2 form factor | Straight |
| Weight | 14 g |
| Product colour | Red |
| Certification | RoHS |
| Technical details | |
| Maximum data transfer rate | 6 Gbit/s |
| AWG wire size | 18 |
| Connector gender | Male / Female |
| Cable type | SATA III |
| Cable length | 0.1524 m |
| Connector 1 | Slimline SATA 13 pin |
| Connector 1 form factor | Straight |
| Connector 2 | SATA 7+15 pin |
| Connector 2 form factor | Straight |
| Product colour | Red |
| Certification | RoHS |
| Sustainability certificates | RoHS |
| Packaging data | |
| Package width | 125 mm |
| Package depth | 225 mm |
| Package height | 8 mm |
| Package weight | 19 g |
| Quantity per pack | 1 pc(s) |
Full specification and details can be found in the PDF file
A product drawing can be found in the PDF file
