| Part No: | FEPNL9M16 |
| Manufacturer No: | PNL9M16 |
| Delivery: | In Stock: Next Day |
 |

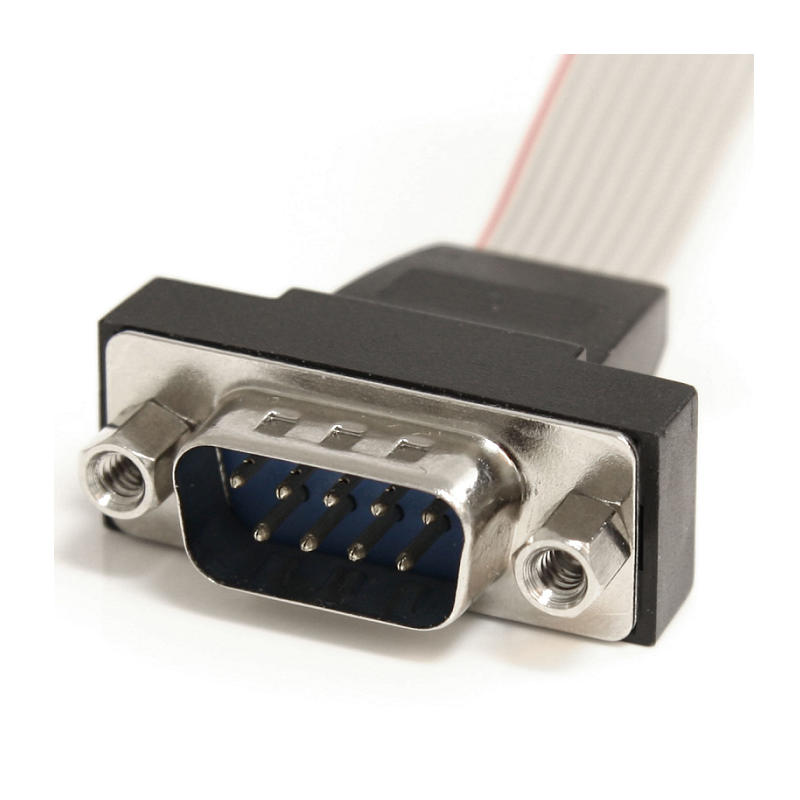

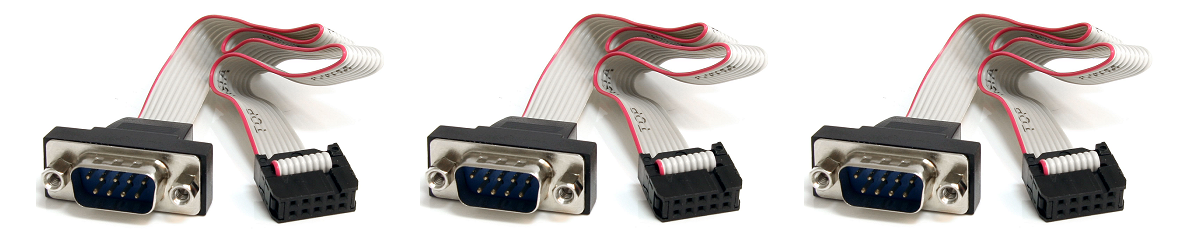

16in 9 Pin Serial Male to 10 Pin Motherboard Header Panel Mount Cable
Turn a Motherboard IDC Serial Header into a Panel-Mountable 9-Pin RS232 Serial Connector

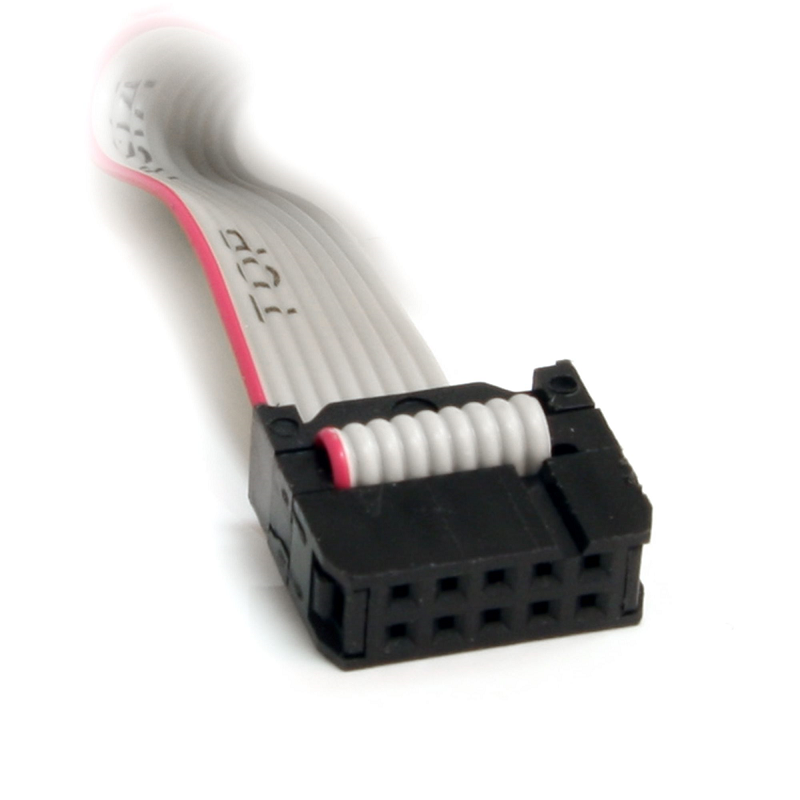

The PNL9M16 16-inch IDC Serial to Panel Mount Serial Cable, features a 10-pin (IDC) motherboard header connection on one end and a panel mount DB9 male connector port on the other - a simple answer for adding a DB9 (RS232) serial port to any computer system which has an RS232 serial panel mount receptacle.
This cost-effective solution bridges the compatibility gap between modern computers and legacy serial peripherals.
| Technical details | |
| Weight | 17 g |
| Certification | CE, REACH, RoHS |

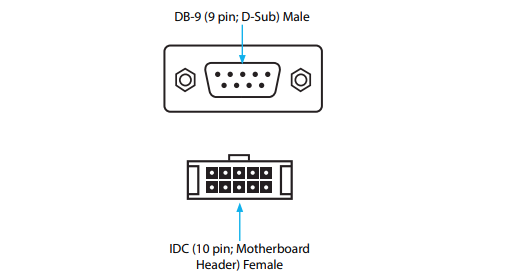

| Connector 2 | IDC |
| Connector 1 | DB-9 |
| Product colour | Grey |
| Cable length | 0.4064 m |
| AWG wire size | 28 |
| Package width | 128 mm |
| Package height | 220 mm |
| Quantity per pack | 1 pc(s) |
| Features | |
| Weight | 17 g |
| Connector 2 | IDC |
| Connector 1 | DB-9 |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Packaging data | |
| Package width | 128 mm |
| Package height | 220 mm |
| Package weight | 22 g |
Full specification and details can be found in the PDF file
A pin wiring configuration can be found in the PDF file
