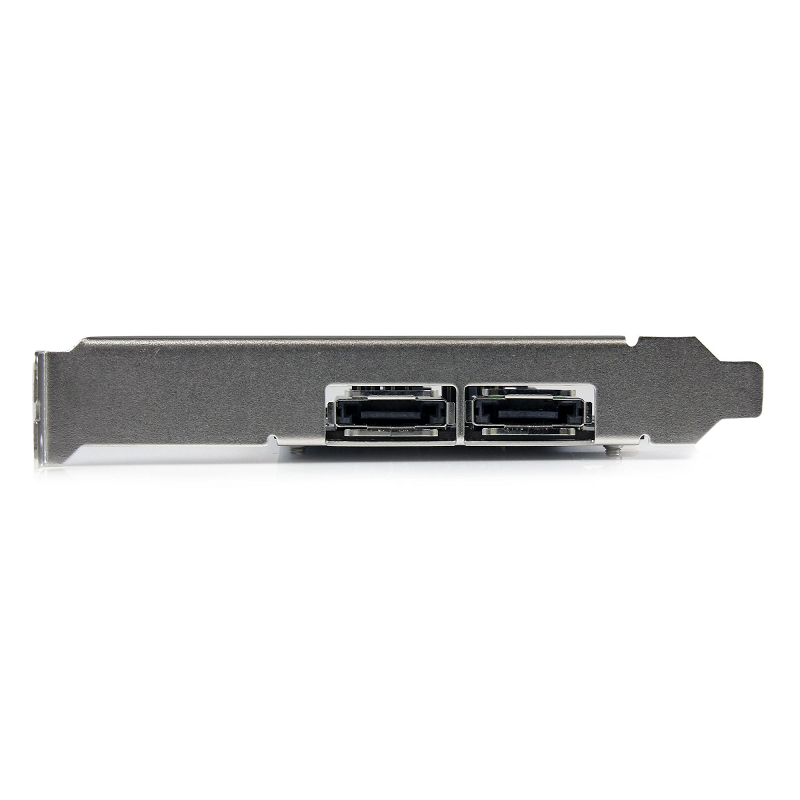

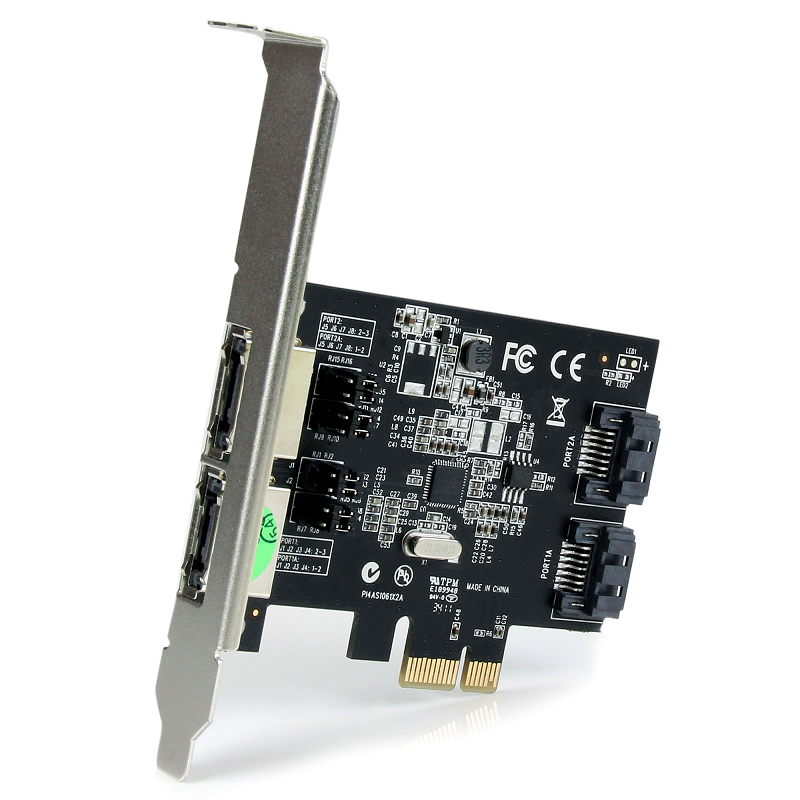

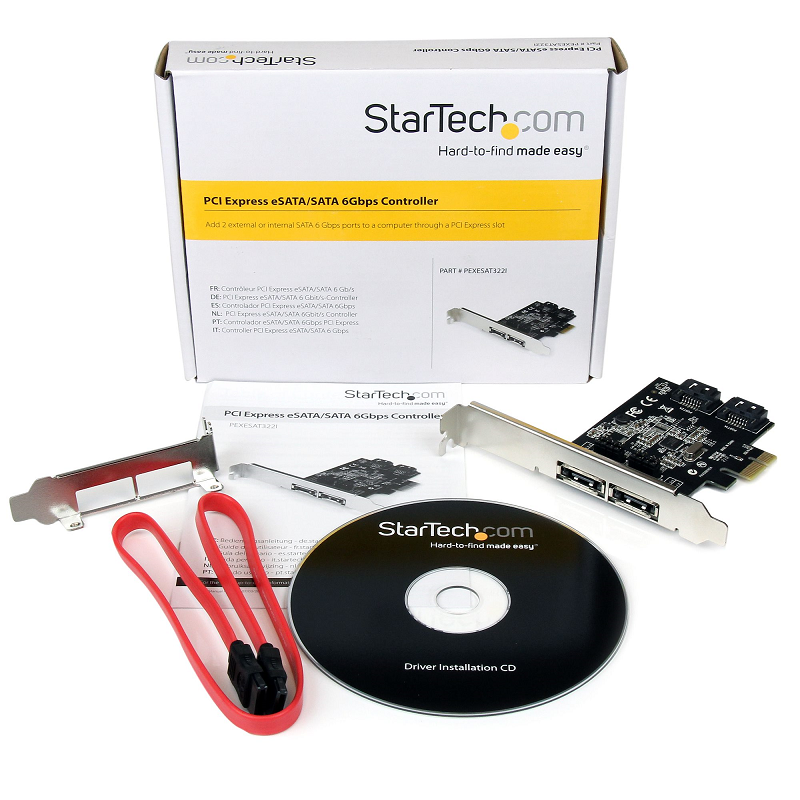

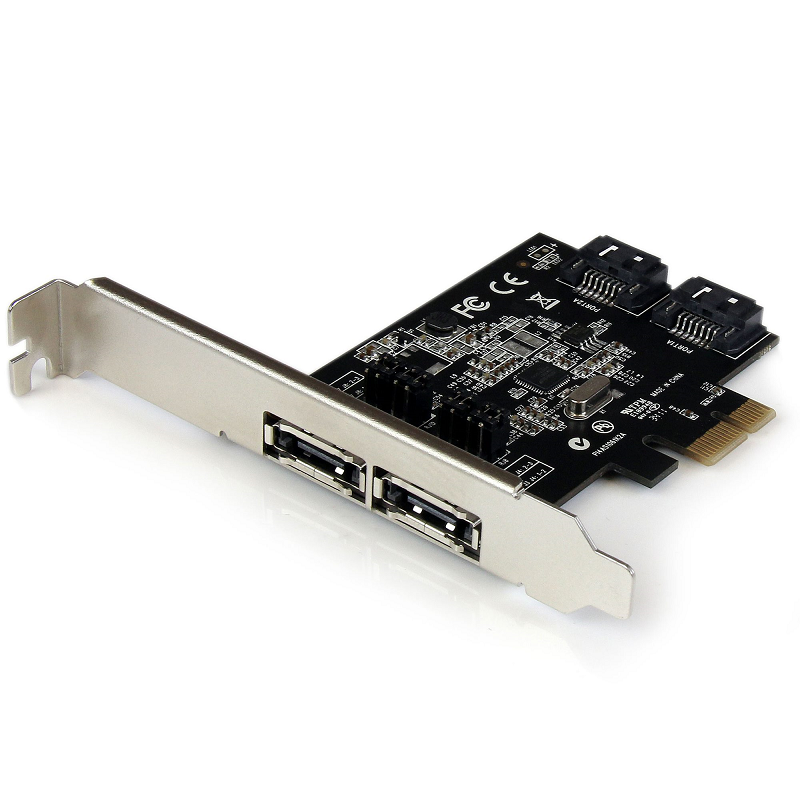

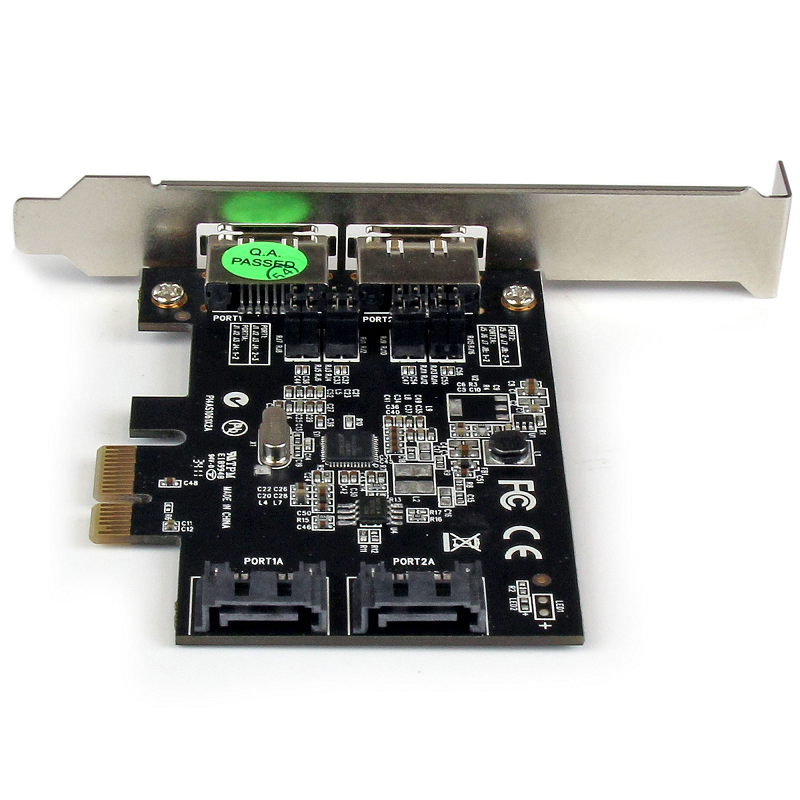

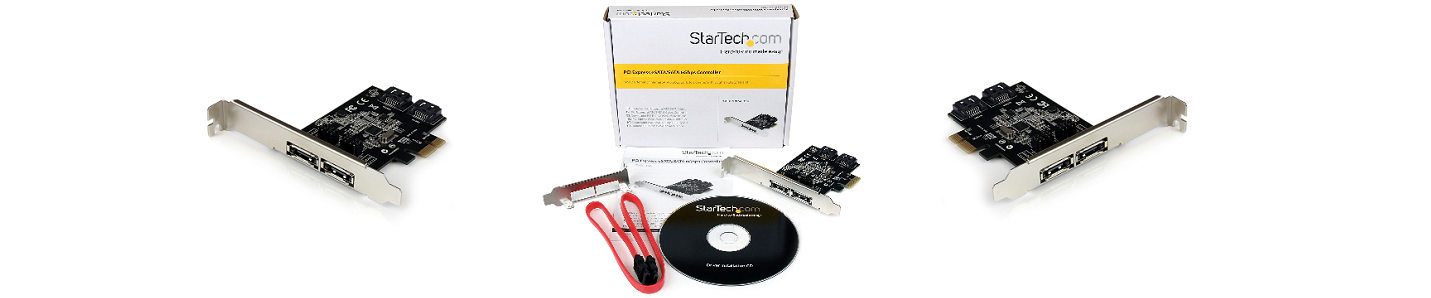

2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext
Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot
The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.
| Ports & interfaces | |
| Internal | Yes |
| Port multiplier | Yes |
| Output interface | SATA |
| SATA revision | 3.0 |
| eSATA ports quantity | 2 |
| Internal SATA ports quantity | 2 |
| Host interface | PCIe |
| Technical details | |
| Chipset | ASMedia - ASM1061 |
| Logical block addressing (LBA) support | 48 bit |
| Native Command Queuing (NCQ) | Yes |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Weight & dimensions | |
| Width | 92 mm |
| Height | 20 mm |
| Depth | 121 mm |
| Weight | 48 g |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
