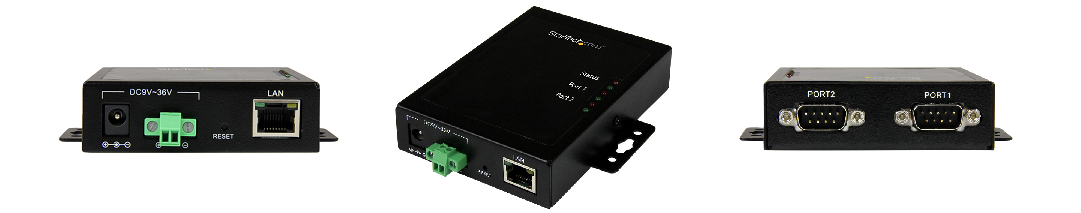

2-Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable
Connect, configure and manage two remote RS232 serial devices, over an IP network

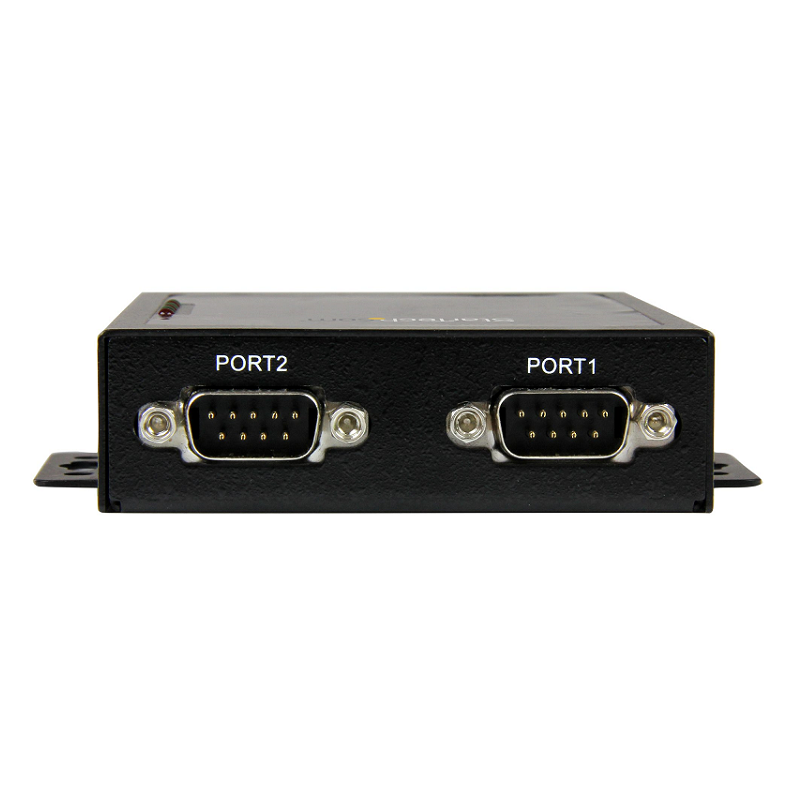

This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it’s perfect for factory and industrial settings.
If you’re looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.
Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.

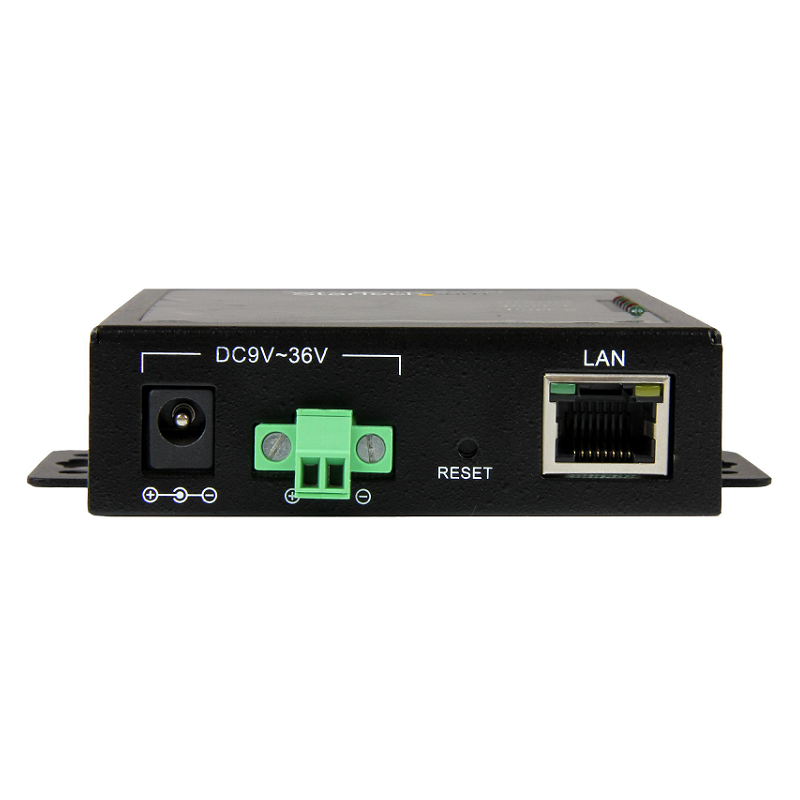

With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.
Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.
This highly customizable device server is easy to configure to suit your application. For easy setup, Windows® users can use the provided Virtual COM port software, or the versatile Web-based interface.
The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux®). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.
The NETRS2322P is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Technical details | |
| Flow Control Type | N, RTS/CTS, XON/XOFF |
| Data bits | 7, 8 |
| Auto MDI/MDI-X | Yes |
| Package width | 150 mm |
| Package height | 53 mm |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
| Networking standards | IEEE 802.3,IEEE 802.3u |
| Ethernet LAN data rates | 10, 100 Mbit/s |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Baud rate | 460.8 Kbit/s |
| Remote management | Yes |
| Parity bit | Even, Mark, Odd, Space |
| Sustainability certifiates | RoHS |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Power | |
| Power source | AC |
| Output voltage | 12 V |
| Output current | 3 A |
| Compatible power plug types | AU, EU, UK, US |
| Input current | 1.5 A |
| Input voltage | 100 - 240 V |
| Indication | |
| LED indicators | Activity, LAN, Link, Status |
| Design | |
| Housing material | Steel |
| Electrostatic Discharge (ESD) protection (contact) | 8 kV |
| Electrostatic Discharge (ESD) protection (air) | 15 kV |
| Product colour | Black |
| Certification | CE, FCC |
| Operational conditions | |
| Storage temperature (T-T) | -45 - 130 °C |
| Operating temperature (T-T) | 0 - 85 °C |
| Operating relative humidity (H-H) | 20 - 80 % |
| Weight & dimensions | |
| Width | 81 mm |
| Depth | 112 mm |
| Height | 23 mm |
| Weight | 320 g |
| Packaging data | |
| Package width | 150 mm |
| Package height | 53 mm |
| Package weight | 685 g |
| User guide | Yes |
| AC adapter included | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A server manual can be found in the PDF file
