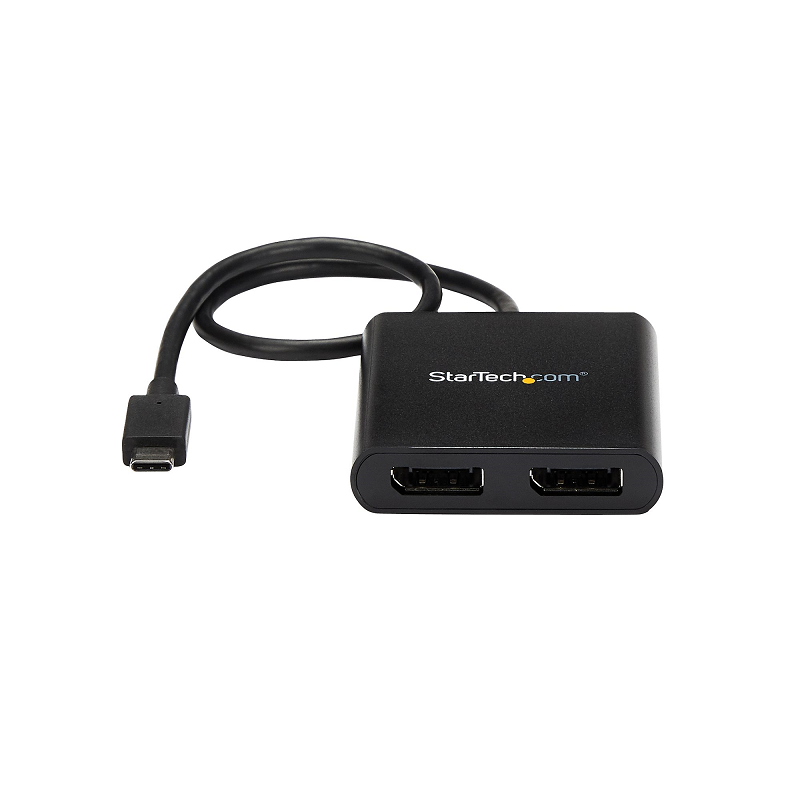

2-Port Multi Monitor Adapter - USB-C to 2x DisplayPort 1.2 Video Splitter - USB Type-C to DP MST Hub - Dual 4K 30Hz or 1080p 60Hz - Thunderbolt 3 Compatible - Windows Only
Dual Monitor Adapter | Windows® | Thunderbolt™ 3 Compatible

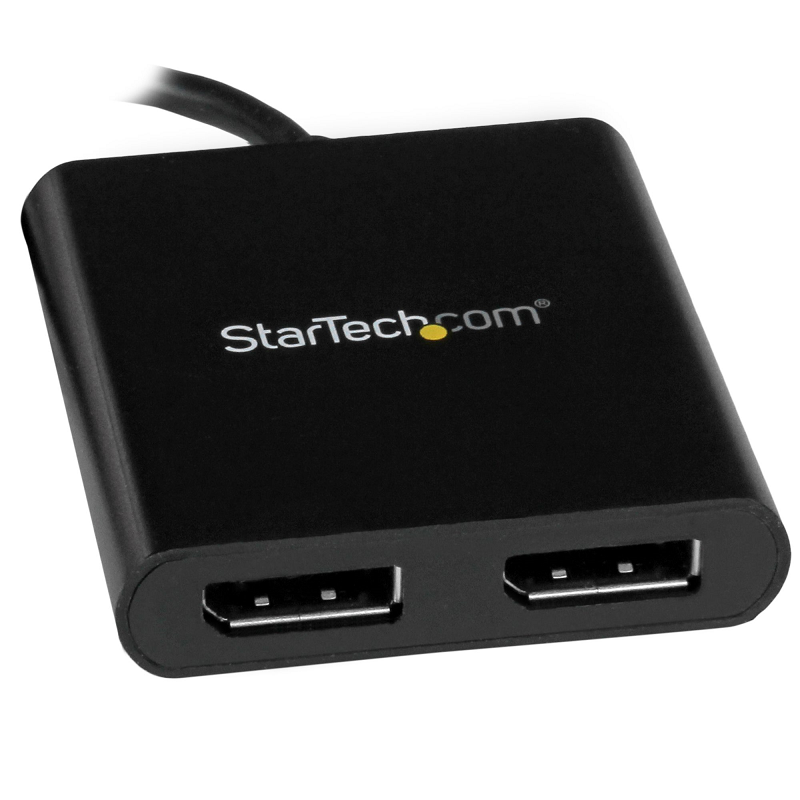

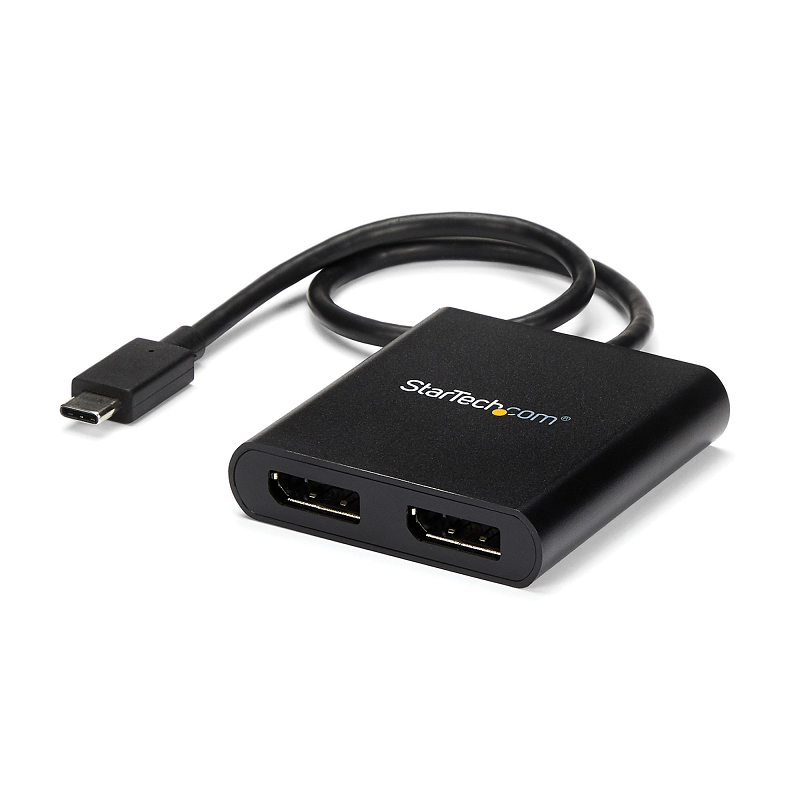

This USB-C to DisplayPort MST Hub lets you connect two DisplayPort monitors to your USB Type-C Windows device, conveniently helping you to maximize your productivity.

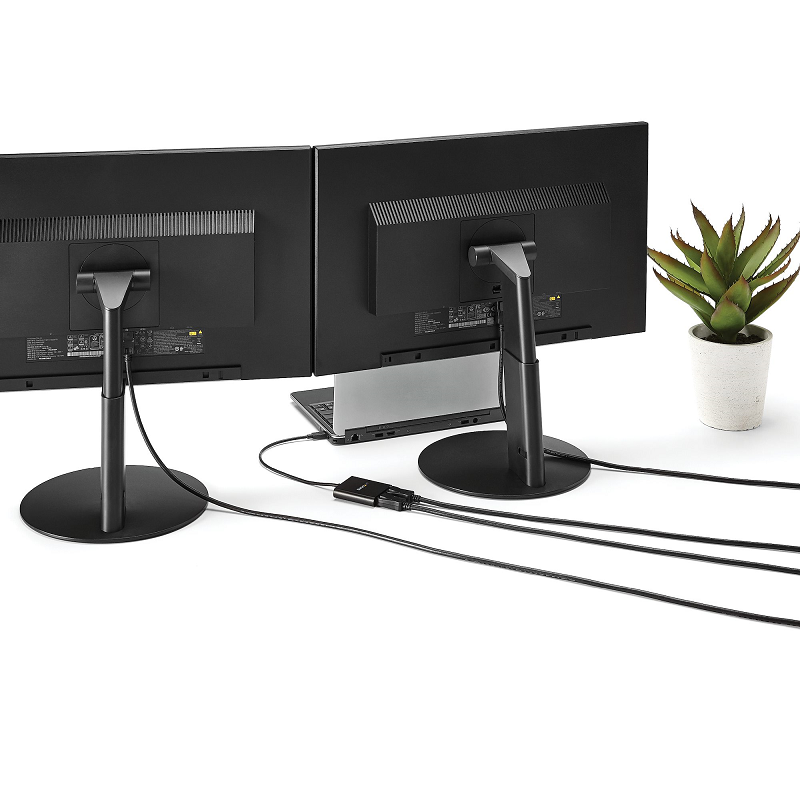

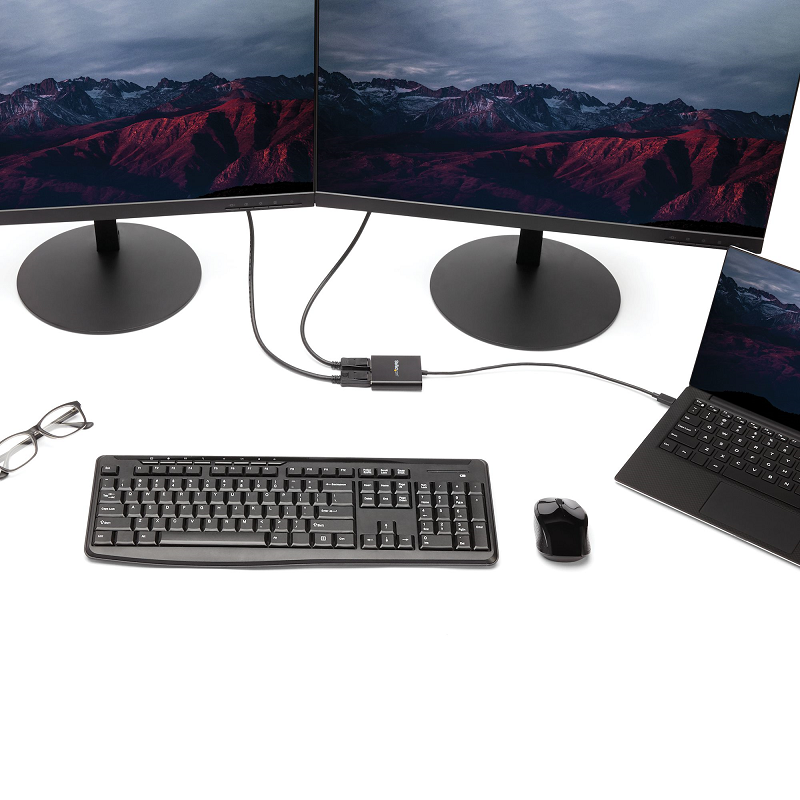

With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This multi-stream transport hub solves that problem by enabling you to connect two separate displays to your USB-C computer, making multitasking much easier.

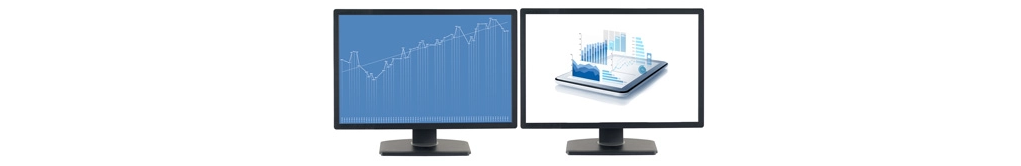

Using this USB-C to dual DisplayPort monitor adapter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking.
MST technology uses your existing video card to minimize the use of system resources, while delivering UHD 4K resolutions for two monitors or displays simultaneously. With support for HD 1080p and UHD 4K, the dual-monitor splitter is perfect for all high-resolution applications such as graphic design and CAD drawing.
Multi-stream transport offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C dual-monitor adapter is Thunderbolt 3 compatible, and offers plug-and-play installation with no drivers or software required. Additionally, this DP MST hub is powered by the USB-C port, meaning no external power cords are necessary.
MSTCDP122DP is backed by a StarTech.com 3-year warranty, and free lifetime technical support.
Performance | |
Chipset | MegaChips - STDP4320, VIA/VLI - VL100 |
Supported graphics resolutions | 1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160 |

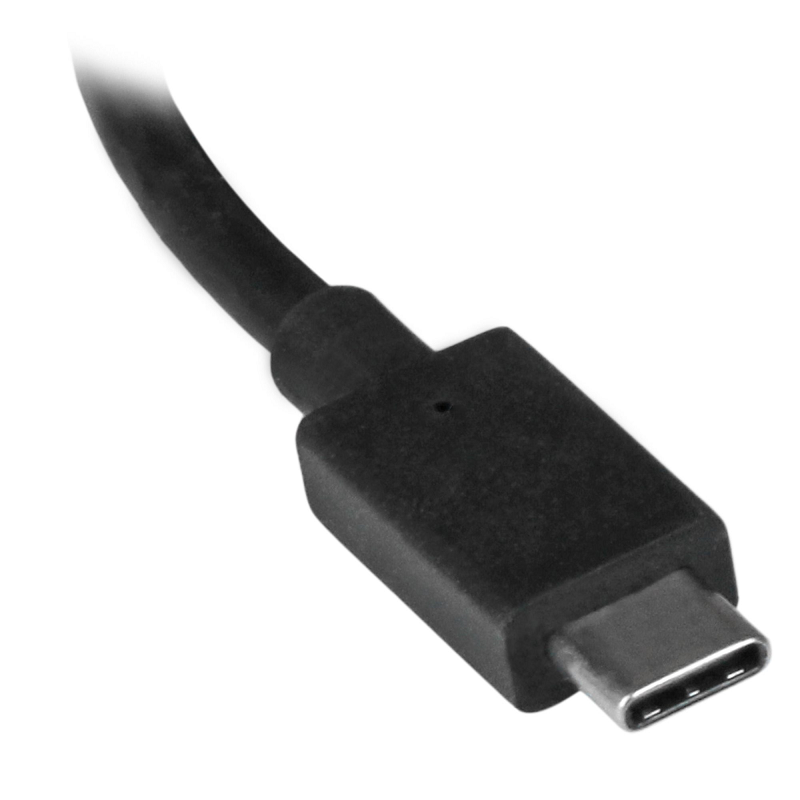

USB connector type | USB Type-C |
USB connector gender | Male |
DVI output | No |
HDMI output | No |
DisplayPort output | Yes |
Number of displays supported | 2 |
DisplayPort version | 1.2 |
Maximum resolution | 3840 x 2160 pixels |
Refresh rate at maximum resolution | 30 Hz |
Certification | CE, FCC, REACH |
Design | |
Product colour | Black |
Integrated USB cable | Yes |
USB cable length | 0.324 m |
Operational conditions | |
Operating temperature (T-T) | 5 - 35 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 50 - 90% |
Weight & dimensions | |
Width | 58 mm |
Depth | 386 mm |
Height | 14 mm |
Weight | 44 g |
Technical details | |
Quantity per master (outer) case | 28 pc(s) |
Master (outer) case width | 33.4 cm |
Master (outer) case length | 50.1 cm |
Master (outer) case height | 22.6 cm |
Sustainability certificates | RoHS |
Full specification and details can be found in the PDF file
A quick start guide can be found in the PDF file
