| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEICUSB2328I |
| Manufacturer No: | ICUSB2328I |
| Delivery: | In Stock: Next Day |
 |

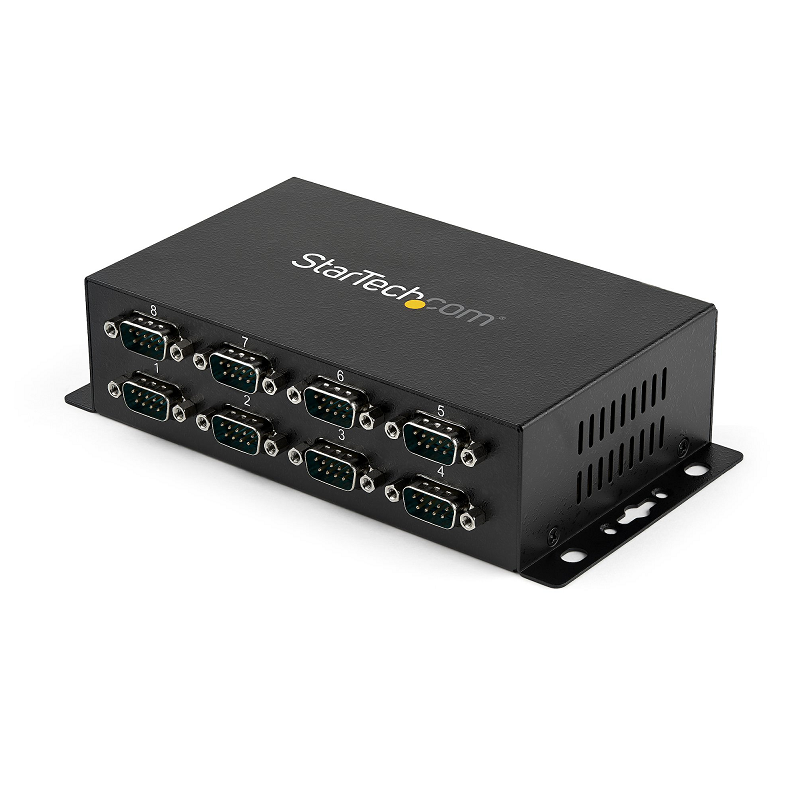

8 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable
Add 8 DIN Rail-mountable RS232 Serial ports to any system through USB

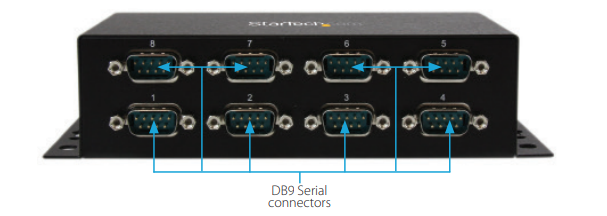

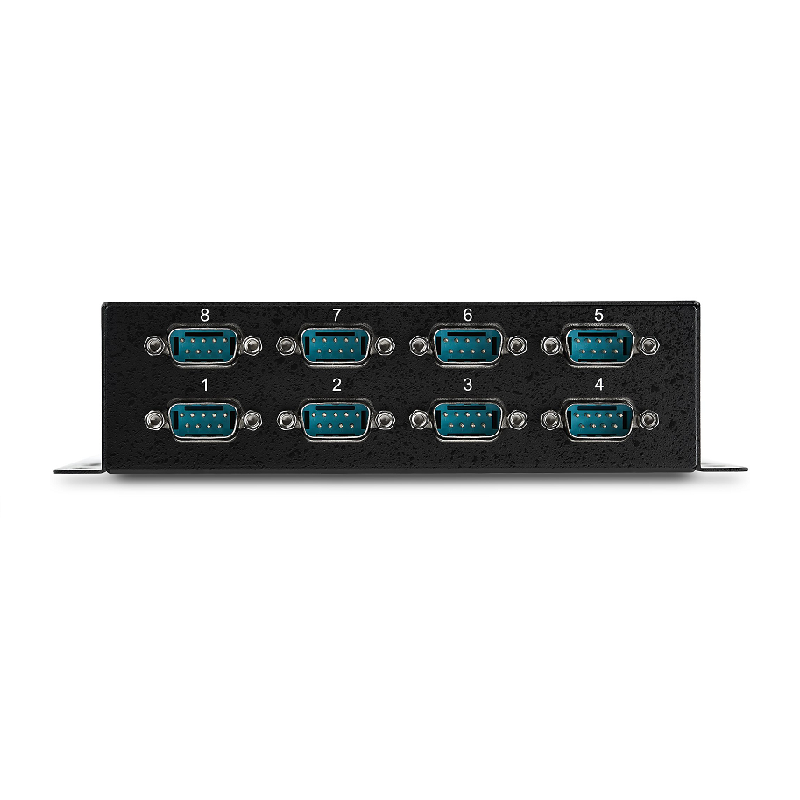

The ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

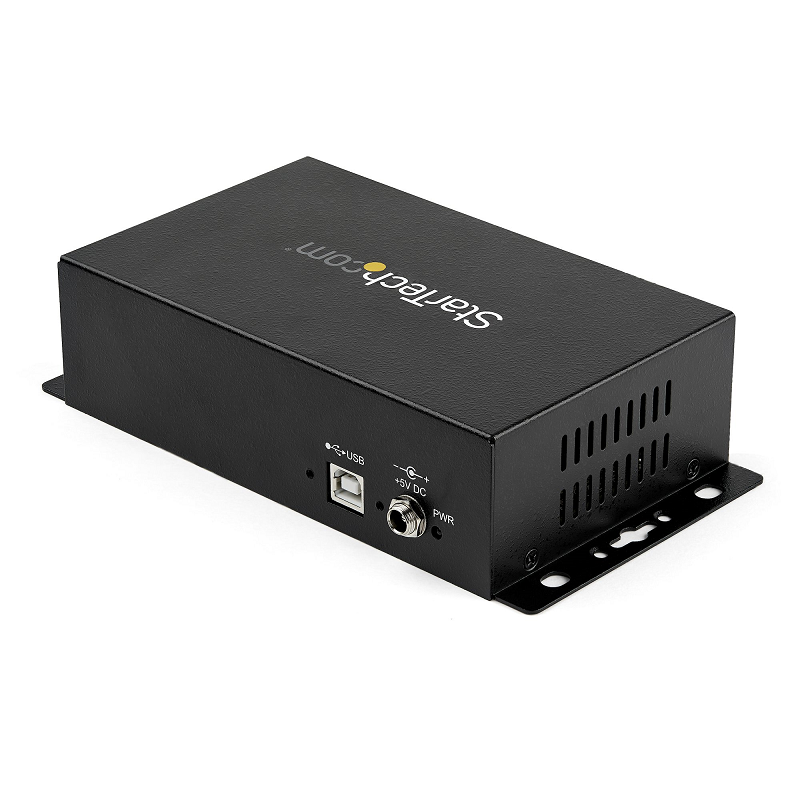

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.

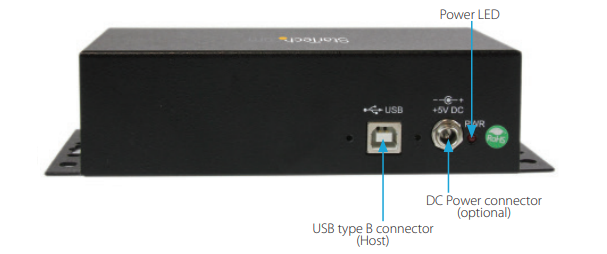

This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Ports & interfaces | |

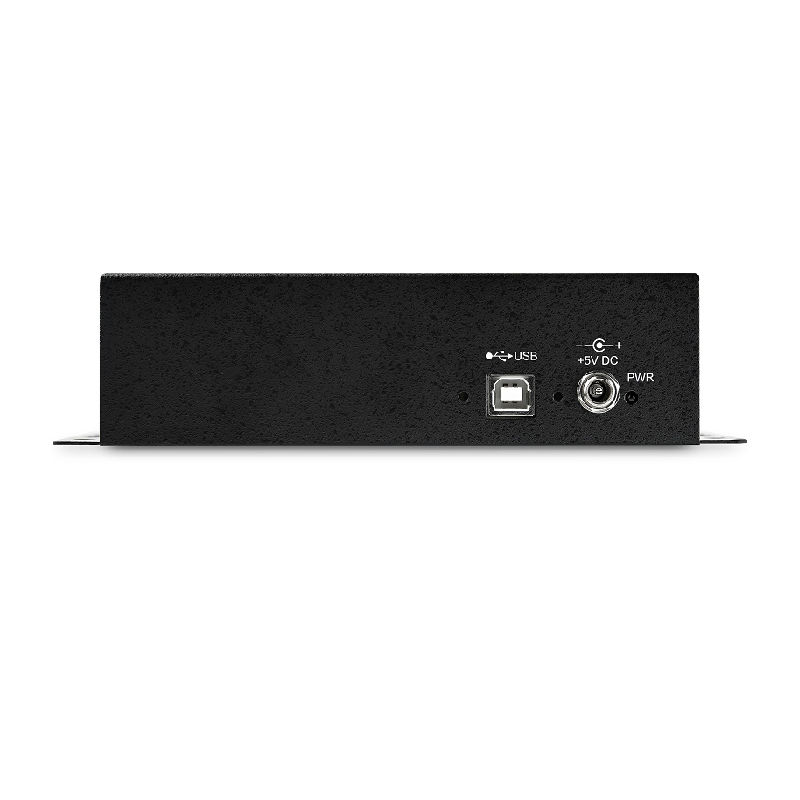

| Host interface | USB 2.0 Type-B |
| RS-232 ports | 8 |
| Hub interfaces | Serial |
| Card reader integrated | No |
| Ports quantity | 8 |
| Features | |
| LED indicators | Activity |
| Product colour | Black |
| Housing material | Steel |
| Host interface | USB 2.0 Type-B |
| Power | |
| Input current | 0.25 A |
| Power plug type | Type M |
| USB powered | Yes |
| Input voltage | 5 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Weight & dimensions | |
| Width | 100 mm |
| Height | 43.2 mm |
| Depth | 180 mm |
| Weight | 544 g |
| Packaging data | |
| Package width | 296 mm |
| Package height | 71 mm |
| Package depth | 191 mm |
| Package weight | 862 g |

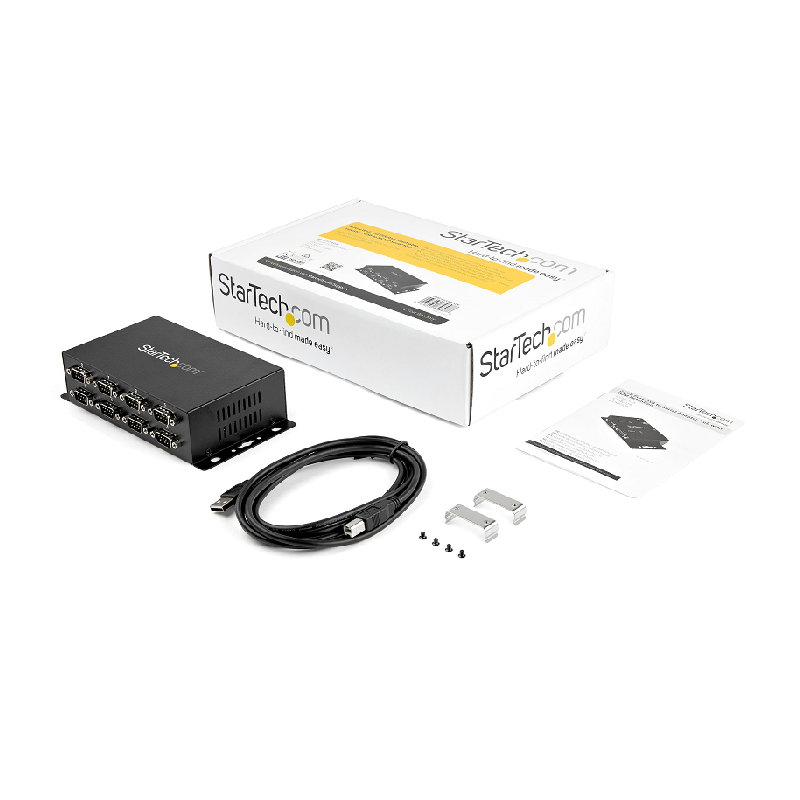

| Cables included | USB |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A product diagram can be found in the PDF file
