2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention
Add RS232, RS422 and RS485 support to your laptop or desktop computer via USB

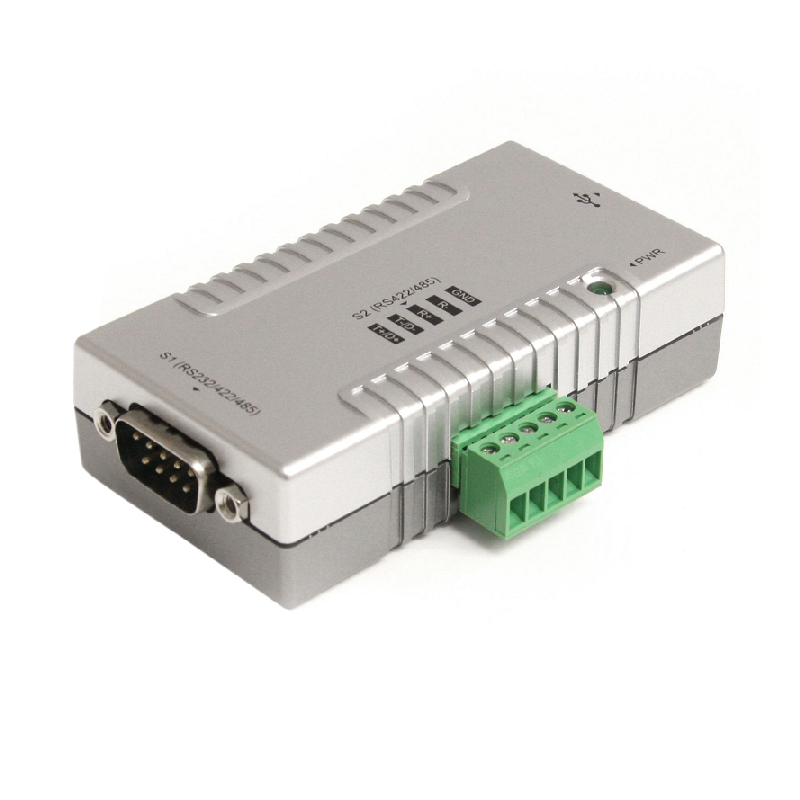

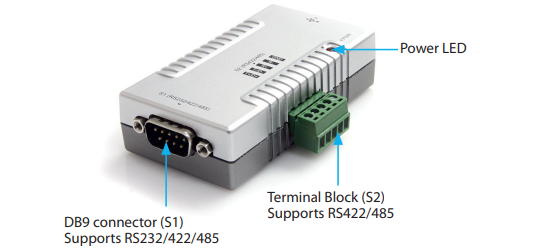

The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations.

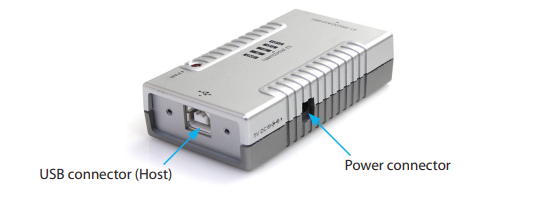

For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Technical details | |
| Chipset | FTDI - FT2232H |
| FIFO (First In, First Out) | 128 B |
| Sustainability certificates | RoHS |
| Performance | |
| Stop bits | 1, 2 |
| Data bits | 7, 8 |
| Baud rate | 921.6 Kbit/s |
| Chipset | FTDI - FT2232H |
| FIFO (First In, First Out) | 128 B |
| Product colour | Grey |
| Design | |
| Product colour | Grey |
| Certification | CE, FCC |
| LED indicators | Power |
| Features | |
| Stop bits | 1, 2 |
| Data bits | 7, 8 |
| Baud rate | 921.6 Kbit/s |
| Chipset | FTDI - FT2232H |
| FIFO (First In, First Out) | 128 B |
| Parity bit | Even, Mark, N, Odd, Space |
| Flow Control type | N, XON/XOFF |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Weight & dimensions | |
| Width | 44.2 mm |
| Height | 23.2 mm |
| Depth | 82.3 mm |
| Weight | 310 g |
| Packaging data | |
| Package width | 144 mm |
| Package height | 40 mm |
| Package depth | 208 mm |
| Package weight | 310 g |
| Manual | Yes |
| Cables included | USB |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
