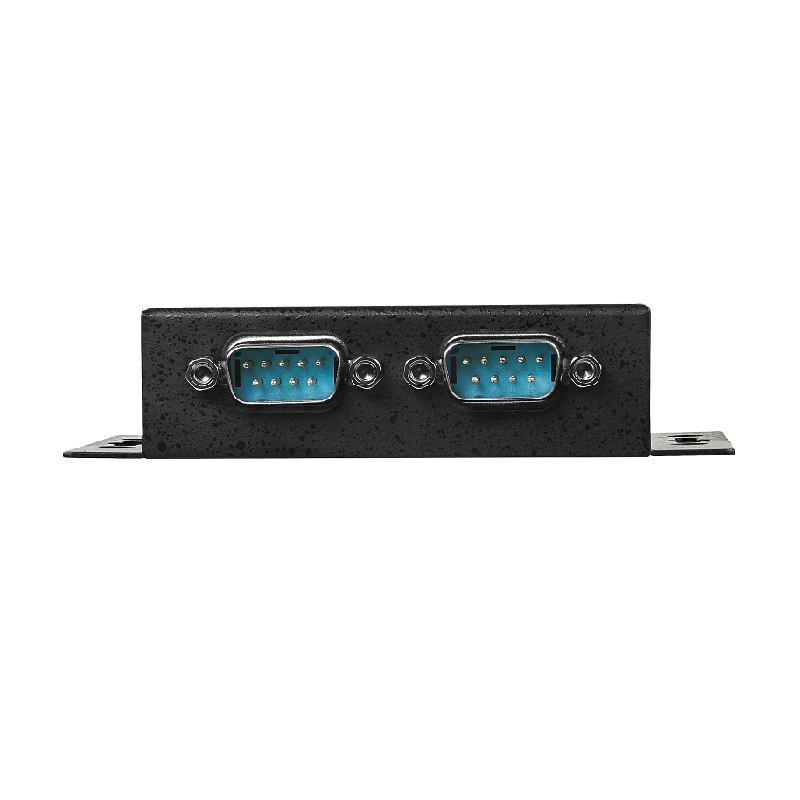

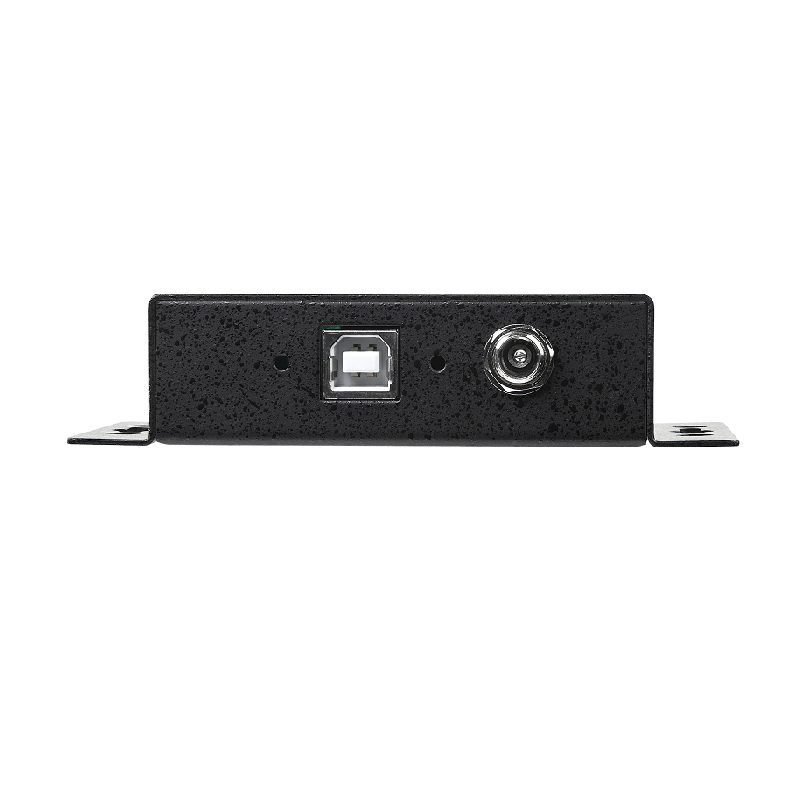

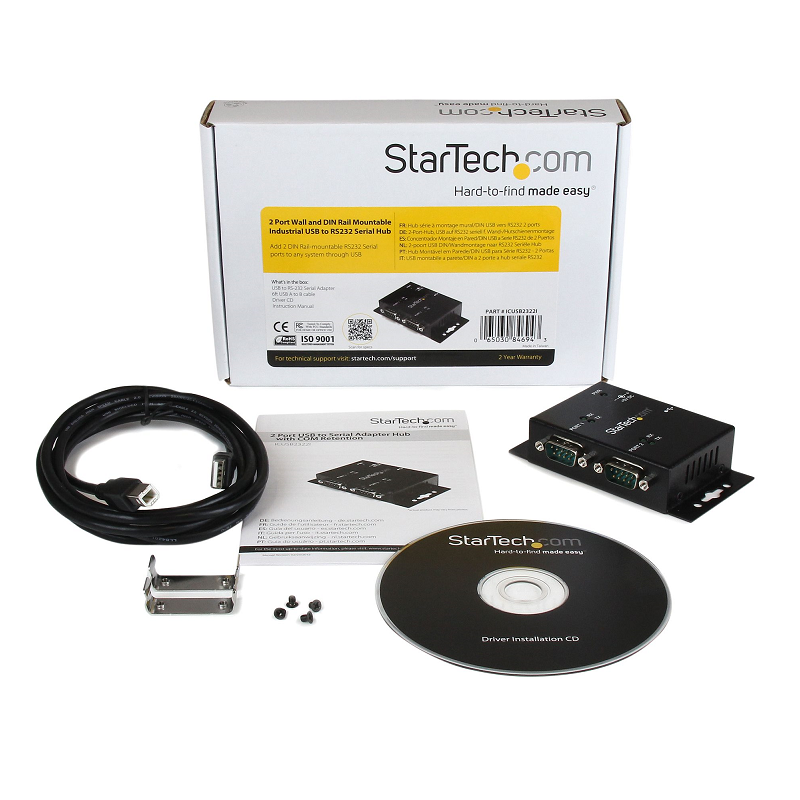

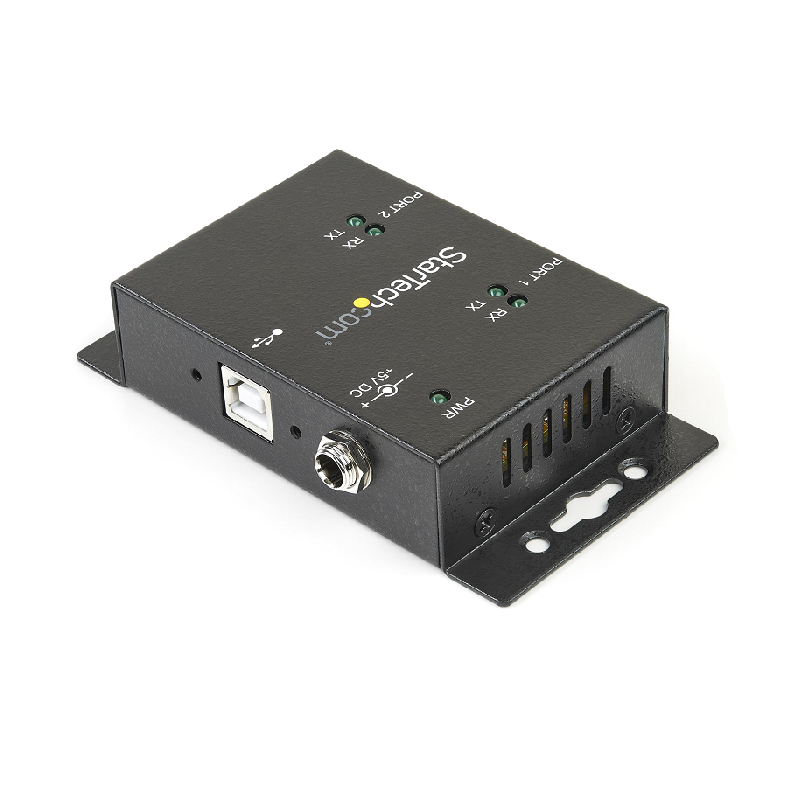

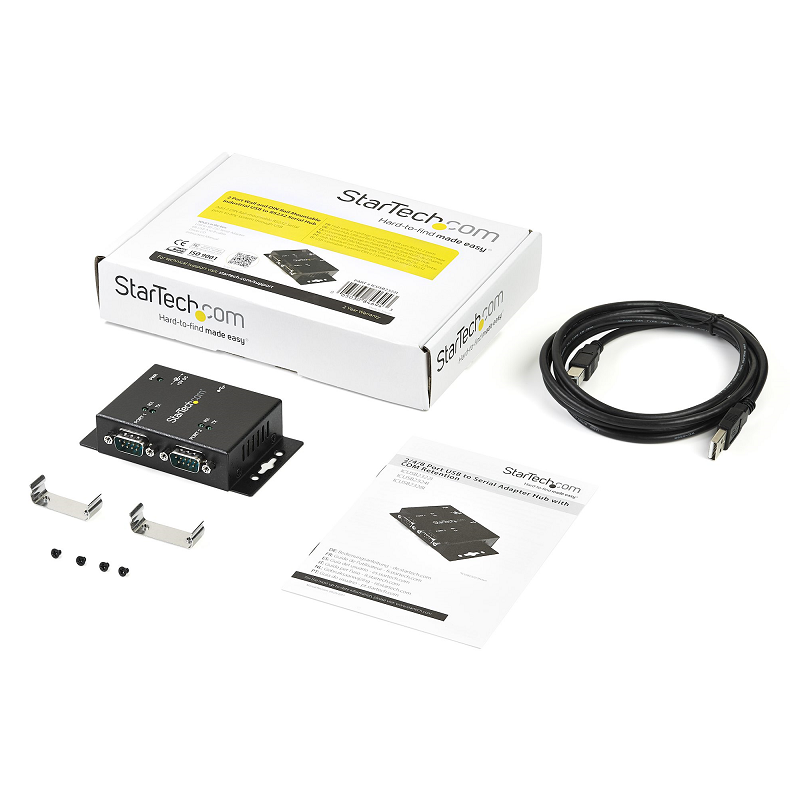

2 Port Industrial Wall Mountable USB to Serial Adapter Hub with DIN Rail Clips
Add 2 DIN Rail-mountable RS232 Serial ports to any system through USB
The ICUSB2322I 2-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into two RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Ports & interfaces | |
Host interface | USB 2.0 Type-B |
RS-232 port | 2 |
Hub interfaces | Serial |
Ports quantity | 2 |
Features | |
LED indicators | Activity |
Product colour | Black |
Certification | CE, FCC, TAA, REACH |
Housing material | Steel |
Host interface | USB 2.0 Type-B |
Technical details | |
Product colour | Black |
Sustainability certificates | RoHS |
Performance | |
Certification | CE, FCC, TAA, REACH |
Data bits | 7, 8 |
Stop bits | 1, 2 |
FIFO (First In, First Out) | 256 B |
Baud rate | 921.6 Kbit/s |
Parity bit | Even, Mark, N, Odd, Space |
Design | |
LED indicators | Activity |
Product colour | Black |
Certification | CE, FCC, TAA, REACH |
Weight & dimensions | |
Width | 66 mm |
Height | 24 mm |
Depth | 104 mm |
Weight | 162 g |
Packaging data | |
Package width | 145 mm |
Package height | 41 mm |
Package depth | 214 mm |
Package weight | 400 g |
Manual | Yes |
Drivers included | Yes |
DIN rail kit included | Yes |
Cables included | USB |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
