HDMI Audio Extractor - 1080p
Extract and convert the audio from your HDMI signal to 3.5mm audio in 2.1 stereo sound
This HDMI® audio extractor lets you separate stereo audio from your HDMI video signal and connect it to a 3.5mm audio device, such as your stereo sound system or desktop speakers. You can also extract the audio from the HDMI signal and integrate it into an optical TOSLINK® application, using the included digital SPDIF adapter.
Your latest consumer A/V equipment probably only offers an HDMI output. This can make it difficult to integrate devices, such as your new Blu-ray™ player or computer system, with your existing audio equipment or desktop speakers.

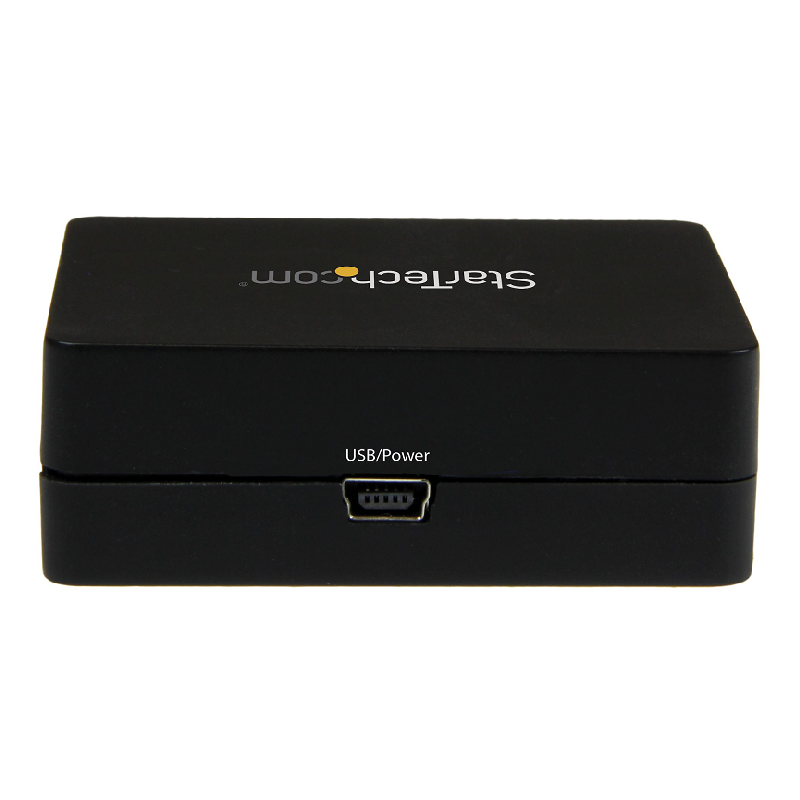

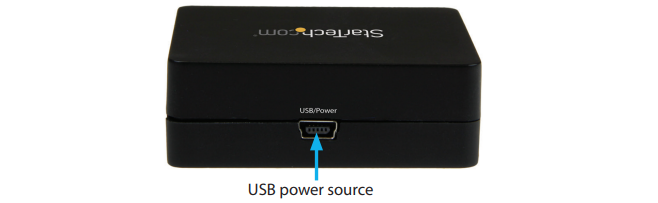

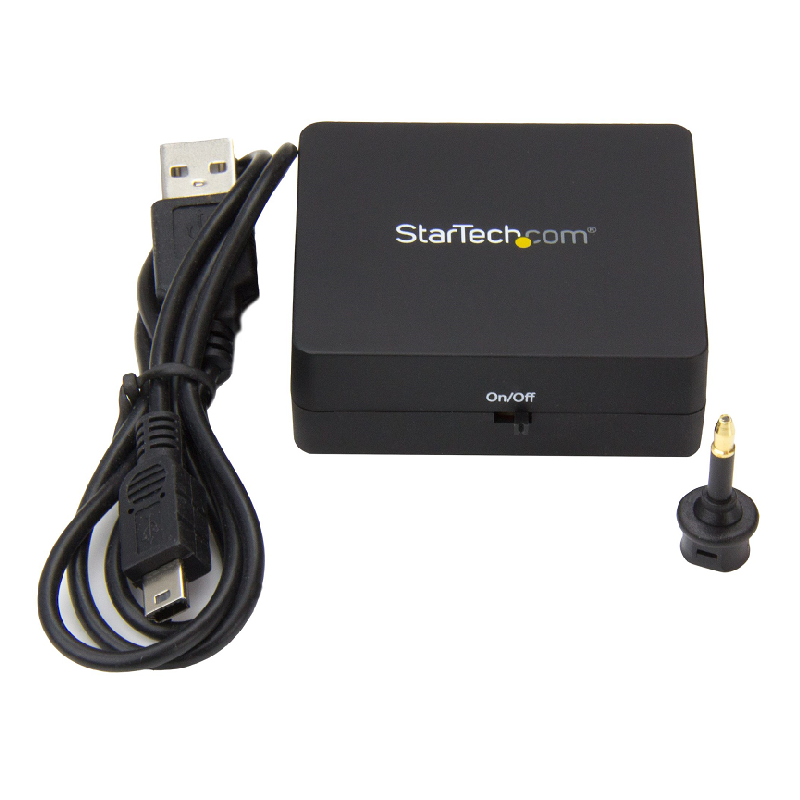

The HDMI audio extractor is USB powered using the included power cable, for easy integration with your computer systems. The adapter also features a small footprint that discreetly blends into your hardware setup, for a uniform look.

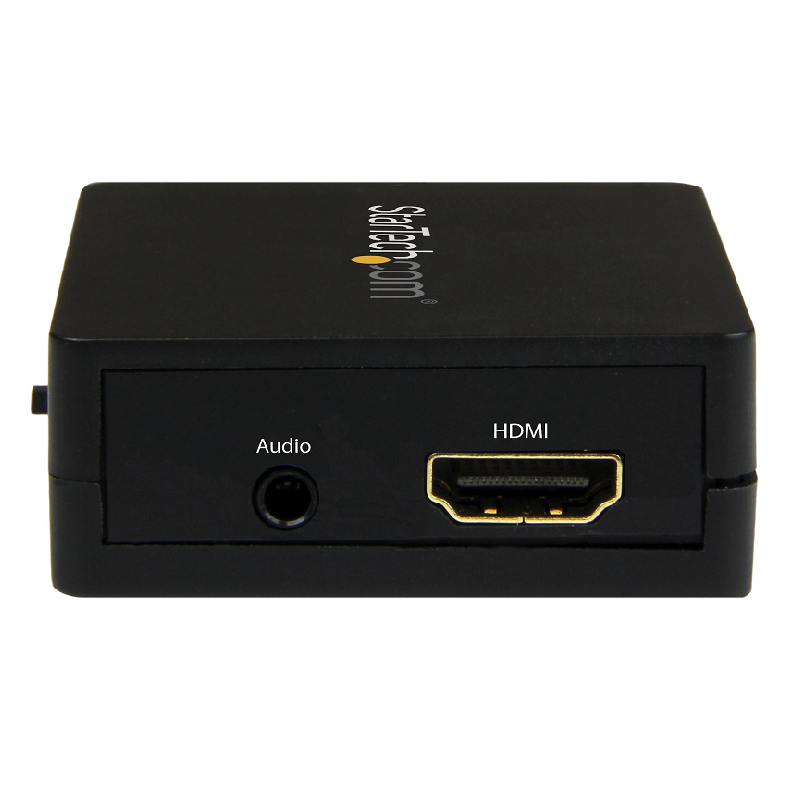

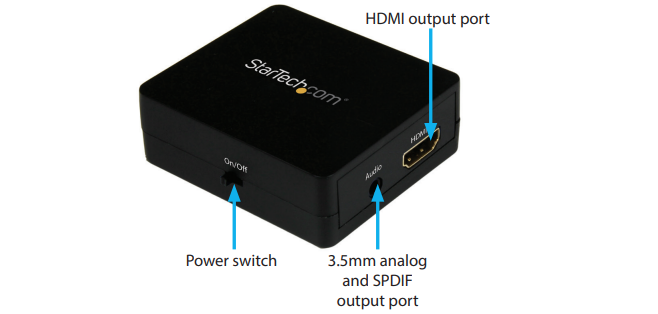

With a 3.5mm audio output and a TOSLINK adapter included, the HDMI audio extractor lets you output audio to virtually any non-HDMI equipment, whether it's digital or analog. This makes the audio extractor great for any application where you need to connect your HDMI source to speakers that don't have an HDMI input - such as desktop speakers, or a classroom or boardroom sound system.

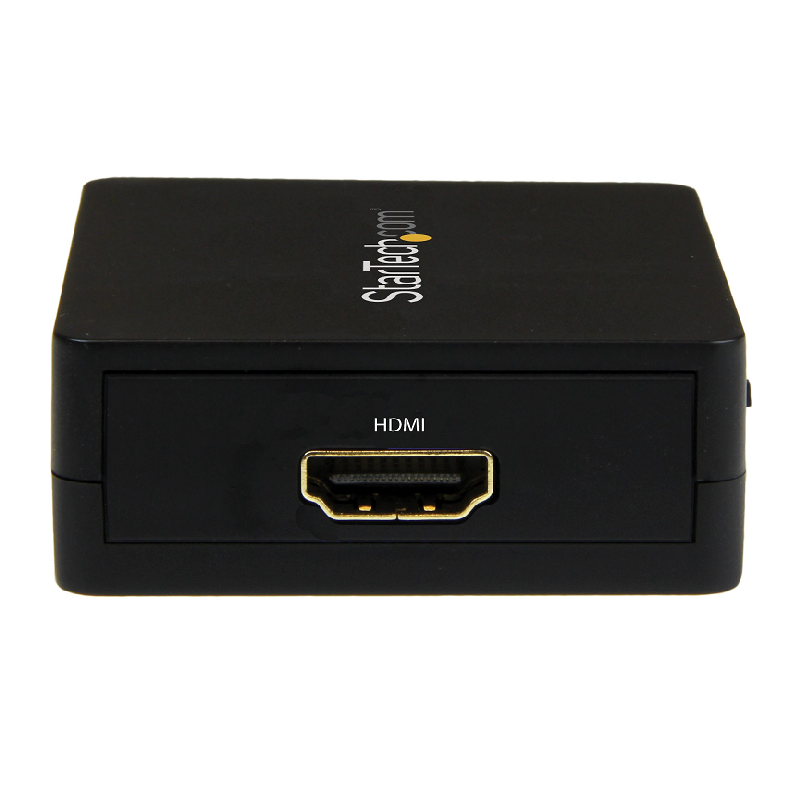

The audio extractor is HDCP enabled and HDMI 1.3b compliant, to ensure compatibility with your HDMI device. Plus, the HDMI output supports resolutions up to 1920x1080 (1080p) at 60Hz, to fit any HD application.
The HDMI audio extractor can also be used with an inexpensive dual-RCA composite adapter (sold separately) to integrate the audio from your HDMI source into 2-channel RCA audio applications.
The HD2A is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Technical details | |
| HDCP | Yes |
| Audio output channels | 2.1 channels |
| Audio output | 3.5 mm |
| Maximum video resolution | 1920 x 1080 pixels |
| Supported video modes | 480p, 720p, 1080p |
| Output interface | HDMI |
| Host interface | HDMI |
| Chipset | Explore-EP93Z3E |
| Audio support | Yes |
| Certification | CE, FCC |
| Video | |
| HDCP | Yes |
| Maximum video resolution | 1920 x 1080 pixels |
| Supported video modes | 480p, 720p, 1080p |
| Audio | |
| Audio output channels | 2.1 channels |
| Audio support | Yes |
| Power | |
| USB powered | Yes |
| Ports & interfaces | |
| Audio output | 3.5 mm |
| Output interface | HDMI |
| Host interface | HDMI |
| Weight & dimensions | |
| Width | 55 mm |
| Height | 20 mm |
| Depth | 60 mm |
| Weight | 38 g |
| Packaging data | |
| Package width | 170 mm |
| Package height | 32 mm |
| Package depth | 143 mm |
| Package weight | 135 g |
| Cables included | USB |
Full specification and details can be found in the PDF file
A user quick start guide can be found in the PDF file
