| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FECDP2MDP |
| Manufacturer No: | CDP2MDP |
| Delivery: | In Stock: Next Day |
 |

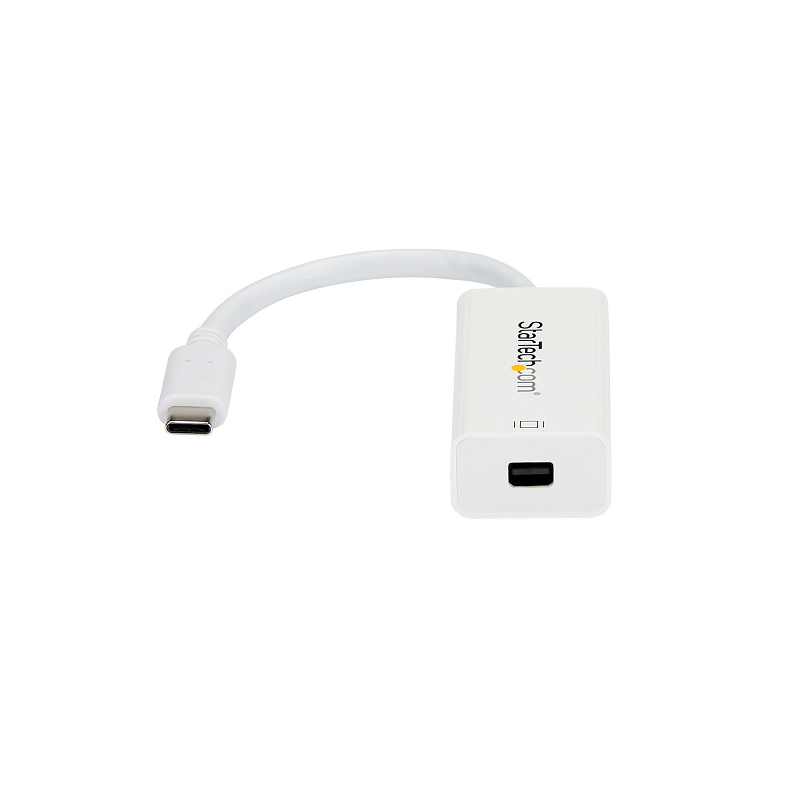

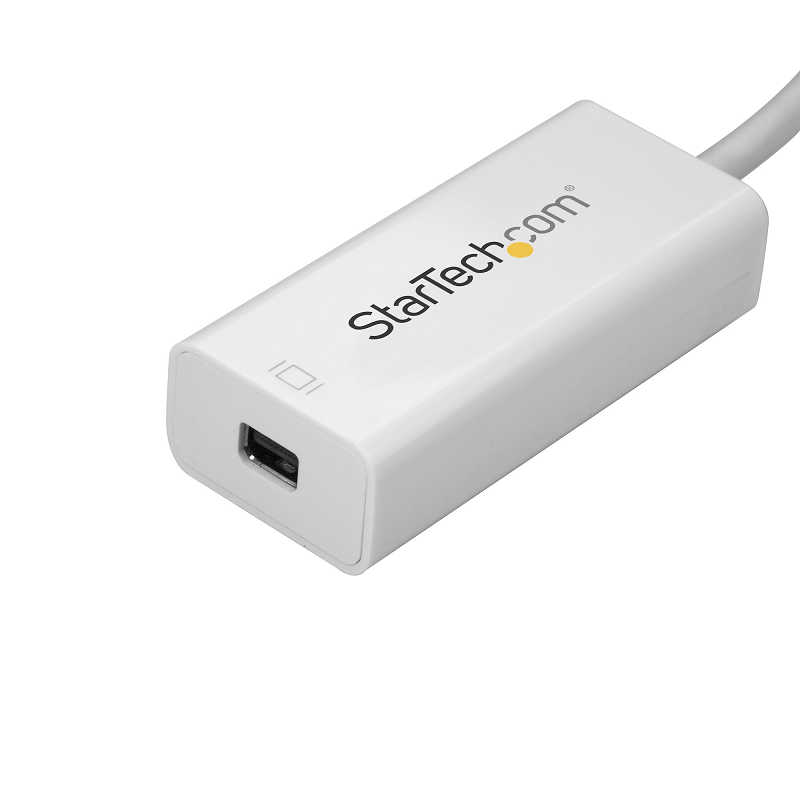

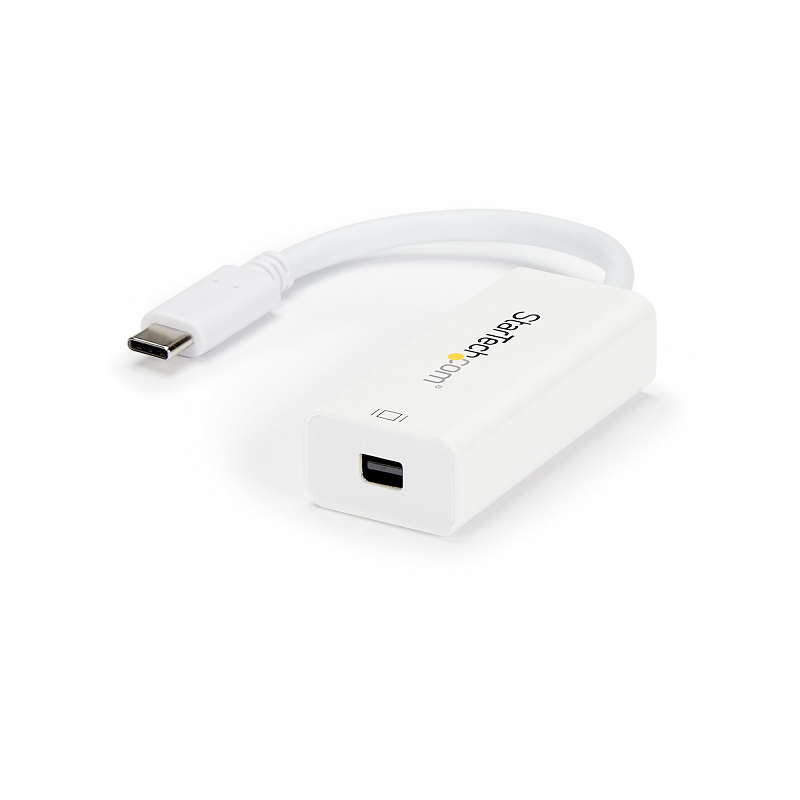

USB-C to Mini DisplayPort Adapter - 4K 60Hz - White
USB Type-C™ to Mini DP Adapter| Thunderbolt™ 3 Compatible | DP Alt Mode

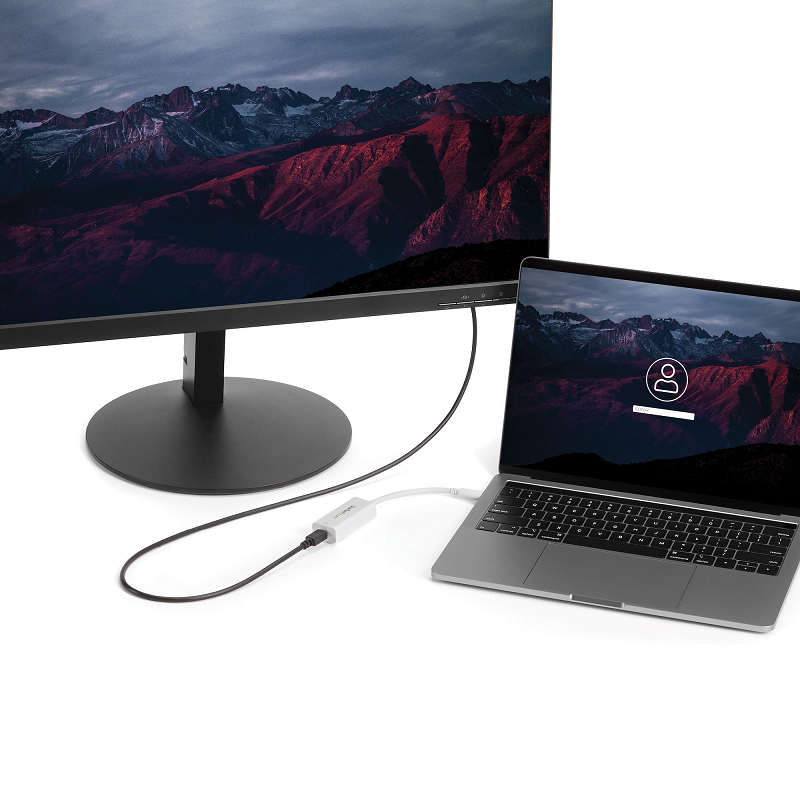

This USB Type-C to Mini DisplayPort adapter lets you output mini DisplayPort (mDP) video and audio from the USB Type-C port on your laptop or other device. It works with USB 3.1 or Thunderbolt 3 Type-C devices that pass an mDP video signal, such as your MacBook Pro, Chromebook or 2018 iPad Pro.
Harness the video capabilities that are built into your computer's USB-C connection, using the adapter to deliver the astonishing quality of UHD to your 4K 60Hz display.
You can achieve an output resolution of up to 3840 x 2160p at 60Hz, perfect for high-resolution tasks such as viewing 4K video. The USB-C video adapter is backward compatible with 1080p monitors or displays, which makes it a great accessory for workspace applications.

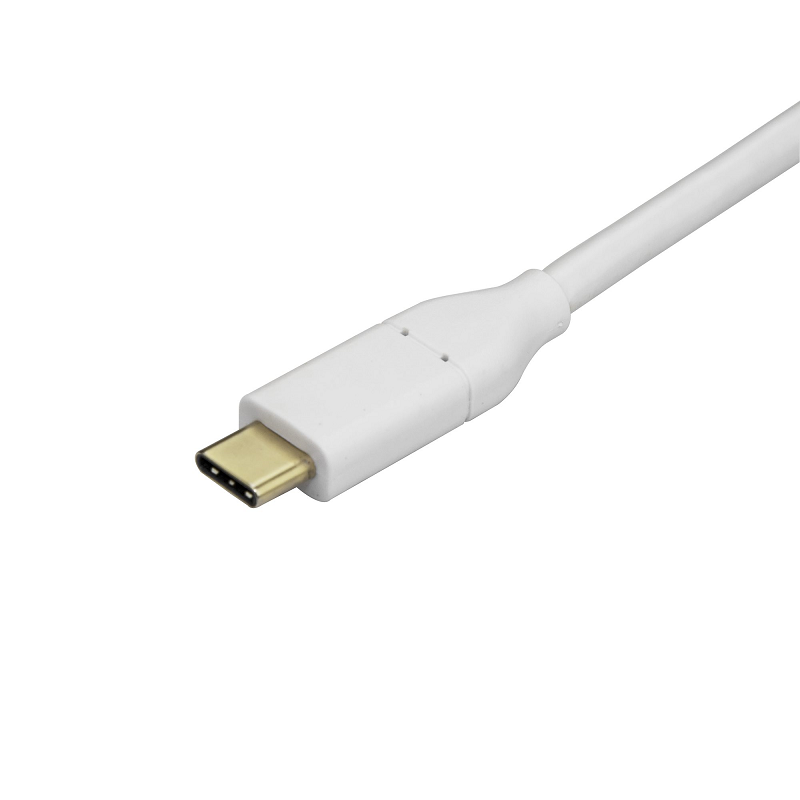

This adapter lets you use the versatile USB Type-C port on your portable device. USB-C is a reversible connector, enabling you to plug it into your device in any direction. The Thunderbolt 3 compatible adapter provides a hassle-free connection to your Windows or Mac based Thunderbolt 3 computer.

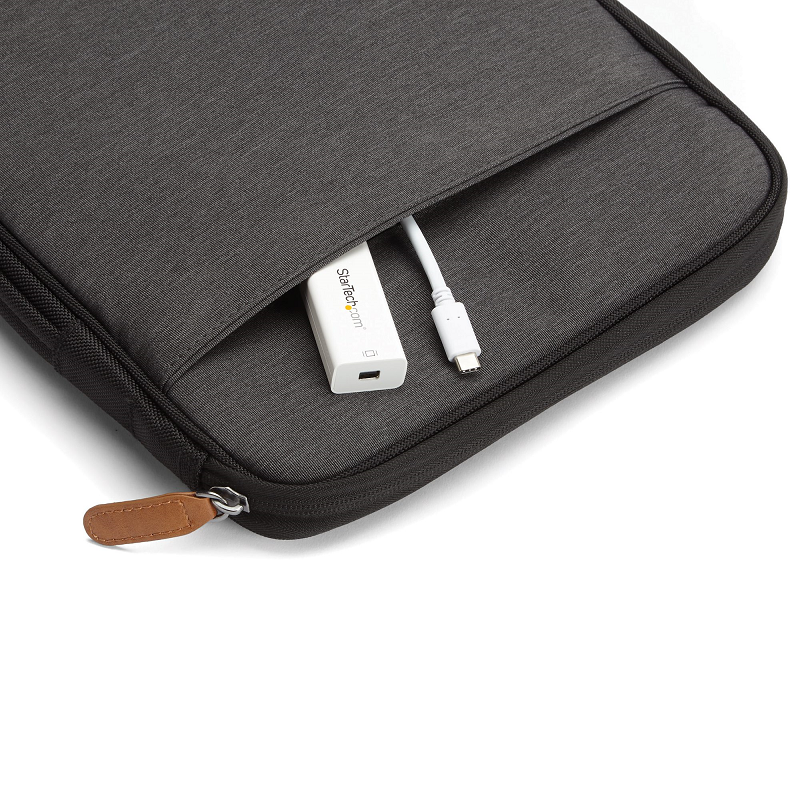

The compact USB-C to mDP adapter is lightweight and fits perfectly in your laptop bag. Its portable design is ideal for BYOD (Bring Your Own Device) applications at the office or on the road.
The CDP2MDP is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Notes:
• Your USB-C device must support DisplayPort over USB-C (DP Alt Mode) to work with this adapter
• This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPort to VGA or Mini DisplayPort to DVI adapters
| Performance | |
| Chipset | NXP - PTN5100, Pericom - PI3DPX1203 |
| Supported graphics resolutions | 1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160 |
| USB connector type | USB Type-C |
| USB connector gender | Male |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 1 |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 7.1 channels |
| Certification | CE, FCC, REACH |
| Design | |
| Product colour | White |
| Housing material | Plastic |
| Integrated USB cable | Yes |
| USB cable length | 0.014 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 27 mm |
| Depth | 60 mm |
| Height | 16 mm |
| Weight | 23 g |
| Technical details | |
| Quantity per master (outer) case | 180 pc(s) |
| Master (outer) case width | 32 cm |
| Master (outer) case length | 50 cm |
| Master (outer) case height | 21 cm |
| Sustainability certificates | RoHS |
Full specification and details can be found in the PDF file
