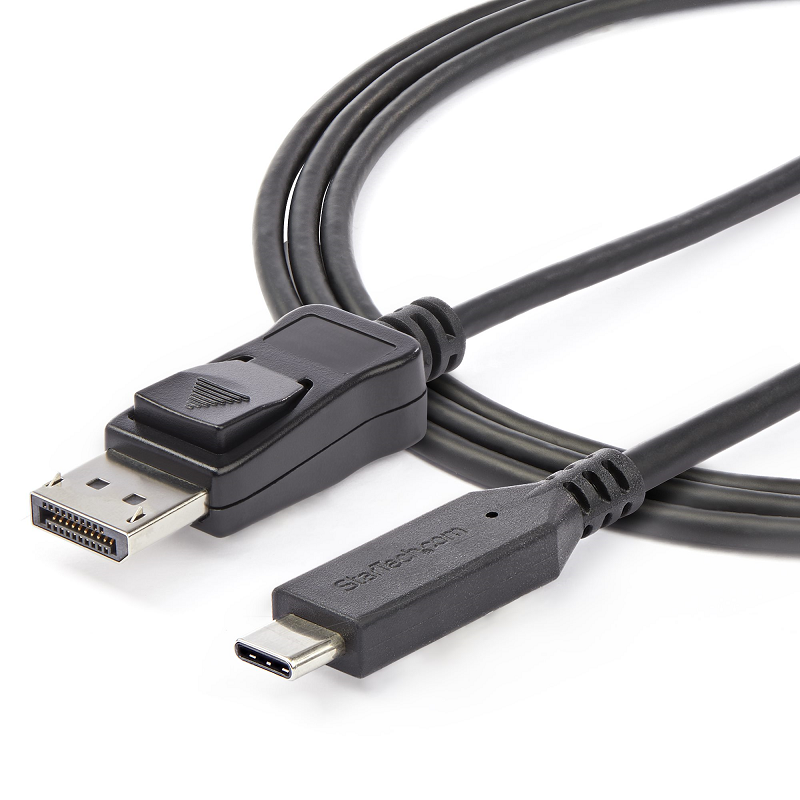

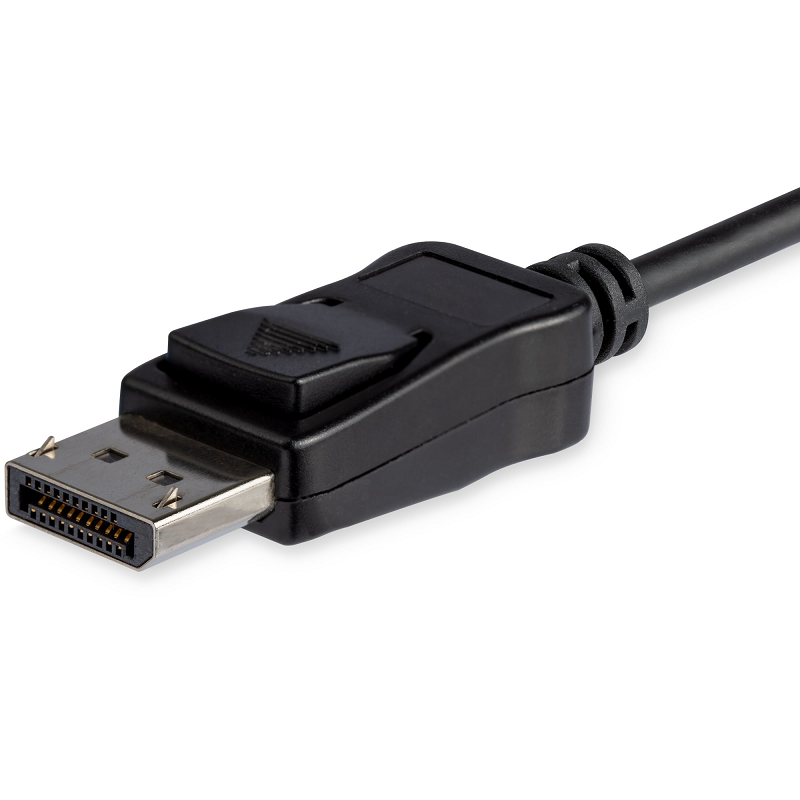

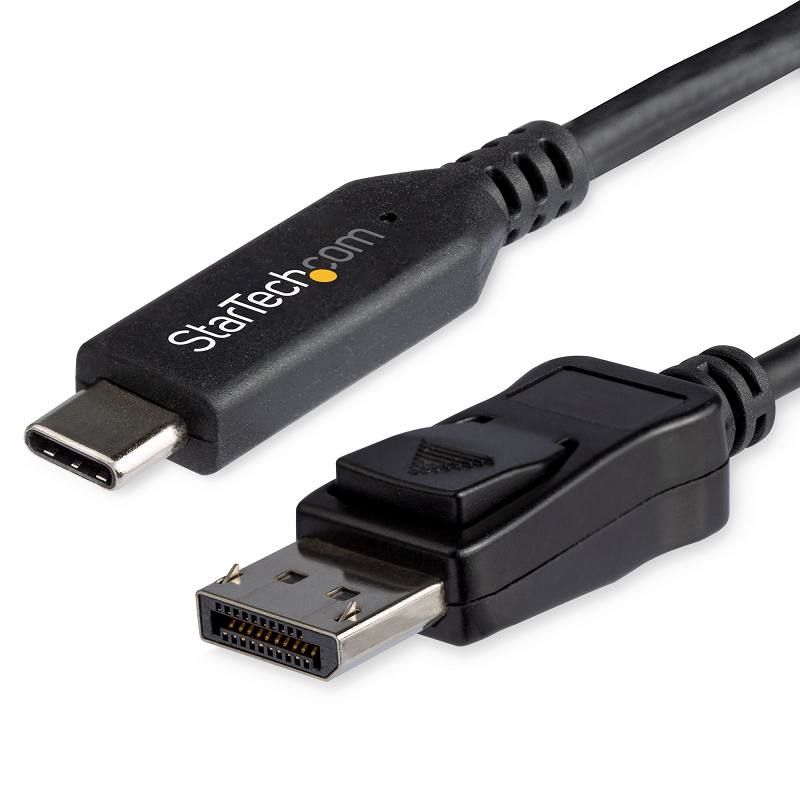

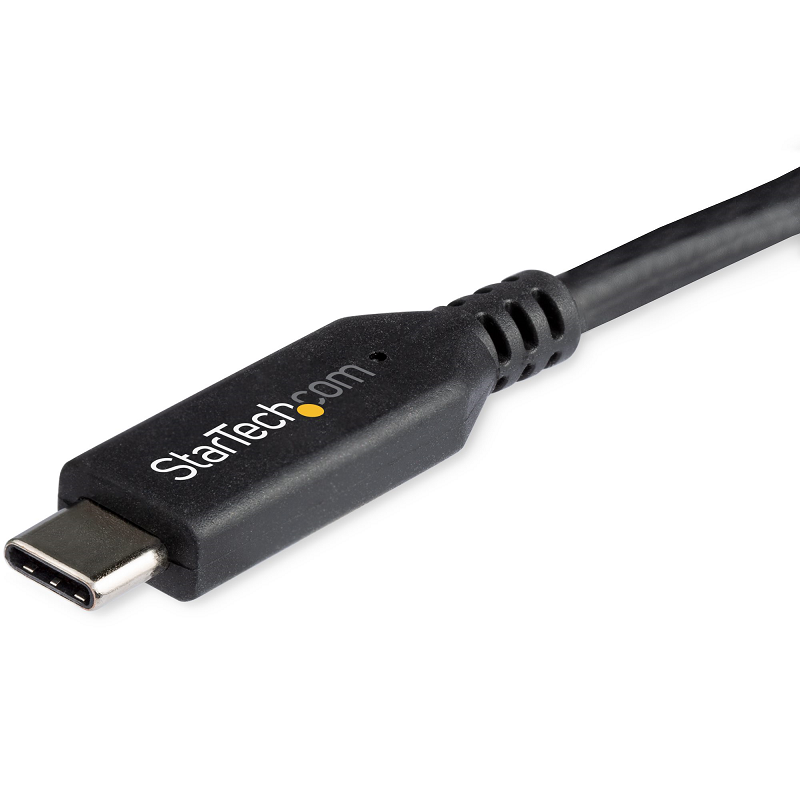

6ft/1.8m USB C to DisplayPort 1.4 Cable - 4K/5K/8K USB Type-C to DP 1.4 Alt Mode Video Adapter Converter - HBR3/HDR/DSC - 8K 60Hz DP Monitor Cable for USB-C/Thunderbolt 3
USB-C™ Video Adapter Cable | Thunderbolt™ 3 Compatible | HBR3
This USB-C to DisplayPort 1.4 cable lets you connect your USB Type-C device to a DisplayPort monitor with just one cable, providing you with a convenient, clutter-free solution.
Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.
With cutting-edge picture quality, this cable is ideal for:
• Displaying crisp digital signage walls
• Creating eye-catching visuals for photography and videography
The USB-C to DP cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.
At 6 ft. (1.8 m) in length, this DisplayPort adapter cable delivers a direct connection that eliminates excess cabling, ensuring a tidy installation. For installations requiring a shorter length, we also offer a 3.3 ft. (1 m) DisplayPort cable, enabling you to customize your connection needs.
To ensure easy operation, this DisplayPort converter cable supports plug-and-play installation, removing the need for additional software or drivers.
CDP2DP146B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
• Our USB-C device must support DP Alt Mode to work with this adapter cable
• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4
Features | |
Chipset | STM32F072CBY6TR |
DisplayPort version | 1.4 |
Product colour | Black |
Connector 1 | USB Type-C |
Connector 2 | DisplayPort |
Connector 1 gender | Male |
Connector 2 gender | Male |
Supported audio channels | 7.1 |
Maximum resolution | 7680 x 4320 pixels |
Supported graphics resolutions | 1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3860 x 2160,4096 x 2160,7680 x 4320 |
Certification | CE, FCC, REACH |
Connector 1 form factor | Straight |
Connector 2 form factor | Straight |
Maximum refresh rate | 60 Hz |
Operational conditions | |
Operating temperature (T-T) | 5 - 35 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 80 - 90% |
Weight & dimensions | |
Width | 200 mm |
Depth | 11 mm |
Height | 1800 mm |
Weight | 57 g |
Cable length | 1.8 m |
Logistics data | |
Master (outer) case width | 33.5 cm |
Master (outer) case length | 50 cm |
Master (outer) case height | 22 cm |
Quantity per master (outer) case | 60 pc(s) |
Full specification and details can be found in the PDF file

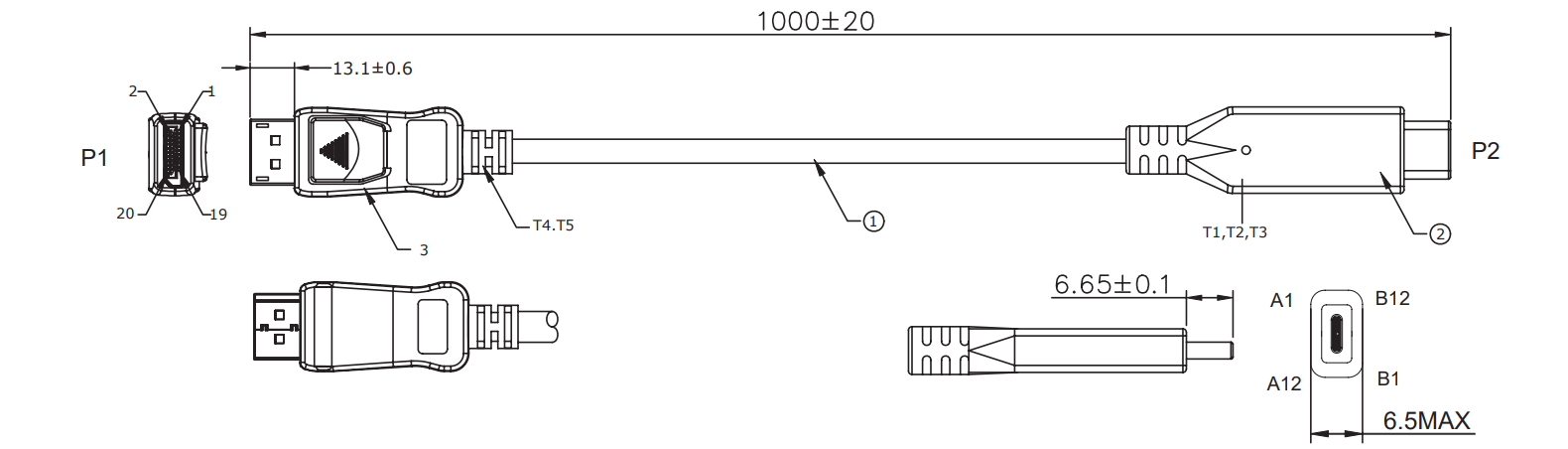

A product diagram can be found in the PDF file
