U Height: |
| Part No: | FSR47810MEB |
| Manufacturer No: | RR-F6-47-M |
| Delivery: | In Stock: 5-7 Days |
 |

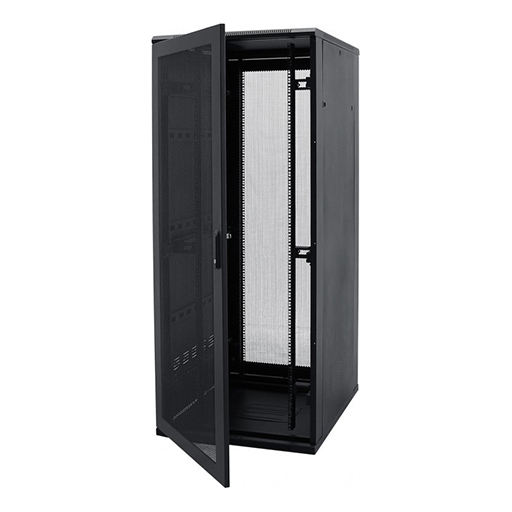

Connectix Racky Rax Server Cabinets provide a reliable and well-ventilated enclosure for housing servers and networking equipment. Built for practical deployment in professional environments, these cabinets combine durability, accessibility, and efficient cable management with a clean, high-quality finish suited to modern office and data settings.
Designed with ventilation in mind, the combination of mesh front and rear doors alongside a vented roof ensures consistent airflow throughout the cabinet. The approximately 60% perforation allows heat to dissipate efficiently, helping maintain optimal operating conditions for sensitive equipment.
Generous cable access is provided through both the top and bottom of the cabinet, with integrated brush entry points to maintain airflow while reducing dust ingress. Additional side cable routing options in the 800mm wide frame allow seamless organisation between front and rear installations.
Quick-release front and rear doors with lockable swing handles provide both security and ease of access. Removable side panels can also be fitted with locks, allowing controlled entry while simplifying maintenance and installation tasks.
Constructed from solid steel with a high-quality black powder-coated finish, these cabinets are built for durability in demanding environments. With a static load capacity of up to 500kg, they can comfortably support a wide range of server and networking hardware.
Supplied fully assembled on a pallet for convenience, the cabinets can also be dismantled when required, offering flexibility for transport or installation in restricted spaces. Adjustable 19” mounting profiles ensure compatibility with standard rack equipment.
A full range of compatible accessories is available to extend functionality, including castors, shelves, and vertical cable trays. When ordering cable trays (excluding 18U models), the RR-CT3- variant is supplied.
Available in multiple U heights, each cabinet maintains an 800mm width and 1000mm depth, providing consistent internal space for equipment and cable management.
| U Height | Dimensions (HxWxD) | Weight |
|---|---|---|
| 27U | 1302 x 800 x 1000 mm | 77.6 kg |
| 42U | 1968 x 800 x 1000 mm | 116.8 kg |
| 45U | 2103 x 800 x 1000 mm | 118.6 kg |
Connectix Racky Rax Server Cabinets provide a reliable and well-ventilated enclosure for housing servers and networking equipment. Built for practical deployment in professional environments, these cabinets combine durability, accessibility, and efficient cable management with a clean, high-quality finish suited to modern office and data settings.
Designed with ventilation in mind, the combination of mesh front and rear doors alongside a vented roof ensures consistent airflow throughout the cabinet. The approximately 60% perforation allows heat to dissipate efficiently, helping maintain optimal operating conditions for sensitive equipment.
Generous cable access is provided through both the top and bottom of the cabinet, with integrated brush entry points to maintain airflow while reducing dust ingress. Additional side cable routing options in the 800mm wide frame allow seamless organisation between front and rear installations.
Quick-release front and rear doors with lockable swing handles provide both security and ease of access. Removable side panels can also be fitted with locks, allowing controlled entry while simplifying maintenance and installation tasks.
Constructed from solid steel with a high-quality black powder-coated finish, these cabinets are built for durability in demanding environments. With a static load capacity of up to 500kg, they can comfortably support a wide range of server and networking hardware.
Supplied fully assembled on a pallet for convenience, the cabinets can also be dismantled when required, offering flexibility for transport or installation in restricted spaces. Adjustable 19” mounting profiles ensure compatibility with standard rack equipment.
A full range of compatible accessories is available to extend functionality, including castors, shelves, and vertical cable trays. When ordering cable trays (excluding 18U models), the RR-CT3- variant is supplied.
Available in multiple U heights, each cabinet maintains an 800mm width and 1000mm depth, providing consistent internal space for equipment and cable management.
| U Height | Dimensions (HxWxD) | Weight |
|---|---|---|
| 27U | 1302 x 800 x 1000 mm | 77.6 kg |
| 42U | 1968 x 800 x 1000 mm | 116.8 kg |
| 45U | 2103 x 800 x 1000 mm | 118.6 kg |
