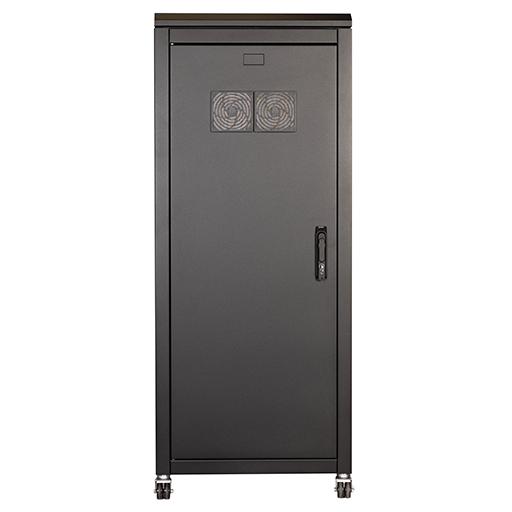

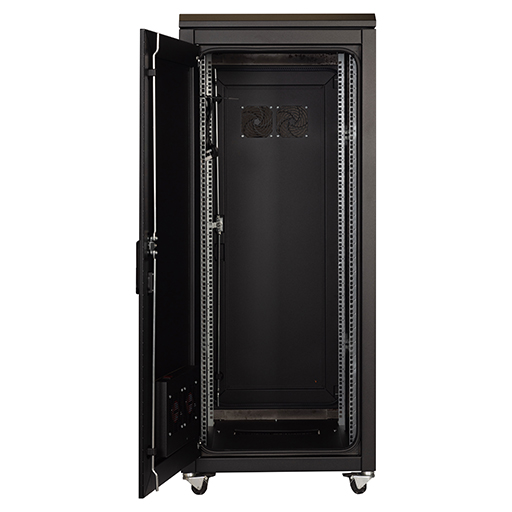

    Prism PI 27U IP54 Rated Data Cabinet

    Please Note: These products are built-to-order and therefore non-returnable.

    The sizes available have been selected to meet the requirements of all data and server cabinet installations and these are available in a choice of colours. The internal configuration includes fully adjustable mounting profiles and vertical cable management on 800mm wide cabinets.

    The removable filters supplied attached to the external fixings of the fan units can be easily removed and replaced to expect the life of the cabinet. A 100mm high cabinet plinth with protected cable entry system in included with every cabinet.

    Product Features and Benefits:

    • Networking/Cabling
    • 19” Electronic Equipment Housing which requires ingress protection
    • IT telephony systems
    • Three heights: 27U, 42U and 47U
    • Widths: 600mm or 800mm
    • Three Depths: 600mm, 800mm& 1000mm
    • Four adjustable 19inch mounting posts allowing universal equipment mounting
    • Two drop in ribbed and lockable side panels with inlet and exhaust filtered fan units
    • Solid metal front door – multi locking
    • Inset Steel Rear Door; supplied with a cylindrical lock
    • Water repellent roof design
    • Base gland plate
    • Four transit castors supplied fitted
    • Removable filter units
    • Double layered cable entry protection
    • Vendor neutral mounting profiles
    • Three point locking solutions

    ** Please Note **
    Prism IP54 Rated cabinets are manufactured towards their interpretation of IP54 Specification, however, they do not carry any third party approval or accreditation

    Product Specification

    Cabinet Size



    27u 600 x 600

    27u 600 x 800

    27u 800 x 600

    27u 800 x 800

    U Height

    27u

    27u

    27u

    27u

    External Height

    1410mm

    1410mm

    1410mm

    1410mm

    External Width

    600mm

    600mm

    800mm

    800mm

    External Depth

    600mm

    800mm

    600mm

    800mm

    Mounting Profile Width

    19”

    19”

    19”

    19”

    Internal Working Depth

    490mm

    690mm

    490mm

    690mm

    Weight of Cabinet (approx.)

    120Kg

    125Kg

    125Kg

    130Kg



    Cabinets General

    Mounting Profiles Position/s

    Front & Rear

    Front Door

    Solid Metal – multi Locking

    Construction

    Bolted

    Side Panels

    Two drop-in ribbed and Lockable side panels with inlet and exhaust filters fan units

    Cable Entry

    Double layer cable entry protection

    Removable Panels

    Front Door, Rear Door, Side Panels

    Lock Positions

    Front Door, Rear Door, Side Panels

    Colour Options

    Goose Grey
