Plugable USBC-VAMETER3 USB-C Power Meter Tester for Monitoring USB-C Connection up to 240W

The Plugable USBC-VAMETER3 USB-C Power Meter Tester provides real-time visibility into USB-C power delivery, allowing users to monitor voltage, current, and total power draw up to 240W. Designed for diagnostics and everyday verification, it gives clear feedback on how devices and chargers interact during charging and data sessions.

Key Features of Plugable USBC-VAMETER3

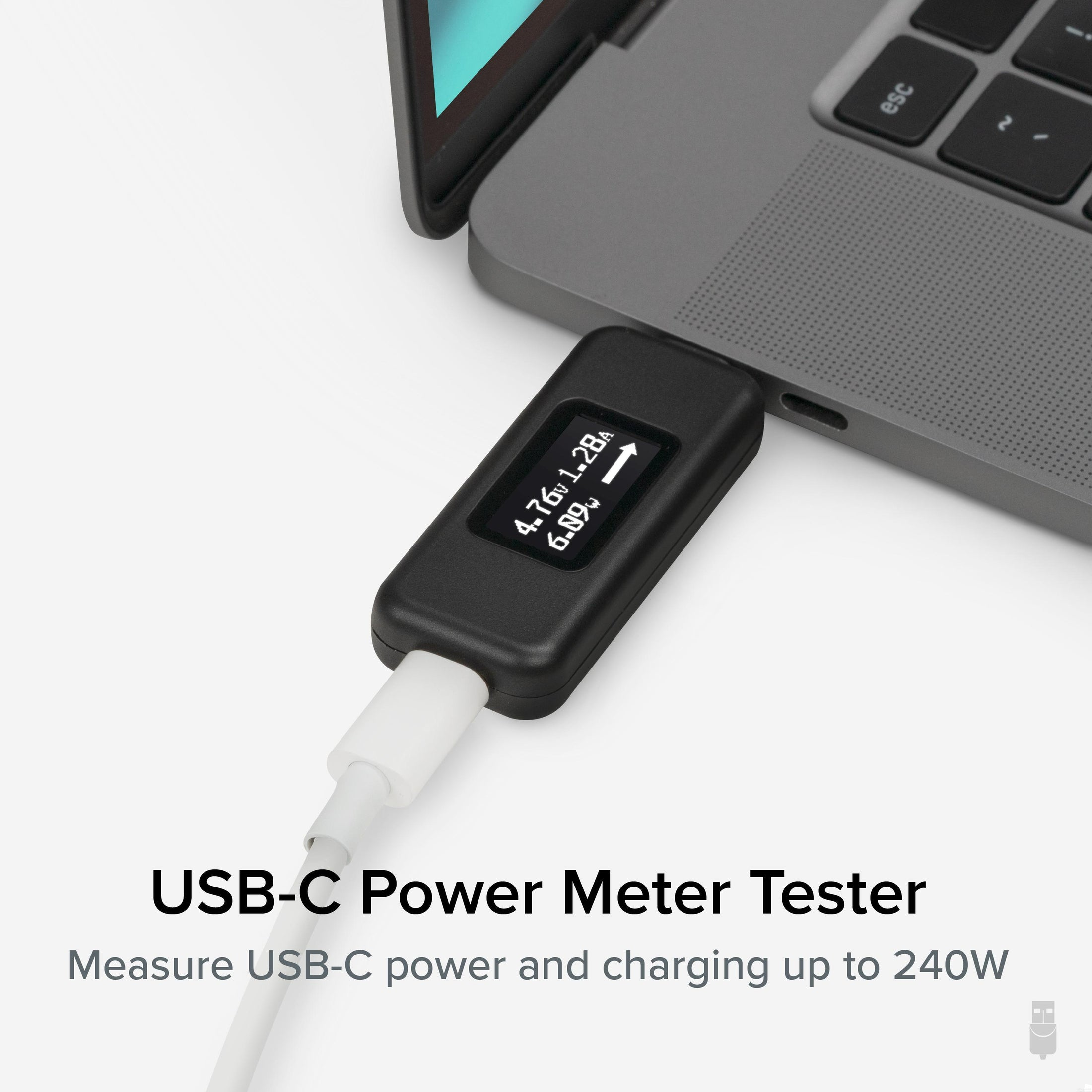

• At a Glance: USB C Tester monitors USB-C power and charging up to 240W. Measure voltage and amperage. Visualize the directional flow of electrical current. Updated OLED display is brighter and easier to read. New orientation button lets you flip the screen 180 degrees
• Bidirectional: USB power meter can be connected in either orientation, allowing for the full range of USB Extended Power Range (EPR) voltage from 5 to 48V (4.5V-50V, 50mA-6.5A operating range)

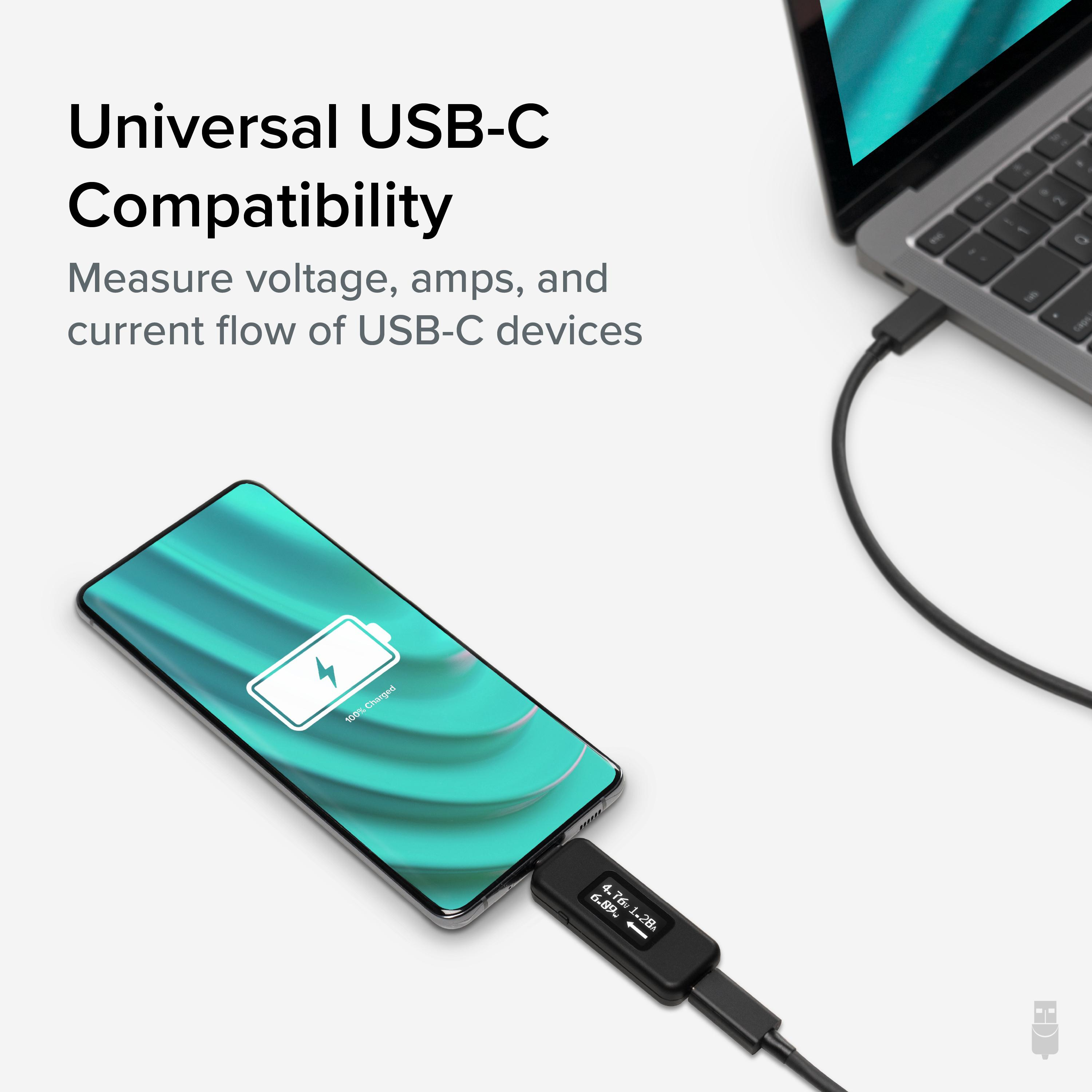

• Broad USB Support: Used as a data and power quality meter, device allows USB data pass through, USB-C Alt Mode video, USB-C charging. Use USB-C tester with USB-C docking stations, chargers, accessories, etc. Not compatible with Thunderbolt 3 devices

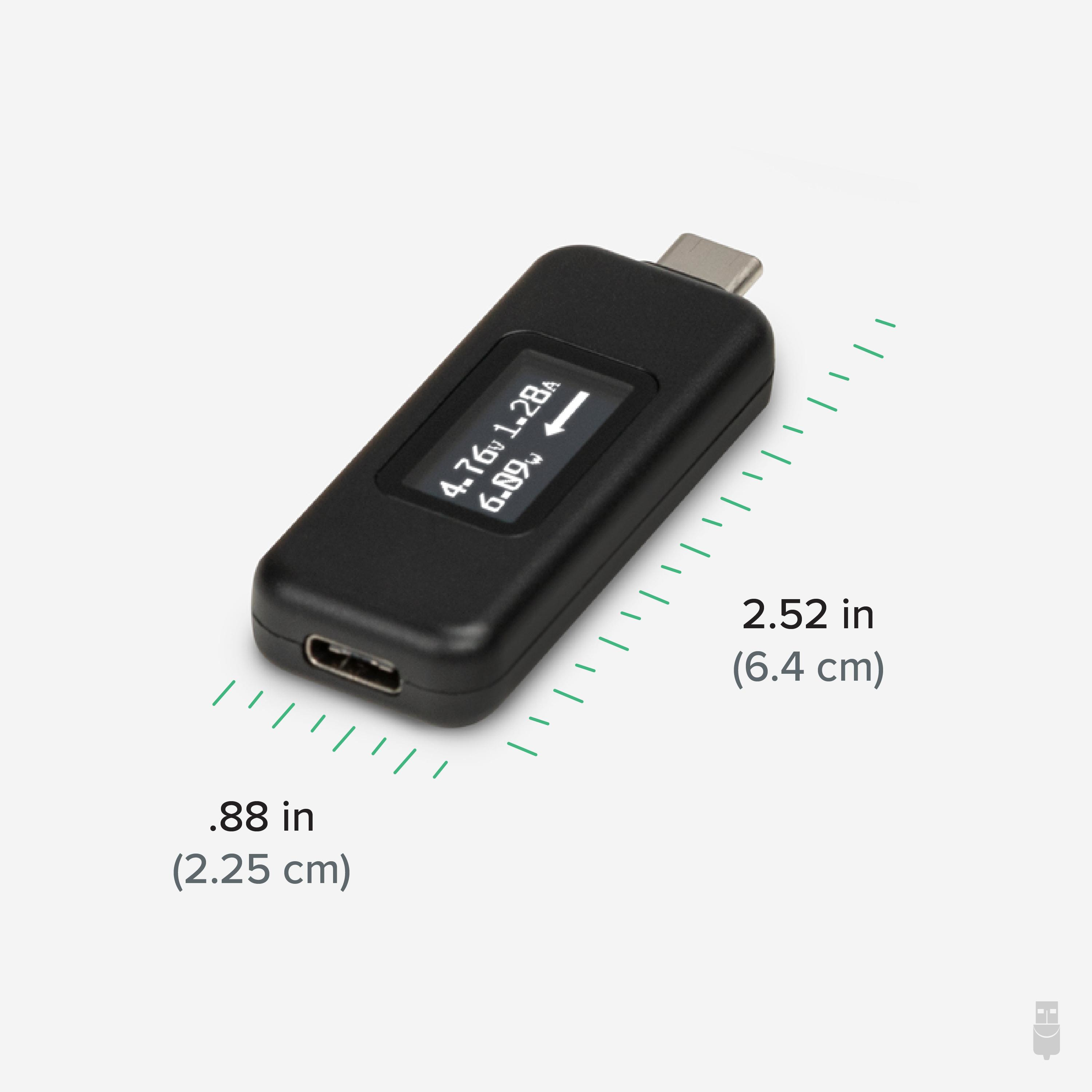

• Small and Tough: Small enough to go anywhere you need a USB C voltage meter. Even fits most phones and tablets without removing protective case. Strengthened USB-C connections ensure it's sturdy enough to be your go-to USB C power tester

How it works

This meter is a transparent interposer–it should not interfere with the USB data (1.1 through 3.1 Gen 2), USB-C Alternate Mode video, or USB-C charging. The meter can be used in-line with USB-C docking stations, chargers, and other USB-C accessories. The meter is able to achieve this without interfering with normal USB-C operation as it only taps into the power (VBUS) and ground connections to measure values and leaves the data lines untouched.

High-Capacity USB-C Support

Supporting USB Power Delivery up to 240W with Extended Power Range compatibility, the tester covers a wide operating range suitable for modern laptops, tablets, phones, chargers, and docks using USB-C power systems.

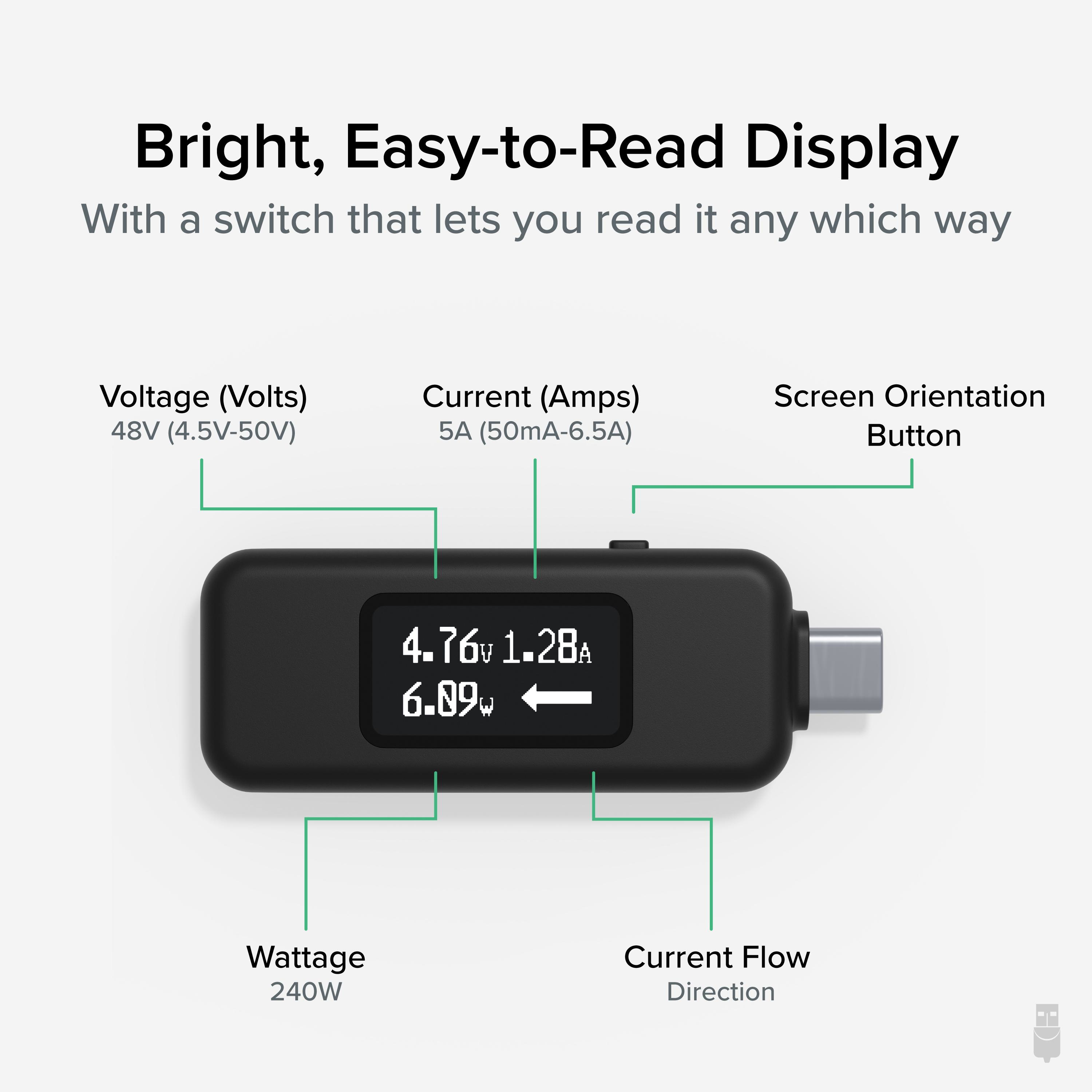

Clear OLED Display Interface

An upgraded OLED screen presents power readings in a bright and readable format. A built-in orientation control allows the display to be rotated for easier viewing depending on cable direction or setup layout.
