| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | NETCSM4532-100EUS |
| Manufacturer No: | CSM4532-100EUS |
| Delivery: | In Stock: 5-7 Days |
 |

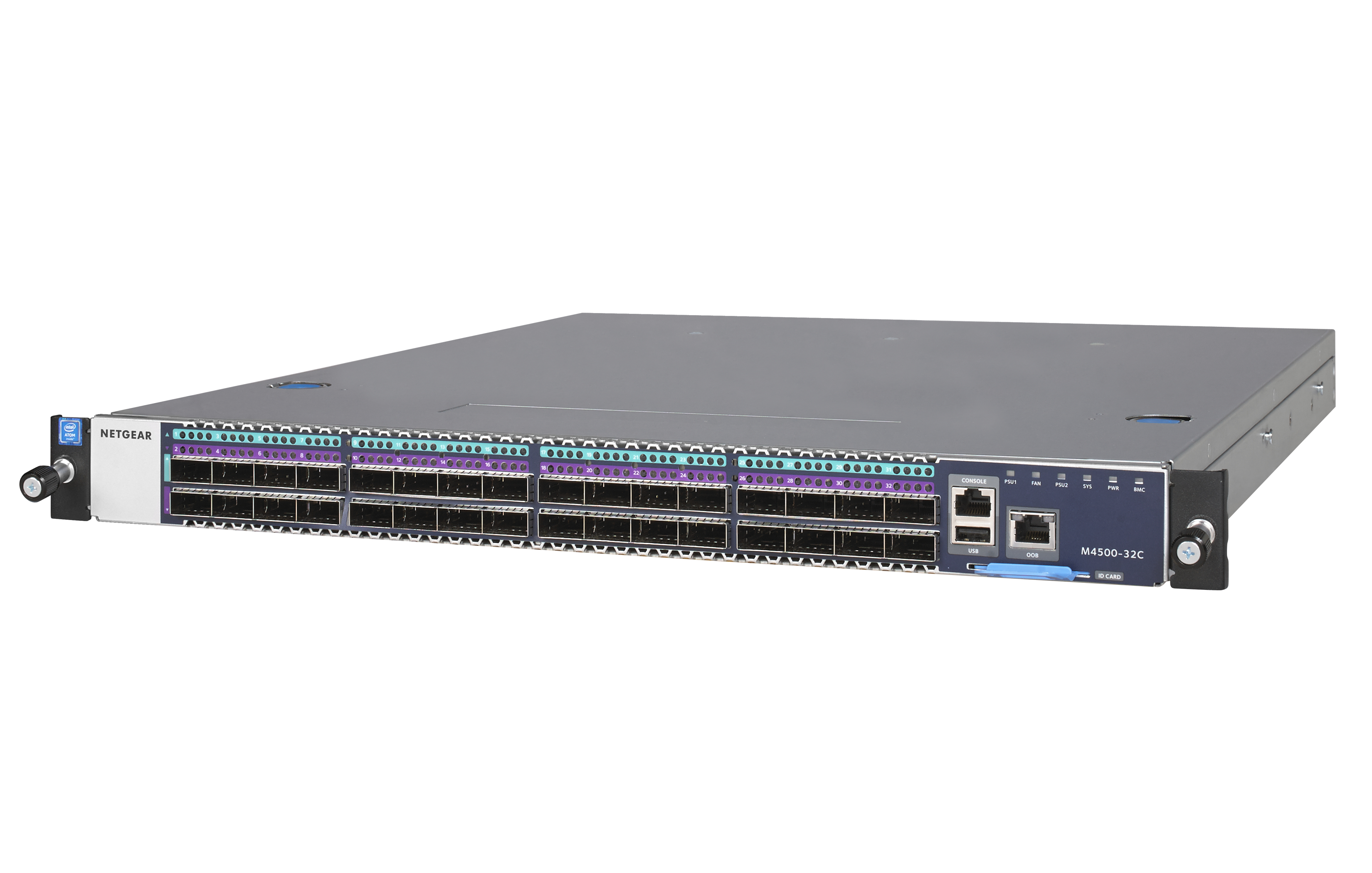

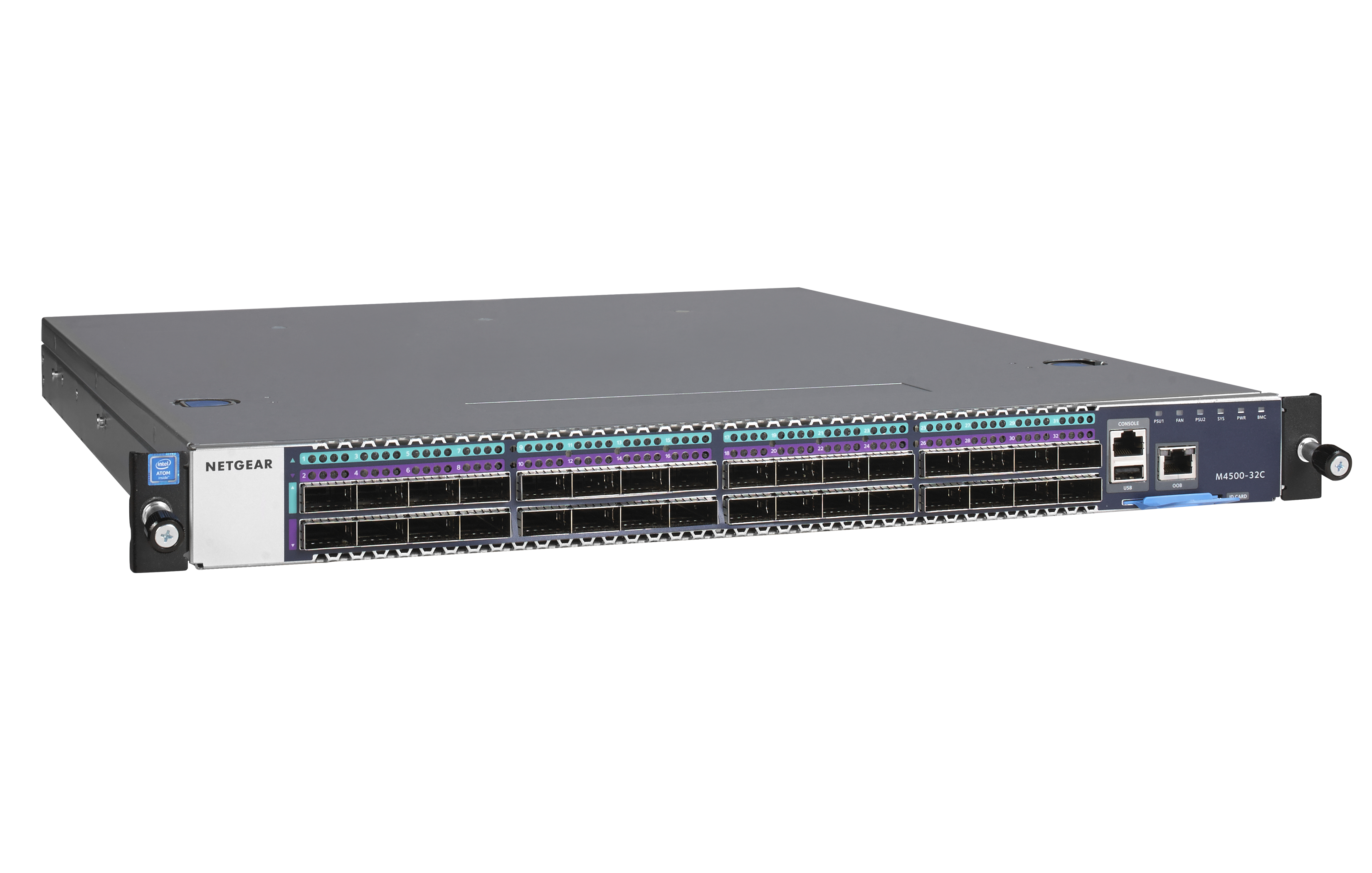

The NETGEAR CSM4532-100EUS is a fully managed 1U rack-mount switch with 32 QSFP28 ports supporting 100G, 50G and 40G Ethernet connectivity. It provides a 6.4Tbps non-blocking switching fabric and Layer 2, Layer 3 and Layer 4 services for high-bandwidth network and AV over IP environments. Two APS750W modular power supplies and six AFT402 fan trays are pre-installed, providing 1+1 power redundancy and 4+2 fan redundancy.
The switch provides 32 QSFP28 ports supporting 100G, 50G and 40G Ethernet connectivity. The ports are preconfigured for 100G operation, with alternative 50G and 40G modes available for compatible network connections.
The 6.4Tbps non-blocking switching fabric provides line-rate forwarding across the 32 high-speed QSFP28 ports. This provides the capacity required for high-volume traffic across data networking and AV over IP environments.
The switch provides Layer 2, Layer 3 and Layer 4 networking functions, including static and dynamic routing, VRRP, OSPF, BGP, VRF-Lite and PIM-SM/SSM. These features provide control over traffic forwarding, routing and multicast networking.
Enhanced NETGEAR IGMP Plus provides multicast management for AV over IP installations. The switch also provides L2/L3/L4 services and is certified SDVoE-ready for high-bandwidth professional audio and video networking.

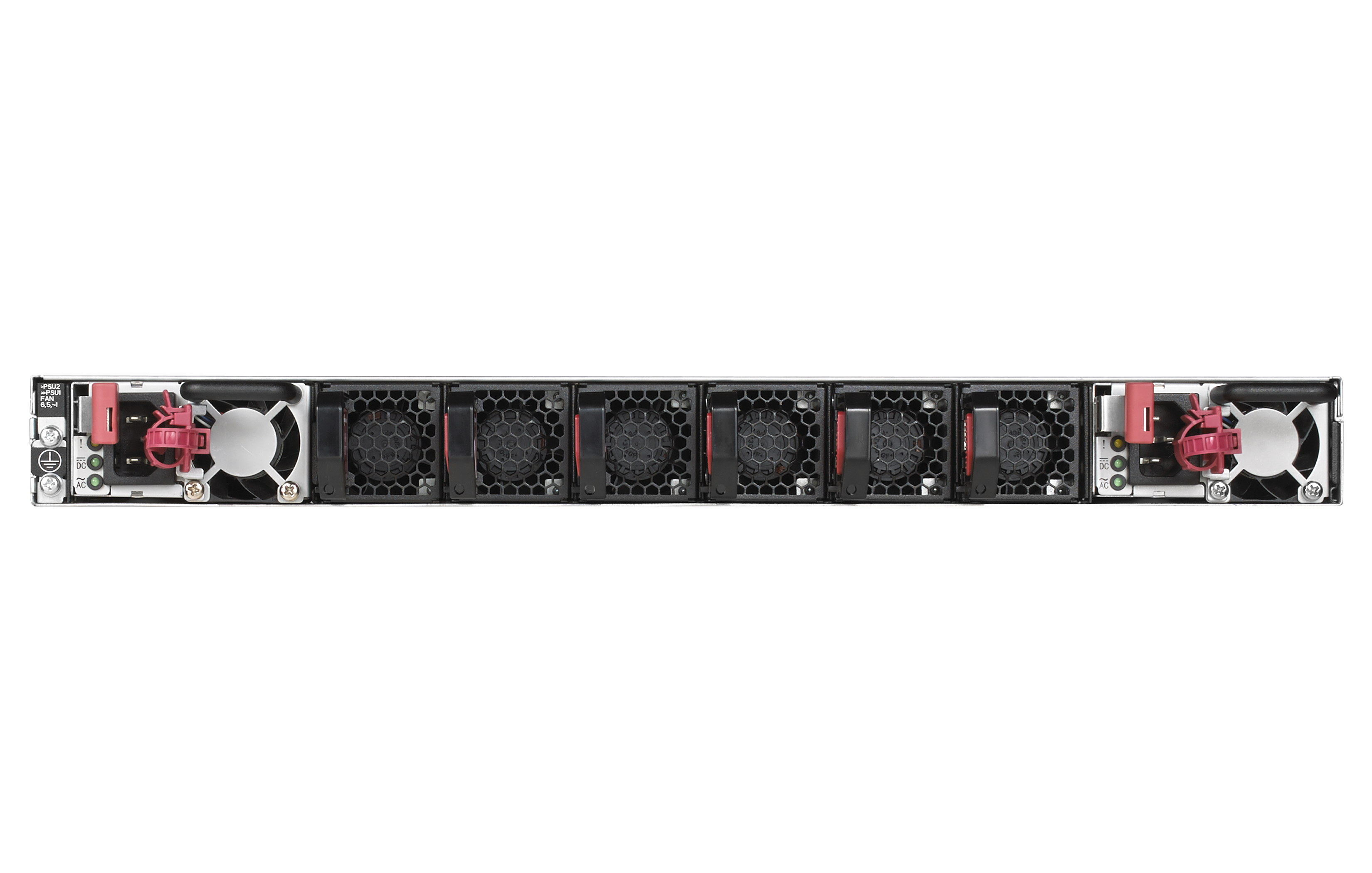

Two APS750W modular power supplies are pre-installed and provide 1+1 power redundancy. The dual-PSU configuration allows the switch to continue operating if one power supply becomes unavailable.
Six AFT402 modular fan trays are pre-installed, providing 4+2 fan redundancy. The front-to-back airflow supports rack-mounted installations and the redundant fan arrangement helps maintain cooling if individual fan trays become unavailable.

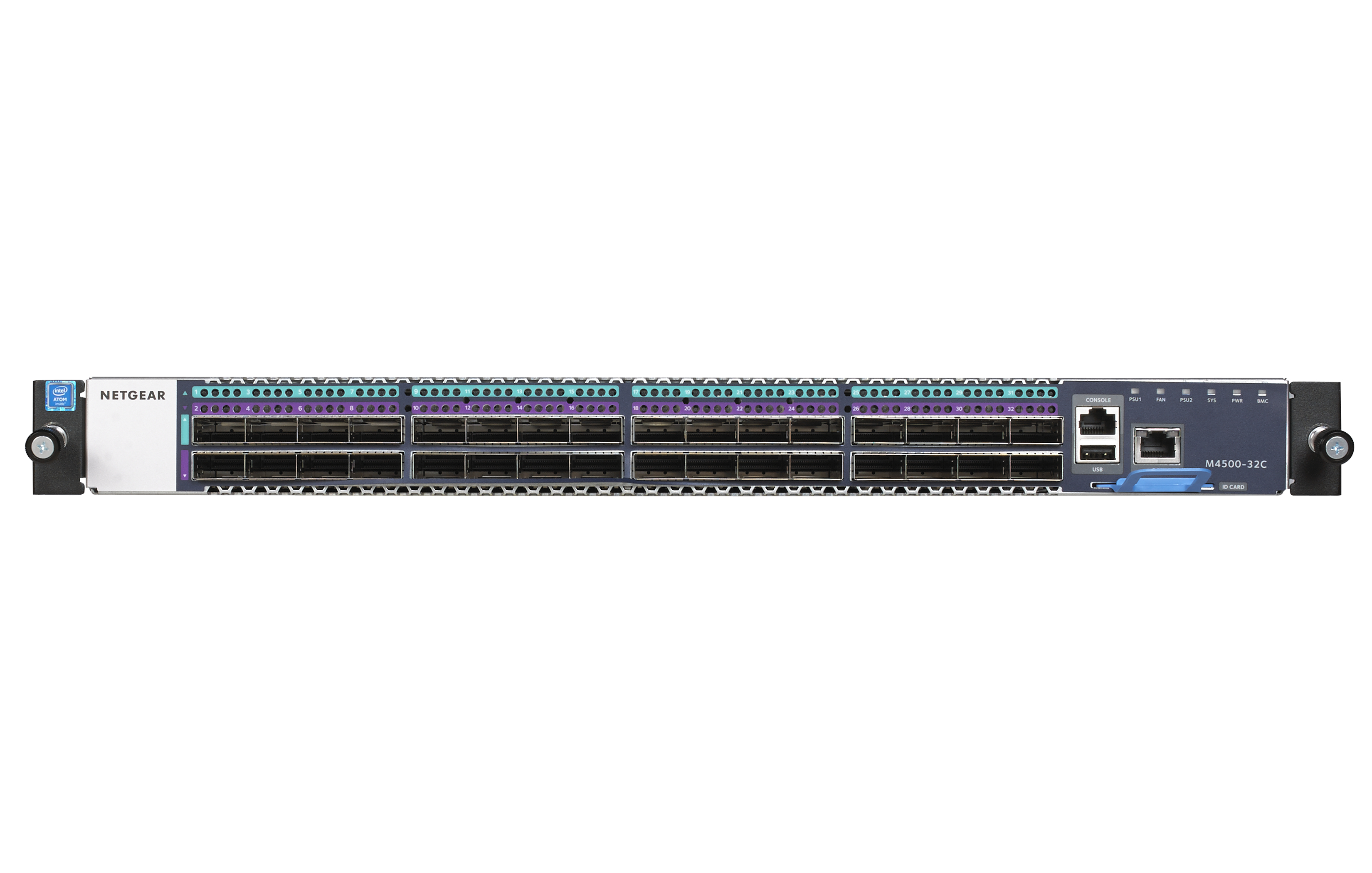

An out-of-band 1G Ethernet management port provides a dedicated network management connection, while the front panel also includes an RJ45 RS232 console port and USB storage port for local administration and service tasks.
The full-width 1U chassis measures 440mm wide, 508mm deep and 43.2mm high, with a weight of 9.78kg. Front mounting ears and rear rail kits are included for rack installation. The switch has an acoustic rating of 64.0dB at 25°C.
The NETGEAR CSM4532-100EUS is a fully managed 1U rack-mount switch with 32 QSFP28 ports supporting 100G, 50G and 40G Ethernet connectivity. It provides a 6.4Tbps non-blocking switching fabric and Layer 2, Layer 3 and Layer 4 services for high-bandwidth network and AV over IP environments. Two APS750W modular power supplies and six AFT402 fan trays are pre-installed, providing 1+1 power redundancy and 4+2 fan redundancy.
The switch provides 32 QSFP28 ports supporting 100G, 50G and 40G Ethernet connectivity. The ports are preconfigured for 100G operation, with alternative 50G and 40G modes available for compatible network connections.
The 6.4Tbps non-blocking switching fabric provides line-rate forwarding across the 32 high-speed QSFP28 ports. This provides the capacity required for high-volume traffic across data networking and AV over IP environments.
The switch provides Layer 2, Layer 3 and Layer 4 networking functions, including static and dynamic routing, VRRP, OSPF, BGP, VRF-Lite and PIM-SM/SSM. These features provide control over traffic forwarding, routing and multicast networking.
Enhanced NETGEAR IGMP Plus provides multicast management for AV over IP installations. The switch also provides L2/L3/L4 services and is certified SDVoE-ready for high-bandwidth professional audio and video networking.
Two APS750W modular power supplies are pre-installed and provide 1+1 power redundancy. The dual-PSU configuration allows the switch to continue operating if one power supply becomes unavailable.
Six AFT402 modular fan trays are pre-installed, providing 4+2 fan redundancy. The front-to-back airflow supports rack-mounted installations and the redundant fan arrangement helps maintain cooling if individual fan trays become unavailable.
An out-of-band 1G Ethernet management port provides a dedicated network management connection, while the front panel also includes an RJ45 RS232 console port and USB storage port for local administration and service tasks.
The full-width 1U chassis measures 440mm wide, 508mm deep and 43.2mm high, with a weight of 9.78kg. Front mounting ears and rear rail kits are included for rack installation. The switch has an acoustic rating of 64.0dB at 25°C.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
