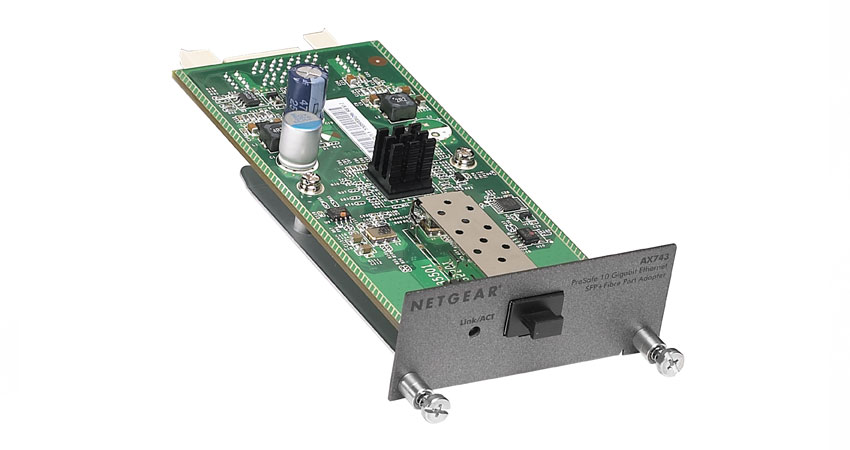

The AX743 module is built to insert into any one of the high-speed module bays found on ProSafe GSM73xxS (4 optional bays) and GSM73xxSv2 (2 optional bays). Once inserted, the AX743 adapter module can then be utilized with standard 10 Gigabit SFP+ GBICs for fibre connectivity at 10 Gbps speeds. Specifically, this adapter module accommodates the ProSafe AXM761 SFP+ GBIC 10GBASE-SR LC "Short Reach" or ProSafe AXM762 SFP+ GBIC 10GBASE-LR LC "Long Reach". The AX743 is hot-swappable at any time into the switch and provides hot-swappable installation or removal of standard 10 GE SFP+ GBICs.
Features:
1 port 10 Gigabit SFP+ for M5300 series rear I/O bays
Compliant with 10-GbE SFP+ fibre optics (GBICs) MSA
Supports passive Direct Attach copper cables (10GSFP+Cu)
Allows for distant (fibre) stacking or uplinks
The AX743 module is built to insert into any one of the high-speed module bays found on ProSafe GSM73xxS (4 optional bays) and GSM73xxSv2 (2 optional bays). Once inserted, the AX743 adapter module can then be utilized with standard 10 Gigabit SFP+ GBICs for fibre connectivity at 10 Gbps speeds. Specifically, this adapter module accommodates the ProSafe AXM761 SFP+ GBIC 10GBASE-SR LC "Short Reach" or ProSafe AXM762 SFP+ GBIC 10GBASE-LR LC "Long Reach". The AX743 is hot-swappable at any time into the switch and provides hot-swappable installation or removal of standard 10 GE SFP+ GBICs.
Features:
1 port 10 Gigabit SFP+ for M5300 series rear I/O bays
Compliant with 10-GbE SFP+ fibre optics (GBICs) MSA
Supports passive Direct Attach copper cables (10GSFP+Cu)
Allows for distant (fibre) stacking or uplinks
