Molex PowerCat 6A 24 Port Patch Panel 568A/B Shielded

The PowerCat 6A Shielded Patch Panel is a key component of the PowerCat 6A shielded end-to-end solution.

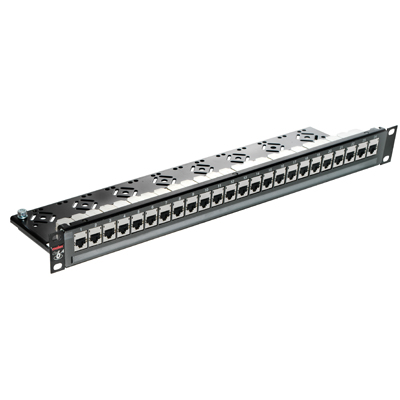

The 24 Port (1U) and 48 Port (2U) PowerCat 6A Shielded Patch Panels are made from robust sheet metal. These panels are also supplied with robust rear cable management trays for cable strain relief and neat cable dressing. Port numbering is provided on the front and rear of the panel and individual ports may be color coded using connector icon labels for site specific network administration.

The PowerCat 6A Shielded Patch Panel features the unique DataGate Shielded connector. This shielded connector offers superior alien crosstalk suppression, excellent insertion loss, and provides enhanced electromagnetic interference (EMI) protection by utilizing robust die-cast zinc alloy connector body housing.

Molex recommends that the full range of PowerCat 6A Shielded products be used in a system to maximize cabling performance.

Features & Advantages

• Available in 24 Port 1U
• Robust rear cable management included
• PowerCat 6A Datagate Shielded connector included
• Patented IDC V-shaped contacts that flex not fatigue when terminated
• Category 6A performance when installed as a complete PowerCat 6A Shielded System
• RoHS Compliant

Technical Information

IDC Connector

• Plastic Housing: Polycarbonate, UL94V-0 rated
• Operating Life: Minimum 20 reterminations
• Ambient Installation and Operating Temperature: -40° to +70° C
• Contact Material: Copper Alloy
• IDC Contact Plating: Tin Matte finish
• Contact Force: Contact Force
• Wire Accommodation: 22-24 AWG solid and 26 AWG stranded

Patch Panel

• Material: CRS (cold rolled steel)
• Thickness: 1.52mm (.060")
• Coating: Black Powdercoat

Jack Connector

• Housing: Zinc Alloy plated Bright Ni/Cu
• Operating Life: Minimum 750 insertion cycles
• Contact Material: Copper Alloy
• Contact Plating: 50µ Gold/ 50µ Nickel minimum
• Contact Force: 100g minimum
• Plug Retention Force: 6.8kg minimum

Electrical

• Interface Resistanc: 20mΩ
• Initial Contact Resistance: 2.5mΩ
• Insulation Resistance: > 100 MΩ
