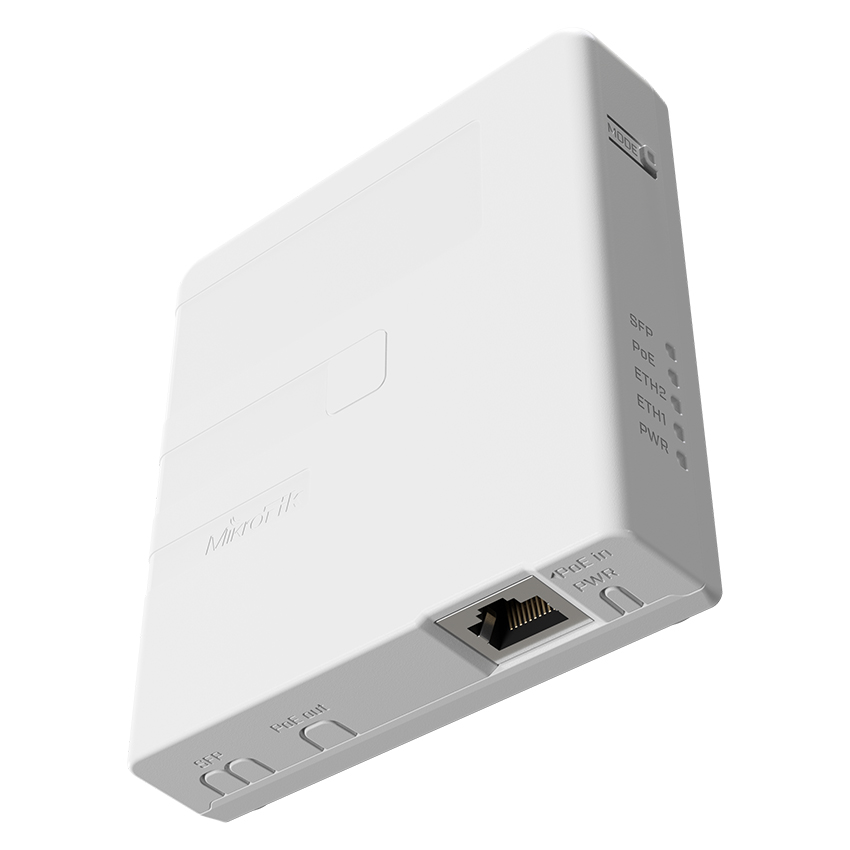

MikroTik GPEN21 Smart Power Injector Repeater

The MikroTik GPEN21 is a smart power injector that serves as an advanced software-controlled repeater. Not only can it power your device via PoE, it can also provide a variety of additional software features such as:

• Interface management and monitoring
• GPEN link fault detection
• VLAN support
• SNMP reporting
• Basic traffic shaping

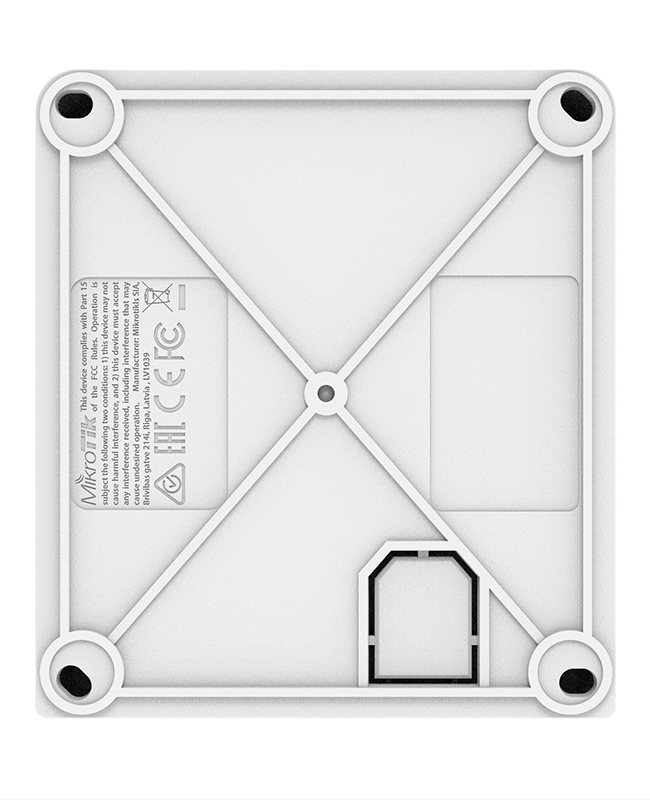

MikroTiks GPEN21 features an Ethernet and SFP port for 1Gbps fibre connectivity. Choose whether to use the GPEN21 to power an optical module for up-link to a provider, or provide PoE to power an Ethernet up-link. The GPEN unit can be securely attached to a wall or communications cabinet, the Ethernet cable can also be routed either directly through the cable opening or into the wall directly.

MikroTik GPEN21 Specifications:

• 10/100 Ethernet ports: None
• 10/100/1000 Ethernet ports: 2
• DC jack input Voltage: 12-57V
• Ethernet Combo ports: 0
• Input Voltage: 12 - 57V, Passive or 802.3af/at
• License level: 0
• Max Power consumption: 3W
• Max power consumption: 30W
• Number of DC inputs: 2
• Number of SIM slots: 0
• Number of USB ports: 0
• Output Voltage: Yes, Passive PoE up to 57 V
• PoE in: 802.3af/at
• PoE in input Voltage: 12-57V
• SFP ports: 1
• SFP+ ports: None
• Tested ambient temperature: -20°C to 70°C
• Wireless 1 Number of chains: 0
