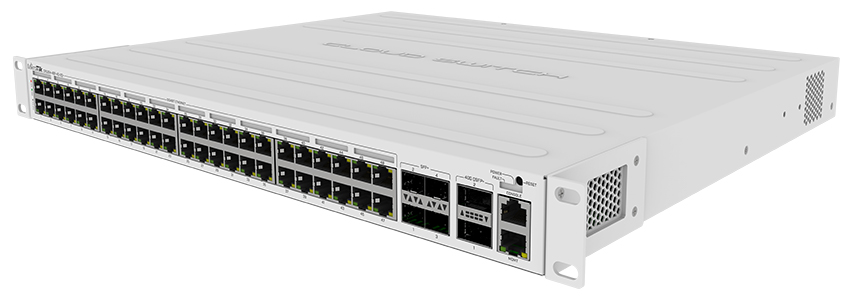

MikroTik CRS354-48P-4S+2Q+RM Cloud Router Switch 48 Port

CRS354-48P-4S+2Q+RM - The 48 port champion you've been waiting for - now with PoE-out! Cloud Router Switch with 48 x 1Gbps RJ45, 2 x 40Gbps QSFP+, 4 x 10Gbps SFP+ ports

Upgrade and future-proof your network capacity and provide power to all of the necessary devices from a single switch.

The CRS354-48P-4S-2Q+RM by MikroTik has been built with the system administrator in mind and provides an effective and adaptable rackmount solution for managing networks in the most demanding of environments.

The powerful CRS354-48P-4S-2Q-RM includes 48 1Gbps RJ45 ports, 4 10Gbps SFP+ ports and 2 40Gbps QSFP+ ports for extremely fast fibre connections or linking to other 40Gbps devices on the network. The total non-blocking throughput of this switch is 168Gbps, with a switching capacity of 336Gbps and forwarding rate that reaches 235Mpps.

With Passive PoE, Low Voltage PoE and 802.3af/at (Type 1 "PoE" / Type 2 "PoE+") with auto-sensing provided on all 48 Ethernet ports and a power supply that can provide 750W of power, this switch provides a great solution to power even the largest of setups and includes a cable management bracket for easy organisation.

The device has an operating system preinstalled and licenced. No separate licence or OS purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase...

CRS354-48P-4S+2Q+RM Specifications:

• Architecture: MIPSBE
• CPU: QCA9531
• CPU core count: 1
• CPU nominal frequency: 650 MHz
• Dimensions: 443 x 382 x 44 mm
• Licence level: 5
• Operating System: RouterOS
• Size of RAM: 64 MB
• Storage size: 16 MB
• Storage type: FLASH
• Tested ambient temperature: -20°C to 60°C
• PoE-out ports: RJ45 port numbers 1 to 48
• PoE out: 802.3af/at
• PoE-out max per port (low voltage 26 V): 26 W
• PoE-out max per port (high voltage 53 V): 30 W
• Max total out (low voltage 26 V): 27 A
• Max total out (high voltage 53 V): 13.2 A
• Max power consumption: 800 W
• Max power consumption without attachments: 85 W
• Number of AC inputs: 1
• AC input range: 100 V - 240 V
• 10/100 Ethernet ports: 1
• 10/100/1000 Ethernet ports: 48
• fibre SFP+ ports: 4
• fibre 40G QSFP+ ports: 2
• Peripherals Serial port: RJ45
• CPU temperature monitor: Yes
• Current Monitor: Yes
• PCB temperature monitor: Yes
• Voltage Monitor: Yes
• Certification: CE/RED, EAC, ROHS
