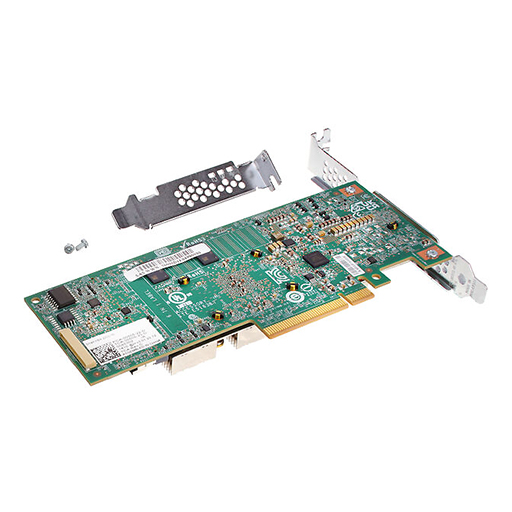

The Microchip 220016IX2S SmartHBA adapter delivers high-speed storage connectivity for modern data center and enterprise server environments. Built on PCIe Gen 4 architecture, this tri-mode host bus adapter supports SAS, SATA, and NVMe devices within a single platform, providing flexible infrastructure for mixed storage deployments. Designed for performance-driven applications, it enables efficient connectivity for high-capacity HDDs, high-speed SSDs, and NVMe drives while maintaining consistent throughput and low latency across demanding workloads.
Leveraging an x8 PCIe Gen 4 interface, the Microchip 220016IX2S SmartHBA provides the bandwidth required for high-speed enterprise storage environments. The architecture supports demanding workloads including database processing, virtualization platforms, and high-performance storage arrays. With throughput reaching up to 13 GB/s and millions of IOPS, the adapter enables fast data movement and efficient resource utilization across connected storage devices.
Tri-mode technology allows the adapter to communicate with SAS, SATA, and NVMe devices through a unified controller. This capability simplifies infrastructure design by supporting multiple storage technologies within a single adapter. The flexible design allows organizations to deploy mixed storage environments without requiring separate controllers for each protocol, improving scalability and reducing system complexity.
An integrated PCIe switch within the SmartIOC 2200 controller enables direct access to NVMe storage devices with extremely low latency. This architecture supports NVMe interfaces in x1, x2, x4, and x8 configurations and is optimized for high-performance SSD workloads. DirectPath technology further enhances NVMe performance by delivering efficient communication between the host and NVMe devices.
The SmartHBA 220016IX2S includes integrated hardware RAID functionality to support essential data protection and storage configuration requirements. RAID levels 0, 1, 10, and 5 can be implemented directly on the adapter, allowing multiple drives to be organized for improved redundancy or performance. RAID arrays and individual drives can also operate simultaneously in mixed mode to accommodate flexible storage layouts.
The adapter supports industry standards including Universal Backplane Management (UBM) and Intel Virtual Pin Port (VPP), enabling intelligent backplane communication and automatic media detection. These technologies simplify system integration by allowing servers to automatically recognize connected device types and configure interface connectivity accordingly.
Microchip’s Dynamic Channel Multiplexing technology aggregates expander-connected SAS and SATA drives into a high-efficiency 24G SAS infrastructure. This design maximizes link utilization and improves throughput across connected storage devices, ensuring efficient data transfer even in large storage environments with multiple expanders and drive arrays.
Built-in security technologies provide a hardware root of trust that supports secure boot, secure firmware updates, and device attestation. These security mechanisms help protect infrastructure against unauthorized firmware modifications and strengthen supply chain security across deployed systems.
The Microchip 220016IX2S adapter is designed for large-scale storage deployments. It supports up to 64 NVMe devices and as many as 256 SAS or SATA devices through expanders, making it suitable for high-density storage environments. This scalability enables organizations to expand capacity without replacing the core storage controller infrastructure.
The SmartHBA platform integrates with Microchip storage management utilities such as maxView Storage Manager, ARCCONF command-line tools, and UEFI configuration utilities. These tools provide administrators with flexible methods to configure storage devices, monitor system activity, and manage RAID arrays through graphical or command-line interfaces.
Designed in a low-profile MD2 form factor, the adapter fits easily into a wide range of rackmount servers and enterprise systems. Internal SlimSAS connectors enable clean cable management and reliable connectivity to U.2 and U.3 drive backplanes, making the card well suited for modern server platforms and dense storage configurations.
