| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | MI12008IX2S |
| Manufacturer No: | 12008IX2S |
| Delivery: | In Stock: 5-7 Days |
 |

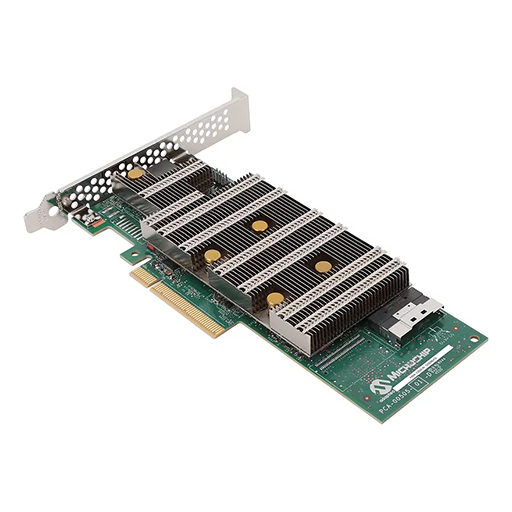

The Microchip 12008IX2S Adaptec HBA 1200-8i is a high-performance 24Gbps SAS/SATA/NVMe host bus adapter designed to support demanding storage environments. Built for modern data centers, enterprise servers, and storage platforms, this PCIe Gen 4 adapter delivers fast connectivity, low latency, and flexible tri-mode support for multiple storage protocols. With Microchip’s advanced SmartIOC 2200 controller architecture and innovative technologies, the HBA 1200-8i enables reliable, scalable storage performance for high-throughput workloads.
The HBA 1200-8i delivers flexible tri-mode connectivity, allowing a single adapter to support SAS, SATA, and NVMe storage devices. This capability simplifies infrastructure planning and allows system designers to deploy mixed storage configurations without additional controllers. With eight internal ports available, the adapter supports scalable storage expansion within high-performance systems.
Designed for modern high-throughput environments, the adapter features a PCIe Gen 4 x8 interface paired with 24G SAS-4 connectivity. This architecture enables data transfer speeds up to 14.8 GB/s and delivers up to 3.4 million IOPS for 4K random read workloads. The result is consistent performance for applications that demand fast access to large volumes of data.
Microchip’s DirectPath technology integrates a PCIe switch directly within the adapter, allowing NVMe drives to communicate with the host system through a low-latency data path. This design reduces overhead and maximizes bandwidth, enabling extremely fast NVMe storage performance that is ideal for latency-sensitive enterprise workloads.
The HBA 1200-8i incorporates Dynamic Channel Multiplexing (DCM), which intelligently aggregates expander-attached SAS or SATA drives onto the 24G SAS infrastructure. This technology achieves near 100% link efficiency, ensuring storage bandwidth is used effectively while delivering improved throughput for large-scale storage environments.
Security is enhanced through Microchip’s Trusted Platform technology, which provides a hardware-based root of trust aligned with the Open Compute Security Project. This design supports secure supply chain validation and protects system integrity. In addition, the adapter includes management support for Self-Encrypting Drives, allowing encrypted storage devices to be managed within secure environments.
The adapter integrates with modern management standards including Platform Level Data Model (PLDM) and Redfish Device Enablement. These industry-standard protocols simplify system integration and remote management, helping administrators monitor and configure storage hardware efficiently across enterprise infrastructure.
Support for Intel Virtual Pin Port (VPP) and Universal Backplane Management (UBM) standards allows the adapter to integrate easily with intelligent backplanes. This compatibility streamlines system design for OEMs and integrators while enabling efficient control of storage devices connected through complex backplane architectures.
Management capabilities are extended with SGPIO and SCSI Enclosure Services support, allowing administrators to monitor device activity and status across directly attached drives and those connected through SAS expanders. This standardized approach to device monitoring ensures consistent visibility across storage infrastructure.
Dynamic power management features help optimize energy consumption by adjusting operational power usage according to workload demands. This intelligent approach can reduce power consumption by up to 30 percent, helping improve system efficiency in large-scale server and storage deployments.
The HBA 1200-8i maintains compatibility with a wide range of servers, operating systems, storage enclosures, hard drives, and solid-state drives. Built on the proven Adaptec Smart Storage platform, it integrates easily with existing infrastructure and supports enterprise deployment across multiple storage environments.
The Microchip 12008IX2S Adaptec HBA 1200-8i is a high-performance 24Gbps SAS/SATA/NVMe host bus adapter designed to support demanding storage environments. Built for modern data centers, enterprise servers, and storage platforms, this PCIe Gen 4 adapter delivers fast connectivity, low latency, and flexible tri-mode support for multiple storage protocols. With Microchip’s advanced SmartIOC 2200 controller architecture and innovative technologies, the HBA 1200-8i enables reliable, scalable storage performance for high-throughput workloads.
The HBA 1200-8i delivers flexible tri-mode connectivity, allowing a single adapter to support SAS, SATA, and NVMe storage devices. This capability simplifies infrastructure planning and allows system designers to deploy mixed storage configurations without additional controllers. With eight internal ports available, the adapter supports scalable storage expansion within high-performance systems.
Designed for modern high-throughput environments, the adapter features a PCIe Gen 4 x8 interface paired with 24G SAS-4 connectivity. This architecture enables data transfer speeds up to 14.8 GB/s and delivers up to 3.4 million IOPS for 4K random read workloads. The result is consistent performance for applications that demand fast access to large volumes of data.
Microchip’s DirectPath technology integrates a PCIe switch directly within the adapter, allowing NVMe drives to communicate with the host system through a low-latency data path. This design reduces overhead and maximizes bandwidth, enabling extremely fast NVMe storage performance that is ideal for latency-sensitive enterprise workloads.
The HBA 1200-8i incorporates Dynamic Channel Multiplexing (DCM), which intelligently aggregates expander-attached SAS or SATA drives onto the 24G SAS infrastructure. This technology achieves near 100% link efficiency, ensuring storage bandwidth is used effectively while delivering improved throughput for large-scale storage environments.
Security is enhanced through Microchip’s Trusted Platform technology, which provides a hardware-based root of trust aligned with the Open Compute Security Project. This design supports secure supply chain validation and protects system integrity. In addition, the adapter includes management support for Self-Encrypting Drives, allowing encrypted storage devices to be managed within secure environments.
The adapter integrates with modern management standards including Platform Level Data Model (PLDM) and Redfish Device Enablement. These industry-standard protocols simplify system integration and remote management, helping administrators monitor and configure storage hardware efficiently across enterprise infrastructure.
Support for Intel Virtual Pin Port (VPP) and Universal Backplane Management (UBM) standards allows the adapter to integrate easily with intelligent backplanes. This compatibility streamlines system design for OEMs and integrators while enabling efficient control of storage devices connected through complex backplane architectures.
Management capabilities are extended with SGPIO and SCSI Enclosure Services support, allowing administrators to monitor device activity and status across directly attached drives and those connected through SAS expanders. This standardized approach to device monitoring ensures consistent visibility across storage infrastructure.
Dynamic power management features help optimize energy consumption by adjusting operational power usage according to workload demands. This intelligent approach can reduce power consumption by up to 30 percent, helping improve system efficiency in large-scale server and storage deployments.
The HBA 1200-8i maintains compatibility with a wide range of servers, operating systems, storage enclosures, hard drives, and solid-state drives. Built on the proven Adaptec Smart Storage platform, it integrates easily with existing infrastructure and supports enterprise deployment across multiple storage environments.
