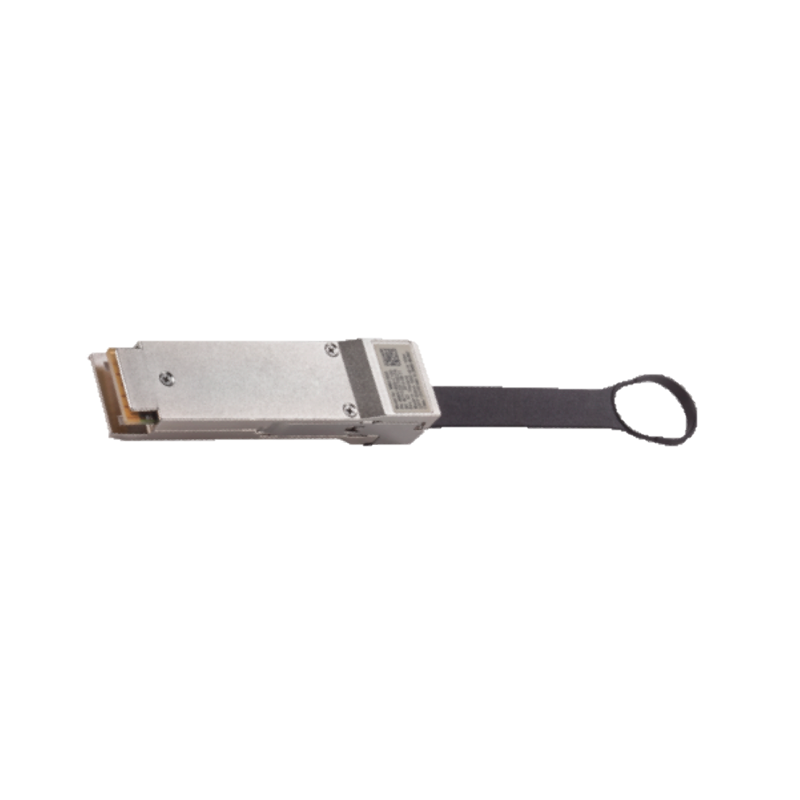

100Gb/s EDR SR4 QSFP28 MMF Optical Transceiver
100Gb/s EDR SR4 QSFP28 MMF Optical Transceiver
MMA1B00-E100 is a 4-channel, pluggable, QSFP28 optical transceiver designed for use in 100Gb/s EDR InfiniBand systems. This module incorporates NVIDIA Networking integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant.
MMA1B00-E100 has a standard QSFP28 connector on the electrical side towards the host system supporting EDR. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel MMF cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125GBd. The transceiver has selectable re-timing in both transmit and receive directions as well as it provides digital diagnostic monitoring of supply voltage, temperature, transmit/receive power, and laser bias.
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
• Up to 100Gb/s data rate
• Programmable Rx output amplitude
• Programmable Rx output emphasis
• Programmable Tx input equalizer
• Selectable retiming
• SFF-8665 compliant
• 3.3V power supply
• QSFP28 power class 3
• Low BER
• Class 1 laser safety
• Maximum link length of 70m on OM3 and 100m on OM4 multimode fiber at 100Gb/s
• Hot pluggable
• RoHS compliant
• IEEE 802.3 100GBASE-SR4 compliant
• I2C management interface
Mellanox® MMA1B00-E100 is a 4-channel, pluggable, QSFP28 optical transceiver designed for use in 100Gb/s EDR InfiniBand systems. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant.
MMA1B00-E100 has a standard QSFP28 connector on the electrical side towards the host system supporting EDR. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel MMF cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125GBd.
The transceiver has selectable re-timing in both transmit and receive directions as well as it provides digital diagnostic monitoring of supply voltage, temperature, transmit/receive power, and laser bias.
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
Full specification and details can be found in the Product Datasheet PDF file
100Gb/s EDR SR4 QSFP28 MMF Optical Transceiver
100Gb/s EDR SR4 QSFP28 MMF Optical Transceiver
MMA1B00-E100 is a 4-channel, pluggable, QSFP28 optical transceiver designed for use in 100Gb/s EDR InfiniBand systems. This module incorporates NVIDIA Networking integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant.
MMA1B00-E100 has a standard QSFP28 connector on the electrical side towards the host system supporting EDR. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel MMF cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125GBd. The transceiver has selectable re-timing in both transmit and receive directions as well as it provides digital diagnostic monitoring of supply voltage, temperature, transmit/receive power, and laser bias.
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
• Up to 100Gb/s data rate
• Programmable Rx output amplitude
• Programmable Rx output emphasis
• Programmable Tx input equalizer
• Selectable retiming
• SFF-8665 compliant
• 3.3V power supply
• QSFP28 power class 3
• Low BER
• Class 1 laser safety
• Maximum link length of 70m on OM3 and 100m on OM4 multimode fiber at 100Gb/s
• Hot pluggable
• RoHS compliant
• IEEE 802.3 100GBASE-SR4 compliant
• I2C management interface
Mellanox® MMA1B00-E100 is a 4-channel, pluggable, QSFP28 optical transceiver designed for use in 100Gb/s EDR InfiniBand systems. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant.
MMA1B00-E100 has a standard QSFP28 connector on the electrical side towards the host system supporting EDR. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel MMF cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125GBd.
The transceiver has selectable re-timing in both transmit and receive directions as well as it provides digital diagnostic monitoring of supply voltage, temperature, transmit/receive power, and laser bias.
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
Full specification and details can be found in the Product Datasheet PDF file
