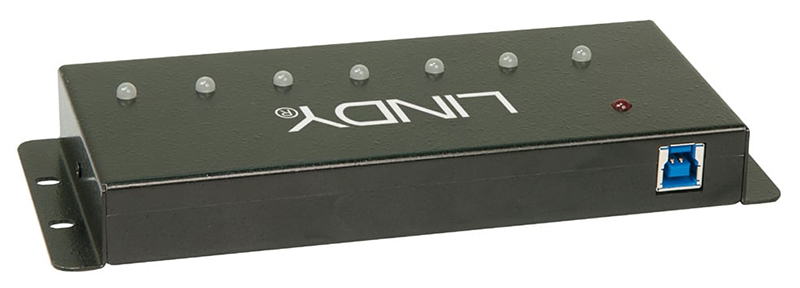

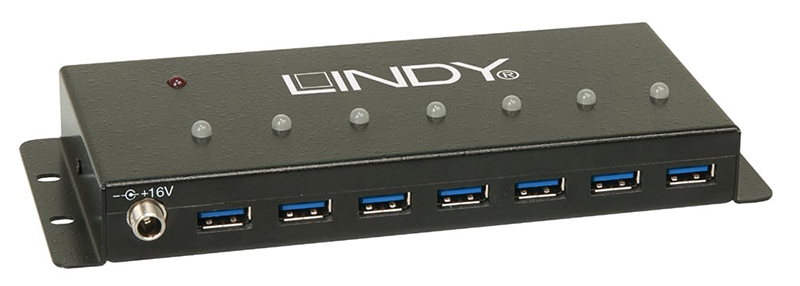

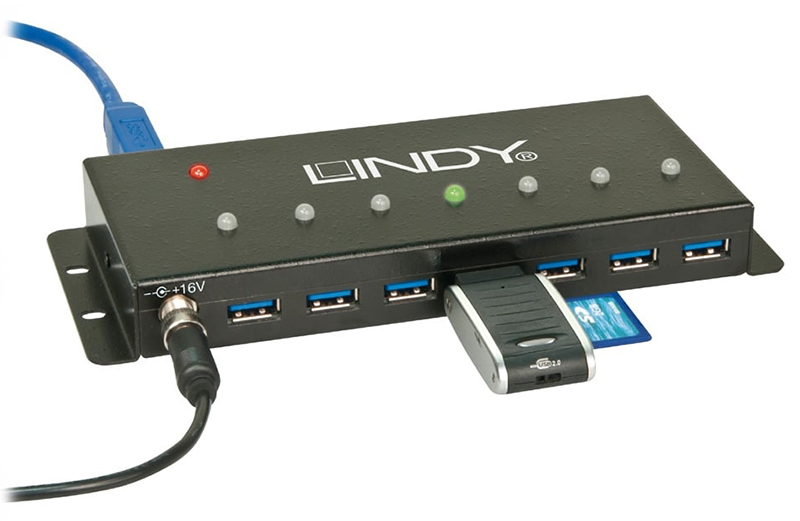

The Lindy 7 Port USB 3.0 Metal Hub has been designed to provide reliable performance in demanding operational environments.
This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this hub is the ideal solution for use in industrial environments.
Backwards compatibility with USB 2.0/1.1/1.0 means the hub can simultaneously support older USB peripherals or systems that lack USB 3.0 capabilities, extending their lifetime and giving a greater return on investment.
Each port features individual short circuit protection, while the included power supply ensures secure and uninterrupted electricity supply.
Specifications
Technical Information
| Connectors | |
| Inputs | 1 x USB Type B (Female) |
| Outputs | 7 x USB Type A (Female) |
|
Dimensions (approx.) WxDxH |
USB A Male: 15.5x35x7.8mm (0.61x1.38x0.31in) USB A Female: 11.8x35x10.2mm (0.47x1.38x0.40in) |
| Specifications | |
| USB Standard | USB 3.1 Gen 1 / 3.0 |
| Supported Bandwidth | 5 Gbps |
| Chipset | 2 x VL811 |
| Compatibility | USB Type A equipped computers |
| Power Delivery | - |
| Special Features | Integrated brackets for mounting |
| Physical Properties | |
| Dimensions (WxDxH) | 185x75x20mm (7.28x2.95x0.79in) |
| (Fixed) Cable Length | - |
| Housing Material | Metal |
| Net Weight | 0.379kg (0.84lb) |
| Humidity | 90% RH (non-condensing) |
| Power Requirements | 16VDC 2A |
| Operating Temperature | 0°C - 50°C |
| Storage Temperature | -20°C - 60°C |
The Lindy 7 Port USB 3.0 Metal Hub has been designed to provide reliable performance in demanding operational environments.
This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this hub is the ideal solution for use in industrial environments.
Backwards compatibility with USB 2.0/1.1/1.0 means the hub can simultaneously support older USB peripherals or systems that lack USB 3.0 capabilities, extending their lifetime and giving a greater return on investment.
Each port features individual short circuit protection, while the included power supply ensures secure and uninterrupted electricity supply.
Specifications
Technical Information
| Connectors | |
| Inputs | 1 x USB Type B (Female) |
| Outputs | 7 x USB Type A (Female) |
|
Dimensions (approx.) WxDxH |
USB A Male: 15.5x35x7.8mm (0.61x1.38x0.31in) USB A Female: 11.8x35x10.2mm (0.47x1.38x0.40in) |
| Specifications | |
| USB Standard | USB 3.1 Gen 1 / 3.0 |
| Supported Bandwidth | 5 Gbps |
| Chipset | 2 x VL811 |
| Compatibility | USB Type A equipped computers |
| Power Delivery | - |
| Special Features | Integrated brackets for mounting |
| Physical Properties | |
| Dimensions (WxDxH) | 185x75x20mm (7.28x2.95x0.79in) |
| (Fixed) Cable Length | - |
| Housing Material | Metal |
| Net Weight | 0.379kg (0.84lb) |
| Humidity | 90% RH (non-condensing) |
| Power Requirements | 16VDC 2A |
| Operating Temperature | 0°C - 50°C |
| Storage Temperature | -20°C - 60°C |
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
