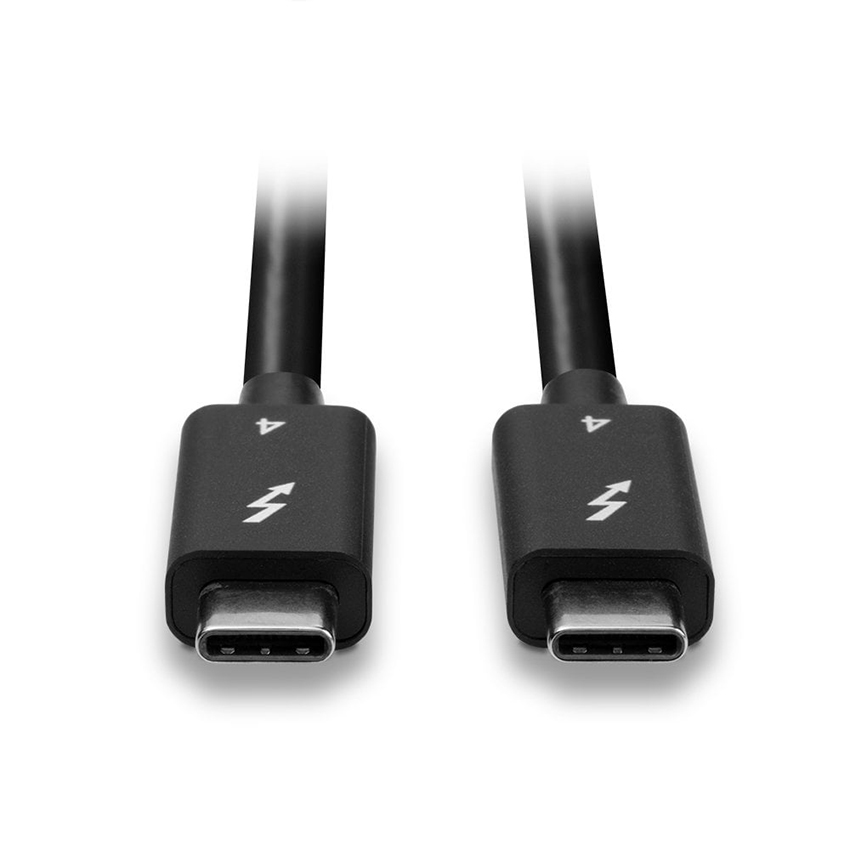

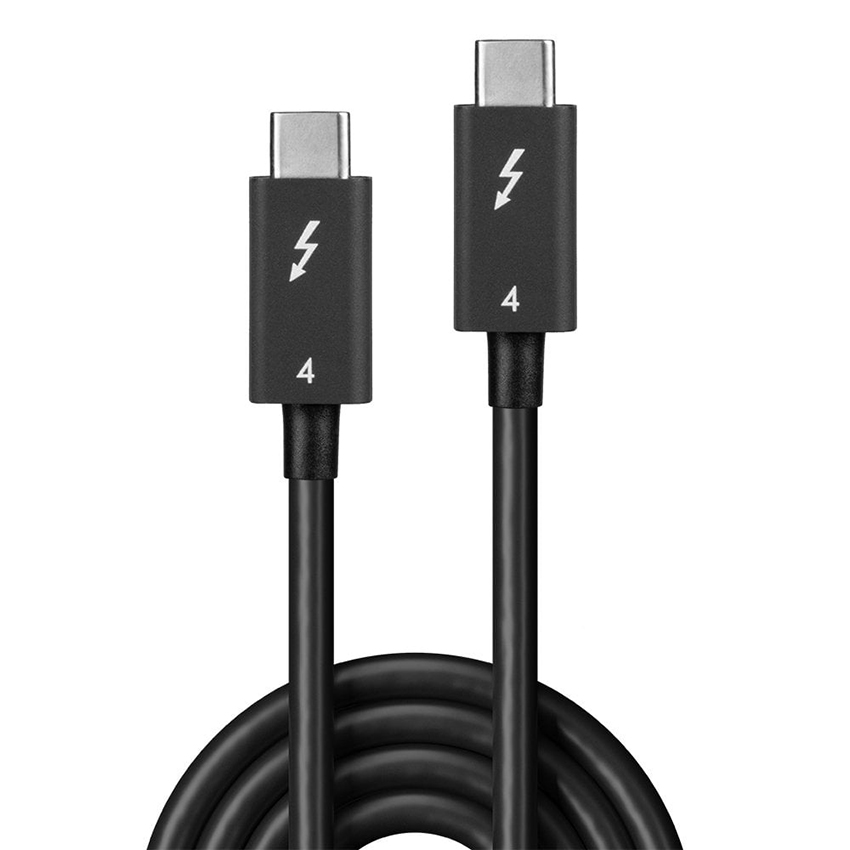

Lindy 31120 1m Thunderbolt 4 Cable, 40Gbps, passive

1m Thunderbolt 4 Cable, 40Gbps, passive

Key Features:

• Connects to Thunderbolt 4 devices and transfers data with bandwidths up to 40Gbps
• Supports single 8K or dual 4K@60Hz
• Supports Power Delivery up to 100W (20V 5A)
• Supports PCIe at 32Gbps for storage speeds up to 3,000Mbps
• 2-year warranty

The Lindy 1m Thunderbolt 4 Cable provides the full Thunderbolt 4 specification with data transfer rates up to 40 Gbps. It is backwards compatible and delivers up to 20Gbps for USB 3.2 devices. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.

This cable is Thunderbolt certified and can provide 100W (5A) of power to Thunderbolt 4 and USB Type C devices using the most efficient power delivery profiles.

Specifications:

• Connector A: Thunderbolt 4 USB Type C Male with E-Mark
• Connector B: Thunderbolt 4 USB Type C Male
• Housing Material: Stainless Steel
• Connector Plating: Nickel
• Pin Construction: Copper alloy
• Pin Plating: Gold
• Dimensions (approx.) WxDxH: 12.35x20.7x6.5mm (0.49x0.81x0.26in)
• Length: 1m (3.28ft)
• Standard: Thunderbolt 4
• Colour: Black
• Type: Round
• Jacket Diameter: 4.6mm (0.18in)
• Jacket Material: TPE
• Conductor Material: Copper
• Conductor Gauge Data: 24AWG
• Conductor Gauge Power: 30/34AWG
• Shielding: Tinned Copper Braid with Foil
• Supported Bandwidth: 40Gbps, bidirectional
• Maximum Resolution: 4096x2160@120Hz, 7680x4320@60Hz
• Power Delivery: PD 3.0 up to 100W (20V 5A)
• Supported Protocols: PCIe 5.0, DisplayPort 2.0, USB 4, USB 3.2, USB 2.0
• Nominal Attenuation: 100Mhz - 1db, 2.5GHz - 4.2db, 5GHz - 6db, 10GHz - 7.5db, 15GHz - 11db
• Minimum Band Radius: 46mm (1.81in)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)
• Packaging Type: Polybag
• Warranty (Years): 2
• Certificated: RoHS, REACH, California Proposition 65

Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
