Lande SAFEbox-B Single Fan for Wall Mounted Cabinet with thermostat, filter

Lande Safebox-B Fans

Fan kit with thermostat.

The SAFEBOX-B IP55 Outdoor Cabinets are designed for industrial applications. Based on EN 60529 provided IP55 protection class against dust and water ingress. With fan and filter integration, enclosure provides IP54 protection against dust and water. Enclosure provides protection against extraneous objects (things that might fall in, dust carried by wind) and water (rain, slush, snow, blush) which might damage the internal equipment.

Features:

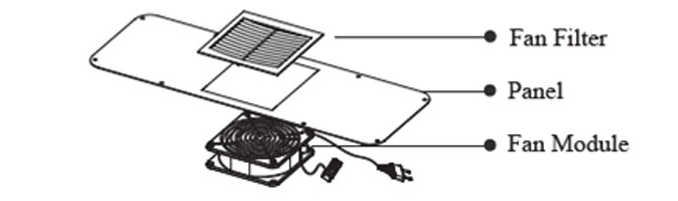

• For use with Lande Safebox-B IP55 Wall Mounting Cabinet

• For fitment in the top section

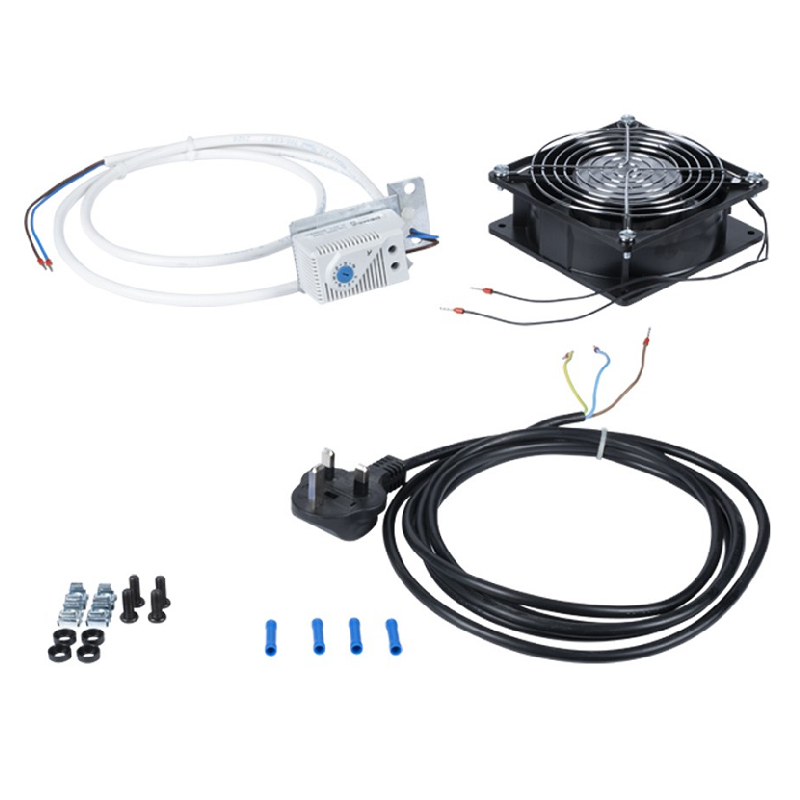

• Supplied as separate kit for customer onsite fitment and wiring

Installation:

1. Power Cable should be unplugged before wiring is started

2. Power supply cable supplied 3 core, Brown (live) Blue (Neutral) Yellow / Green (Earth)

3. Thermostat cable supplied 2 core Brown / Blue

4. Power Lead - Brown (live) wire should be crimped / connected to Brown wire thermostat cable

5. Thermostat Cable 2 core – Blue wire to be crimped / connected to Fan power lead

6. Power Cable – Blue (Neutral) to be crimped / connected to Fan neutral lead

7. Once Fan Tray is installed on Metal mounting plate, earth lead to be connected to mounting plate

8. Set required temperature on thermostat using flat screwdriver
