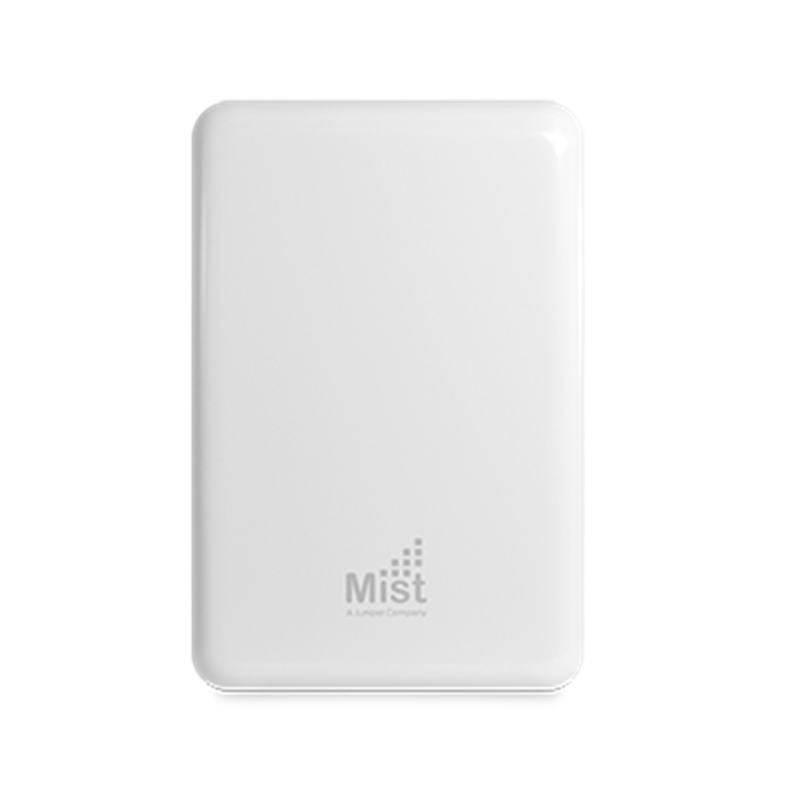

Juniper Networks MIST-AP12-4S High Performance Wallplate WiFi 6 802.11ax Access Point (AP12)

Juniper Mist AP12 WiFi 6 Wallplate Access Point with 4 Cloud Services, 1, 3 or 5-Year Subscription

The Juniper Mist AP12 is an indoor WiFi 6 wallplate access point for offices, hotel rooms, student accommodation and remote working environments. It delivers up to 1.8Gbps across 2.4GHz and 5GHz.

This MIST-AP12-4S bundle includes the AP12 access point and universal mounting bracket with four Juniper Mist cloud services, available in 1, 3 or 5-year terms. Wireless Assurance (SUB-MAN) is mandatory for Juniper access points, with the other three services specified from compatible Juniper Mist subscriptions when ordered. Wireless Assurance provides RRM-based RF optimisation, SLE-based service-level monitoring, WLAN policy creation, guest WiFi management and dynamic packet capture for troubleshooting.

Key Features:

• Tri-radio WiFi 6 (802.11ax) 2x2:2 access point operating across 2.4GHz and 5GHz
• Up to 1.8Gbps combined wireless data rate

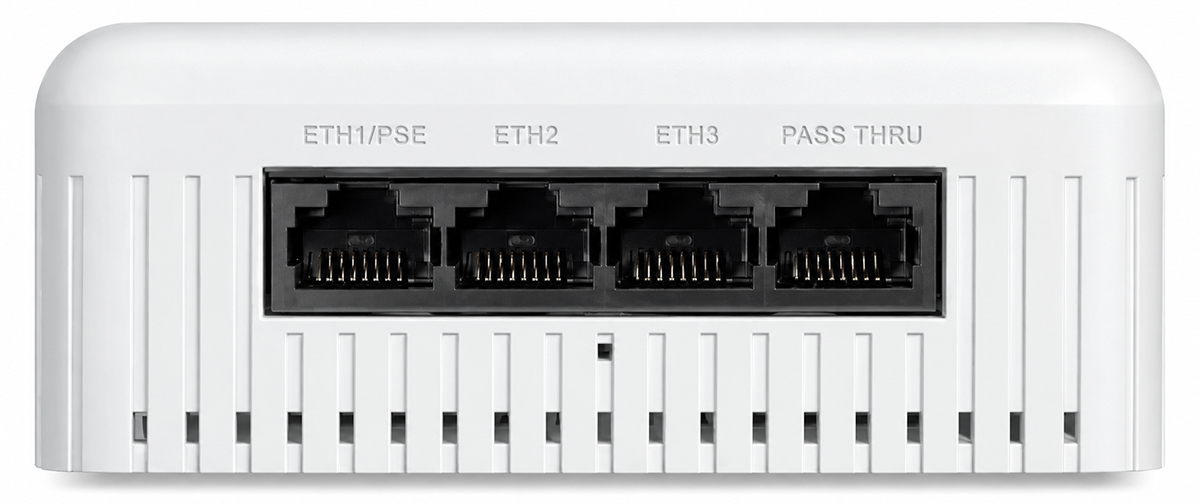

• ETH0 is the Gigabit Ethernet uplink and 802.3af/at PoE input
• ETH1/PSE, ETH2 and ETH3 provide three Gigabit Ethernet ports for local wired devices
• ETH1/PSE provides Class 2 PoE output (when powered by 802.3at PoE via ETH0)
• PASS THRU - a passive RJ45 socket links directly to another RJ45 socket on the rear of the AP
• Dedicated third radio for WIDS/WIPS [Wireless Intrusion Detection/Prevention], spectrum analysis, synthetic client testing and location analytics
• Bluetooth 5.0 LE [Low Energy] with iBeacon and Eddystone support
• Automatic RF [Radio Frequency] optimisation through Juniper Mist cloud management
• TPM [Trusted Platform Module] for infrastructure security

Key Benefits:

• Reduced manual optimisation: AI-driven radio management automatically adjusts channel and power settings as wireless conditions change
• Faster troubleshooting: dedicated wireless monitoring and dynamic packet capture help identify and diagnose connectivity problems
• Simplified deployment: the AP12 connects to the Juniper Mist cloud to receive its configuration and firmware updates automatically
• Improved IoT efficiency: Target Wake Time can reduce power use for compatible devices, while Bluetooth 5.0 supports beacon and location services
• Convenient wired passthrough: keeps a separate Ethernet connection accessible when the AP12 is installed over a wall outlet

*For complete specifications see the documentation tab above
