| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
If you wish to enquire about this product please contact us on
0800 488 0000
Capacity: |
| Part No: | FEIS-DAM2-256-120 |
| Manufacturer No: | IS-DAM2-256-120 |
| Delivery: | In Stock: 5-7 Days |
 |

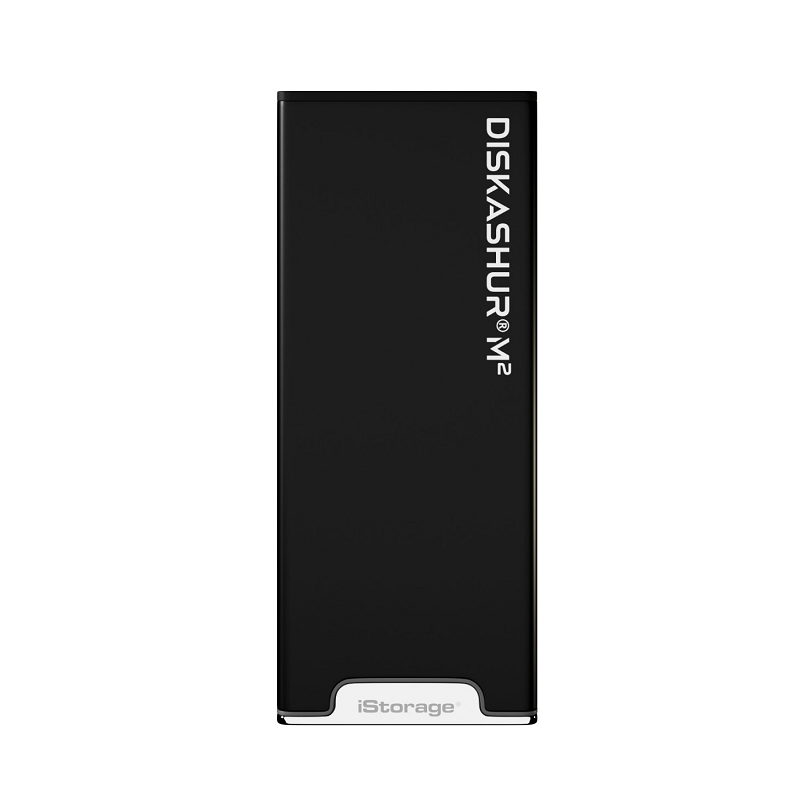

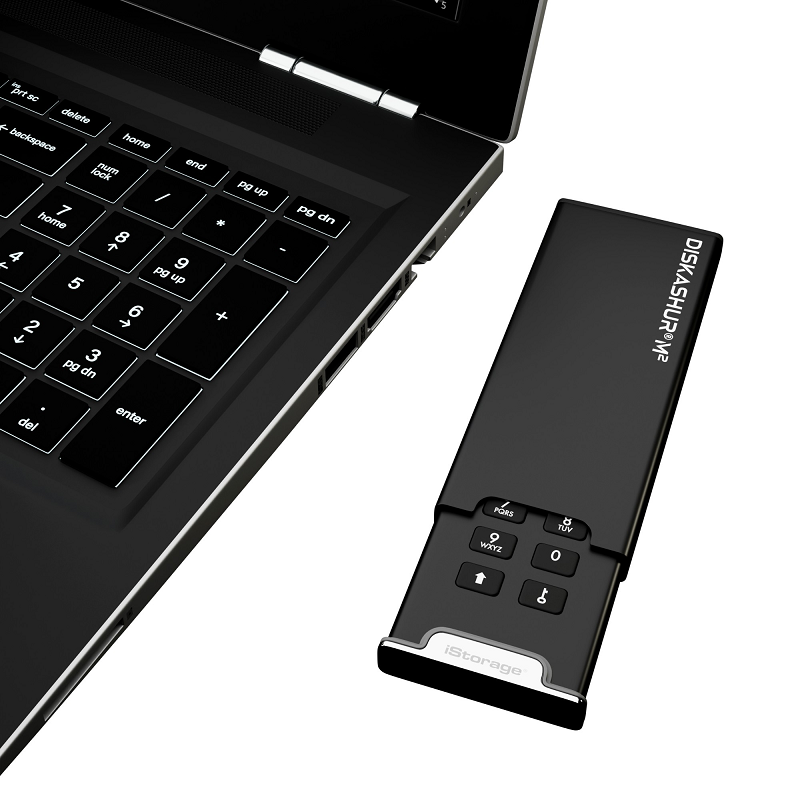

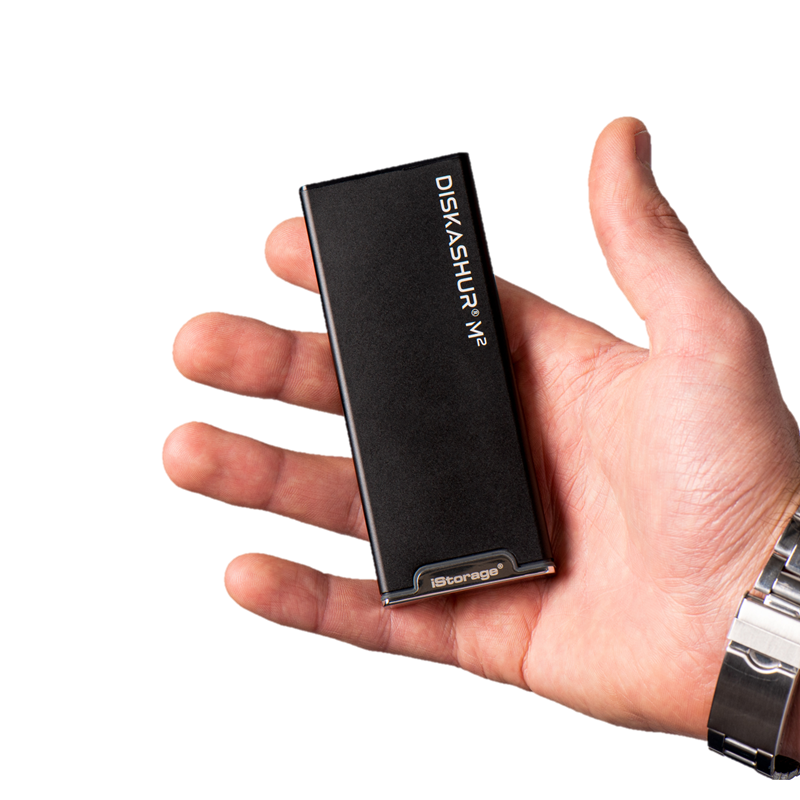

diskAshur M2
Hardware encrypted USB 3.2 portable SSD
iStorage's smallest, lightest, fastest and most rugged FIPS compliant encrypted portable SSD
The diskAshur M² PIN authenticated, hardware encrypted SSD has a new, ultra-portable, rugged and sleek design, incorporating the most advanced security attributes that iStorage is renowned for.
The diskAshur M² encrypts data using FIPS PUB 197 validated, AES-XTS 256-bit hardware encryption and incorporates a Common Criteria EAL 5+ (Hardware Certified) secure microprocessor, which employs built-in physical protection mechanisms designed to defend against external tamper, bypass physical attacks and more.
The drive features ultra-fast backwards compatible USB 3.2 data transfer speeds and is available in capacities ranging from 120GB to 2TB. The diskAshur M² is lightweight, dust and waterproof (IP68 certified), shock proof (survives a drop of 4m on to a concrete surface) and crush-proof (withstands the weight of a 2.7 ton vehicle), making it extremely rugged and ultra-portable.
Simply enter a 7-15 digit PIN to authenticate and use as a normal portable SSD. When the drive is disconnected, all data is encrypted using AES-XTS 256-bit hardware encryption (no software required).
Both the Admin and User can configure the diskAshur M² as a read only (write protect) drive. If configured by the Admin, the drive cannot be modified or disabled by the User, allowing the Admin to pre-provision a drive with pre-loaded content as read-only for the User.
The drive’s IP68 accreditation means it will survive being submerged under 1.5m of water for 30 minutes and deemed fit enough to withstand dust, dirt and sand.
The diskAshur M² is extremely rugged, surviving a drop of up to 4m onto a concrete surface. The drive is also crushproof, withstands the weight of a 2.7 ton vehicle.
Easy to use
Simply enter a 7-15 digit PIN to authenticate and use as a normal portable SSD. When the drive is disconnected, all data is encrypted using AES-XTS 256-bit hardware encryption (no software required).
One-time User recovery PIN
Admin configurable, extremely useful in situations where a User has forgotten their PIN, allowing the User to unlock the device and set a new User PIN.

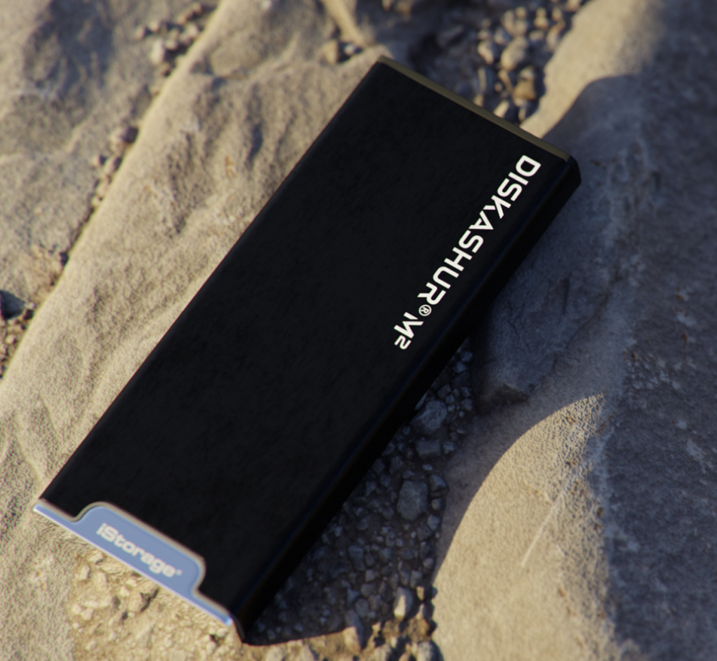

Rugged, Shockproof & Crushproof
The diskAshur M2 is extremely rugged, surviving a drop of up to 4m onto a concrete surface. The drive is also crushproof, withstands the weight of a 2.7 ton vehicle

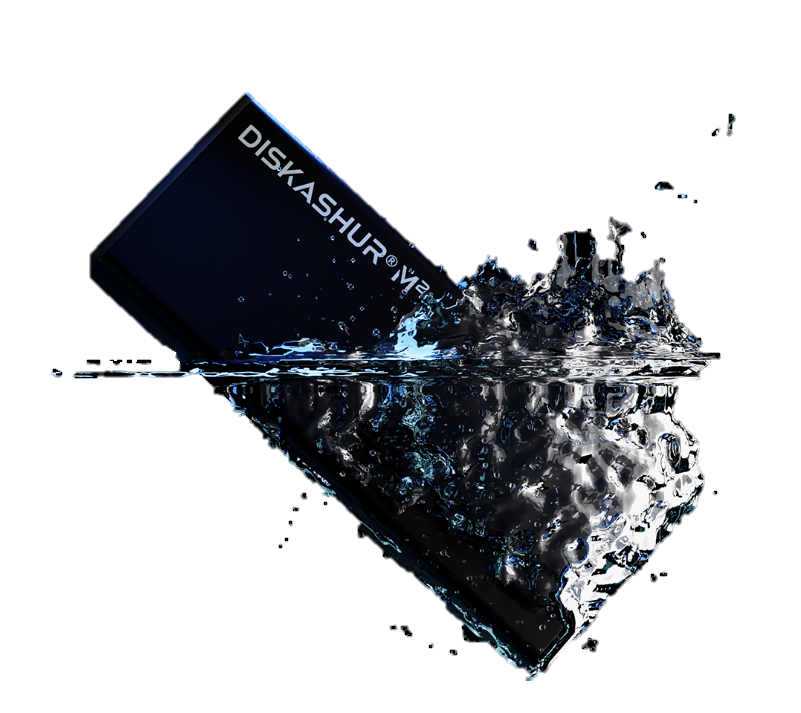

No need to worry about spills
The drive’s IP68 accreditation means it will survive being submerged under 1.5m of water for 30 minutes and deemed fit enough to withstand dust, dirt and sand.

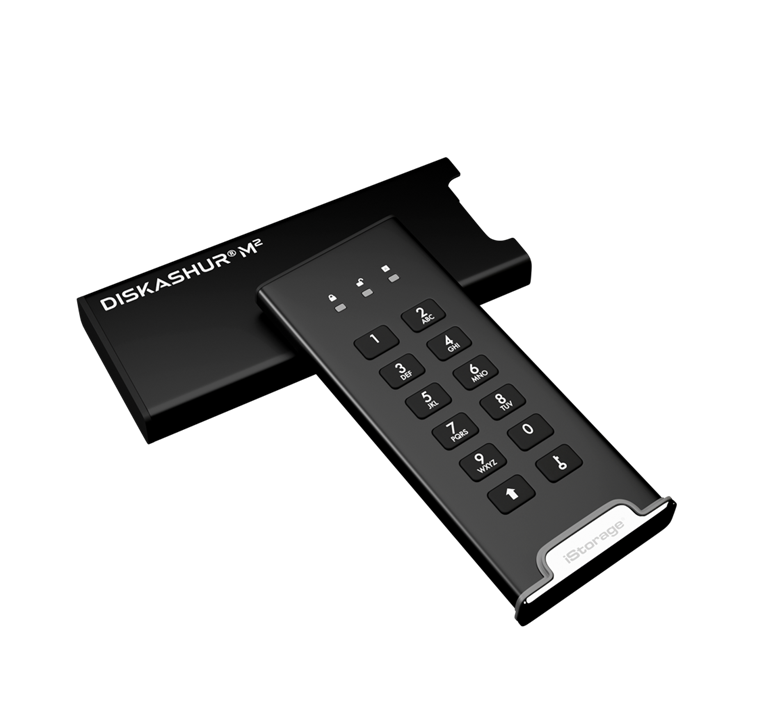

Slim & sleek design
Lightweight and smaller than the size of a phone, making it ultra-portable.
Weighs: 86 grams (measurements with sleeve fitted)
Weighs 65 grams. (measurements without sleeve).

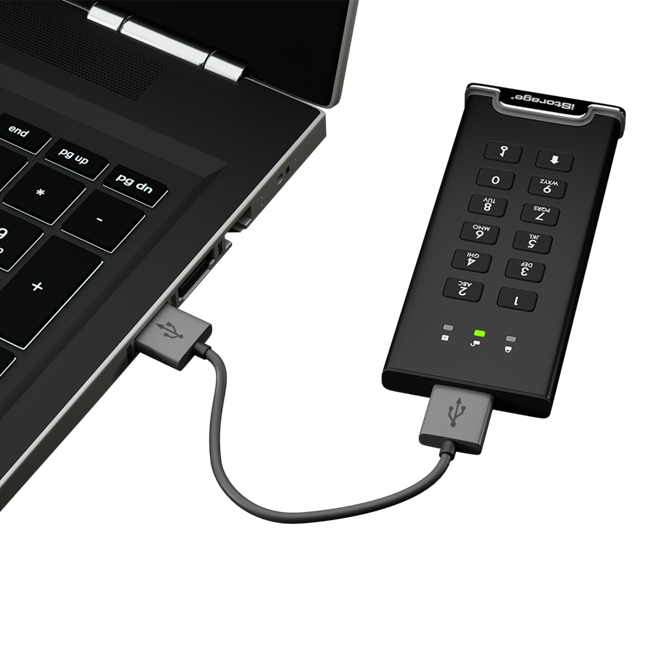

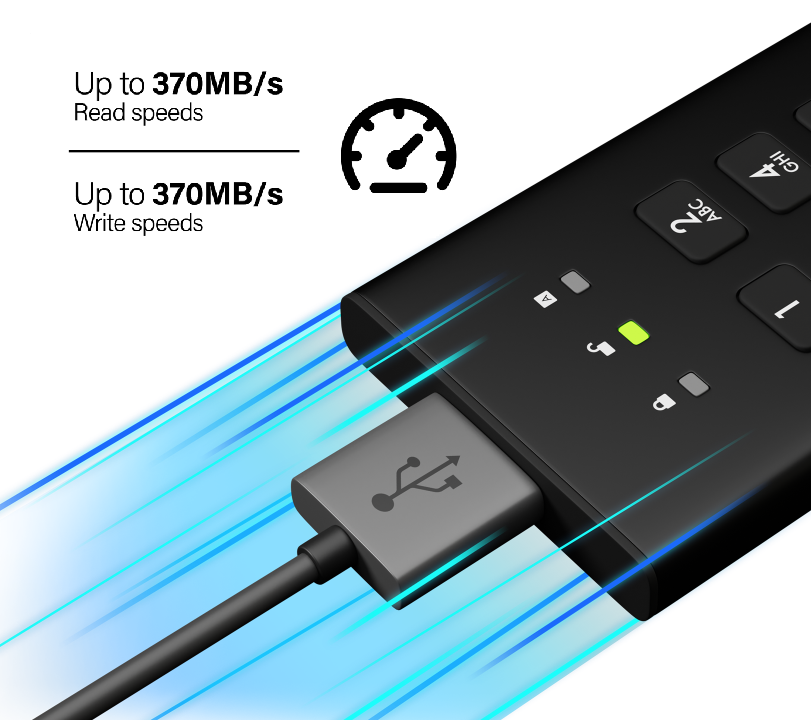

Transfer your files in seconds
Lightning fast backwards compatible USB 3.2 data transfer speeds
Up to 370MB/s Read speeds
Up to 370MB/s Write speeds

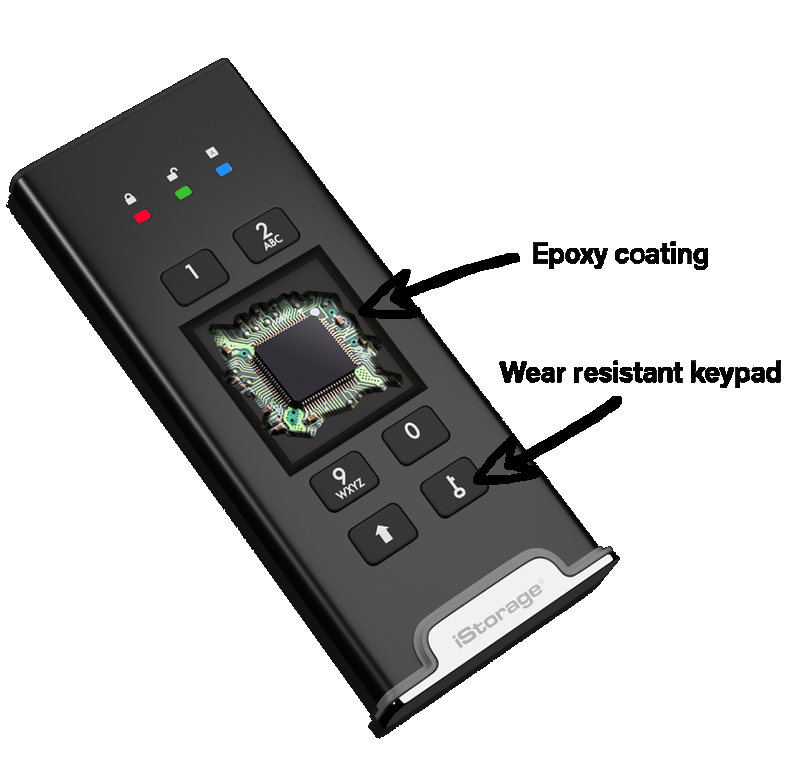

Wear resistant keypad
The onboard keypad is covered with a layer of polymer coating that protects the keys and hides key usage to avoid tipping off a potential hacker to commonly used keys
Independent User and Admin PINs
Which makes it perfect for corporate and government deployment. If the User forgets their PIN, the drive can be unlocked using the Admin PIN. The Administrator can then allow the User to set a new User PIN.
User PIN enrolment
The Admin can set a restriction policy for the User PIN. This includes setting the minimum length of the PIN, as well as requiring the input of one or more ‘Special Characters’. The ‘Special Character’ functions as ‘SHIFT + digit’.

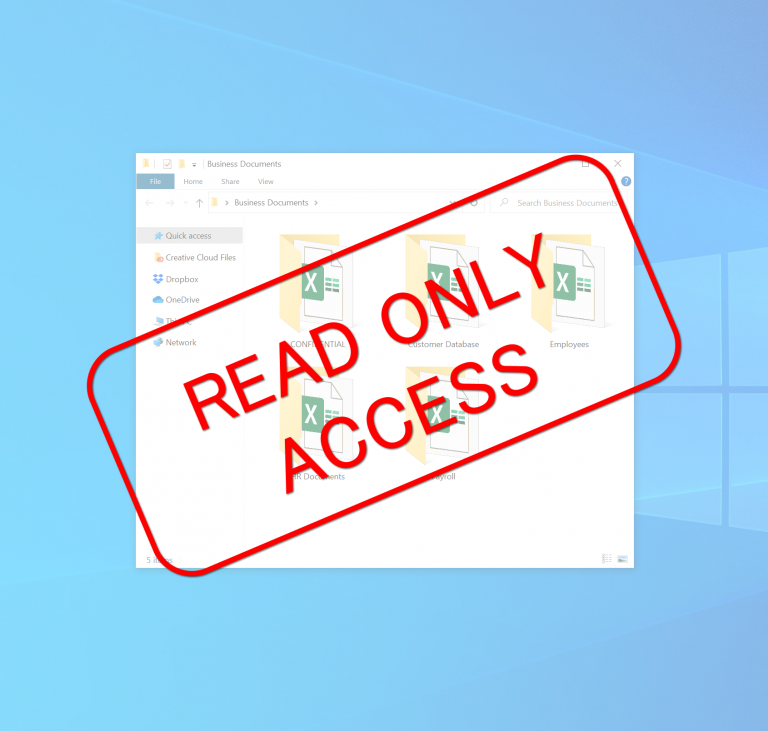

Read only (write protect) - Dual Mode
Both the Admin and User can configure the diskAshur M2 as a read only (write protect) drive. If configured by the Admin, the drive cannot be modified or disabled by the User, allowing the Admin to pre-provision a drive with pre-loaded content as read-only for the User.
Auto-lock
Automatically locks when unplugged from the host computer or when power to the USB port is turned off. It can also be set to automatically lock after a predetermined amount of time.
Self-destruct feature
Pre-program the diskAshur M2 with a self-destruct PIN, once entered, the data, encrypted encryption key and all PINs are deleted and rendered as lost forever.
Whitelisting on networks
Configured with a unique VID/PID and internal/external serial number with barcode, allowing easy integration into standard end-point management software (white-listing), to meet internal corporate requirements.
Customisation services available
Offering an in-house PIN configuration and laser-etching service whereby the diskAshur M2 sleeve or side of the device can be customised with your name, company name and/or logo, web/email address, phone number.

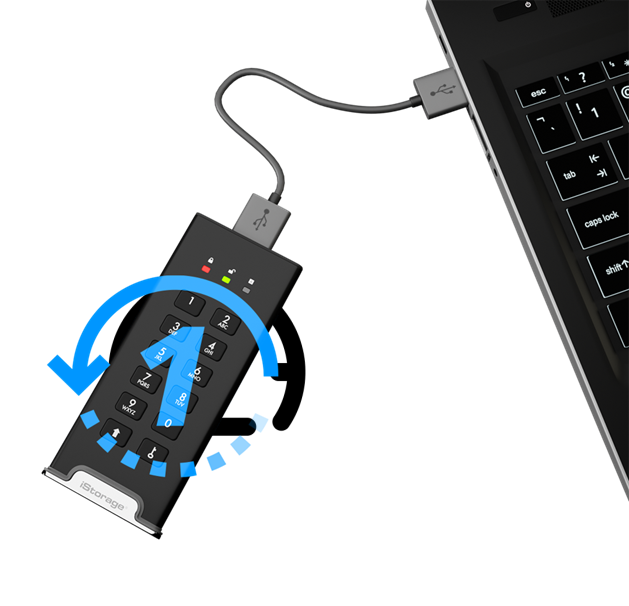

Device reset feature
Deletes the encrypted encryption key, all PINs and renders all data as lost forever. The drive can then be redeployed which randomly generates a new encrypted encryption key, a process that can be repeated as many times as required.
Bootable feature
Install an OS on the diskAshur M2 and boot directly from it.
FIPS 140-3 Level 3 compliant, tamper proof & evident design
All data stored on the diskAshur M2 is encrypted using FIPS PUB 197 validated, AES-XTS 256-bit hardware encryption. All components incorporated within the diskAshur M2 are completely covered by a layer of super tough epoxy resin, which is virtually impossible to remove without causing permanent damage to the components. The drive is also designed to be tamper evident making it obvious to the User if it has been opened and tampered with.
Brute force hack defence mechanism
Intelligently programmed to protect against all forms of brute force attacks.
If the User PIN is entered incorrectly 10 consecutive times, the User PIN will be deleted and the drive can only be accessed by entering the Admin PIN which resets the User PIN. (Admin can change this from the default 10 incorrect PIN entries, to 1-9, for the User only)
If the Admin PIN is entered incorrectly 10 consecutive times, all data, PINs and the encrypted encryption key will be lost forever.
Incorporates a Common Criteria EAL5+ certified (Hardware) secure microprocessor
Which enhances security through true random number generation and built-in cryptography. The data encryption key is protected by FIPS and Common Criteria validated wrapping algorithms
Offers ultimate security against hackers, detecting and responding to tampering with features such as:
•
• Advanced protection against physical attacks, including Active Shield, Enhance Protection Object, CStack checker, Slope Detector and Parity Errors
• Environmental Protection Systems protecting against voltage monitor, frequency monitor, temperature monitor and light protection
• Secure Memory Management/Access Protection
All data stored on the diskAshur M² is encrypted using FIPS PUB 197 validated, AES-XTS 256-bit hardware encryption. All components incorporated within the diskAshur M² are completely covered by a layer of super tough epoxy resin, which is virtually impossible to remove without causing permanent damage to the components. The drive is also designed to be tamper evident making it obvious to the User if it has been pried open and tampered with.
The onboard keypad is covered with a layer of polymer coating that protects the keys and hides key usage to avoid tipping off a potential hacker to commonly used keys.
Which makes it perfect for corporate and government deployment. If the User forgets their PIN, the drive can be unlocked using the Admin PIN. The Administrator can then allow the User to set a new User PIN.
The Admin can set a restriction policy for the User PIN. This includes setting the minimum length of the PIN, as well as requiring the input of one or more ‘Special Characters’. The ‘Special Character’ functions as ‘SHIFT + digit’.
Lightning fast backwards compatible USB 3.2 data transfer speeds.
Admin configurable, extremely useful in situations where a User has forgotten their PIN, allowing the User to unlock the device and set a new User PIN.
No software required; the drive will work on any device with a USB port. USB Type C and Type A connectivity (included)
Install an OS on the diskAshur M2 and boot directly from it.
Which enhances security through true random number generation and built-in cryptography. The data encryption key is protected by FIPS and Common Criteria validated wrapping algorithms.
Offers ultimate security against hackers, detecting and responding to tampering with features such as:
• Dedicated hardware for protection against SPA/DPA/SEMA, DEMA attacks
• Advanced protection against physical attacks, including Active Shield, Enhance Protection Object, CStack checker, Slope Detector and Parity Errors
• Environmental Protection Systems protecting against voltage monitor, frequency monitor, temperature monitor and light protection
Intelligently programmed to protect against all forms of brute force attacks.
If the User PIN is entered incorrectly 10 consecutive times, the User PIN will be deleted and the drive can only be accessed by entering the Admin PIN or One-time User recovery PIN. (Admin can change this from the default 10 incorrect PIN entries, to 1-9, for the User only)
If the Admin PIN is entered incorrectly 10 consecutive times, all data, PINs and the encrypted encryption key will be lost forever.
The datAshur SD automatically locks when unplugged from the host computer or when power to the USB port is turned off. It can also be set to automatically lock when idle following a predetermined length of time.
Pre-program the diskAshur M² with a self-destruct PIN, once entered, the data, encrypted encryption key and all PINs are deleted and rendered as lost forever.
Deletes the encrypted encryption key, all PINs and renders all data as lost forever. The device can then be redeployed which randomly generates a new encrypted encryption key, a process that can be repeated as many times as required.
Configured with a unique VID/PID and internal/external serial number with barcode, allowing easy integration into standard end-point management software (white-listing), to meet internal corporate requirements.
Protect data against cyber-attacks, data leakage and human error
Comply with data security and confidentiality laws, such as GDPR, CCPA, HIPAA and others
Avoid hefty fines as a result of non-compliance, as well as additional expenses involved in a breach
Keep a secure offline back-up of your data that you can access and quickly restore in the event of a ransomware attack
Gain customer trust
Promote a positive brand reputation
Encourage data protection best practices across the organisation
Maintain business continuity

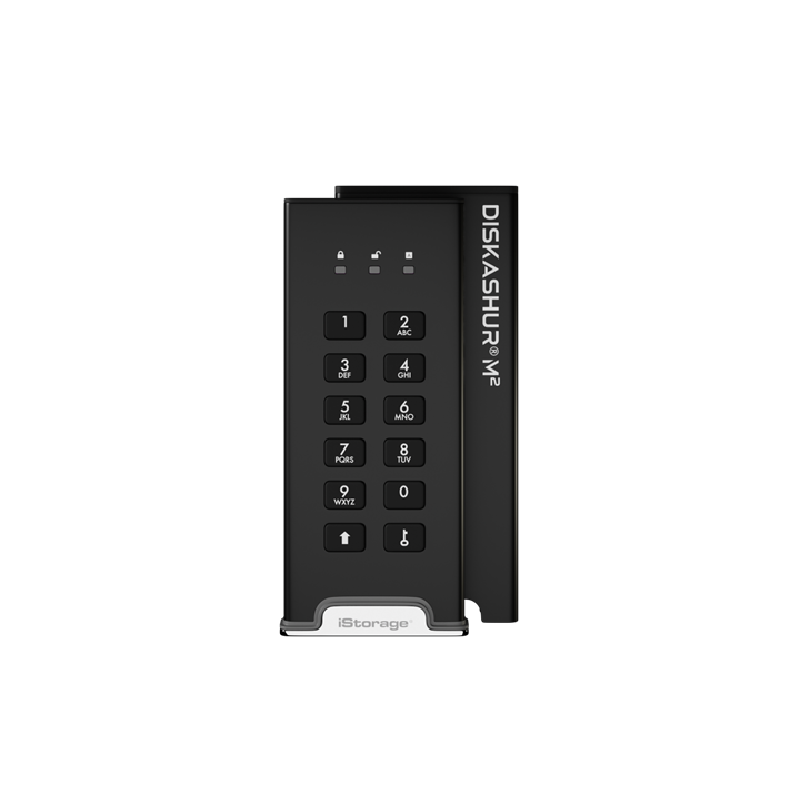

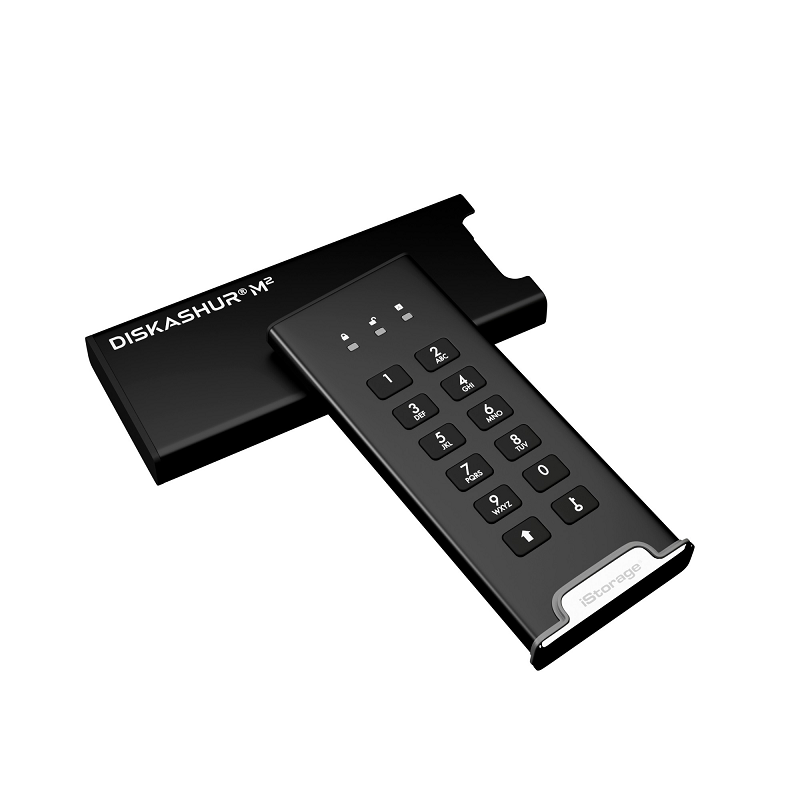

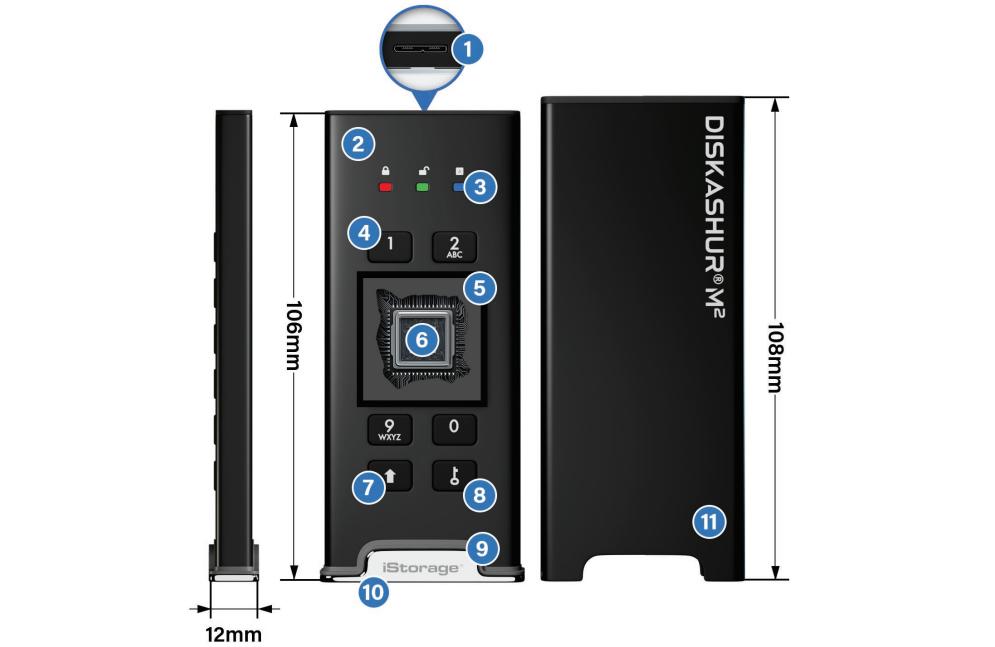

1. Micro B connector
2. Hard anodized and ruggedised extruded aluminium housing
3. LED lights (Red: standby/locked - Green: user mode/unlocked - Blue: admin mode
4. Polymer coated, wear resistant alphanumeric keypad
5. Epoxy coating
6. Common Criteria EAL5+ (Hardware Certified) ready secure microprocessor
7. Key button
8. Shift button
9. Rubber gasket - making the drive waterproof when sleeve is fitted
10. Zinc alloy base
11. Hard anodized and ruggedised extruded aluminium sleeve
Full specification and details can be found in the Product Datasheet PDF file
