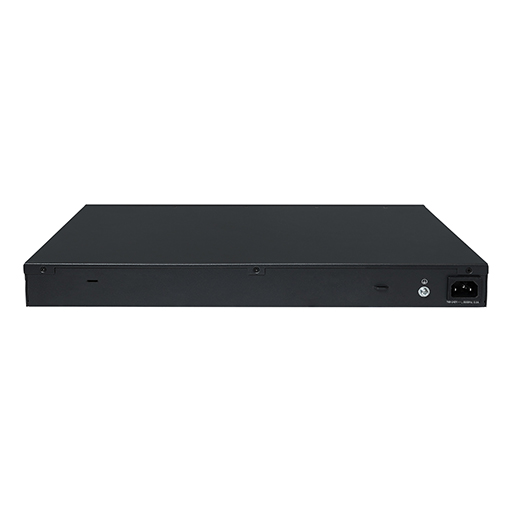

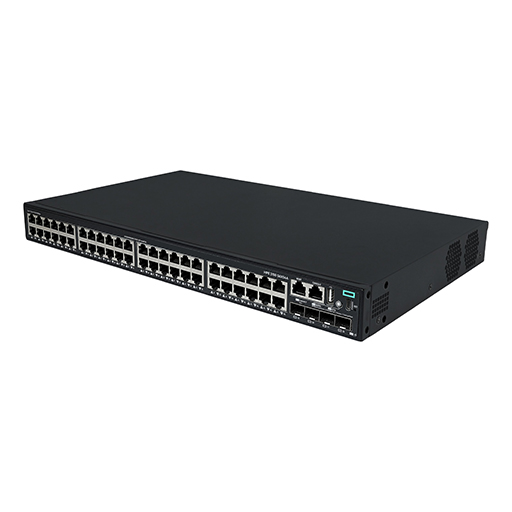

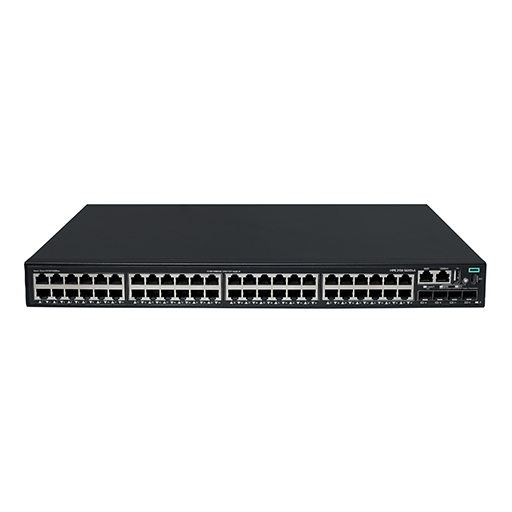

The HPE Networking S6X54A CW 2150 48G PoE+ 4P 770W Switch is part of the HPE Networking CW 2150 Switch Series, delivering fully managed, stackable Layer 3 switching for small and midsize businesses and branch offices. Built for high-density access and power-intensive deployments, this 48-port PoE+ switch combines enterprise-class performance, advanced Layer 3 routing, high-speed 10G uplinks, and a high-capacity PoE budget to support modern SMB networks.
The HPE Networking CW 2150 Series delivers fully managed Layer 3 functionality designed for growing SMB and branch environments. With support for dynamic routing protocols such as RIP and OSPF, the CW 2150 enables scalable and resilient network designs while maintaining straightforward deployment and operation.
Delivering up to 176Gbps of non-blocking bandwidth and forwarding performance of up to 130Mpps, the CW 2150 ensures consistent throughput for demanding workloads. Intelligent Resilient Framework (IRF) allows up to nine switches to operate as a single logical unit, improving availability, simplifying management, and providing link redundancy.
Four integrated 1G/10G SFP+ uplink ports provide flexible, high-speed connectivity to aggregation or core layers. These uplinks help remove access-layer bottlenecks and support bandwidth-intensive applications and future network growth.
With a powerful 770W Class 4 PoE budget, this model is ideal for large-scale deployments of wireless access points, IP phones, security cameras, and IoT devices. Advanced PoE features such as fast PoE, perpetual PoE, and PoE Watchdog help maintain device uptime and improve overall network resilience.
Advanced Quality of Service (QoS) capabilities allow prioritisation of latency-sensitive traffic such as voice and video. Native IPv6 support ensures seamless integration with modern network environments and protects long-term infrastructure investments.
The CW 2150 series includes secure boot, granular IPv4/IPv6 ACLs, role-based access control, and multiple authentication methods including 802.1X, MAC, Web, RADIUS, and TACACS+. Built-in threat-prevention features such as Control Plane Policing, ARP and DHCP protection, ICMP throttling, and port security help safeguard SMB networks.
The HPE Networking CW 2150 Switch Series supports management through an intuitive web GUI, industry-standard CLI, and Smart Management Center (SmartMC). Advanced options include HPE Intelligent Management Center (IMC), SNMP, and REST APIs, enabling centralised management and seamless integration with existing monitoring platforms.
