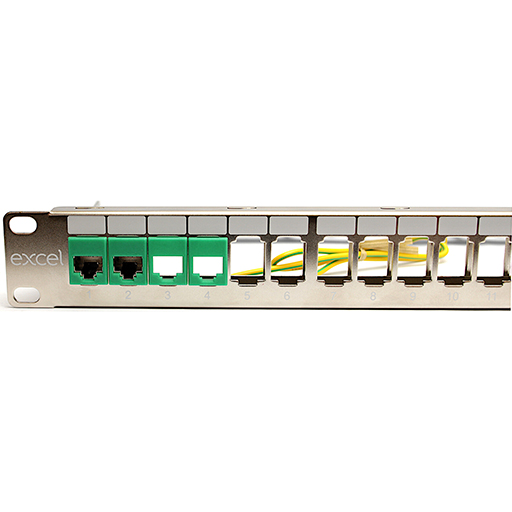

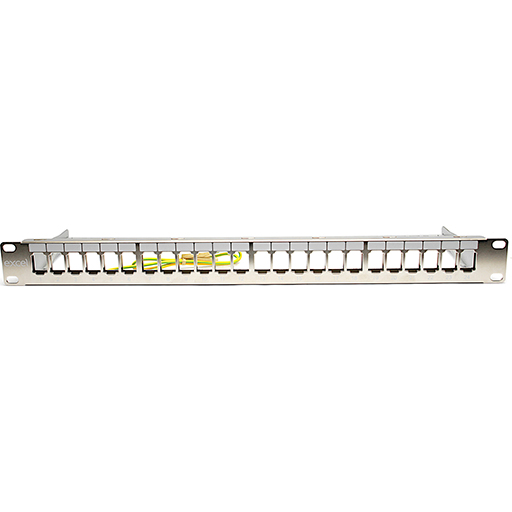

Excel 24 Port FTP Keystone Panel for Coloured ID port inserts

The Excel 24-Port Screened Keystone Patch Panel (Part Code: 100-775) is a 1U silver frame designed to accept screened or unscreened Excel toolless keystone jacks. It supports 24 ports and enables easy port identification using optional coloured ID rings. A snap-in rear cable management tray simplifies installation with no tools required.

Key Features:

• Fits up to 24 screened or unscreened Excel keystone jacks

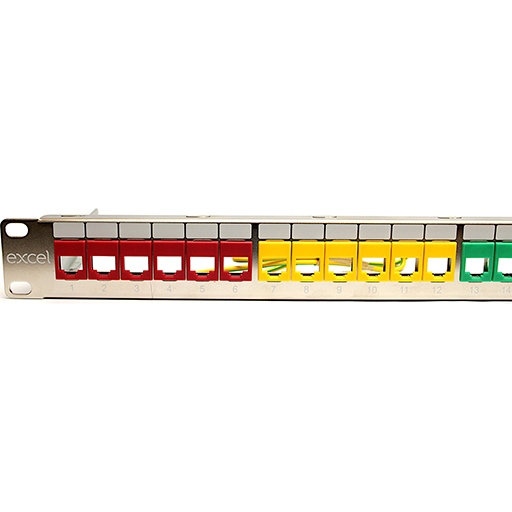

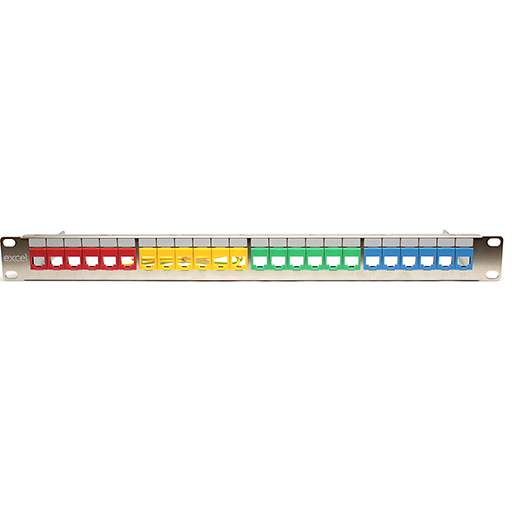

• Supports coloured port ID rings (red, blue, green, yellow - sold separately)
• Includes earth kit and four M6 cage nuts with screws

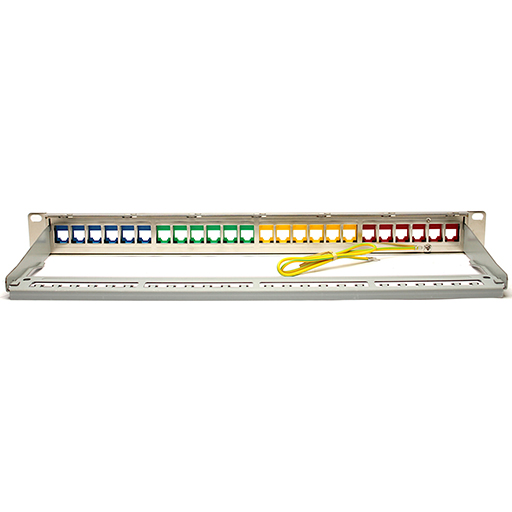

• Snap-in rear cable management tray with cable-tie positions
• Standard 19" (482.6 mm) 1U silver zinc-plated steel housing

Product Specifications

Mounting width: 482.6 mm (19"), Height: 44 mm (1U), Depth: 149.9 mm. Colour: silver. Part Code: 100-775. Designed for high-density network installations across all keystone categories.

Accessories & Compatibility

Coloured ID rings sold separately in packs of six: 100-775-001 (red), -002 (blue), -003 (green), -004 (yellow). Rear tray uses included M6 cage nuts, screws, and 24 cable ties for tidy installations. Compatible with Excel's screened and unscreened toolless keystone jacks.

Installation Advantages

Rear tray snaps into panel without tools, providing integrated cable management. Coloured rings help quickly identify system-specific ports. Fully grounded with earth kit included. Modular design ensures future flexibility.
