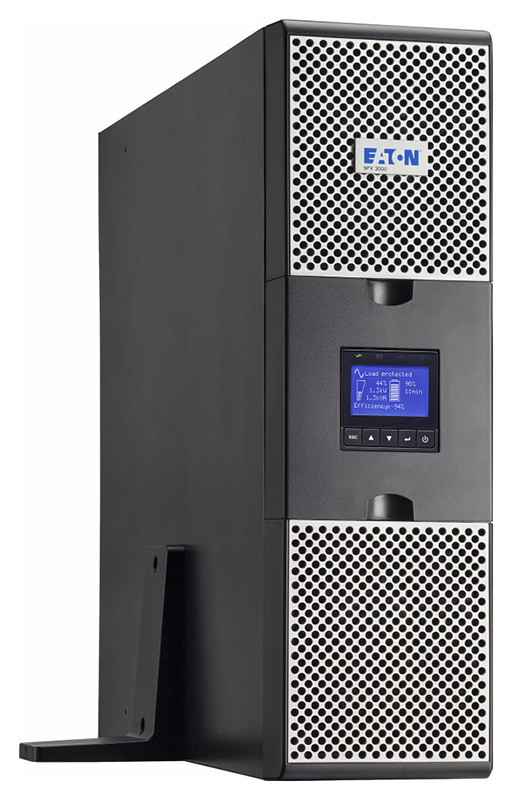

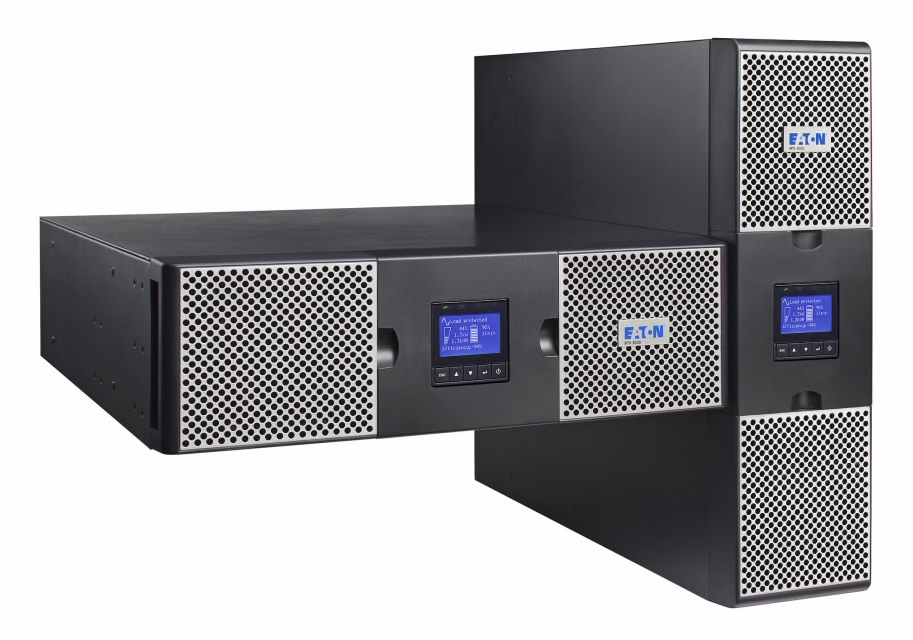

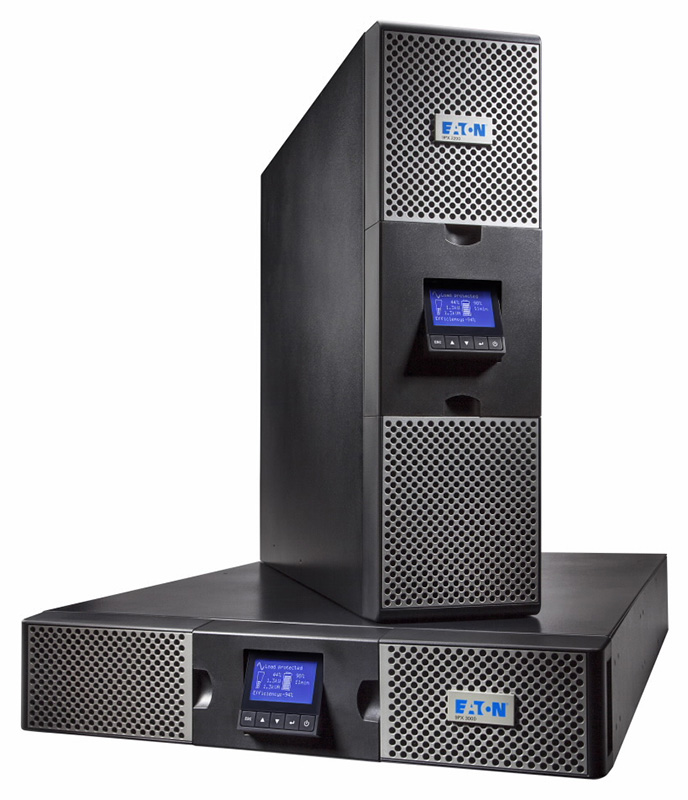

Eaton 9PX2200IRT3UBS 2200VA 2200W Rack/tower 3U UPS

The Eaton 9PX2200IRT3UBS 9PX 3U Desktop/Rackmount Uninterruptible Power Supply provides Unity power factor (VA=W). It delivers 11% more power than any other UPS as well as powering more servers with equivalent VA ratings and lower power factors. Featuring double conversion topology, the Eaton 9PX2200IRT3UBS 9PX constantly monitors power conditions and regulates voltage and frequency. Additionally, with a versatile Rack/Tower form factor, the 9PX2200IRT3UBS is a compact solution delivering up to 2200W in only 3U.

Key Features

• Comes with rackmount kit.
• Online double conversion with Power Factor Correction (PFC) system.
• Graphical LCD display: Clear information on UPS status and measurements with enhanced configuration capabilities.
• Panel for batteries replacement (hot swappable).
• Slot for management card (sold separately, see accessories tab).

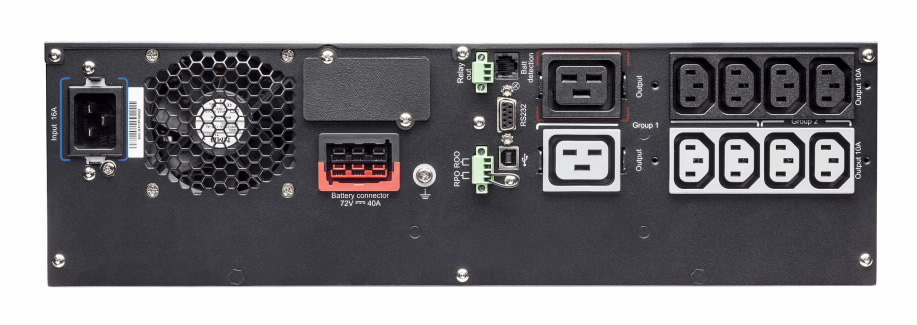

• One (1) USB port, one (1) serial port, remote ON/OFF, remote power OFF and relay output.
• External battery (EBM) connector (external batteries sold separately).
• Eight (8) C13 outlets and two (2) C19 outlets.

Manageability

• The graphical LCD display provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.
• The 9PX2200IRT3UBS can meter energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
• Load segment control enables prioritised shutdowns of non-essential equipment to maximise battery runtime for critical devices.
• The 9PX2200IRT3UBS offers Serial and USB connectivity, plus an extra slot for an optional communication card (sold separately). Eaton’s Intelligent Power Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.

Availability and Flexibility

• The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available for easy replacement of the UPS.
• Stronger, longer battery life: Eaton ABM battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%.
• More runtime can be added with up to four (4) external hot-swappable battery modules (sold separately), able to run systems for hours if necessary.

Standard Warranty: 3-Years (UPS), 2-Years (Battery)
