| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FE5P1550GR-LBS |
| Manufacturer No: | 5P1550GR-LBS |
| Delivery: | In Stock: 7-10 Days |
 |
Product Overview

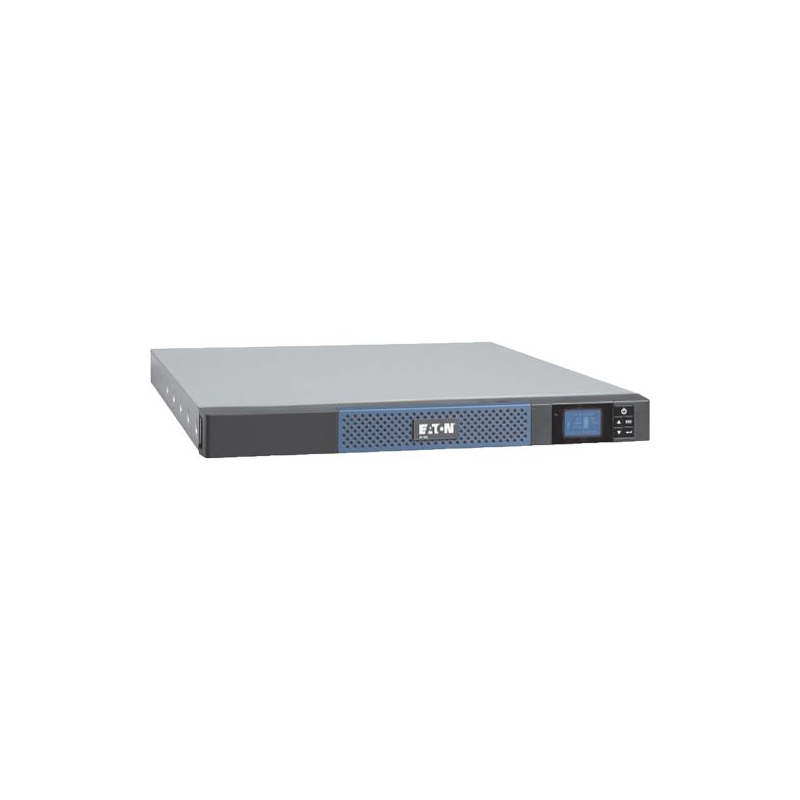

Eaton 5P UPS, Global, 1U UPS, 1550 VA, 1100W, Input: (1) C14, Outputs: (6) C13, Rackmount/Wallmount, Lithium-ion battery, true sine wave, network card optional, with BS input cord
General Specifications
| Secondary Frequency - Max | 60 Hz |
| Output Waveform | Sine wave |
| Wattage | 1100 W |
| Output Power Factor | 0.7 |
| Form Factor | Rack |
| Mounting Method | Rackmount |
| Includes Network Card | No |
| Input Connection | C14 |
| Input Voltage - Min | 150 V |
| Output Voltage - Max | 240 V |
| Secondary Frequency - Min | 50 Hz |
| Software Compatibility | Eaton Intelligent Power Manager (included) |
| Battery Replacement | User replaceable |
| Battery Type | Lithium-ion |
| Efficiency | 97 |
| Special Features | Eaton 5P UPS with lithium-ion batteries |
| Construction Type | 482.6 mm (19 inch) device |
| Output Voltage - Min | 200 V |
| Colour | Black/silver |
| Topology | Line-interactive |
| BTU Rating | Online: 113, Battery 714 |
| Runtime At Half Load | 11 min |
| Input Power Factor | 1 |
| Input Frequency Range | 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode |
| Input Voltage - Max | 294 V |
| Voltage Type | AC |
| Phase (Output) | 1 |
| Battery Management | Integrated battery management system (BMS) for temperature regulation and life cycle monitoring |
| Auto Shutdown Function | Yes |
| Number Of Outputs C13 | 6 |
| VA Rating | 1550 VA |
| Potential Free Switch Contact | Yes |
| Receptacle | (6) C13 |
| Phase (Input) | 1 |
| Package Contents | UPS, Quick start guide, USB cable, RS-232 serial cable, 4-post rail kit, 2 IEC-to-IEC jumper cables, Output cable locking system, BS input cord |
Product Overview
Eaton 5P UPS, Global, 1U UPS, 1550 VA, 1100W, Input: (1) C14, Outputs: (6) C13, Rackmount/Wallmount, Lithium-ion battery, true sine wave, network card optional, with BS input cord
General Specifications
| Secondary Frequency - Max | 60 Hz |
| Output Waveform | Sine wave |
| Wattage | 1100 W |
| Output Power Factor | 0.7 |
| Form Factor | Rack |
| Mounting Method | Rackmount |
| Includes Network Card | No |
| Input Connection | C14 |
| Input Voltage - Min | 150 V |
| Output Voltage - Max | 240 V |
| Secondary Frequency - Min | 50 Hz |
| Software Compatibility | Eaton Intelligent Power Manager (included) |
| Battery Replacement | User replaceable |
| Battery Type | Lithium-ion |
| Efficiency | 97 |
| Special Features | Eaton 5P UPS with lithium-ion batteries |
| Construction Type | 482.6 mm (19 inch) device |
| Output Voltage - Min | 200 V |
| Colour | Black/silver |
| Topology | Line-interactive |
| BTU Rating | Online: 113, Battery 714 |
| Runtime At Half Load | 11 min |
| Input Power Factor | 1 |
| Input Frequency Range | 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode |
| Input Voltage - Max | 294 V |
| Voltage Type | AC |
| Phase (Output) | 1 |
| Battery Management | Integrated battery management system (BMS) for temperature regulation and life cycle monitoring |
| Auto Shutdown Function | Yes |
| Number Of Outputs C13 | 6 |
| VA Rating | 1550 VA |
| Potential Free Switch Contact | Yes |
| Receptacle | (6) C13 |
| Phase (Input) | 1 |
| Package Contents | UPS, Quick start guide, USB cable, RS-232 serial cable, 4-post rail kit, 2 IEC-to-IEC jumper cables, Output cable locking system, BS input cord |
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
