2.5 Gigabit Ethernet Smart Managed Switches

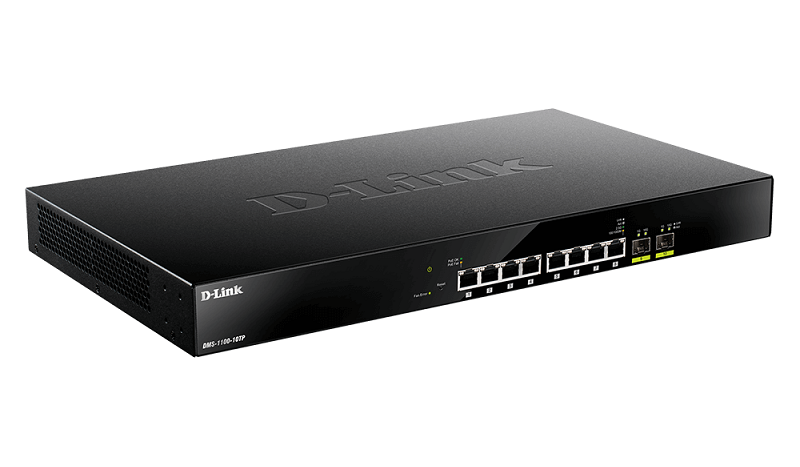

The DMS-1100-10TP is a great value range of 2.5 Gigabit switches capable of servicing a range of business needs. Featuring eight 2.5 Gigabit PoE access ports and two 10 Gigabit SFP+ uplinks, it's ideal for deploying multiple high-performance access points or surveillance equipment. Take advantage of Power over Ethernet (PoE) for highly flexible deployments.
The DMS-1100 Series feature eight 2.5 Gigabit PoE ports and two dedicated SFP+ ports, altogether offering an impressive 80 Gbps switching capacity. It is perfect for a deployment of Wave 2 access points, while the uplinks provide more than enough bandwidth when accessing the larger local network.

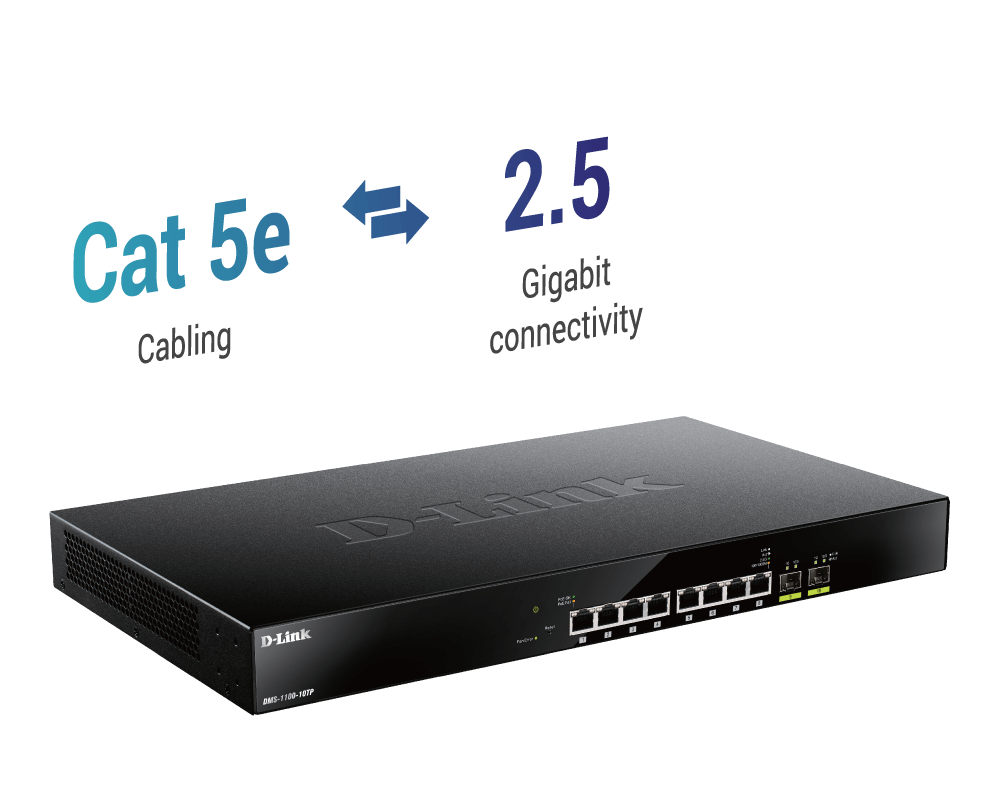

The DMS-1100-10TP is a future-ready solution, designed for the upcoming years of connectivity. As more businesses replace older Ethernet with 2.5G to support increasingly powerful access points, you can rest assured this switch will keep on serving you well. It is also a big deal for your CAPEX thanks to backwards compatibility. It can push Cat 5e cabling to its limit, allowing 2.5 Gigabit connectivity over it, so you get the absolute most out of your existing cabling.

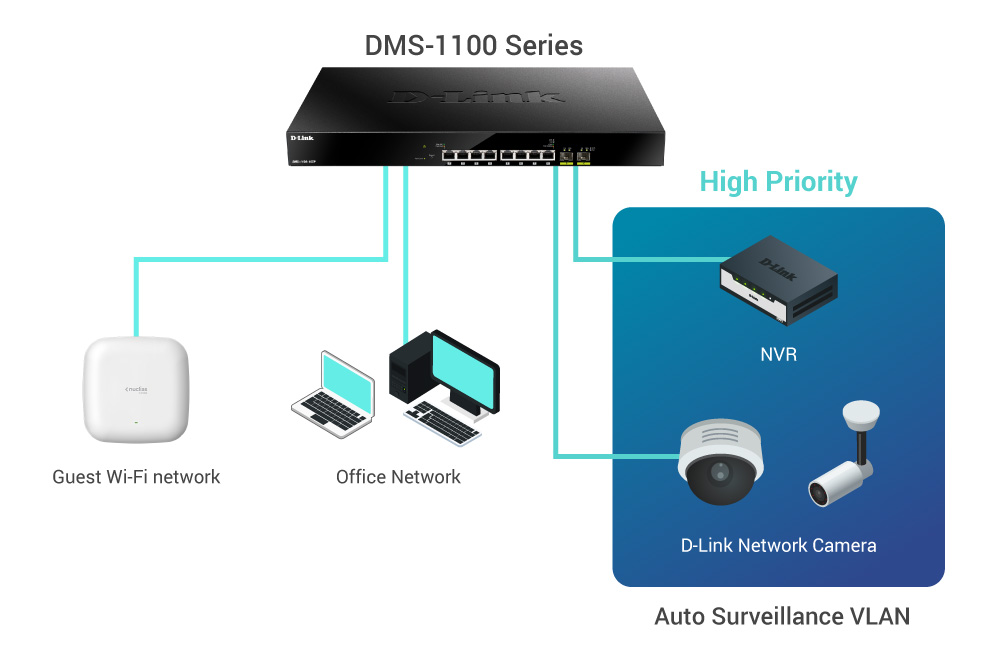

If you have surveillance cameras or related devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. The DMS-1100 Series intelligently sorts surveillance traffic automatically into a separate VLAN. It can also head off a variety of malicious attacks by isolating sensitive areas of the network.

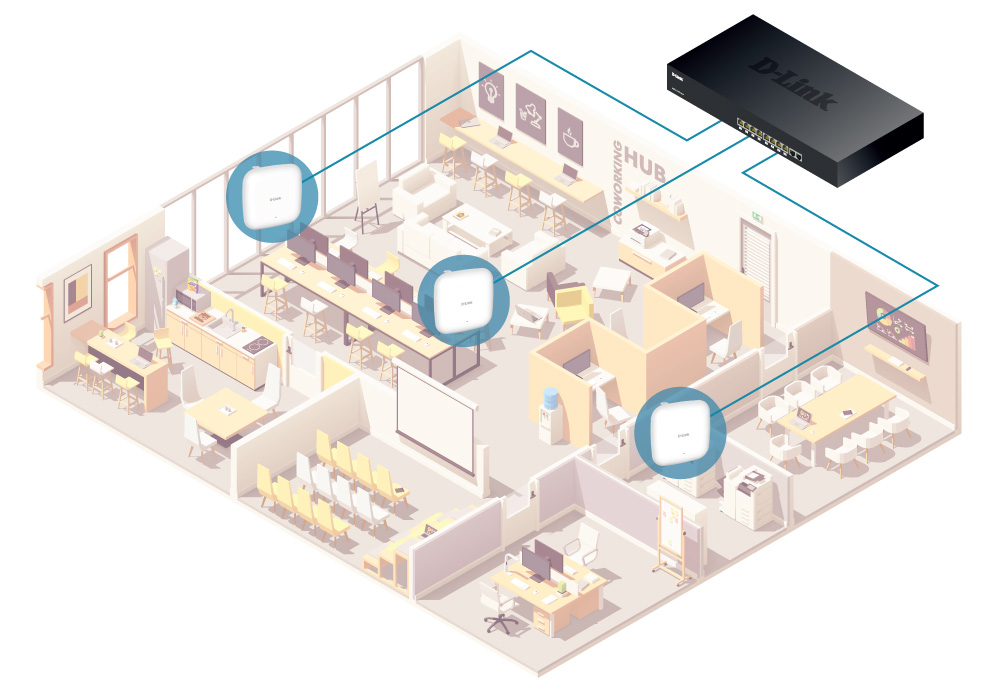

The DMS-1100-10TP is PoE-ready, with a hefty 240W power budget, allowing for a rapid rollout of supported access points. No need to connect your APs to power supplies, simply connect via Ethernet cable and they have all the power they need.
When data is running smoothly, so does your business. The DMS-1100 Series is packed with Layer 2 features for a more efficient network and rapid troubleshooting abilities.
| Physical | |
| Standby Power Consumption | PoE on: 293.4 W / PoE off: 38.1 W |
| AC Input | 100 to 240 VAC |
| Operating Temperature | -5 to 50 °C / 23 to 122 °F |
| Temperature (Storage) | -40 to 70 °C / -40 to 158 °F |
| Humidity (Operating) | 0% to 95% non-condensing |
| Humidity (Storage) | 0% to 95% non-condensing |
| Dimensions | 440 x 250 x 44 mm / 17.32 x 9.84 x 1.73 in |
| Weight | 3.43 kg / 7.56 lbs |
| General | |
| Interfaces | 8 x 100/1000/2.5GBASE-T PoE ports / 2 x SFP+ ports |
| Port Standard & Functions | IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X, IEEE 802.3bz 2.5GBASE-T, IEEE 802.3ae 10G over fiber, IEEE 802.3az, IEEE 802.3af/at (DMS-1100-10TP) |
An installation guide be found in the PDF file
