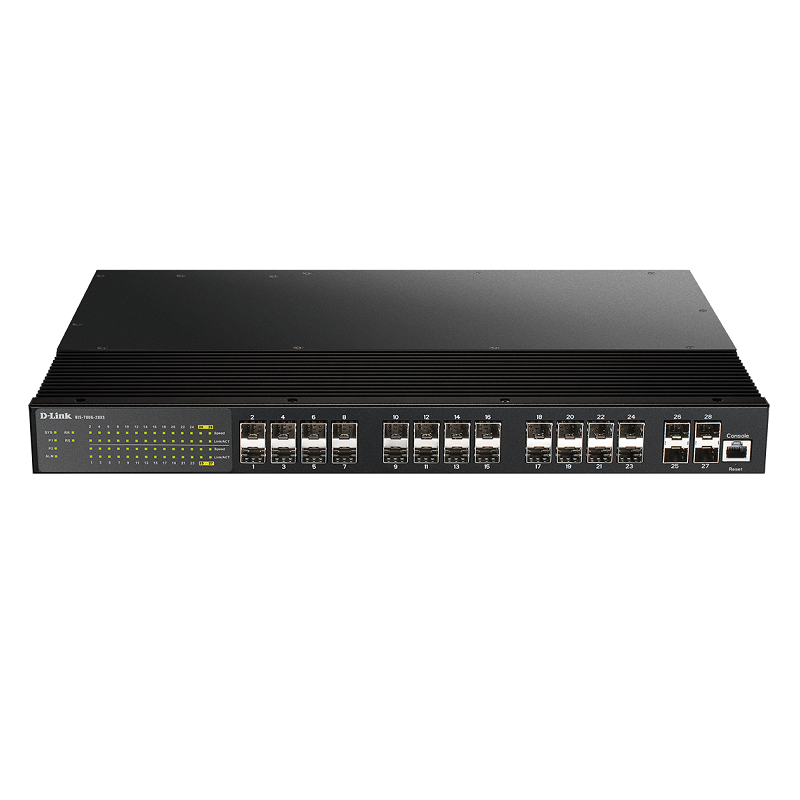

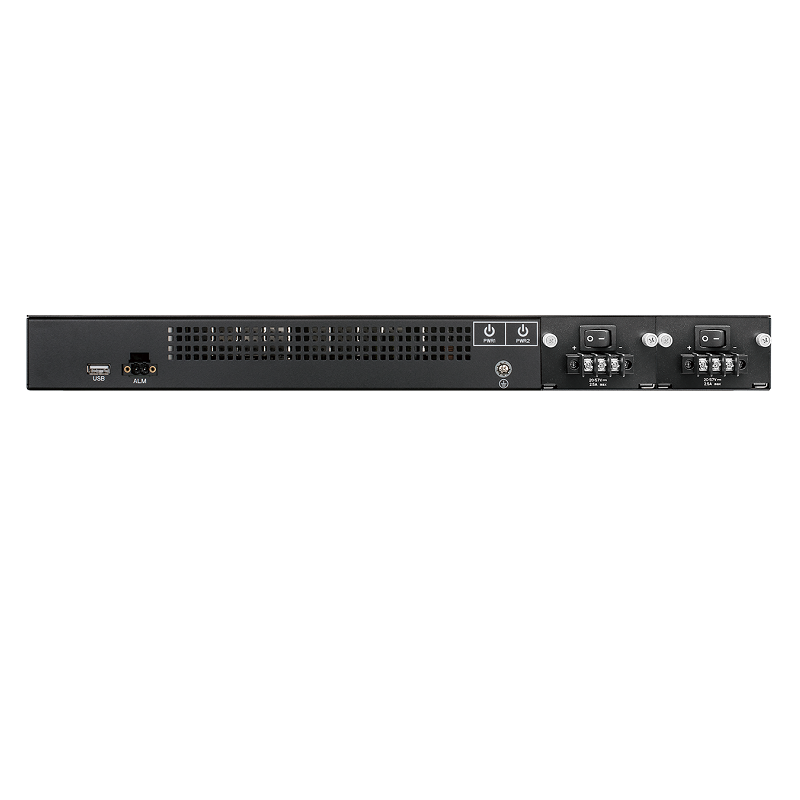

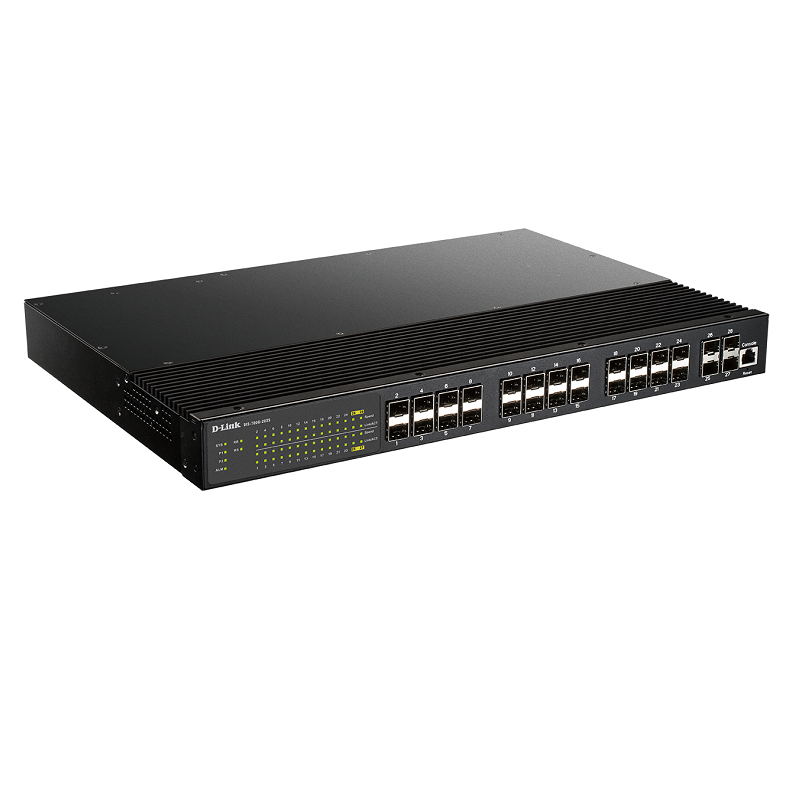

Industrial Layer 2+ Gigabit Managed Switch with 10G SFP+ slots
The DIS-700G Series Industrial Layer 2+ Gigabit Managed Switch are designed specifically to withstand temperature range, vibrations and shock. These rugged, yet easy to deploy, switches have superior environmental specification compared to those of commercial network switches. With its hardened design combined with high availability network features, these switches form vital parts of any network infrastructure facilitating the increasing demand for smart cities, city-wide surveillance and wireless connectivity.
The DIS-700G-28XS L2+ Gigabit Managed Switch with 10 Gigabit uplinks is a 28-port aggregation switch. It provides high overall throughput and reduces the response time for time-sensitive video, voice and data applications. It offers advanced intelligent Quality of Service (QoS) features such as SPQ, WRR, SPQ+ WRR scheduling schemes with hierarchical perport, per queue shaping & scheduling with bandwidth management.
For the core of your network, the DIS-700G-28XS features user management interfaces and provides diagnostics, security and controls to shape your managed network needs.
Designed with 24 x SFP ports and 4 x 10G SFP+ slots (1G SFP backwards compatible) to suit a range of devices and network layouts.
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Operates effortlessly in a range of industrial and harsh environments in temperatures from –40°C to +75°C.
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Rugged, Hardened Design
Design to operate in wide temperature ranges, vibration, shock, allowing the switches to be deployed in enclosures or cabinets in outdoor locations.
High Availability
Comprehensive network redundancy features with fast fault recovery, together with advanced security features provides industrial-grade reliability and protection.
Multi-layer ACL Support
Flexible combination of Layer 2/3/4 support for VLAN ID, MAC address, Ether type, source/destination IP address, UDP/TCP, DSCP or TsS value.
Management features | |
Multicast support | Yes |
Traffic shaping | Yes |
Switch type | Managed |
Quality of Service (QoS) support | Yes |
Switch layer | L2+ |
Network | |
Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1w, IEEE 802.3x |
VLAN support | Yes |
10G support | Yes |
Virtual LAN features | Multicast VLAN |
Ports & interfaces | |
Installed SFP modules quantity | 24 |
Installed SFP+ modules quantity | 4 |
USB 2.0 ports quantity | 1 |
Console port | RJ-45 |
Power connector | DC-in jack |
Power | |
Power connector | DC-in jack |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (typical) | 35 W |
Design | |
Form factor | 1U |
Product colour | Black |
Rack mounting | Yes |
Operational conditions | |
Operating temperature (T-T) | -10 - 65 °C |
Operating relative humidity (H-H) | 5 - 95 % |
Full specification and details can be found in the Product Datasheet PDF file
