| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | BSPWR8VDC |
| Manufacturer No: | PWR8VDC |
| Delivery: | In Stock: 5-7 Days |
 |

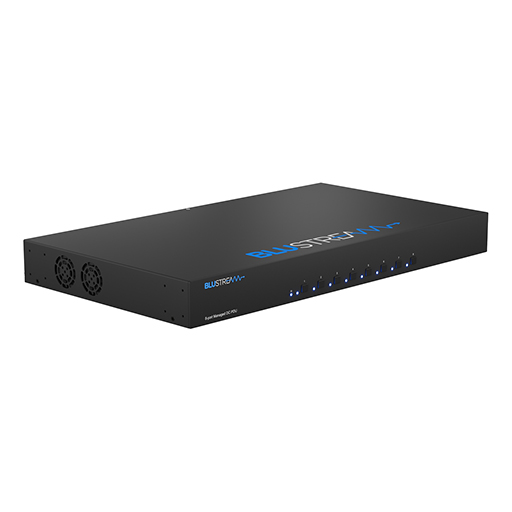

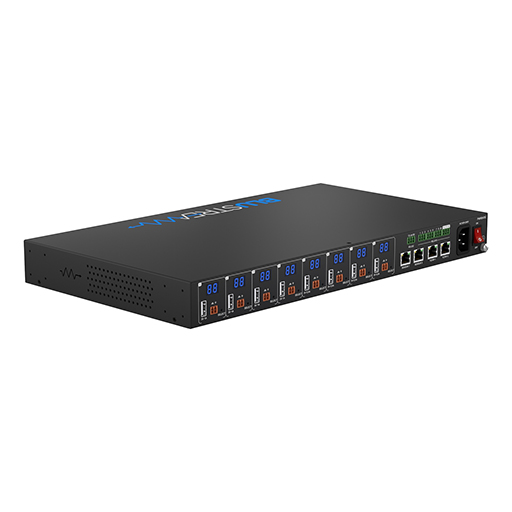

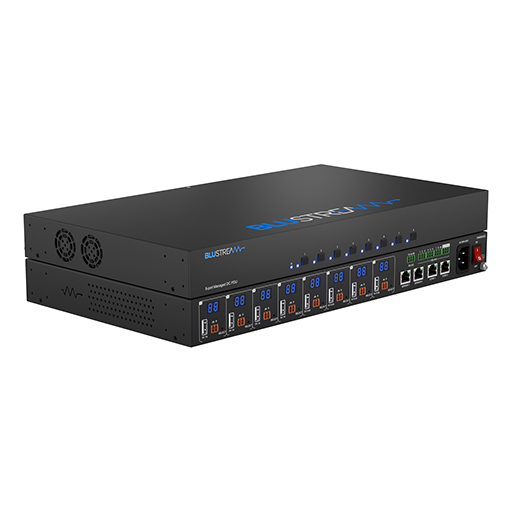

The PWR8VDC is an outlet-level metered and switched smart PDU designed for low-power devices requiring configurable DC voltage outputs. Combining precise voltage control, advanced monitoring, and automation-ready interfaces, it provides a centralised power solution for control systems, sensors, and peripheral equipment.
The PWR8VDC uses a single IEC C14 AC power inlet to supply eight independently configurable DC output outlets via 2-pin Phoenix connectors. Each outlet can be set to the required voltage to support a wide range of low-power devices from a single platform.
Each outlet supports selectable output voltages of 5V at up to 6A, 9V or 12V at up to 2.5A, and 18V or 24V at up to 1.25A. This flexibility allows mixed-device deployments while maintaining a maximum of 30 watts per outlet.
Eight integrated USB-A ports provide managed power for third-party devices. Ports 1–4 deliver 5V at 1A, while ports 5–8 provide 5V at 500mA, enabling reliable power distribution to peripherals and accessories.
Comprehensive monitoring of voltage, current, power, and energy consumption is available for all outputs. Built-in overload protection and interference filtering help maintain system stability and protect connected equipment.
The PDU supports control via IP, RS-232, front panel buttons, and relay inputs. A dedicated mains switch allows complete system power control, supporting both local operation and remote automation workflows.
Dual IP network ports provide uninterrupted access for monitoring and control. SSL connectivity ensures secure communication for remote management across networked environments.
Eight relay connections enable automated switching of the power inlet and individual DC outlets when triggered by third-party control platforms or BMS systems. Two multi-format sensor ports support integration with temperature, humidity, air pressure, and security sensors.
A built-in web-based graphical interface provides secure, password-protected access for configuration, monitoring, and control, delivering real-time visibility of power status and system performance.
Housed in a 1U chassis, the PWR8VDC is designed for standard 19-inch rack installations. The included rack mounting kit enables fast deployment in professional control and equipment racks.
The PWR8VDC is an outlet-level metered and switched smart PDU designed for low-power devices requiring configurable DC voltage outputs. Combining precise voltage control, advanced monitoring, and automation-ready interfaces, it provides a centralised power solution for control systems, sensors, and peripheral equipment.
The PWR8VDC uses a single IEC C14 AC power inlet to supply eight independently configurable DC output outlets via 2-pin Phoenix connectors. Each outlet can be set to the required voltage to support a wide range of low-power devices from a single platform.
Each outlet supports selectable output voltages of 5V at up to 6A, 9V or 12V at up to 2.5A, and 18V or 24V at up to 1.25A. This flexibility allows mixed-device deployments while maintaining a maximum of 30 watts per outlet.
Eight integrated USB-A ports provide managed power for third-party devices. Ports 1–4 deliver 5V at 1A, while ports 5–8 provide 5V at 500mA, enabling reliable power distribution to peripherals and accessories.
Comprehensive monitoring of voltage, current, power, and energy consumption is available for all outputs. Built-in overload protection and interference filtering help maintain system stability and protect connected equipment.
The PDU supports control via IP, RS-232, front panel buttons, and relay inputs. A dedicated mains switch allows complete system power control, supporting both local operation and remote automation workflows.
Dual IP network ports provide uninterrupted access for monitoring and control. SSL connectivity ensures secure communication for remote management across networked environments.
Eight relay connections enable automated switching of the power inlet and individual DC outlets when triggered by third-party control platforms or BMS systems. Two multi-format sensor ports support integration with temperature, humidity, air pressure, and security sensors.
A built-in web-based graphical interface provides secure, password-protected access for configuration, monitoring, and control, delivering real-time visibility of power status and system performance.
Housed in a 1U chassis, the PWR8VDC is designed for standard 19-inch rack installations. The included rack mounting kit enables fast deployment in professional control and equipment racks.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
