| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FE0913-001 |
| Manufacturer No: | 0913-001 |
| Delivery: | In Stock: 1-2 Days |
 |

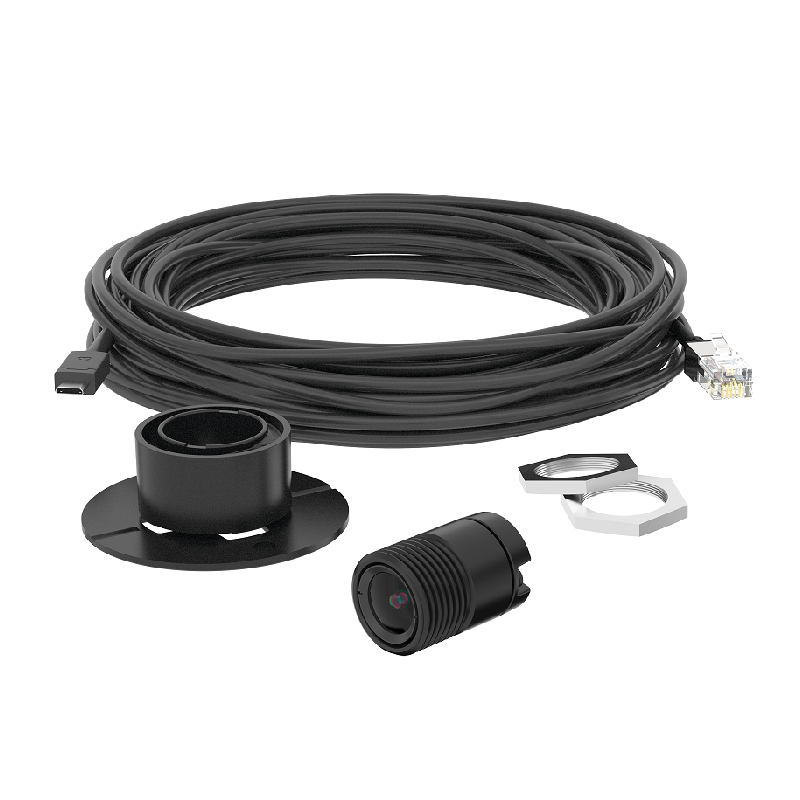

AXIS FA1105 Sensor Unit
Highly discreet indoor surveillance in 1080p
• Flexible, highly discreet design for indoor use
• Standard lens with 1080p resolution
• Wide 111° horizontal field of view
• Forensic WDR

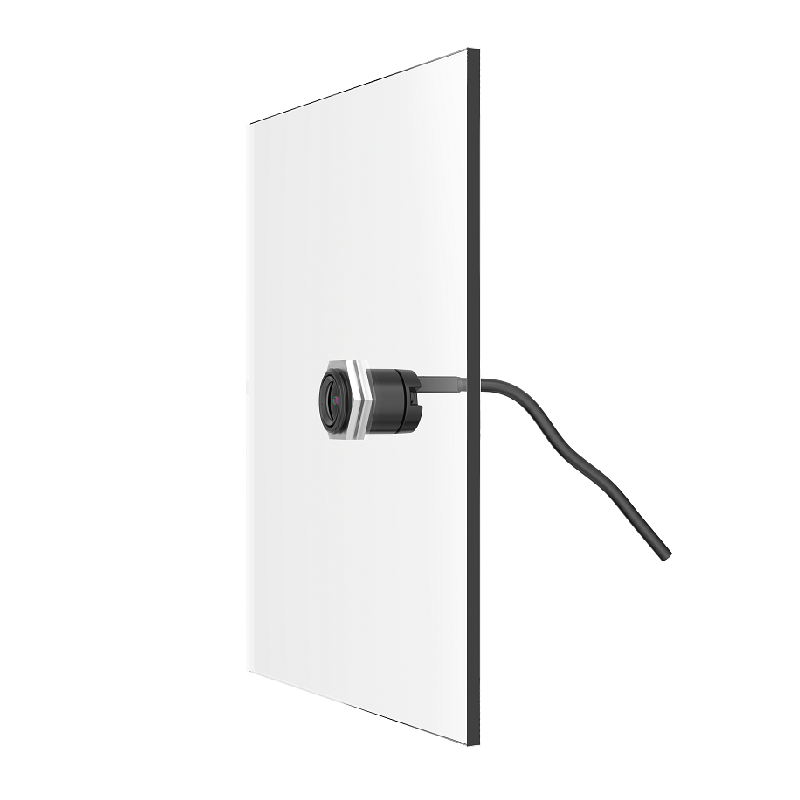

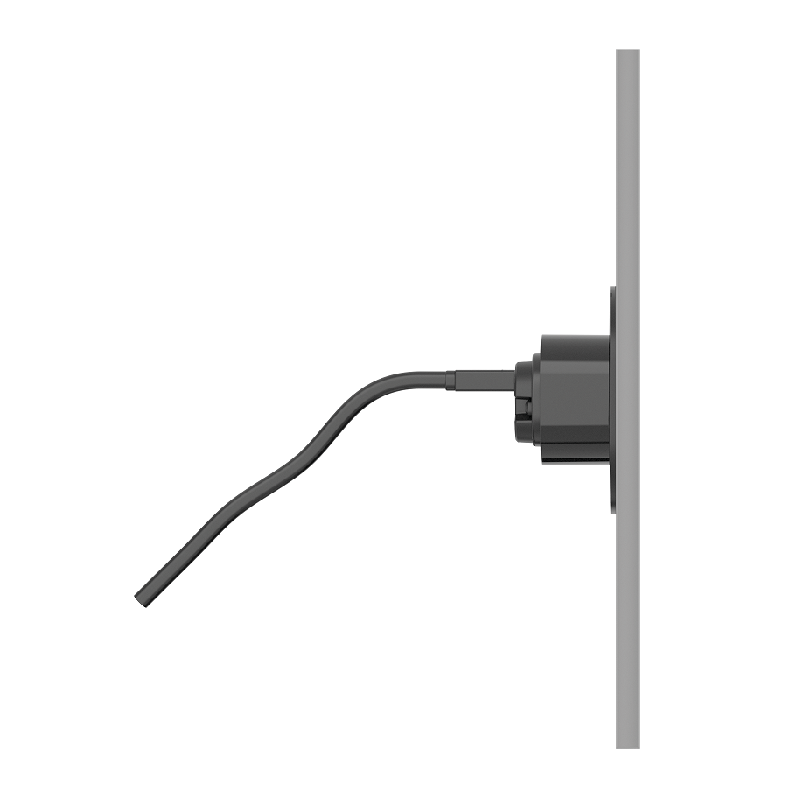

The thumb-sized AXIS FA1105 Sensor Unit is ideal for discreet indoor surveillance applications in stores, banks and airports, and when integrated in machines. The sensor unit’s small size means you can install it in tight places or mount it discreetly at eye level to better capture people’s faces. When flush-mounted in a wall, ceiling or metal panel, only a small hole for the lens is visible.

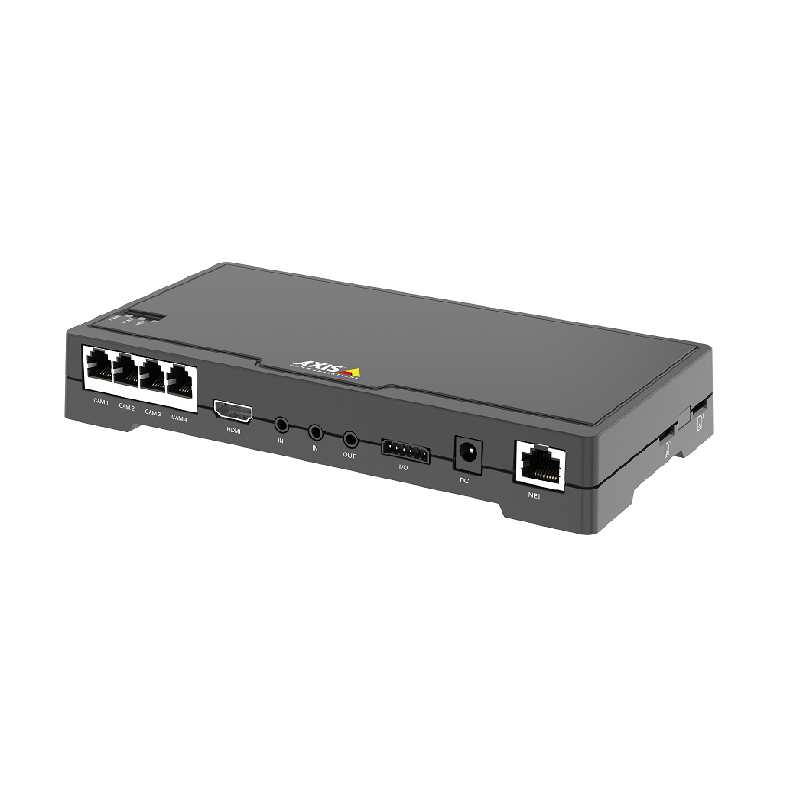

For use with the separately sold AXIS FA54 Main Unit, AXIS FA1105 provides a 1080p resolution (1920 x 1080 pixels) and a 111º horizontal field of view for wide area coverage.
AXIS FA1105 supports Forensic WDR at all times, enabling details to be visible even in high-contrast lighting conditions, such as in a backlight scenario where you have a person standing in front of a very bright background. The sensor unit, together with the main unit, prioritizes the darker areas of such a scene, enabling colors and details to be clearly visible. The WDR technology in AXIS FA Series is also optimized for motion, so there is no motion artifact when a fast-moving object passes by. In low light scenes, AXIS FA1105 delivers excellent color video with low noise.

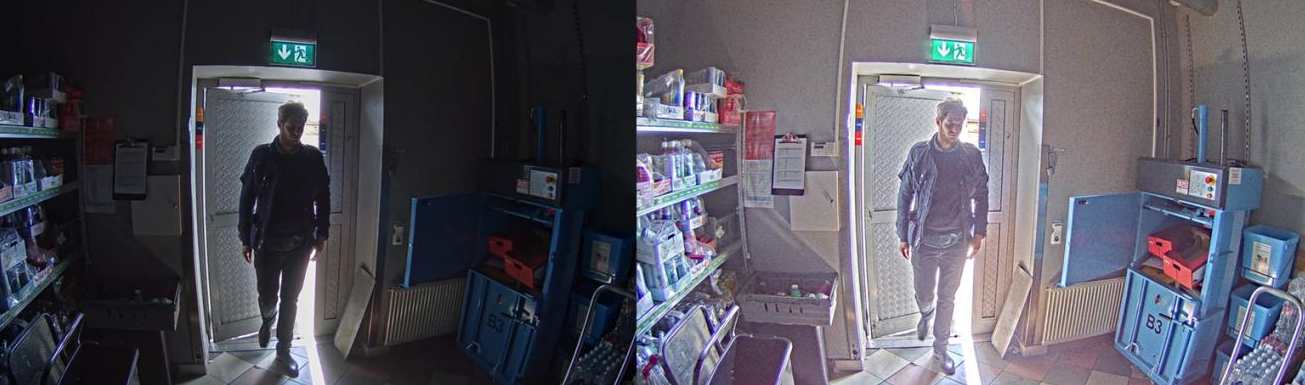

No WDR (left) vs. Forensic WDR (right): With Forensic WDR in AXIS FA1105 and AXIS FA54, colors and details in the darker areas are more visible.
For use with an AXIS F Main Unit, AXIS F4005 provides a 1080p resolution and a wide 113º horizontal field of view. It has a tilt range of 120°, enabling the sensor unit to be directed to the desired viewing area. AXIS F4005 also supports Axis’ Corridor Format to suit more vertically oriented areas such as staircases, hallways and aisles. A rotation tool is supplied for leveling the image. The sensor unit comes with a 12-m (39 ft.) cable for connection to a main unit.
For maximum forensic value and usability in scenes with both very bright and very dark areas.
Save bandwidth and space without sacrificing valuable information.
| Features | |
| Housing material | Aluminium, Plastic |
| Type | Sensor unit |
| Placement supported | Indoor |
| Product colour | Black |
| Image sensor size | 1/3" |
| Sensor type | CMOS |
| Viewing angle, horizontal | 111° |
| Viewing angle, vertical | 61° |
| Resolution | 1920 x 1080 pixels |
| F-number (relative aperture) | 2 |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -20 - 50 °C |
Full specification and details can be found in the Product Datasheet PDF file
